KUBE II Lottery Printer Setup Guide

Date:

Monday, August 11, 2014

Notice of Rights:

proprietary

information and such information may not be

reproduced whole or in part without written permission from:

Amano McGann, Inc.

2699 Patton Road

Roseville, Minnesota

55113

Notice of Liability:

Amano makes no representations or warranties with respect to the accuracy or completeness of the contents of this work and specifically

disclaim all warranties, including without limitation warranties of fitness for a particular purpose. Amano reserves the right to make equipment

changes and

improvements

that may not be reflected in this document. Portions of this document may have been updated to include the latest

hardware or firmware version, if applicable.

recommend

that this document be read in its entirety before any attempt is made to operate the equipment.

Trademark Notice:

Amano is a registered trademark of Amano Inc. All other trademarks are the property of their respective owners.

Contact Information:

Every effort has been made to ensure the accuracy of this document. If you have comments, question, or ideas regarding this document

please send them to Amano via e‐mail to:

or, via postal mail to:

techwriter@am

anomcgann.com

Amano McGann, Inc.

Technical

ter

2699 Patton Road

Roseville, Minnesota

55113

For more information about Amano’s complete line of products, visit our web site at:

www.amanomcgann.com

Date

Monday, August 11, 2014

Product

KUBE II Lottery Printer

Build/Revision

Model

Validation Printer

Document Type

Setup Guide

Version

Company Name ‐ Long

Amano McGann, Inc.

Company Name ‐ Short

Amano McGann

Street

2699 Patton Road

City/State/Postal Code

Roseville, Minnesota 55113

Telephone

(612) 331‐2020

Fax

(612) 331‐5187

[email protected]

Website

www.amanomcgann.com

File Name

Validation_Printer_Setup_01282014

Validation_Pr

nter

_Setup_01282014

KUBE II Lottery Printer Setup Guide

Contents

Chapter 1: Introduction 4

Specifications 4

Hardware Installation 5

Inventory 5

Components 6

Dimensions and Weight 7

Turning Printer On/Off 7

Chapter 2: Maintenance 10

Chapter 3: Driver Installation 16

Validation_Pr

nter

_Setup_01282014

KUBE II Lottery Printer Setup Guide

Chapter 1: Introduction

KUBE II POS thermal printer ideal for the retail and the hospitality industries. It is the perfect solution for shops thanks to its

compact,

attract

and sturdy design and because it can be mounted either vertically or horizontally. KUBE II is powerful and fast: it prints on receipts

that are 80/82.5mm wide with an extraordinary print quality; the characters and graphics can be positioned in any direction. The 90mm large

paper size allows a high degree of printing autonomy. KUBE II is distinguished by unparalleled performance, robustness and reliability: it is

equipped with a very high quality long‐life print head (200km of printed paper), and the new cutter for automatic receipt cutting that ensures

maximum functionality for more than 2 million cuts. KUBE II prints logos and coupons at high resolution. KUBE II is completed with accessories

such as the "splash‐proof" protection and sides available in different colors (red, silver and beige). KUBE II is available with USB and RS232

serial interface or Ethernet interface, with drawer driver..

Specifications

Receipt/invoice/orders printer

RS232+USB/Ethernet

Powerful and fast: 250mm/sec

Prints high quality logo and coupon graphics

It prints 1D and 2D barcodes

80/82.5mm paper width

Paper thickness: 63 μm

Autonomy: paper diameter 90mm

Long lasting printing head (200Km printed paper)

Well‐built and reliable

Auto‐cutter 2.000.000 cuts

Size: 209mm (L)x140mm (W)x152mm (H)

Validation_Pr

nter

_Setup_01282014

KUBE II Lottery Printer Setup Guide

Hardware Installation

Inventory

1. User

manual

2. Guarantee

sheet

3. Upper foam packing shell

4. Power supply cable

5. RS232 serial cable

Printer

7. Additional feet for vertical use

8. Lower foam packing shell

9. Power

supply

10.

Box

11. Paper

roll

Validation_Pr

nter

_Setup_01282014

KUBE II Lottery Printer Setup Guide

Components

1. Opening levers of paper compartment

2. Cover for paper compartment

3. Near paper end sensor

4. Blade for manual tear‐off

5. Paper presence sensor

6. Sensor of cover open

7. Status

led

8. FEED

key

9. ON/OFF

key

10. Serial RS232 connector

11. USB

connector

12. Drawer connector

13. Power supply connector

Validation_Pr

nter

_Setup_01282014

KUBE II Lottery Printer Setup Guide

Dimensions and Weight

Weight: 2.3 Kg without paper roll

Length: 209 mm

Height: 152 mm

Width: 140 mm

Validation_Pr

nter

_Setup_01282014

KUBE II Lottery Printer Setup Guide

Turning Printer On/Off

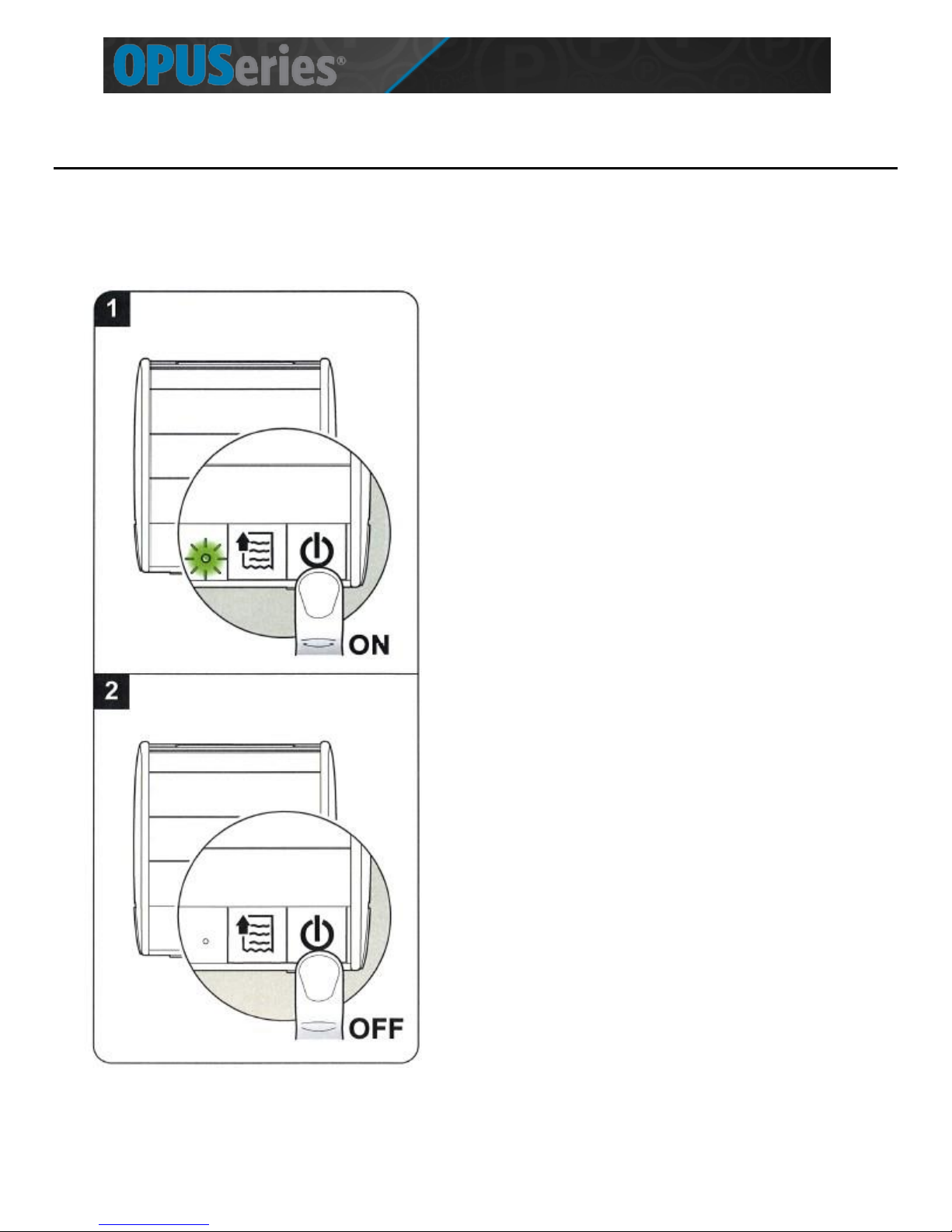

1. Switch printer ON pressing key ON/Off. The status led will turn on.

2. Switch printer OFF pressing key ON/OFF. The status led will turn off.

Validation_Pr

nter

_Setup_01282014

KUBE II Lottery Printer Setup Guide

NOTE: During power up, do not hold down the ON/ OFF key because the printer enters in a test mode and it is

unusable by keys; in this case, tum the printer off and on again without pressing any key

Validation_Pr

nter

_Setup_01282014

KUBE II Lottery Printer Setup Guide

Chapter 2: Maintenance

To change the paper roll, proceed as follows:

1. Lift the opening levers.

2. Open the printer cover
