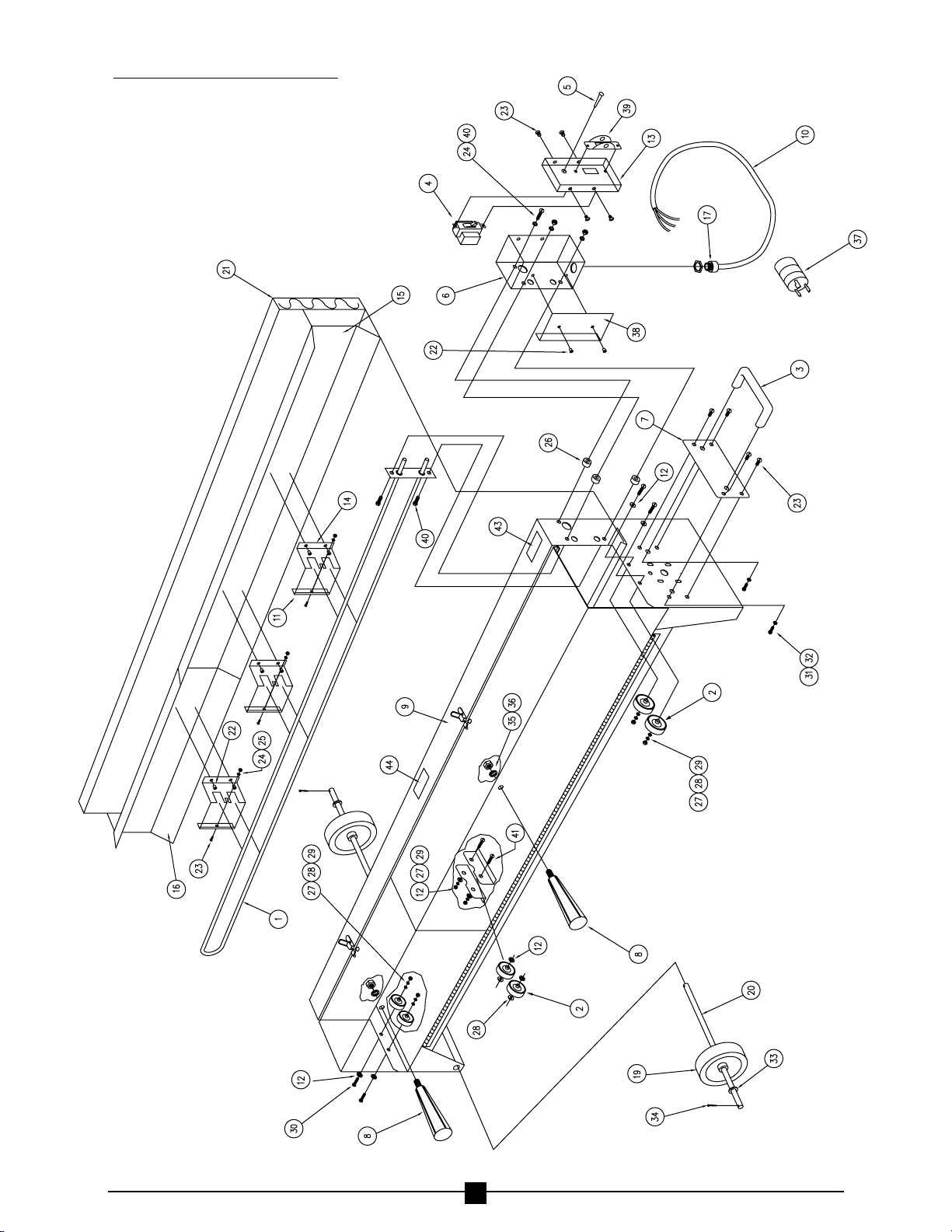

PARTS LIST – 452 PVC HEATER
PARTS LIST — 450 PVC Heater
ITEM# PART # QTY DESCRIPTION
1 .............................452-1 .............................. 1............................... HEATING ELEMENT
2 ......................... 9518SR-9 ........................... 6................................... SKATE WHEEL
3 ............................450-11 ............................. 1.................................... LIFT HANDLE
4 ............................452-19 ............................. 1......................................... SWITCH
5 ............................452-20 ............................. 1................................ INDICATOR LIGHT
6 .............................452-6 .............................. 1.................................ELECTRICAL BOX
7 ............................452-13 ............................. 1...........................COVER PLATE (HANDLE)
8 ............................452-18 ............................. 2...................................DOOR HANDLE
9 ............................452-30 ............................. 1.............................. MAIN HOUSING FAB
10 ..........................452-31 ............................. 1....................................POWER CORD
11 ......................... .452-15............................. 3................................... RETAINER CLIP
12 ..........................452-22 ............................. 8...............................ADAPTER BUSHING
13 ...........................452-5 .............................. 1................................ COVER-ELEC. BOX
14 ..........................452-14 ............................. 3.............................. RETAINER BRACKET
15 ..........................452-10 ............................. 1...............................HEAT SHIELD-LONG
16 ..........................452-11 ............................. 1..............................HEAT SHIELD-SHORT
17 ..........................452-21 ............................. 1...................................STRAIN RELIEF
18 .........................452-719 ............................ 2.................. JUMPER WIRE – 6" (NOT SHOWN)
19 ..........................451-13 ............................. 2..........................................WHEEL
20 ..........................452-26 ............................. 1........................................... AXLE
21 ...........................450-9 .............................. 1................INSULATION-2" THICK ( 10"W ×70"L )
22 ........................ 450-28A ............................ 8............................... RIVET-3/16 × 1/4 SS
23 ..........................451-22 ............................ 11............. SCREW - PAN HD PHILLIPS 10-32 × 3/8"
24 .........................450-14J ............................ 6................................#10 FLAT WASHER
25 ..........................451-21 ............................. 6..................................#10-32 HEX NUT
26 ..........................450-20 ............................. 3......................................... SPACER
27 ........................ 450-14G ............................ 6............................... 1/4" LOCK WASHER
28 ......................... 450-14
I
............................. 6................................1/4" FLAT WASHER
29 ........................ 450-14C ............................ 6.................................. 1/4-20 HEX NUT
30 ..........................450-29 ............................. 4............SCREW – PAN HD PHILLIPS 1/4-20 × 1 1/4"
31 ........................ 450-11A ............................ 2...................... HEX HD. CAP SCREW M8 × 12
32 ........................ 450-11B ............................ 2................................M8 LOCK WASHER
33 ..........................451-25 ............................. 2................................1/2" FLAT WASHER
34 ..........................451-23 ............................. 2..................................... COTTER PIN
35 ..........................452-27 ............................. 2................................3/8 LOCK WASHER
36 ..........................452-28 ............................. 2.................................. 3/8-16 HEX NUT
37 ..........................452-29 ............................. 1.................................... POWER PLUG
38 ..........................452-33 ............................. 1.................................... HEAT SHIELD
39 ........................ 452-19A ............................ 1..............................SWITCH PROTECTOR
40 ......................... 452-6D ............................. 3.............. SCREW –PAN HD PHILLIPS 10-32 × 3/4"
41 ......................... 452-1B ............................. 2..............SLOTTED MACH. SCREW 1/4-20 × 1 1/2"
42 ..........................452-23 ............................. 1.............. DECAL – INSTRUCTION (NOT SHOWN)
43 ..........................452-24 ............................. 1...................PLATE – METAL, SERIAL NUMBER
44 ..........................450-34 ............................. 1...................PLATE – METAL, CAUTION “HOT”
