Cuisinart GAS1456ASO Manual de usuario

4 Burner Dual Fuel Gas Grill

Model GAS1456ASO

ASSEMBLY INSTRUCTIONS

ASSEMBLY INSTRUCTIONS:

READ ALL SAFETY WARNINGS & ASSEMBLY INSTRUCTIONS CAREFULLY

BEFORE ASSEMBLING OR OPERATING YOUR GRILL.

WE RECOMMEND TWO PEOPLE WORK TOGETHER WHEN ASSEMBLING THIS UNIT.

The following tools are required to assemble this Cuisinart 4 Burner Gas Grill:

• Phillips Screwdriver

Note: Most hardware is pre-attached to the grill. You may need to loosen some screws

partially while others may need to be removed in order to assemble parts. The screws that

you remove will be re-used so don’t misplace this hardware.

Extra screws are included in a small bag with the owners manual.

PARTS LIST:

1 Front Right Leg

1 Front Panel

1 Front Left Leg

1 Right Side Panel

1 Left Side Panel

1 Cart Brace

1 Cart Base

1 Left Rear Leg

1 Back Panel

1 Right Rear Leg

1 Side Burner Grate

4 Heat Tents

1 Side Burner Knob

1 Right Side Control Panel

1 Grease Cup

1 Warming Rack

1 Heat Shield

1 Right Side Table

1 Left Side Table

1 Grill Body

1 Left Side Control Panel

4 Casters

3 Cooking Grates

1 Grease Tray

1 Bar

19 18

21 14

Step 1b

• Loosen 6 screws

3-4 turns on

FRONT LEGS

and

• Do not remove

screws

• Attach FRONT

PANEL using

keyholes

• Tighten 6 screws

FRONT PANEL

123

NOTE: Before tightening keyhole

screws, make sure panels are aligned.

• Loosen screw on

each BRACKET

• Rotate all

BRACKETS

upward and lock

into slot

• Tighten screws

Step 1a

108

1 3

BRACKETS

• Loosen 2 screws

• Attach LEFT

SIDE PANEL

• Tighten 2 screws

on LEFT SIDE

PANEL

Step 3

LEFT

SIDE

PANEL

• Loosen 3 screws

• Attach RIGHT

SIDE PANEL

• Tighten 3 screws

on RIGHT SIDE

PANEL

Step 2

RIGHT SIDE

PANEL

• Attach CART

BASE

• Make sure TANK

• BRACKETS are

on this end (See

drawing below)

• Tighten 4 screws

(Removed from

Step 4)

Step 5

Tighten 4 screws

CART BASE

• Remove 6 screws

• Attach CART

BRACE

• Tighten two

screws on CART

BRACE

Step 4

Remove 2 screws Remove 2 screws

CART BRACE

TANK BRACKETS

• Loosen 6 screws

on REAR LEGS

and

• Attach BACK

PANEL

• Tighten 4 screws

• Remove 6 screws

• Attach CART

BASE to rear

legs

• Tighten 4 screws

(Removed from

Step 6)

Remove 2 screws Remove 2 screws

Remove 2 screws

CART BASE

Step 6

Step 7

BACK PANEL

910

810

• Lock CASTERS

• Attach CASTERS

to legs

Step 9

CASTERS

locked

unlocked

• Attach LEFT

SIDE PANEL

and CART

BRACE

• Tighten 4 screws

Step 8 LEFT

SIDE

PANEL

Screws removed

in Step 6

CART BRACE

• Set cart upright on

CASTERS

Step 10

• Loosen 2 bottom

screws

Step 11a

CART BASE

TOP VIEW

Loosen bottom screws

Step 12

Remove screws

Loosen screw

Remove screws Loosen screw

LEFT SIDE

RIGHT SIDE

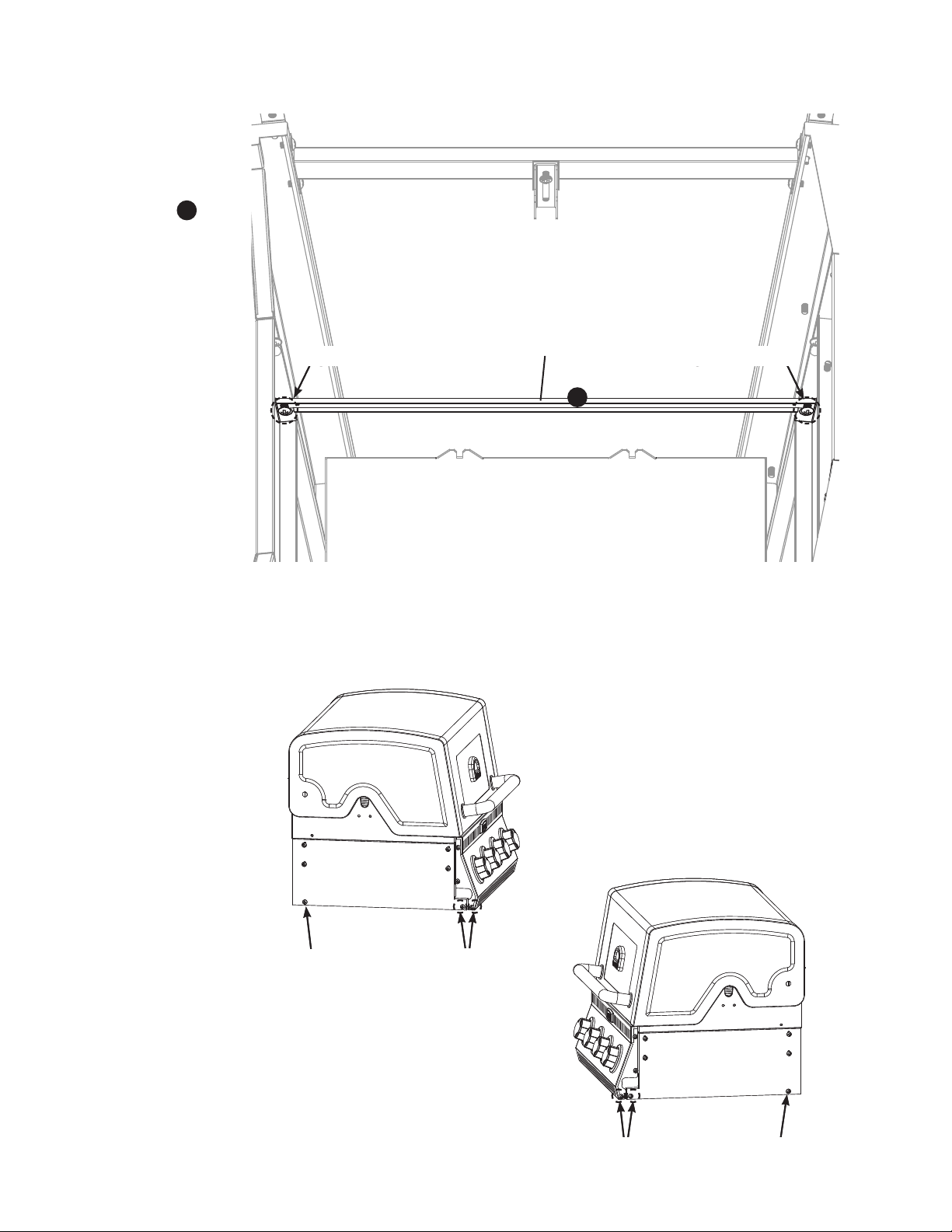

• Install BAR

• Tighten 2 screws

Step 11b

Tighten screw Tighten screw

BAR

CART BASE

• Loosen screw

• Remove 2 screws

• Loosen screw

• Remove 2 screws

Step 12

Remove screws

Loosen screw

Remove screws Loosen screw

LEFT SIDE

RIGHT SIDE

• Install BAR

• Tighten 2 screws

Step 11b

Tighten screw Tighten screw

BAR

CART BASE

LEFT SIDE

RIGHT SIDE
