Stainless 6 Burner Gas Grill

Model GAS0656AF

ASSEMBLY INSTRUCTIONS

ASSEMBLY INSTRUCTIONS:

READ ALL SAFETY WARNINGS & ASSEMBLY INSTRUCTIONS CAREFULLY

BEFORE ASSEMBLING OR OPERATING YOUR GRILL.

WE RECOMMEND TWO PEOPLE WORK TOGETHER WHEN ASSEMBLING THIS UNIT.

The following tools are required to assemble this Cuisinart 6 Burner Gas Grill:

• Phillips Screwdriver

• Pliers or Wrench

PARTS LIST:

1 Grill Body

6 Heat Tents

3 Cooking Grates

1 Warming Rack

1 Left Side Table

1 Right Side Table

1 Sear Burner Grate

1 Side Burner Grate

2 Knobs

2 Door Handles

1 Grease Tray Handle

1 AA Battery

1 Grease Cup

1 Sear Buner Grease Tray

1 Left Side Control Panel

1 Right Side Control Panel

1 Sear Burner Wind Guard

Note: Most hardware is pre-attached to the grill. You may need to loosen some screws

partially while others may need to be removed in order to assemble parts. The screws

that you remove will be re-used so don’t misplace this hardware.

Extra screws are included in a small bag with the owners manual.

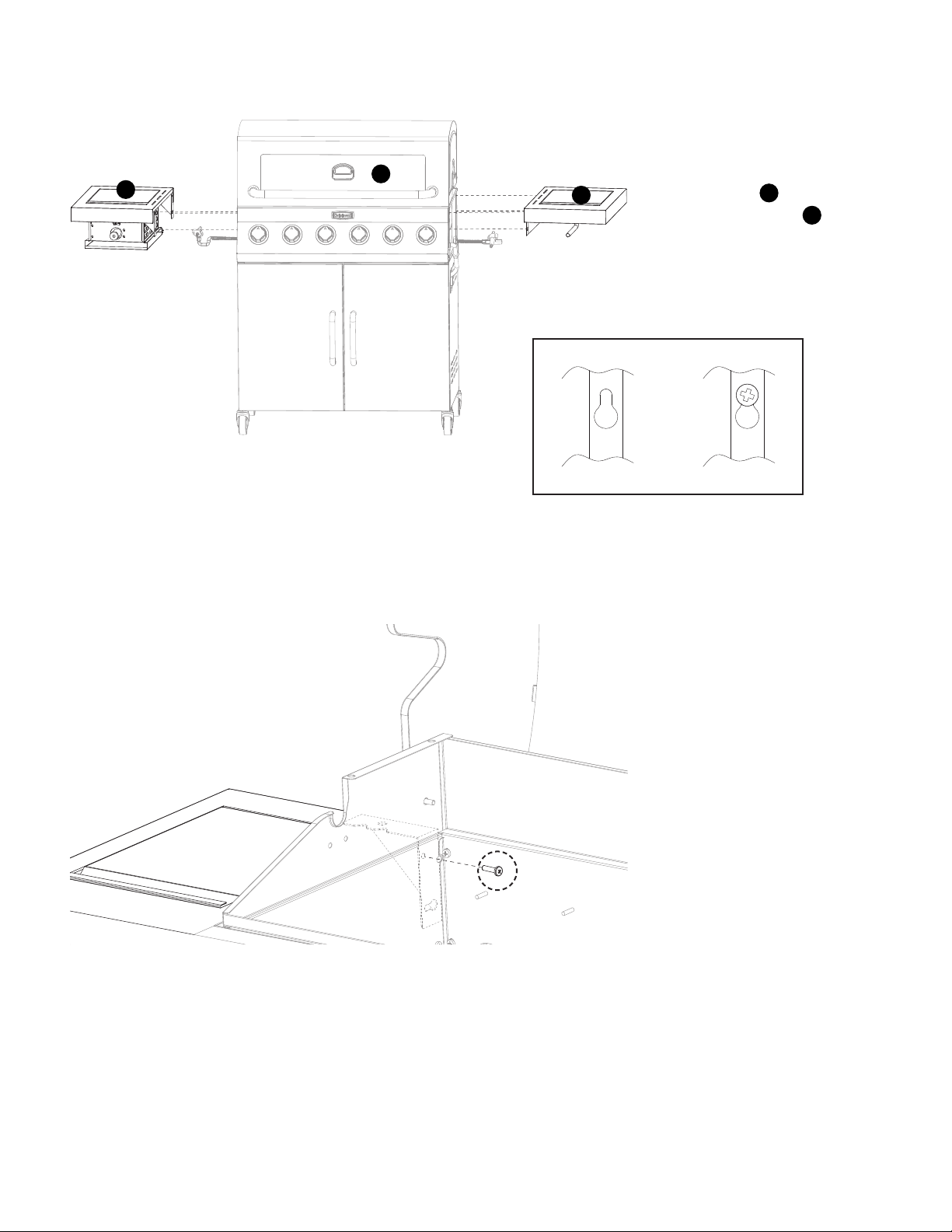

Step 2

• Remove 2 screws form

GRILL BODY 1

• Remove screw from

LEFT SIDE TABLE 5

Step 1

Remove screw

Remove 2 screws

NOTE: Before tightening keyhole

screws, make sure panels are aligned.

Step 4

Step 3

• Attach LEFT SIDE

TABLE 5and RIGHT

SIDE TABLE 6using

keyholes

• Install screw through

rebox (Removed in

Step 1)

• Attach ELECTRODE

WIRE to IGNITOR

Step 6

IGNITOR

Step 5

• Remove 2 screws from

SIDE BURNER VALVE

• Insert SIDE BURNER

VALVE through holes in

RIGHT SIDE CONTROL

PANEL 16

• Tighten 2 screws on

RIGHT SIDE CONTROL

PANEL 16

• Attach RIGHT SIDE

CONTROL PANEL 16 to

RIGHT SIDE TABLE 6

using keyholes and screw

(Removed in Step 2)

make sure BURNER

VENTURI ts over

VALVE NOZZLE

RIGHT SIDE

CONTROL

PANEL 6

BURNER

VENTURI

VALVE

NOZZLE

ELECTRODE

WIRE

IGNITOR

BUTTON

Step 7a

Step 7b

IGNITOR

BLACK

ELECTRODE

WIRE

• Attach BLACK

ELECTRODE WIRE to

IGNITOR

• Attach IGNITOR WIRES

to back of IGNITOR

BUTTON

IGNITOR

WIRES (RED

& WHITE)

Step 9

Step 8

LEFT SIDE

CONTROL

PANEL

• Remove 2 screws from

SEAR BURNER VALVE

• Insert SEAR BURNER

VALVE through holes in

LEFT SIDE CONTROL

PANEL 15

• Tighten 2 screws on

LEFT SIDE CONTROL

PANEL 15

• Attach LEFT SIDE

CONTROL PANEL 15 to

RIGHT SIDE TABLE 5

using keyholes and screw

(Removed in Step 2)

make sure BURNER

VENTURI ts over

VALVE NOZZLE

BURNER

VENTURI

VALVE

NOZZLE

• Loosen 4 screws on

SEAR BURNER WIND

GUARD 17

• Install SEAR BURNER

WIND GUARD 17 using

keyholes

• Tighten 4 screws

Tighten 4 screws

Loosen 4 screws

• Remove 2 screws from

GREASE TRAY

• Attach GREASE TRAY

HANDLE 11 using 2

screws

Step 10

Step 11

• Install HEAT TENTS 2,

COOKING GRATES 3

and WARMING RACK 4

• Install SEAR BURNER

GRATE 7and SIDE

BURNER GRATE 8

• Install SEAR BURNER

and SIDE BURNER

KNOBS 9

• Install DOOR HANDLES

10 (Screws and inserts

are pre-attached to

handles)

Step 12

10 10

Step 13

• Install SEAR BURNER

GREASE TRAY 14 and

GREASE CUP 13
