Cube Controls SP01 Manual de usuario
User guide
Before you start please read the manual carefully before
you use the steering wheel.
Any modifications, tampering, changes or unauthorized
uses of the product will void the warranty.
The steering wheel has no waterproof feature, please
keep it away from water, rain, moisture and other items
containing liquid such as vape, cups etc.
This wheel is designed for simulation purposes only.
Disconnect the USB cable from both sides if you will not
use the product for a long time.
What you will find in the box
SP01 Throttle Pedal
SP01 Brake Pedal
USB-C Connection Cable
Brake Extension Cable
Throttle Mounting Bracket (Light, Left, Right)
Brake Mounting Bracket (Heavy, Left, Right)
Additional Hard Blue Spring
Additional Elastomer Kit (Soft Yellow, Medium Red, Hard Blue)
Additional Throttle Spacer
TX25 L Key
HEX4mm L Key
8mm Wrench
8x M5x10 Button TX Screws (black)
8x M8x20 Button Hex Screws (silver)
8x M8 Nuts
SPECS
Main
Precision press-fit ball bearings onALLpivot point
CNC machined 6061 and 7075 aluminum main structure
Optimized FEM design for a cutting edge flex-free structure
Throttle
Carbon or die cast aluminium pad faceplate depending on the version
Adjustable pedal throw by a dedicated knob on the main shaft
Easy to reach spring preload adjustment
Precision machined main shaft with high wear resistance plating
Tolerance machined self-lubricating nylon sleeve for the smoothest operation
16 bit resolution hall sensor
USB-C connector for the main control electronics
Throttle specific custom light brackets (with adjustable main pedal body angle in 5°
increments)ring on the compression elements
Precision machined main shaft with high wear resistance plating
Brake
Custom lightweight die-cast pad faceplate with textured grip
Fine-tuning spring preload option on the main pedal, and preload
Custom designed fully hydraulic damper with 8 preload settings
Springs and elastomers available for different customizations
Self-centering springs and dampers washers
Brake specific custom heavy brackets (with adjustable main pedal body angle in 5°
increments)
200kg precision load cell
16-bit resolution
1. Let’s get started
1.1 Mount the brackets
Both the Pedals will need their brackets to be mounted
on the rig.
In order to do so, you will need to use the M5x10 Button
TX Screws to mount the brackets to the side of the
pedals (using the TX25 L Key you were supplied with).
Remember that you can always customize the angle
of the pedals, to adapt them to your rig structure and
use them properly!
1.2 Set your favourite pedals angle
When mounting the brackets you will be able to choose
one of the three different height levels. The brackets can
also be inverted to mount the pedals on an upward or
downward angle depending on your preferences.
Same as the first installation, you will need to tighten
the screws according to the desired installation angle.
Repeat the operation on both sides.
5˚ increments
1.3 Installation
The next step is mounting the pedals to the
simulator’s plate: to do so you will need to
use the M8x20 Button Hex Screws that you
will find in the tools bag.
Remember, to lock the pedals in place you
will need to tighten those screws with the M8
Nuts on the other side of the plate!
100mm
70mm
10mm
1.4 Connecting to the PC
To connect it to the PC, simply plug the USB-C and the 4-pin cable of the brake pedal on
the rear of the throttle pedal. If needed, use also the extension brake cable to connect it to
the throttle pedal.
1.5 Calibrating the SP01
The first time you connect the SP01, you will need to download the PedalUI app to calibrate
the pedals’ axis. After downloading it from the website and starting the program, you will
see the Inputs page in which try out the pedals inputs. There is the possibility the pedals’
inputs could be not correctly recognized by the program at first.
Tabla de contenidos
Otros manuales de Controladores de videojuegos de Cube Controls
Cube Controls
Cube Controls Formula CSX eSports Manual de usuario
Cube Controls
Cube Controls GT Manual de usuario
Cube Controls
Cube Controls GT eSports Racing Wheel Manual de usuario
Cube Controls
Cube Controls Formula CSX eSports Manual de usuario
Cube Controls

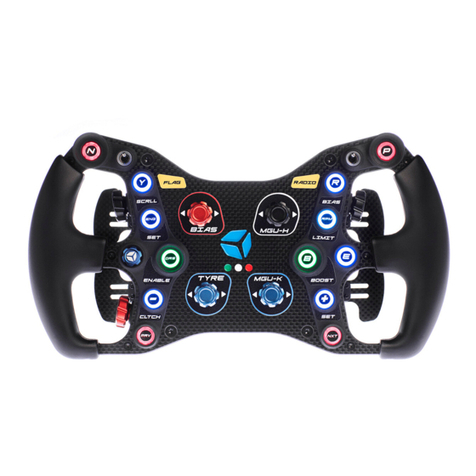

Cube Controls Formula Classic Manual de usuario
