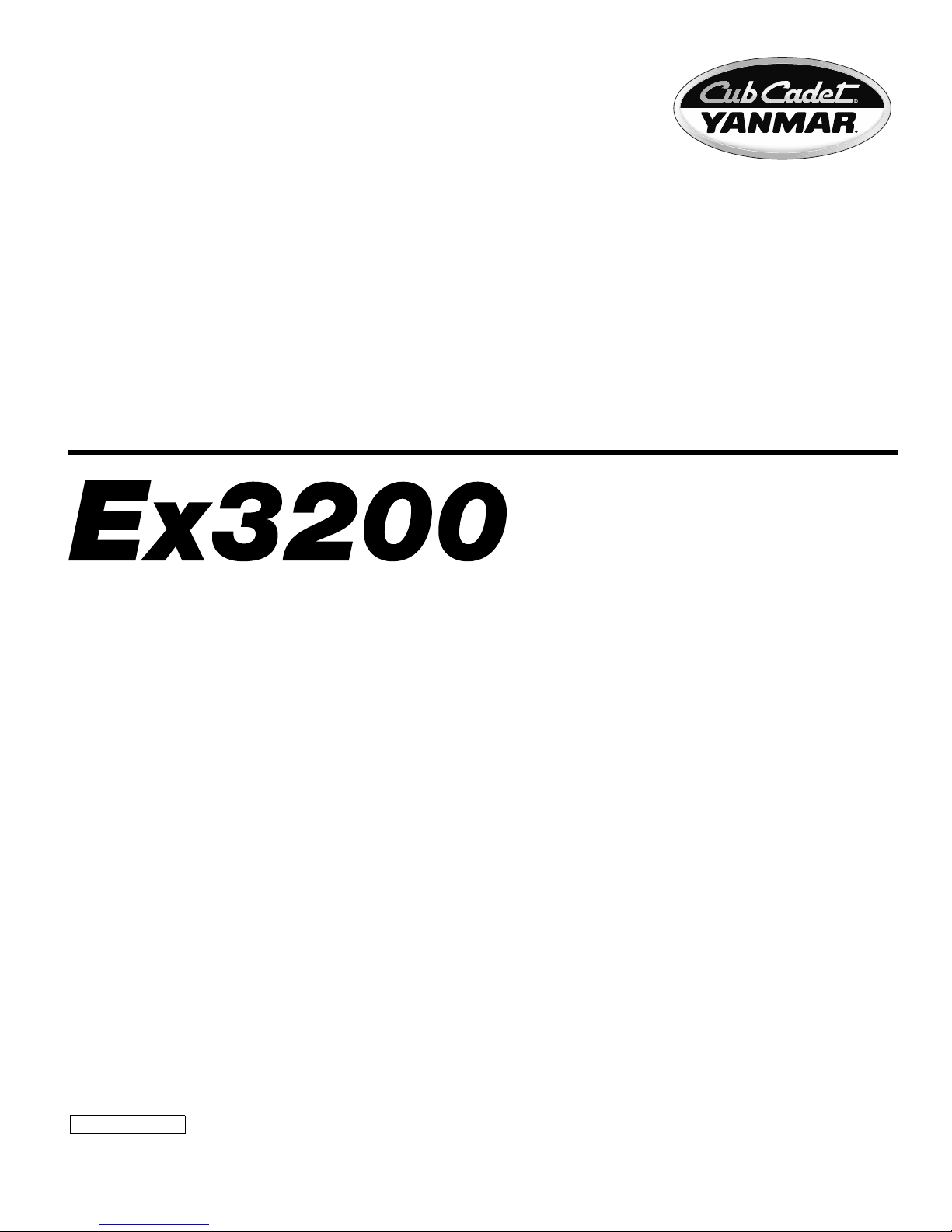

Cub Cadet Yanmar Ex32002 Hoja de datos

Parts List

Manual

Ex Series Compact Tractor

Cub Cadet Yanmar LLC

P.O. Box 361052

Cleveland, OH 44136-1052

PRINTED IN U.S.A.

Version 1.0

Code No: NPC-4832P110

Ex Series Ex32002

INSTRUCTIONS FOR PARTS LIST MANUAL

ENGINE SECTION - PAGES 3 THROUGH 26

TRACTOR SECTION - PAGES 27 THROUGH 181

EXAMPLE - FIGURE & REFERENCE NUMBERS

Ex Series Ex320

FIG. NO. GROUP NAME

1 CYLINDER BLOCK

2 GEAR HOUSING

3 OIL PAN & REAR ENGINE PLATE

4 CYLINDER HEAD & VALVE COVER

5 INTAKE MANIFOLD

6 EXHAUST MANIFOLD & MUFFLER

7 CAMSHAFT & TIMING PARTS

8 CRANKSHAFT & PISTON

9 HYDRAULIC PUMP

10 LUBRICATING PARTS

11 COOLING WATER SYSTEM

12 FUEL INJECTION PUMP

13 GOVERNOR

14 FUEL SUPPLY PARTS

15 STARTER

16 ALTERNATOR

TRACTOR SECTION STARTS ON PAGE 27

ENGINE SECTION INDEX

Ex Series Ex32004

NOTES:

Ex Series Ex3200

REF

NO. PART NUMBER DESCRIPTION QTY

1 CY-729005-01562 BLOCK ASSY, CYLINDER 1

4 CY-124060-01050 PLUG PT1/8 1

5 CY-129001-01250 PLUG 50 1

6 CY-124160-01910 PLUG PT1/4 2

7 CY-124160-01910 PLUG PT1/4 1

8 CY-171051-01921 PLUG 1

9 CY-129150-02020 BOLT, METAL CAP 8

12 CY-129795-02412 BUSH, CAMSHAFT 1

13 CY-27241-120000 PLUG 12 2

14 CY-27241-300000 PLUG 30 6

24 CY-129001-02931 MAIN BEARING SET 4

27 CY-129150-02931 METAL, THRUST 2

30 CY-129150-01200 STUD, CYL. HEAD 14

31 CY-129001-01340 GASKET, (NON-ASB.) 1

32 CY-129150-02871 MAIN METAL US=0.25 UNDER-SIZE 4

35 CY-129150-02941 METAL,THRUST.25 (2PIE) OVER-SIZE 1

FIG. 1. CYLINDER BLOCK

Ex Series Ex3200

REF

NO. PART NUMBER DESCRIPTION QTY

1CY-729008-01500 GEAR CASE ASSY W/SEAL 1

3CY-119934-01800 SEAL, OIL 1

4CY-129008-01520 FLANGE, GEAR CASE 1

5CY-119802-01561 STUD, M8X25 3

6CY-129150-01580 STUD 8 X 30 1

7CY-124160-01751 COVER, FILLER 1

8CY-124240-01871 COVER, HO-P 1

9CY-129795-01950 PIPE, KNOCK L=18 2

10 CY-119609-32040 O-RING P16 2

11 CY-121850-51960 O-RING, F.I.PUMP 1

12 CY-129001-91841 BOLT, M8X85 3

13 CY-22190-080002 SEAL WASHER 8S 4

14 CY-22190-080002 SEAL WASHER 8S 1

15 CY-24311-000320 O-RING 1A P-32.0 1

16 CY-26106-080162 BOLT M 8X 16 PLATED 4

17 CY-26106-080162 BOLT M 8X 16 PLATED 3

18 CY-26106-080302 BOLT M 8X 30 PLATED 1

19 CY-26106-080552 BOLT M 8X 55 PLATED 10

20 CY-26306-080002 NUT 3

21 CY-129150-91400 GEAR UNIT, TACHOMETER 1

23 CY-24341-000240 O-RING 1A S-24.0 1

24 CY-26106-060162 BOLT M 6X 16 PLATED 2

FIG. 2. GEAR HOUSING

Ex Series Ex3200

REF

NO. PART NUMBER DESCRIPTION QTY

1 CY-129100-01580 PARALLEL PIN 8X16 2

2 CY-129129-01600 PLATE, REAR MOUNTING 1

3 CY-26206-100202 BOLT M10X20 6

4 CY-26206-100202 BOLT M10X20 4

5 CY-129129-01550 PAN ASSY, ENGINE OIL 1

6 CY-129129-01540 COVER ASSY, OIL PAN 1

7 CY-105425-01690 PLUG M16 1

8 CY-129150-01721 COVER, OIL PAN 1

9 CY-22190-160002 SEAL WASHER 16S 1

11 CY-26106-080122 BOLT M 8X 12 PLATED 8

12 CY-129001-91841 BOLT, M8X85 8

13 CY-129001-91910 BOLT, M8X120 4

14 CY-26106-080252 BOLT M 8X 25 PLATED 6

15 CY-26106-080502 BOLT M 8X 50 PLATED 4

16 CY-129100-01580 PARALLEL PIN 8X16 2

17 CY-729402-01650 CASE ASSY, OIL SEAL 1

19 CY-129120-01780 SEAL, OIL 1

20 CY-129486-01670 BOLT M8X30, COLLAR HD 9

FIG. 3. OIL PAN & REAR ENGINE PLATE

Ex Series Ex3200

FIG. 4. CYLINDER HEAD & VALVE COVER

Ex Series Ex3200

REF

NO. PART NUMBER DESCRIPTION QTY

1 CY-129004-11241 SHAFT ASSY, ROCKER 1

2 CY-129004-11251 SHAFT, ROCKER ARM 1

4 CY-119802-11260 SUPPORT, ROCKER ARM 2

5 CY-119802-11270 SUPPORT, ROCKER ARM 2

6 CY-119802-11280 STUD, 8X18 3

7 CY-129150-11280 SPRING 3

8 CY-129004-11650 ARM ASSY, ROCKER 6

9 CY-129150-11230 SCREW, VALVE 6

11 CY-129150-11750 NUT M8XP1.0 6

12 CY-129150-11370 CAP, VALVE 6

13 CY-129008-11700 HEAD ASSY, CYLINDER 1

16 CY-120130-11860 GUIDE, VALVE 3

18 CY-129150-11810 GUIDE, VALVE 3

20 CY-27241-400000 PLUG 40 2

21 CY-129005-11100 VALVE, INTAKE 3

22 CY-129100-11112 VALVE, EXHAUST 3

23 CY-129795-11120 SPRING, VALVE 6

24 CY-129795-11180 RETAINER, SPRING 6

25 CY-121400-11340 SEAL, VALVE STEM 3

26 CY-124460-11340 SEAL, VALVE STEM 3

27 CY-27310-080001 COTTER 8 6

29 CY-119802-11870 PROTECTOR, NOZZLE 3

30 CY-119625-11880 SEAT, NOZZLE 3

31 CY-129004-11900 RETAINER, NOZZLE 3

32 CY-120270-54410 WASHER 3

33 CY-22351-060012 SPRING PIN 6X12 2

34 CY-26106-080252 BOLT M 8X 25 PLATED 2

35 CY-26106-080352 BOLT M 8X 35 PLATED 3

36 CY-26106-080502 BOLT M 8X 50 PLATED 6

37 CY-129055-11350 COVER ASSY, VALVE 1

38 CY-129004-03010 PLATE, BAFFLE 1

39 CY-129150-03070 BAFFLE, BREATHER 1

40 CY-119802-03110 PLATE, DIAPHRAGM 1

41 CY-119802-03121 COVER, DIAPHRAGM 1

42 CY-119802-03130 DIAPHRAGM 1

43 CY-119802-03141 SPRING, DIAPHRAGM 1

45 CY-129004-11310 GASKET, VALVE COVER 1

46 CY-22857-500100 SCREW 5X10,TAPPING 4

47 CY-22857-500100 SCREW 5X10,TAPPING 4

48 CY-124160-11360 KNOB 3

49 CY-24311-000120 O-RING 1A P 12.0 3

50 CY-129900-07900 LIFTER, ENGINE 1

51 CY-26106-080162 BOLT M 8X 16 PLATED 2

52 CY-119803-77830 HARNESS, GLOW PLUG 1

53 CY-129008-77800 PLUG, GLOW 3

54 CY-129008-77820 CONNECTOR, GLOW PLUG 1

FIG 4. CYLINDER HEAD & VALVE COVER

Ex Series Ex3200

REF

NO. PART NUMBER DESCRIPTION QTY

1 CY-129005-03080 PIPE, BREATHER 1

2 CY-129410-03990 CLAMP 22 2

3 CY-129005-12100 MANIFOLD, INTAKE 1

4 CY-129001-12110 GASKET,INT. MANIFOLD 1

5 CY-26106-080202 BOLT M 8X 20 PLATED 4

6 CY-26106-080802 BOLT M 8X 80 PLATED 1

7 CY-129486-12581 PIPE, INTAKE 1

8 CY-129150-77511 GASKET, (NON-ASB.) 1

9 CY-26106-080202 BOLT M 8X 20 PLATED 4

FIG. 5. INTAKE MANIFOLD
