Configuration Guide – DOC. 7578A 5”/7”/10.1” Touch Screens: TSW-552/752/1052

•

5”/7”/10.1” Touch Screens:

TSW-552/752/1052

Access the Setup Screens

The “TSW-x52 Setup” menu is the starting point for configuring the TSW-552,

TSW-752, and TSW-1052 touch screens from Crestron®.

NOTE: If no project has been loaded or if an invalid project has been loaded, the

screen displays a message saying “There is no display project to start…[Touch

screen to enter setup.]”.

The setup screens enable basic configuration procedures prior to regular operation of

the touch screen.

During regular operation of the touch screen, there are two ways to activate the setup

functions:

1. Place a button on the project main page and assign the reserved join number

(17242) that activates setup.

2. Press hard keys 1, 2, 3, and 4, to the right of the touch screen display, in

sequence twice (i.e., press 1, 2, 3, 4, 1, 2, 3, 4) within a five second period.

Button Numbering

5”/7”10.1” Touch Screens Crestron TSW-552/752/1052

•

5”/7”/10.1” Touch Screens: TSW-552/752/1052 Configuration Guide – DOC. 7578A

The “TSW-x52 Setup” menu is displayed.

NOTE: The touch screen model name is part of the setup menu name. For example,

on the TSW-752, the menu name is “TSW-752 Setup”.

“TSW-752 Setup” Menu

The “TSW-x52 Setup” menu is comprised of buttons for Ethernet Setup, IP Table

Setup, Audio Setup, Display Setup,Standby Timeout and Diagnostics. In

addition, there is a button to toggle system messages on or off, an About button that

provides information about the touch screen and a Save & Exit button. The

functions of each are detailed in the next section of this guide.

Crestron TSW-552/752/10525”/7”/10.1” Touch Screens

Configuration Guide – DOC. 7578A 5”/7”/10.1” Touch Screens: TSW-552/752/1052

•

Configure the Touch Screen

Ethernet Setup

On the “TSW-x52 Setup” menu, touch Ethernet Setup to display the “Ethernet

Setup” menu.

“Ethernet Setup” Menu

The “Ethernet Setup” menu displays the touch screen’s Mac and IP Address, Subnet

Mask, Def Router, Primary DNS, Secondary DNS, Hostname, and Domain. There are

controls for turning DHCP On or Off and, when DHCP is off, a Set Static IP

Address Settings button, which provides access to controls which allow editing of

these settings. This screen also contains a Link indicator to show the status of the

Ethernet connection.

DHCP is enabled by default. To change to a static IP address, touch Off under

DHCP Enabled, then touch Set Static IP Address Settings to display the “Ethernet

Setup – Static IPs” screen.

“Ethernet Setup – Static IPs” Screen

5”/7”10.1” Touch Screens Crestron TSW-552/752/1052

•

5”/7”/10.1” Touch Screens: TSW-552/752/1052 Configuration Guide – DOC. 7578A

To edit the Static IP Address, Static Subnet Mask, Static Default Router, Preferred

DNS, or Alternate Preferred DNS, touch the button directly under the label for the

entry to edit. The on-screen numeric keypad opens.

On-Screen Numeric Keypad

Use the keypad to make the new entry. Touch the “x” in the text field to clear any

previous entry. Touch to delete the last digit. Touch Save to save a new entry

or to return to the “Ethernet Setup – Static IPs” screen.

After new settings have been saved, touch Reboot Required to Apply IP Changes

on the “Ethernet Setup – Static IPs” screen to reboot the touch screen, so the new

settings can take effect.

If not making any changes, touch to return to the “Ethernet Setup” menu.

Touch again to return to the “TSW-x52 Setup” menu.

Crestron TSW-552/752/10525”/7”/10.1” Touch Screens

Configuration Guide – DOC. 7578A 5”/7”/10.1” Touch Screens: TSW-552/752/1052

•

IP Table Setup

On the “TSW-x52 Setup” menu, touch IP Table Setup to display the “Ethernet

Setup – IP Table” menu.

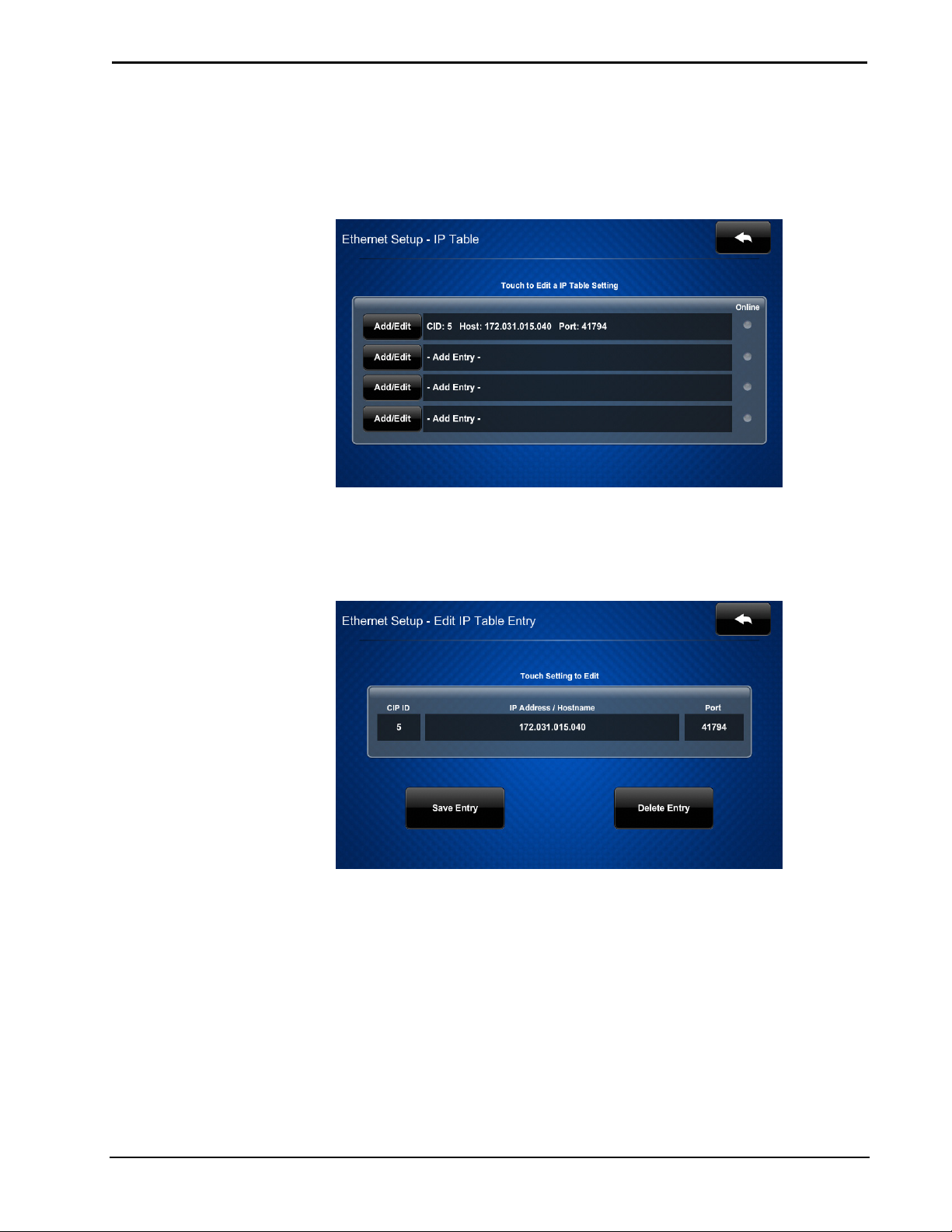

“Ethernet Setup –IP Table” Menu

The “Ethernet Setup – IP Table” menu displays up to four IP table settings, each of

which has an Online indicator. To add or edit an entry, touch the Add/Edit button to

its left. The “Ethernet Setup – Edit IP Table Entry” screen is displayed.

“Ethernet Setup –Edit IP Table Entry” Screen

5”/7”10.1” Touch Screens Crestron TSW-552/752/1052

•

5”/7”/10.1” Touch Screens: TSW-552/752/1052 Configuration Guide – DOC. 7578A

Touch the field below CIP ID to display the on-screen hex keypad.

On-Screen Hex Keypad

Use the keypad to make the new entry. Touch the “x” in the text field to clear any

previous entry. Touch to delete the last digit. Touch Save to save a new entry

or to return to the “Ethernet Setup – Edit IP Table Entry” screen.

Touch the field below IP Address/Hostname to display the on-screen keyboard.

On-Screen Keyboard

Use the keyboard to make the new entry. Touch Cancel to return to the “Ethernet

Setup – Edit IP Table Entry” screen. Touch the “x” in the text field to clear any

previous entry. Touch to delete the last digit. Touch Save to save a new entry

and return to the “Ethernet Setup – Edit IP Table Entry” screen.

On the “Ethernet Setup – Edit IP Table Entry” screen, touch Save Entry to save the

current entry or Delete Entry to clear it.

If not making any changes, touch to return to the “Ethernet Setup –IP

Table” menu.
