GREEN LIGHT®EXPRESS Power Switching Cabinet GLPX-HSW-FT
Introduction
CRESTRON GREEN LIGHT EXPRESS power switching cabinets come pre-configured with GLXP switching
modules already installed. The cabinets only require installation and wiring of feed and load circuits.
Regulatory Compliance
The cabinet and modules are Listed to applicable UL Standards and requirements by Underwriters Laboratories Inc.
Application
The following diagram shows CRESTRON GREEN LIGHT EXPRESS power switching cabinets in a lighting
application that is controlled by an IPAC system.
CRESTRON GREEN LIGHT EXPRESS Power Switching Cabinets in a Typical Lighting Application
C
R
E
S
N
E
T
O
V
E
R
R
I
D
E
C
R
E
S
N
E
T
C
O
N
T
R
O
L
C
R
E
S
N
E
T
Crestron Electronics, Inc. Installation Guide – DOC. 6888B
15 Volvo Drive Rockleigh, NJ 07647 (2025419)
Tel: 888.CRESTRON 06.10
Fax: 201.767.7576 Specifications subject to
www.crestron.com change without notice.
Power Switching Cabinet GLPX-HSW-FT CRESTRON GREEN LIGHT®EXPRESS
Physical Description

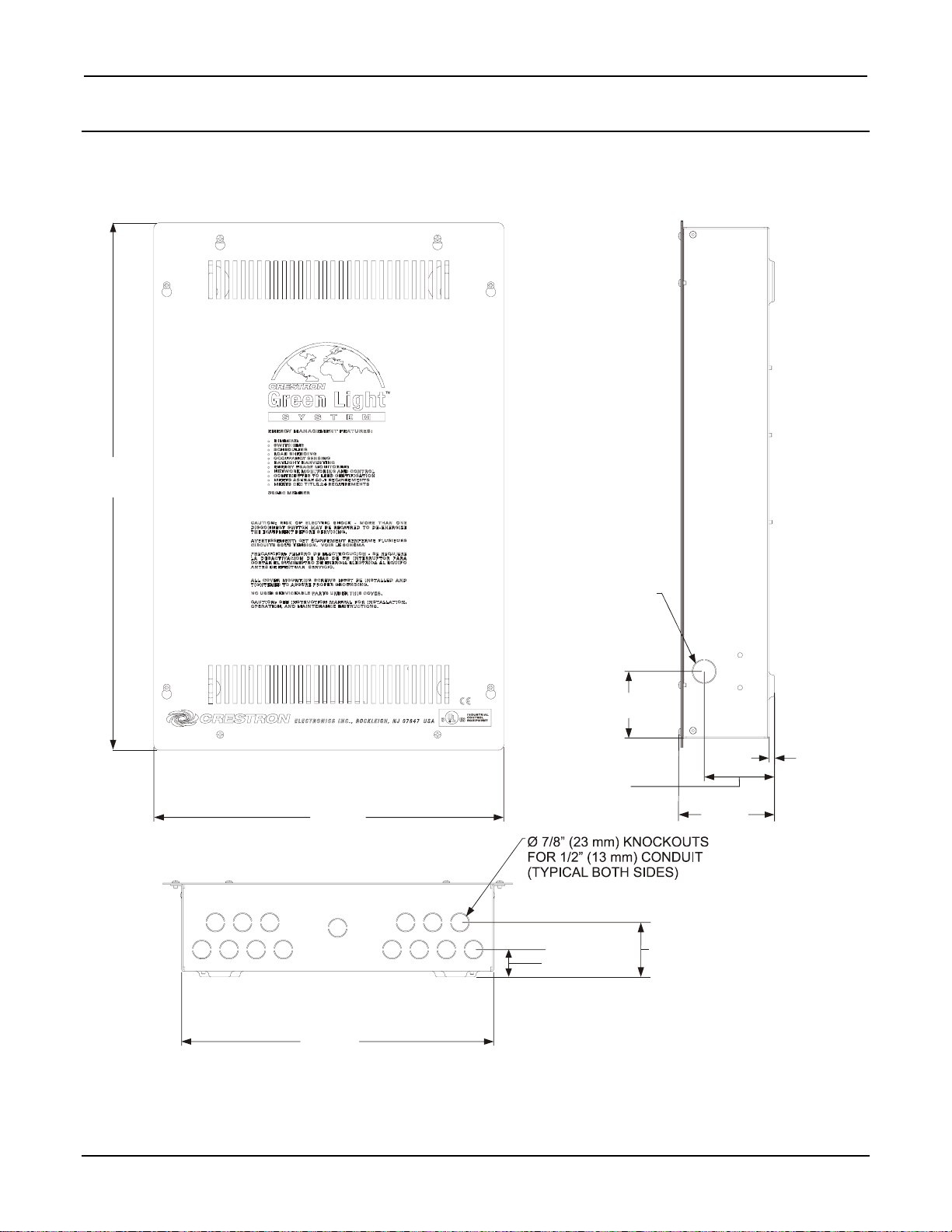

This section shows the dimensions of the CRESTRON GREEN LIGHT EXPRESS power switching cabinets.
Dimensions of GLPX-HSW-FT-8 , -12, -16 Power Switching Cabinets (Front, Side and Bottom View)
24 1/4"
(616 mm)
16 1/8”
(409 mm)
3 1/16”
(78 mm)
KNOCKOUT FOR 3/4”
(20 mm) CONDUIT
(TYPICAL BOTH
SIDES)
4 7/16”
(113 mm)
1/4” (7 mm)
3 1/4”
(83 mm)
2 1/2” (64 mm)
14 3/8"
(365 mm)
1 1/4” (32 mm)
2 •GREEN LIGHT®EXPRESS Power Switching Cabinet GLPX-HSW-FT Installation Guide – DOC. 6888B
CRESTRON GREEN LIGHT®EXPRESS Power Switching Cabinet GLPX-HSW-FT

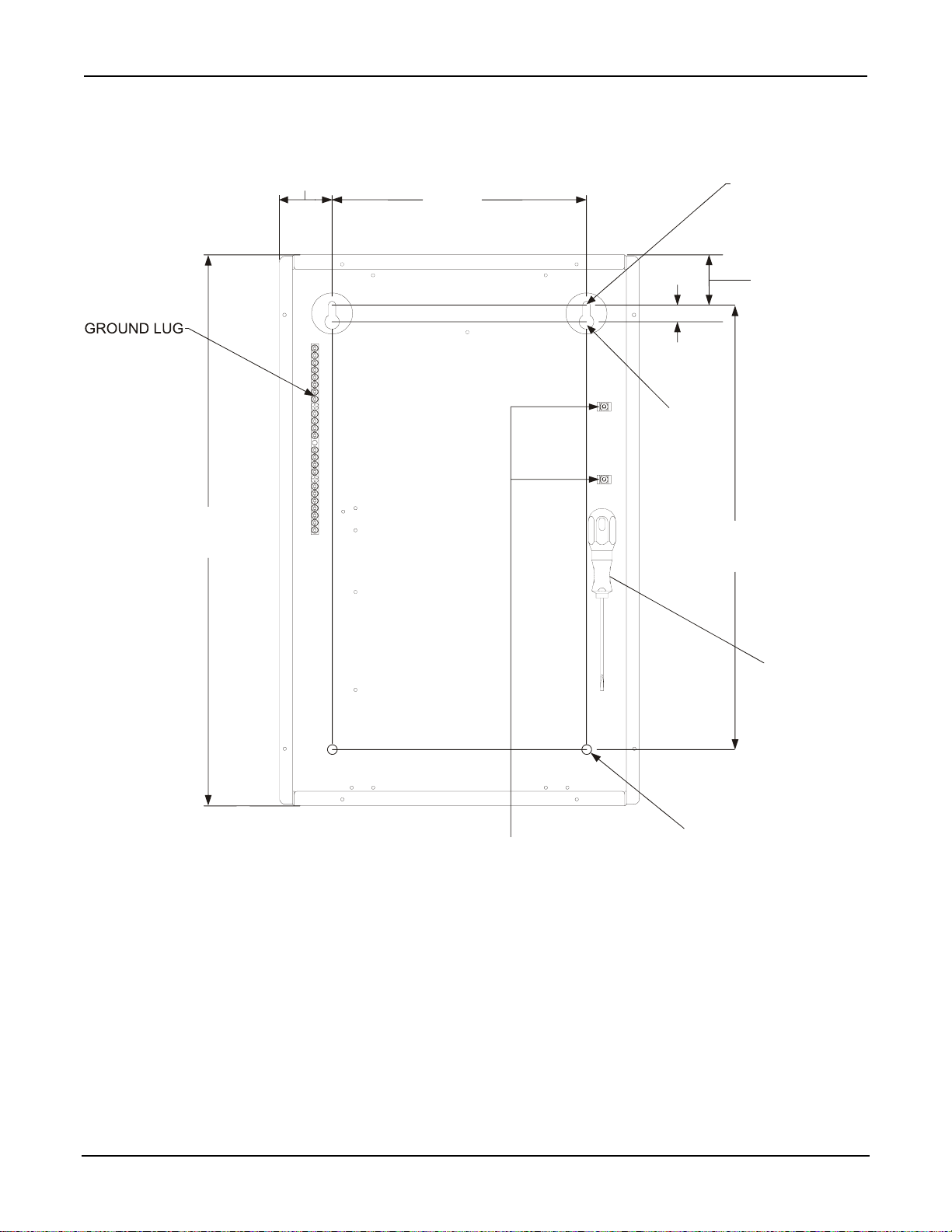

Dimensions of GLPX-HSW-FT-8 , -12, -16 Power Switching Cabinets (Internal View)
23 1/2"
(597 mm) 18 15/16”
(481 mm)
(2X) Ø 7/16 ( 12 )
MOUNTING HOLES
Ømm
(2x) 11/16”
(19 mm)
2 1/8” (55 mm)
(2x) Ø 5/8”
(Ø 16 mm)
(2X) Ø 5/16”
(Ø 8 mm)
(58 mm)
2 1/4”
10 7/8” MOUNTING HOLES
(276 mm)
* TIE WRAP HOLDERS
(MAY BE MOVED TO OTHER
HOLES AS REQUIRED)
SERVICE
SCREWDRIVER
Installed GLXP modules come with additional tie wrap holders.*
Installation Guide – DOC. 6888B GREEN LIGHT®EXPRESS Power Switching Cabinet GLPX-HSW-FT •3
Power Switching Cabinet GLPX-HSW-FT CRESTRON GREEN LIGHT®EXPRESS
Dimensions of GLPX-HSW-FT-20, -24, -28, -32 Power Switching Cabinets (Front, Side and Bottom View)
16 1/8”
(409 mm)
39 5/8”
(1 m)
3 1/16”
(78 mm)
KNOCKOUT FOR 3/4”
(20 mm) CONDUIT
(TYPICAL BOTH
SIDES)
4 7/16”
(113 mm)
1/4” (7 mm)
3 1/4”
(83 mm)
2 1/2” (64 mm)
14 3/8"
(365 mm)
1 1/4” (32 mm)
4 •GREEN LIGHT®EXPRESS Power Switching Cabinet GLPX-HSW-FT Installation Guide – DOC. 6888B
CRESTRON GREEN LIGHT®EXPRESS Power Switching Cabinet GLPX-HSW-FT
Dimensions of GLPX-HSW-FT-20, -24, -28, -32 Power Switching Cabinets (Internal View)
2 1/8” (55 mm)
(2X) Ø 5/16”
(Ø 8 mm)
MOUNTING HOLES
(2x) 11/16”
(19 mm)
10 7/8”
(276 mm)
2 1/4”
(58 mm)
GROUND LUG
38 7/8”
(998 mm) 34 3/8”
(873 mm)
(2X) Ø 7/16
(Ø 12 mm)
MOUNTING HOLES
(2x) Ø 5/8”
(Ø 16 mm)
SERVICE
SCREWDRIVER
* TIE WRAP HOLDERS
(MAY BE MOVED TO OTHER
HOLES AS REQUIRED)
Installed GLXP modules come with additional tie wrap holders.*
Installation Guide – DOC. 6888B GREEN LIGHT®EXPRESS Power Switching Cabinet GLPX-HSW-FT •5
Power Switching Cabinet GLPX-HSW-FT CRESTRON GREEN LIGHT®EXPRESS
Installation
Observe the following when installing the cabinet:
• The cabinet must be mounted by a licensed electrician in accordance with all national and local codes.
Refer to the diagram below for specific requirements.
• The cabinet is designed for surface mounting on a wall.
• Cabinets are intended for indoor use only.
• The ambient temperature range should be 32°F to 104°F (0°C to 40°C). The relative humidity should range
from 10% to 90% (non-condensing). Allow adequate clearance in front of the cover for servicing.
Mounting Location
3 ft
(0.9 m)
Minimum
Required
Clearance
Wall
6 •GREEN LIGHT®EXPRESS Power Switching Cabinet GLPX-HSW-FT Installation Guide – DOC. 6888B
CRESTRON GREEN LIGHT®EXPRESS Power Switching Cabinet GLPX-HSW-FT
Wiring
NOTE: All wiring must be installed in accordance with all local and national electrical codes.
NOTE: Refer to the torque settings specified on pages 8 and 9.
CRE GLXP low profile switching modules installed.
The follo e cabinet:
• and Ninput terminals and connect loads to SW output
• Connect control wiring (section Bof the following diagram)
STRON GREEN LIGHT EXPRESS cabinets are shipped with
wing must be performed after mounting th
Connect incoming feed conductors to the L
terminals (section Aof the following diagram)
FEEDS
A
B
CLASS 2
WIRING ONLY
FROM
BREAKER
PANEL TO
LOADS
FEEDS
FROM
BREAKER
PANEL TO
LOADS
SERVICE
SCREWDRIVER
Installation Guide – DOC. 6888B GREEN LIGHT®EXPRESS Power Switching Cabinet GLPX-HSW-FT •7
Power Switching Cabinet GLPX-HSW-FT CRESTRON GREEN LIGHT®EXPRESS
Feed-Through and Load Wiring (Section A)
ION: Bypass jumpers are provided on each output to allow testing and to protect the modules duringCAUT
installation. The jumper shorts the Land SW terminals so that the load circuit is energized when
is on. the branch breaker
NOTE: Do not remove the bypass jumper until all feed and load wiring has been completed, and the circuits
have been tested for electrical faults.
NOTE: Use copper conductors only – rated 75°C.
Wire
ORQUE STRIP
LENGTH
Gauge and Torque Values
TERMINAL CONNECTOR MAX
WIRE RANGE T
L AND N INPUTS 26-10 AWG 5.31 lb-in (0.6 Nm) to
7.08 lb-in (0.8 Nm) max 3/8”
(9 mm)
SW OUTPUTS 26-10 AWG 5.31 lb-in (0.6 Nm) to
7.08 lb-in (0.8 Nm) max 3/8”
(9 mm)
GROUND LUG 14-4 AWG 25-45 lb-in
(2.8-5.1 Nm) 3/4"
(19 mm)
Load Wiring for GLXP-HSW8 and GLXP-HSW12
TO NEUTRAL*
TO BRANCH BREAKER
TO LOAD
JUMPER
L
CIRCUIT BREAKER (20A MAX)
NEUTRAL
BUS TO LOADS
N
L
GROUND LUG
N1
L1
SW1
SERVICE
SCREWDRIVER
* A single NEUTRAL connection is required for each module.
1. Test the circuit for electrical faults by turning on each circuit breaker, checking that the breakers do not
trip, and that power is delivered to the proper loads.
2. Turn off the circuit breaker(s) and remove all jumpers.
3. Turn on the circuit breakers.
8 •GREEN LIGHT®EXPRESS Power Switching Cabinet GLPX-HSW-FT Installation Guide – DOC. 6888B
CRESTRON GREEN LIGHT®EXPRESS Power Switching Cabinet GLPX-HSW-FT
Control Wiring (Section B)
The bottom of the cabinet contains Cresnet connections for interfacing to the rest of the Crestron control system
and a power port to provide an alternate source of 24 volt power to the modules. It also provides an override input
which can be tied to devices such as the GLS-PLS-120/277 phase-loss sensor, or other devices that provide a dry
contact
® ® ,
closure (manual switch, fire alarm relay, etc.).
NOTE: Interface connectors for NET (x2), POWER (x1), and OVERRIDE (x3) ports are provided.
Wire Gauge and Torque Values
TERMINAL CONNECTOR MAX TORQUE STRIP
WIRE RANGE LENGTH
NET -12 AW 43 lb-in
.5 Nm)
26 G 4.
(0 1/4”
(6 mm)
POWER 26-12 AWG 4.43 lb-in
(0.5 Nm) 1/4”
(6 mm)
OVERRIDE 26-12 AWG 4.4
(0.5 Nm)
3 lb-in 1/4”
(6 mm)
Connector Wiring
RED
WHITE
BLUE
BLACK
NET:
TO CONTROL SYSTEM AND
OTHER CRESNET DEVICES
RED
WHITE
BLUE
BLACK
POWER:
PROVIDES CRESNET
LESPOWER TO THE MODU
OVERRIDE:
FROM OTHER CABINET;
FROM ALARM, ETC.
(OPTIONAL); TO OTHER
CABINET(S) IF NECESSARY
MODULES:
TO GLXP MODULES
(PREWIRED)
Installation Guide – DOC. 6888B GREEN LIGHT®EXPRESS Power Switching Cabinet GLPX-HSW-FT •9
Power Switching Cabinet GLPX-HSW-FT CRESTRON GREEN LIGHT®EXPRESS
NET Port Wiring
When wiring the supplied NET connectors for connection to a Crestron control system or other device on the
Cresnet network, use Crestron certified wire such as CRESNET-NP or CRESNET-P.
To ensure optimum performance over the full range of your installation topology, use Crestron certified wire.
Failure to do so may incur additional charges if support is required to identify performance deficiencies because
When daisy-chaining connections between NET ports, strip the ends of the wires carefully to avoid nicking the
the ends of the wires that share a pin on the network connector, insert the connection
s e retai epeat the procedure for the other three conductors.
WER Port Wiring
odule in the cabinet receives power via the line voltage connected to channel 1. In the event that line
is un module can recei a a backup ge supply. Low voltage (24 VDC)
ay be suppl he modules eithe a the NE externally via a Cresnet power
WER port.
To power the modules from the NET port, in per from th n on the supplied POWER
he EXT pin on the POWER connector as shown in the following diagram.

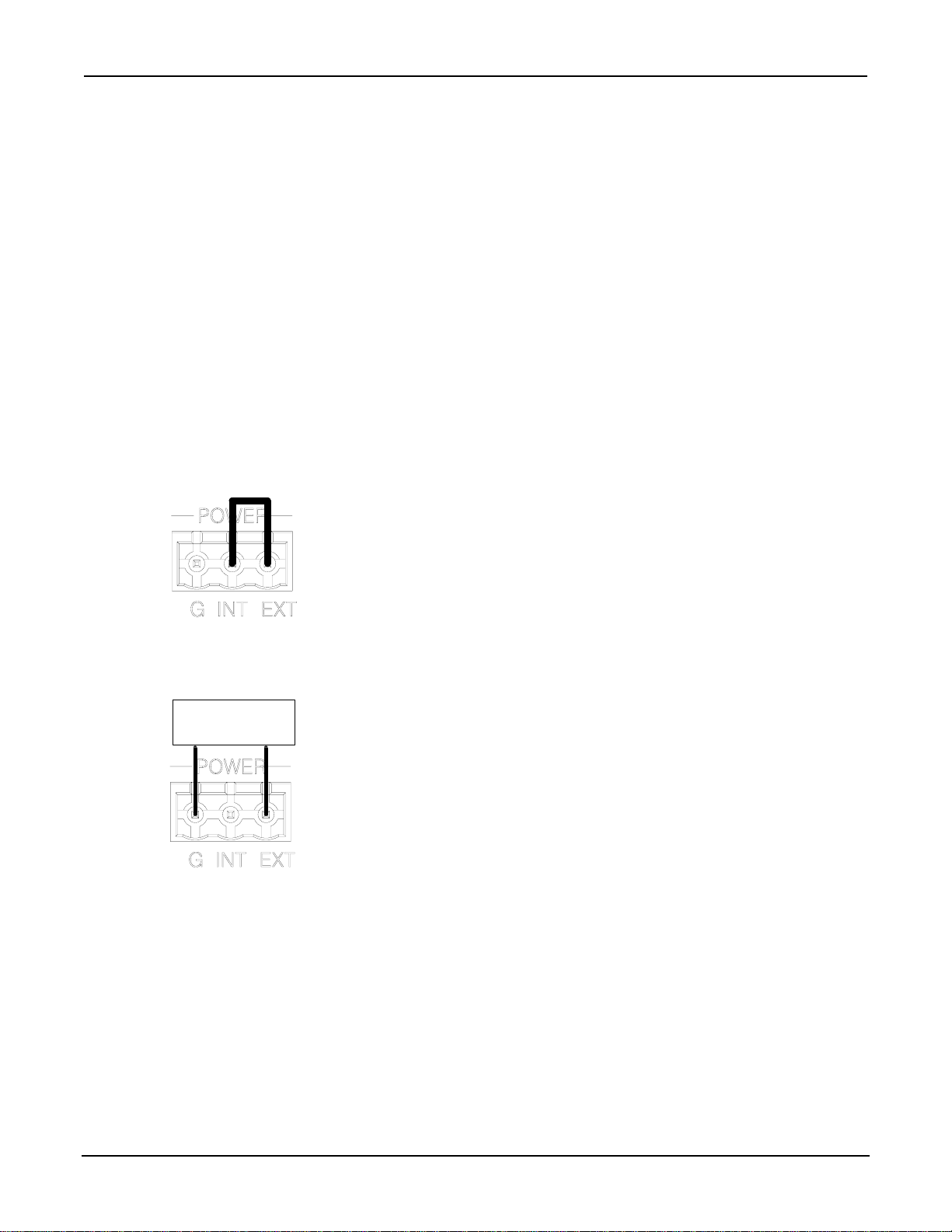

Providing Cresnet Power Via The Net Port
of using improper wire.
conductors. Twist together
into the Cre net connector, tighten th ning screw. R
PO
Each m
voltage
power m available, the
ied to t ve power vi
r internally vi low volta
Tport or
supply connected to the PO
stall a jum e INT pi
connector to t
To power the modules externally from a Cresnet 24 VDC power supply, connect the external power supply to
the EXT and Gpins on the POWER supplied connector as shown in the following diagram.
Providing Cresnet Power Via Dedicated Power Supply
CRESTRON 24 VDC
POWER SUPPLY
G 24
When properly connected and receiving 24 VDC power, the green LED next to the MODULES port will light.
OVERRIDE Port Wiring
When a connection is applied between the override terminals, the modules will enter override mode. The
Crestron GLS-PLS-120/277 phase-loss sensor or any device that provides a dry contact closure can be
connected to the supplied OVERRIDE connector on the bottom of the cabinet.
10 •GREEN LIGHT®EXPRESS Power Switching Cabinet GLPX-HSW-FT Installation Guide – DOC. 6888B
