Crestron SP-SC Manual de usuario

CRESTRON

Operations Guide - DOC. 5729 Contents •• i

Contents

Slide Controller: SP-SC 1

Description 1

Functional Description 1

Physical Description 1

Specifications 2

Setup 3

SP-SC with SmartPresenter™3

SP-SC with SmarTouch™ST-CP 4

SP-SC with CNMSX 5

Programming 6

SmartPresenter™SP-1 6

SmarTouch™ST-CP 6

CNMSX 6

Problem Solving 7

Troubleshooting 7

Further Inquiries 7

Return and Warranty Policies 8

Merchandise Returns / Repair Service 8

CRESTRON Limited Warranty 8

CRESTRON

Operations Guide - DOC. 5729 Slide Controller: SP-SC •• 1

Slide Controller: SP-SC

Description

Functional Description

The SP-SC is a slide controller that allows easy control of slide projectors from the

SmartPresenter, Smartouch ST-CP, and CNMSX systems.

Physical Description

The SP-SC is a small unit with a permanently attached 6 ft. (183 cm) projector cable.

The projector cable is equipped with an EBY, pickle type connector. A 3ft. (91 cm)

Serial Data Cable is supplied for connection to the SmartPresenter or the SmarTouch

ST-CP systems.

SP-SC: Top View

CRESTRON

2•• Slide Controller: SP-SC Operations Guide - DOC. 5729

Specifications

Dimensions: Length 4.850" (123.19 mm)

Width 1.324" (33.63 mm)

Height 1.052" (26.72 mm)

Weight: 6.2 oz. (176 g)

Projector Cable: Connector Type EBY, Five-pin, Pickle

Length 6' (183 cm)

Serial Data Cable¹: Connector Type 3.5 mm, Straight, Stereo

Length 3' (91.44 cm)

Serial Data Cable²: Crestron p/n CNSP-112

12v DC Power Supply*: Crestron p/n PW-1205

(USA and Canada) Input 120V 60Hz 18W

Output 12vDC 0.5A

Crestron p/n PWI-1210

(International) Input 230V 50Hz 110mA

Output 12V---1.0A 12VA

Software: SIMPL™ Windows®Version 1.20.04 or later

VisionTools Pro™ Version 1.1.3 or later

Crestron Database Version 11.7.207 or later

For SmartPresenter and SmarTouch ST-CP (supplied)

² Required for use with CNMSX (Sold separately)

Required for use with SmarTouch ST-CP and CNMSX (sold separately)

4.850"

(123.19 mm)

Cable Length = 6'

(183 cm)

1.052"

(26.72 mm)

1.324"

(33.63 mm)

CRESTRON

Operations Guide - DOC. 5729 Slide Controller: SP-SC •• 3

Setup

SP-SC with SmartPresenter™

Connect the 3.5 mm, Serial Data Cable (supplied) to the input port on the SP-SC.

Connect the other end of the cable to one of the outputs on the SP-1. The EBY, five-

pin, pickle type connector should be plugged into the projector.

To assign a Q-Code for the Slide Controller, refer to the latest revision of the

SmartPresenter – Quick Guide (DOC. 5742).

NOTE: An external power supply is not necessary when using the SP-SC with the

SmartPresenter system.

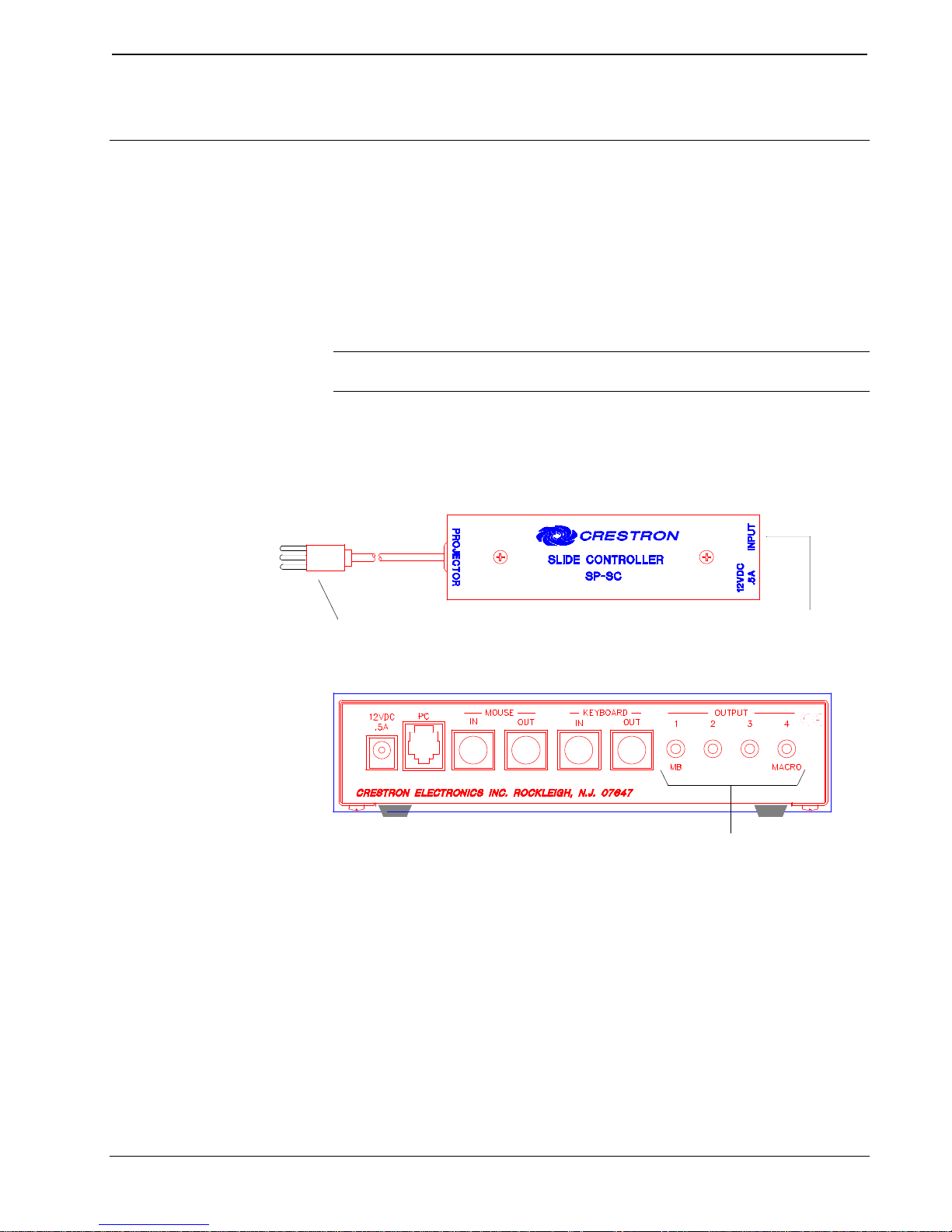

Connect Serial Data Cable to SP-1

Serial Data Cable

To Slide Projector

Serial Data Cable

CRESTRON

4•• Slide Controller: SP-SC Operations Guide - DOC. 5729

SP-SC with SmarTouch™ST-CP

Connect the 3.5 mm, Serial Data Cable (supplied) to the input port on the SP-SC.

Connect the other end of the cable to one of the outputs on the ST-CP. The EBY,

five-pin, pickle type connector should be plugged into the projector.

To program the ST-CP for the Slide Controller, refer to the SmarTouch STS Wizard

included with VisionTools Pro™or Crestron's SIMPL™Windows®programming

software (v 1.20.04 or later) and the latest version of the Crestron Database (v

11.7.207).

NOTE: An external power supply must be used when using the SP-SC with the

SmarTouch ST-CP system. Refer to "Specifications" on page 2for part number and

input/output voltage specifications.

Connect Serial Data Cable to ST-CP

To Slide Projector

Serial Data CableSerial Data Cable

External

Power Supply

Serial Data Cable

CRESTRON

Operations Guide - DOC. 5729 Slide Controller: SP-SC •• 5

SP-SC with CNMSX

The SP-SC can be used with a variety of Crestron systems, including the CNMSX.

When used with a CNMSX there are additional hardware requirements.

•A specially designed Serial Data Cable is required (p/n CNSP-112).

•An external power supply is required. Refer to "Specifications" on

page 2for part number and input/output voltage specifications.

Connect the stereo plug of the CNSP-112 into the input port of the SP-SC. Connect

the Phoenix type connector to of the CNSP-112 to one of the Infrared – Serial output

ports on the CNMSX.

To program the CNMSX for the Slide Controller, refer to Crestron's SIMPL™

Windows®programming software (v 1.20.04 or later) and the latest version of the

Crestron Database (v 11.7.207).

NOTE: An external power supply must be used when using the SP-SC with the

CNMSX system. A CNSP-112 Serial Data Cable is also required.

Connect to CNMSX

Serial Data Cable

CNSP-112

To Slide Projector

Serial Data Cable

CNSP-112

External

Power Supply

CRESTRON

6•• Slide Controller: SP-SC Operations Guide - DOC. 5729

Programming

SmartPresenter™SP-1

The SmartPresenter is field programmable and does not require a PC. Refer to the

latest revision of the SmartPresenter – Quick Guide (DOC. 5742). SmartPresenter

software is available, however, it is only necessary for changing drivers, cloning

SP-1 machines, and updating firmware.

SmarTouch™ST-CP

The SmarTouch systems are easily programmed using the SmarTouch STS Wizard.

In several easy steps a SmarTouch system can be programmed and up-loaded. The

STS Wizard is available in VisionTools Pro™software.

SmarTouch systems may also be custom programmed using Crestron's easy-to-use

SIMPL™Windows®and VisionTools Pro™software.

CNMSX

The CNMSX is programmed using Crestron's easy-to-use SIMPL™Windows®

software.

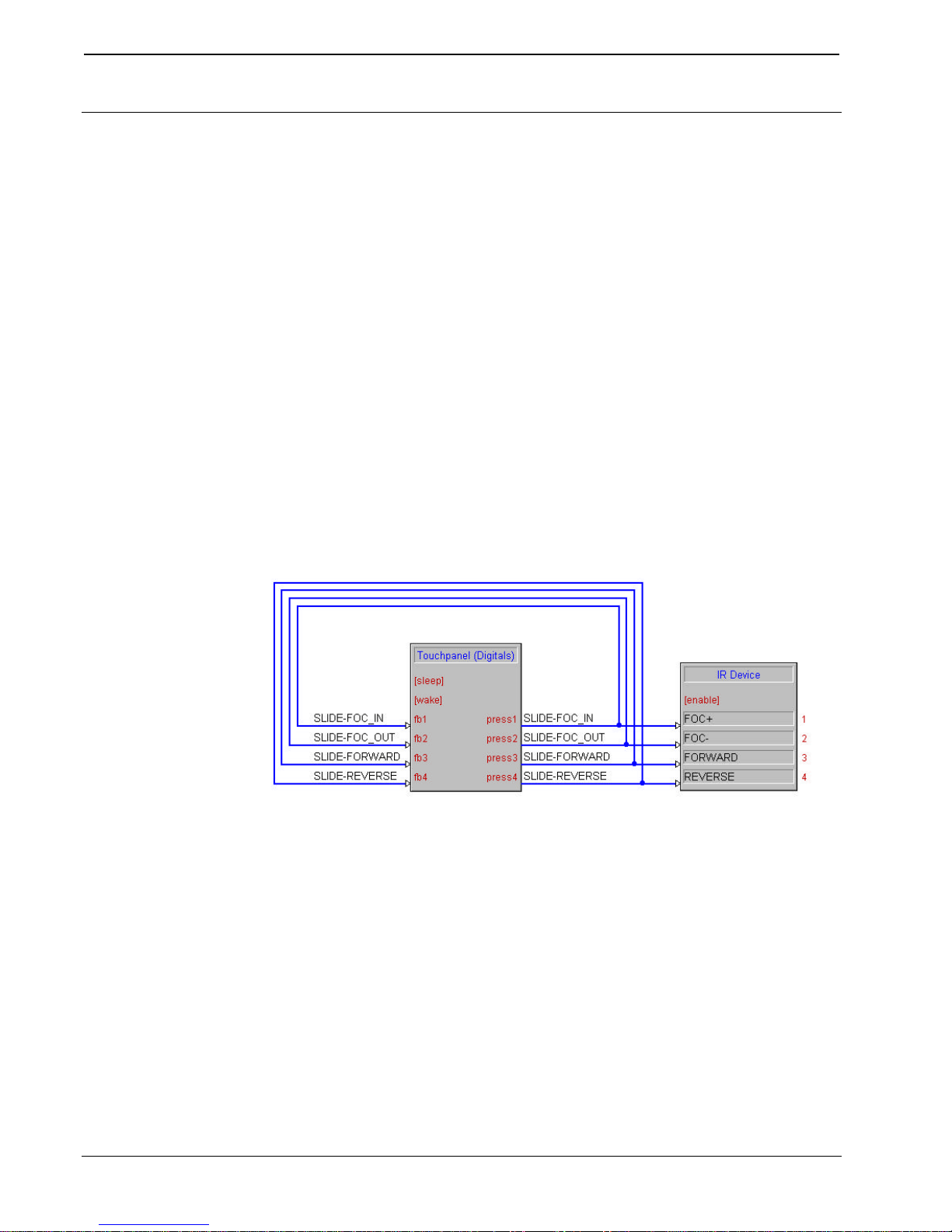

Example Program shown as Block Diagram

This example allows a touchpanel to control a slide projector via the IR-Device (SP-

SC). Feedback is provided to alert the touchpanel user that a button is, in fact, being

pressed. The IR Device represents the driver for the SP-SC. This SP-SC driver can

be located in the Crestron Database (version 11.7.207 or later), under Slide

Controllers.
