Crestron C2N-FTB FlipTop Control Center with Cresnet®

Contents

FlipTop Control Center with Cresnet®: C2N-FTB 1

Introduction ..........................................................................................................1

Features and Functions...........................................................................1

Specifications .........................................................................................2

Physical Description...............................................................................3

Industry Compliance ..............................................................................6

Setup.....................................................................................................................6

Network Wiring .....................................................................................6

Identity Code..........................................................................................8

Installation............................................................................................10

Hardware Hookup ................................................................................15

Ground Wire Connections....................................................................16

Configuration Software ......................................................................................17

Earliest Version Software Requirements for the PC ............................17

Configuring with Crestron SystemBuilder...........................................18

Configuring with SIMPL Windows .....................................................18

Example Program.................................................................................22

Uploading and Upgrading ..................................................................................23

Communication Settings ......................................................................23

Uploading a SIMPL Windows Program ..............................................25

Firmware Upgrade ...............................................................................27

Problem Solving .................................................................................................29

Further Inquiries...................................................................................29

Future Updates .....................................................................................29

Return and Warranty Policies.............................................................................30

Merchandise Returns / Repair Service .................................................30

CRESTRON Limited Warranty ...........................................................30

Operations & Installation Guide – DOC. 6338 Contents •i

Crestron C2N-FTB FlipTop Control Center with Cresnet®

FlipTop Control Center

with Cresnet®: C2N-FTB

Introduction

Features and Functions

The C2N-FTB-B and the C2N-FTB-BALUM are Crestron®keypad devices that

provide a stylish flush-mount tabletop interface and control solution. The fliptop

compartment provides organized storage for a variety of pullout computer,

communication, and A/V cables, which stow neatly out of sight within the

fliptop compartment when not in use. The keypad provides A/V, lighting, and

other functional controls via Cresnet®.

The suffix ‘-B’, and ‘-BALUM’, respectively denotes color, e.g., C2N-FTB-B is

a black unit, and C2N-FTB-BALUM has a brushed aluminum finish. For

simplicity within this guide, color suffix is omitted and the designation

C2N-FTB is used except where noted.

Functional Summary

• Built-in engravable* keypad with 10 to 20 buttons with LEDs

• One AC power passthrough connector

• Two Cresnet ports (on the bottom side)

• Cable support plate (included)

* As an option, custom-engraved buttons can be designed and obtained by using the

Crestron Engraver software. They are available from the Crestron website.

Operations & Installation Guide – DOC. 6338 FlipTop Control Center with Cresnet®: C2N-FTB •1

FlipTop Control Center with Cresnet®Crestron C2N-FTB

C2N-FTB Block Diagram

Specifications

Specifications for the C2N-FTB are given in the following table.

C2N-FTB Specifications

SPECIFICATION DETAILS

Cresnet Power Usage 2 Watts (0.082 Amp @ 24 VDC)

Default Network ID 1E

Firmware C2N-FTB.V.1.00.upg or later

2-Series Control System

Update Files1,2

Version 3.125.CUZ (for QM-RMCRX) or later

Connectors

Cresnet (2) 4-pin terminal blocks

Ground (1) Ground Terminal

AC (1) AC Outlet

Operating Temperature and

Humidity

41º to 104º F (5º to 40º C)

10 to 90% relative humidity

(non-condensing)

Dimensions and Weight Width: 6.75 in (17.13 cm)

Height: 5.39 in (13.68 cm) with top closed

Depth: 5.71 in (14.49 cm)

Weight: 3.75 lbs (1.70 kg)

1. The latest software versions can be obtained from the Crestron website

(www.crestron.com/updates). Refer to the NOTE following these footnotes.

2. Crestron 2-Series control systems include the AV2 and PRO2. Consult the latest Crestron Product

Catalog for a complete list of 2-Series control systems.

NOTE: Crestron software and any files on the website are for Authorized

Crestron dealers and Crestron Authorized Independent Programmers (CAIP)

only. New users are required to register to obtain access to certain areas of the

site (including the FTP site).

2 •FlipTop Control Center with Cresnet®: C2N-FTB Operations & Installation Guide - DOC. 6338

Crestron C2N-FTB FlipTop Control Center with Cresnet®

Physical Description

Refer to the physical views shown below.

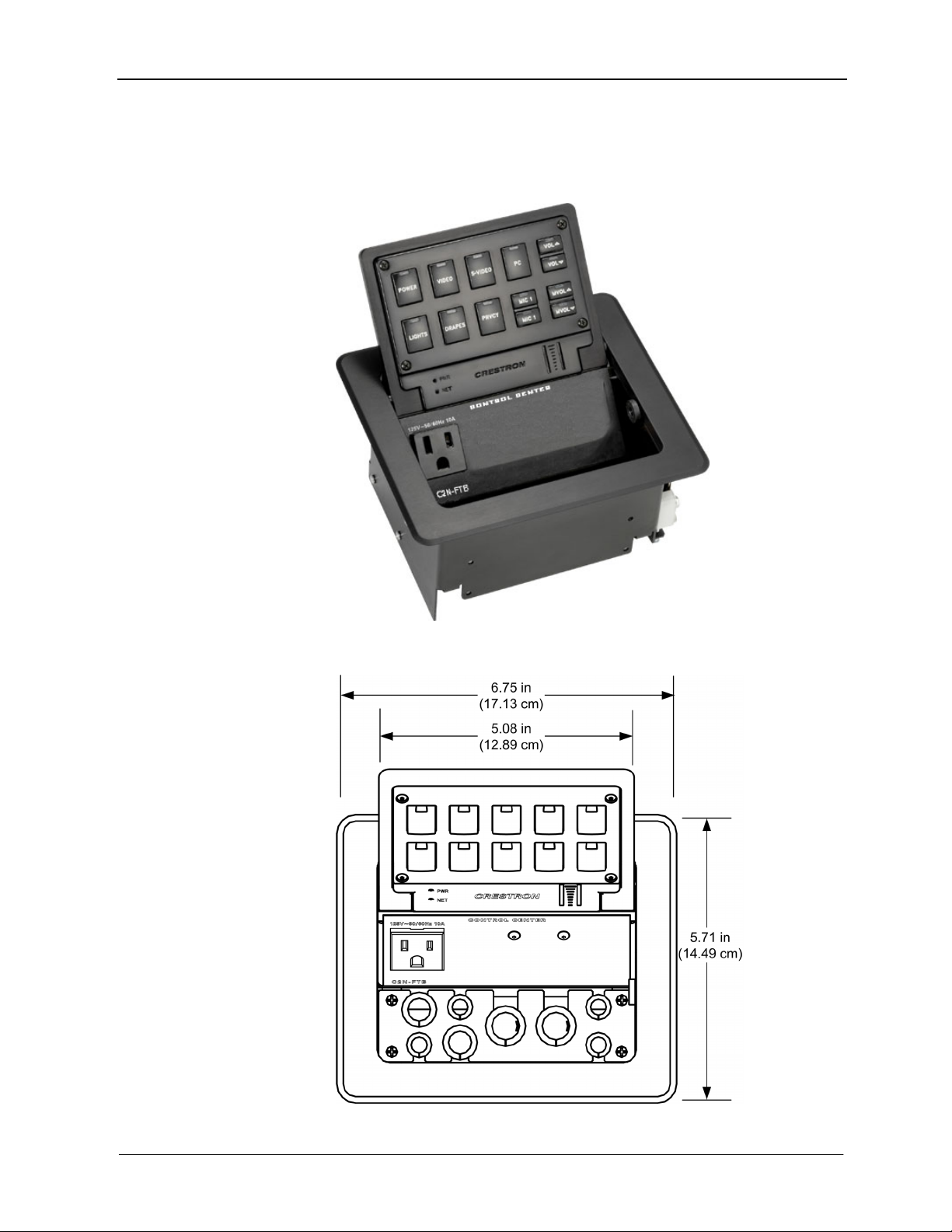

Top Open View

Physical Dimensions - Top View

Operations & Installation Guide – DOC. 6338 FlipTop Control Center with Cresnet®: C2N-FTB •3

FlipTop Control Center with Cresnet®Crestron C2N-FTB

Physical Dimensions - Front View Bottom View

Back View Side View

4 •FlipTop Control Center with Cresnet®: C2N-FTB Operations & Installation Guide - DOC. 6338

Crestron C2N-FTB FlipTop Control Center with Cresnet®

Controls and Ports (Top)

Buttons

The C2N-FTB can have 10 to 20 engravable, replaceable, programmable

buttons. All buttons are functionally identical and have light emitting diodes

(LEDs) that serve as user feedback indicators. The illumination of each LED

(on/off) is independently addressable, and programmable using SIMPL

Windows.

Row 1

Row 2

Row 3

Row 4

PWR

NET

12 345

678910

11 12 13 14 15

16 17 18 19 20

NOTE: Numbers in this illustration are for programming purposes only. Refer

to page 21 for programming information.

NOTE: The C2N-FTB is shipped with a set of ten buttons. Additional buttons

may be added by ordering button kits (refer to page 10).

NOTE: These button units do not support audio WAV files.

AC Outlet

125V – 50/60Hz 10A

The 3-prong grounded AC outlet is rated at 125 VAC @ 10 Amps, 50 – 60 Hz.

Ports (Underside)

NET (x2)

NET

24 Y Z G

NET

24 Y Z G

These two 4-pin terminal block connectors, located on the bottom side of the

C2N-FTB, are for connection to the Cresnet network. One connector is used to

connect to the Cresnet network while the second connector can be used to

connect another Cresnet device. Cresnet power to the C2N-FTB is supplied

through either of these connectors. For more information, refer to “Network

Wiring” on page 6.

AC Power

125V – 50/60Hz 10A

Connect the six-foot (183 cm) grounded AC line cord to supply AC power to the

outlet on the topside of the C2N-FTB.

Operations & Installation Guide – DOC. 6338 FlipTop Control Center with Cresnet®: C2N-FTB •5

FlipTop Control Center with Cresnet®Crestron C2N-FTB

Indicators

PWR (Power)

This LED illuminates when 24 volts DC is supplied to the C2N-FTB from

Cresnet.

NET

This LED illuminates when communication between the control system and the

C2N-FTB is established (the unit is polled on the network). Illumination

indicates that the SIMPL Windows program currently loaded has a network

device defined at the same Net ID as the C2N-FTB.

Bargraphs

Two sets of eight-segment programmable red LEDs are provided that can be

programmed to display audio level settings. The LEDs display is proportional to

the input and can be set from zero to 100%.

SETUP LED and Pushbutton

The C2N-FTB is Touch-Settable ID-ready. A SETUP pushbutton is located on

the bottom side of the C2N-FTB. The SETUP pushbutton and its associated

LED are used for setting a units network ID during the initial configuration of a

Cresnet system or when the device is being added/replaced. Refer to “Method B

(Touch Settable ID)” on page 9 for detailed information.

Industry Compliance

As of the date of manufacture, the C2N-FTB has been tested and found to

comply with specifications for CE marking and standards per EMC and

Radiocommunications Compliance Labelling.

NOTE: This device complies with part 15 of the FCC rules. Operation is

subject to the following two conditions: (1) this device may not cause harmful

interference, and (2) this device must accept any interference received, including

interference that may cause undesired operation.

Setup

Network Wiring

CAUTION: In order to ensure optimum performance over the full range of

your installation topology, Crestron Certified Wire, and only Crestron Certified

Wire, should be used. Failure to do so, may incur additional charges if support is

required to identify performance deficiencies as a result of using improper wire.

CAUTION: Provide sufficient power to the system. Insufficient power can lead

to unpredictable results or damage to the equipment. Please use the Crestron

Power Calculator to help calculate how much power is needed for the system

(http://www.crestron.com/calculators).

6 •FlipTop Control Center with Cresnet®: C2N-FTB Operations & Installation Guide - DOC. 6338
