PARTS LIST

Craftsman Edger/Trencher — Model No. 247.772460

60 61 17

14 30

118

50 18

PARTS LIST

Craftsman Edger/Trencher — Model No. 247.772460

Ref. Part No. Description

1687-02022 Curb Height Adjustment Lever

2687-02125A Curb Height Adjuster Plate

3687-02126 Blade Plate Assembly

4710-0191 Screw ⁄-24

5710 - 0 411 Screw ⁄-16

6710-04389 Hex Screw, ⁄-18

7710-0599 Self-tapping Screw, ⁄-20

8710-0654A Screw, ⁄-16

9710-0726 Hex Screw, ⁄-12

10 710-0870 Hex Screw ⁄-18

11 710-1143A Hex Screw, ⁄-18

12 710 -1174 Carriage Bolt, ⁄-18

13 710-1205 Rope Guide (Eye Bolt)

14 710-3180 Hex Screw, ⁄-18

15 711- 0 4361 Axle Shaft .50x6.65

16 711-04440 Frame Spacer .50x9.25

17 712-04063 Lock Flange Nut, ⁄-18

18 712-04065 Flange Nut ⁄-16

19 712-0417A Flange Nut, ⁄-18

20 714-3010 Clevis Pin ⁄ x .625

21 718-04012 Bearing Cup

22 720-0142 Grip

23 720-0279 Wing Nut

24 720-04072A Star Knob

25 726-0299 Push Cap ⁄” rod

26 931-04207 Bearing Block

27 731-05063 Debris Guard

28 731-05064 Blade Guard

29 732-0188A Double Torsion Spring

30 932-0369 Compression Spring

31 732-04045 Torsion Spring

32 932-04169 Compression Spring

33 734-1264 Wheel 7 x 1.75 T-Tread

Ref. Part No. Description

34 734-1268 Wheel 8 x 1.75 T-Tread

35 936-0179 Flat Washer ⁄ x 1.25 x .10

36 936-0232 Wave Washer .531 x .781 x .013

37 736-0234 Flat Washer, .385 x 1.5 x .075

38 736-0258 Flat Washer .385 x 1.0 x .135 †

39 936-04088 Flat Washer .635x1.24x.181

40 936-0452 Bell Washer,.396 x 1.140

41 738-04149 Shoulder Screw, ⁄-16

42 738-0706C Shoulder Screw

43 738-0929 Shoulder Screw, ⁄-16

44 941-0524 Bearing, .625 ID x 1.57 OD

45 746-04035 Control Cable (Briggs & Stratton)

46 946-04036 Wheel Adjustment Cable

47 747-04110 Blade Adjustment Rod

48 747-0976A-0637 Bail Handle

49 749-04183-0637 Upper Handle

50 749-04234-0637 Lower Handle

51 950-04105 Spacer, .63 x 1.12 x 1.06

52 750-04129 Spacer

53 950-04142 Pulley Mount Spacer

54 750-0547 Spacer, .64 x.88 x .50

55 954-04032B Belt

56 756-04148 Flat Idler Pulley, 2.5 OD

57 956-0449 Sheave

58 756 -115 0A Combination Flywheel Pulley

59 781-0427-0637 Belt Guard

60 781-0741A Depth Index Bracket

61 781-0742-0637 Depth Index Lever

62 781-0748-0637 Tri-Star Blade

63 787-01081A-0721 Bracket Plate

64 787-01239-0721 Dual Wheel Bracket

65 787-01304-0721 Frame

66 10T802-0711-B1 Engine

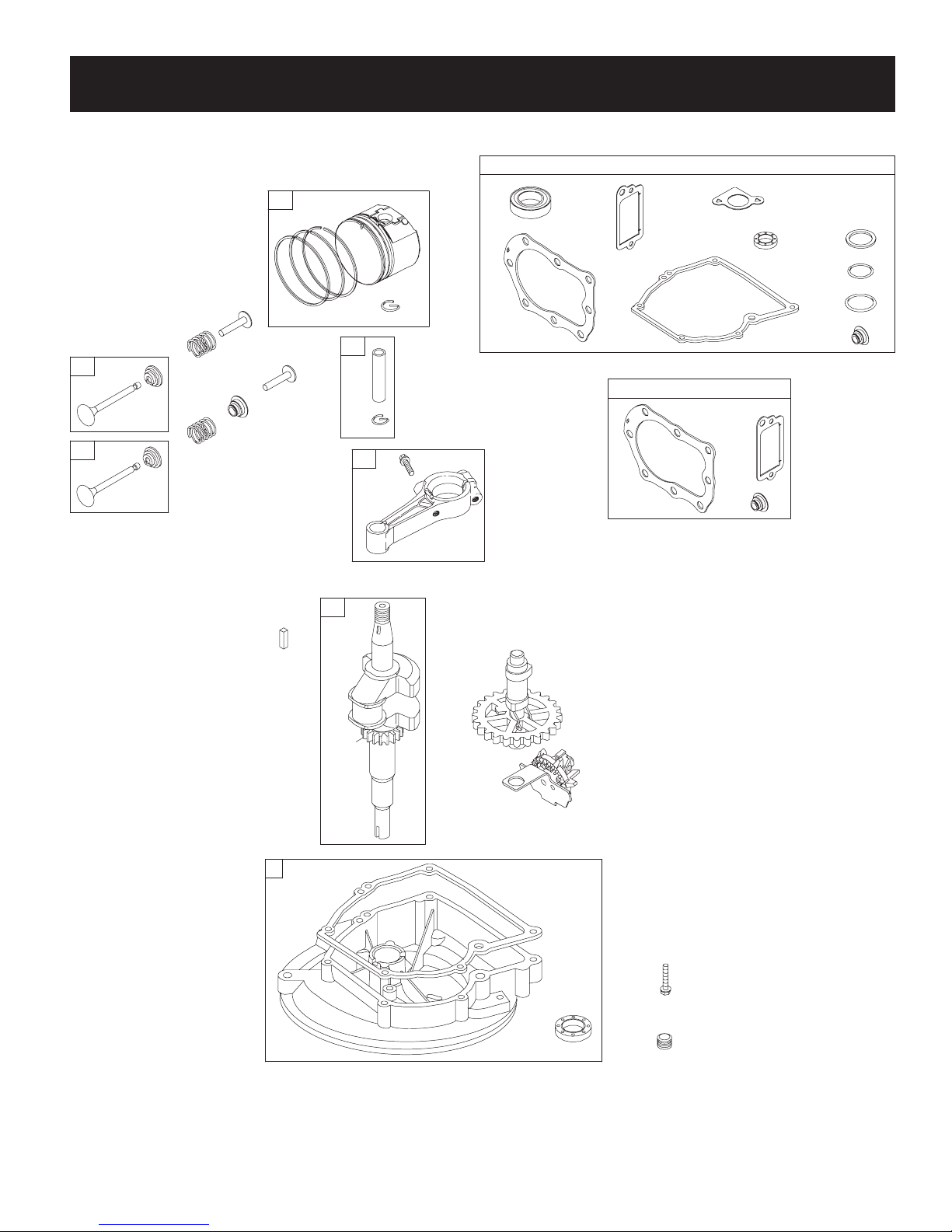

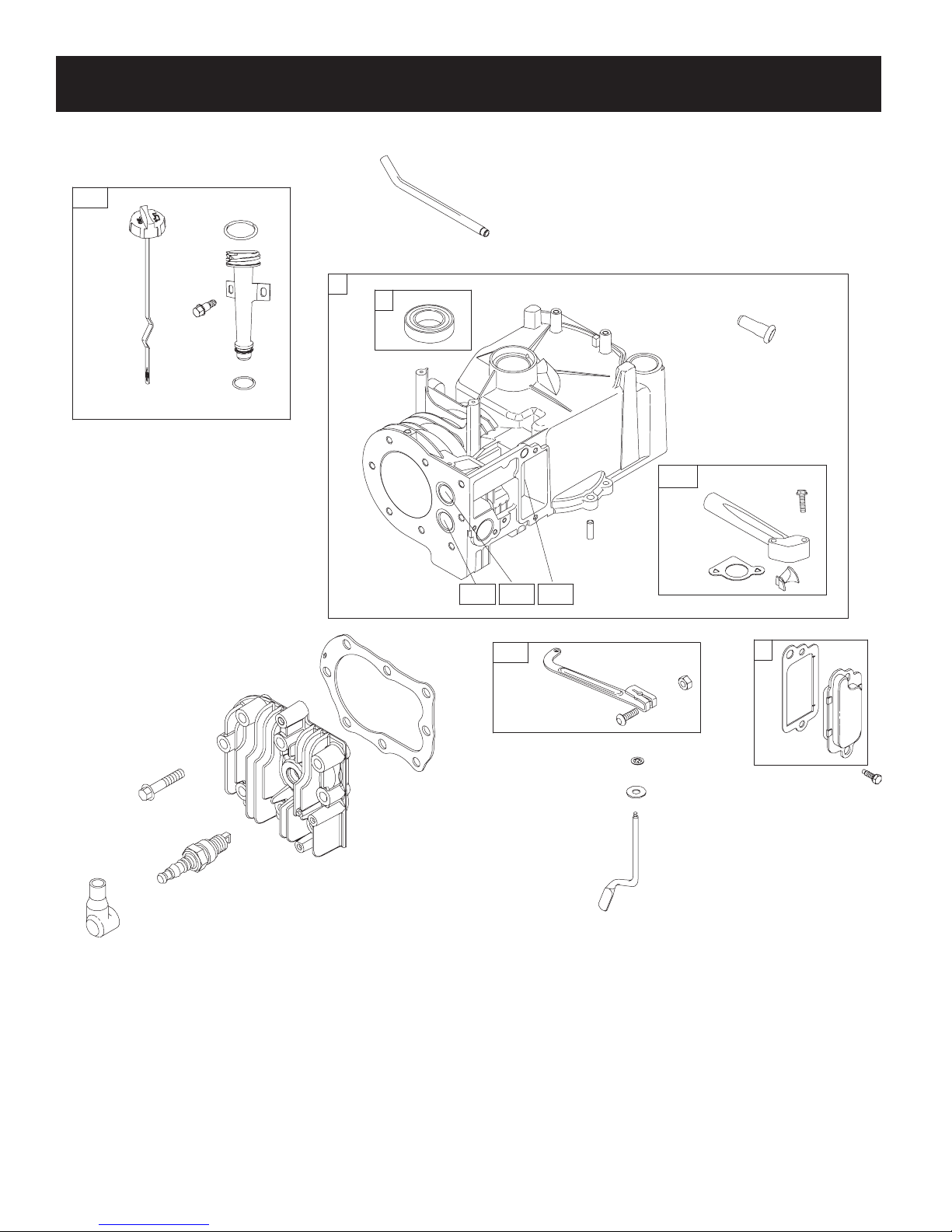

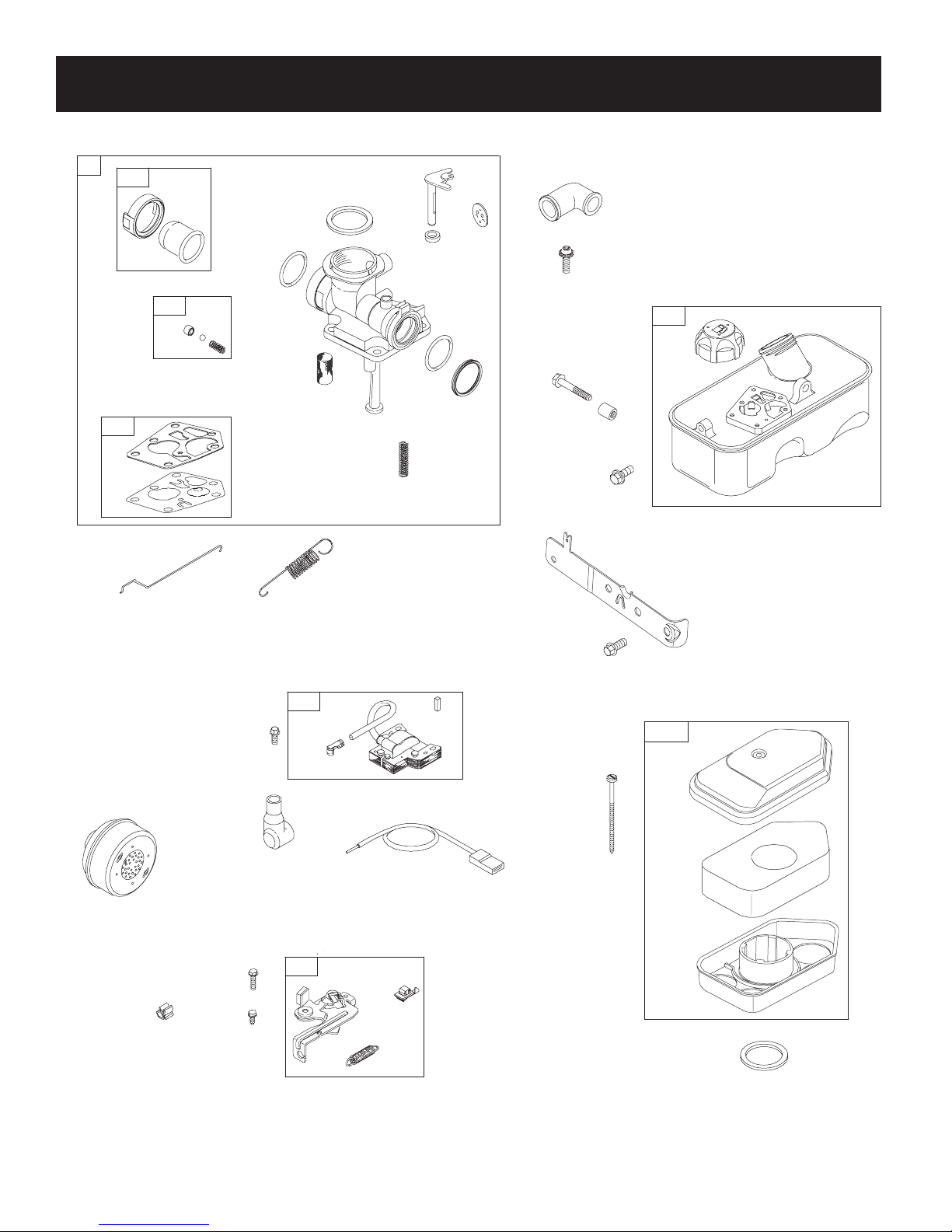

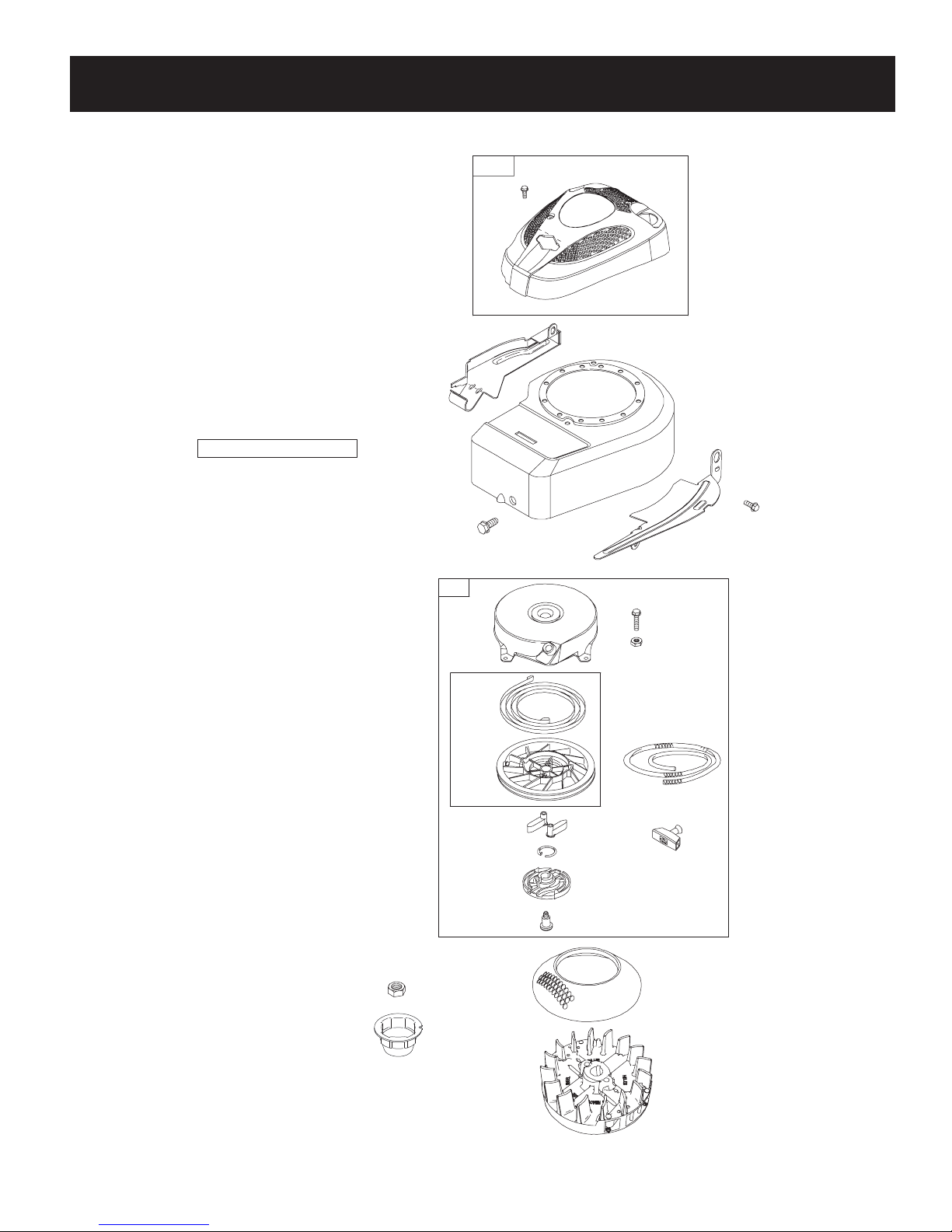

PARTS LIST

Craftsman Engine Model No. 10T802-0711-B1 For Craftsman Edger/Trencher Model No. 247.772460

718

870 871869

337

635

616

615

562

404

505

227

847

524

525

287

842

523

PARTS LIST

Craftsman Engine Model No. 10T802-0711-B1 For Craftsman Edger/Trencher Model No. 247.772460

20 163

524

842

26 27

40 45

868

1095 VALVE GASKET SET

868

358 ENGINE GASKET SET

741

868

PARTS LIST

Craftsman Engine Model No. 10T802-0711-B1 For Craftsman Edger/Trencher Model No. 247.772460

976

394

913

106

163 97 130

633

1218

393

390

617

724

612

365

529

957

190A

190

670

180

202 209

188

222

534

163

536

535

745

923

621

922

745A

729

300

356

334

851

333 24

635

PARTS LIST

Craftsman Engine Model No. 10T802-0711-B1 For Craftsman Edger/Trencher Model No. 247.772460

332

455

305

304

1036 EMISSIONS LABEL

459

608

55 65

592

1211

1210

689

456

597

37A

921

969

PARTS LIST

Ref. No. Part No. Description

1699650 Cylinder Assembly

2399269 Kit-Bushing/Seal (Magneto Side)

3299819s Seal-Oil(MagnetoSide)•

4698691 Sump-Engine

5790169 Head-Cylinder

7698747 Gasket-CylinderHead•+

8791781 Breather Assembly

9695890 Gasket-Breather

10 691666 Screw (Breather Assembly

11 691245 Tube-Breather

12 692218 Gasket-Crankcase•

13 691640 Screw (Cylinder Head)

15 691680 Plug-Oil Drain

16 796217 Crankshaft

20 391483s Seal-Oil(PTOSide)•

22 692551 Screw (Crankcase Cover/Sump)

23 795549 Flywheel

24 222698s Key-Flywheel

25 795691 Piston Assembly (Standard)

795689 Piston Assembly (.020” Oversize)

26 795690 Ring Set (Standard)

795688 Ring Set (.020” Oversize)

27 691588 Lock-Piston Pin

28 699659 Pin-Piston

29 699654 Rod-Connecting

32 691664 Screw (Connecting Rod)

33 296676 Valve-Exhaust

34 296677 Valve-Intake

35 690520 Spring-Valve (Intake)

36 690520 Spring-Valve (Exhaust)

37 793478 Guard-Flywheel (Muffler Side)

37A 697403 Guard-Flywheel (Carburetor Side)

40 692194 Retainer-Valve

43 697799 Slinger-Governor/Oil

45 690762 Tappet-Valve

46 691998 Camshaft

48 793347 Short Block

50 792388 Manifold-Intake

51 792389 Gasket-Intake•+

54 691111 Screw (Intake Manifold)

Ref. No. Part No. Description

55 692144 Housing-Rewind Starter

58 697316 Rope-Starter

60 691915 Grip-Starter Rope

65 690837 Screw (Rewind Starter)

73 699850 Screen-Rotating

78 692198 Screw (Flywheel Guard)

89 692348 Plug (Cylinder)

90 794061 Carburetor

97 697414 Shaft-Throttle

106 690901 Seat-Inlet

130 794060 Valve-Throttle

163 271139s Gasket-Air Cleaner

180 494406 Tank-Fuel

188 692198 Screw (Control Bracket)

190 691640 Screw (Fuel Tank) (1 ¾” Long)

190A 691108 Screw (Fuel Tank) (9/16” Long)

202 698835 Link-Mechanical Governor

209 698719 Spring-Governor (Light Blue)

222 698725 Bracket-Control

227 697402 Lever-Governor Control

287 691002 Screw (Dipstick Tube)

300 394569s Muffler

304 697411 Housing-Blower

305 692198 Screw (Blower Housing)

332 690662 Nut (Flywheel)

333 793281 Armature-Magneto

334 691061 Screw (Magneto Armature)

337 802592s Plug-Spark

356 692390 Wire-Stop

358 794209 Gasket Set-Engine

365 790029 Screw (Carburetor)

390 691839 Spring-Choke Diaphragm

393 691837 Screen-Carburetor

394 795478 Diaphragm-Carburetor

404 690272 Washer (Governor Crank)

455 691236 Cup-Flywheel

456 692299 Plate-Pawl Friction

459 281505s Pawl-Ratchet

505 691251 Nut (Governor Control Lever)

523 692040 Dipstick

Craftsman Engine Model No. 10T802-0711-B1 For Craftsman Edger/Trencher Model No. 247.772460

PARTS LIST

Ref. No. Part No. Description

524 691876 Seal-Dipstick Tube

525 691320 Tube-Dipstick

529 692189 Grommet

534 691417 Screw (Air Cleaner)

535 698369 Filter-Air Cleaner Foam

536 698472 Cleaner-Air

562 691119 Bolt (Governor Control Lever)

592 690800 Nut (Rewind Starter)

597 691696 Screw (Pawl Friction Plate)

608 499706 Starter-Rewind

612 496046s Tube-Pick Up

615 690340 Retainer-Governor Shaft

616 697405 Crank-Governor

617 270344s Seal-O Ring (Intake Manifold)

621 692310 Switch-Stop (Brake)

633 691321 Seal-Choke/Throttle Shaft (Throttle Shaft)

635 66538s Boot-Spark Plug

670 691633 Spacer-Fuel Tank

689 691855 Spring-Friction

718 690959 Pin-Locating

724 697478 Retainer-Seal

729 690586 Clip-Wire

741 796210 Gear-Timing

745 691146 Screw (Brake) (7/8” Long)

745A 690859 Screw (Brake) (1/2” Long)

842 691870 Seal-O Ring (Dipstick Tube)

847 691440 Dipstick/Tube Assembly

851 493880s Terminal-Spark Plug

868 697338 Seal-Valve•+

869 699641 Seat-Valve (Intake)

870 699642 Seat-Valve (Exhaust)

871 699643 Bushing-Valve Guide (Exhaust Valve)

63709 Bushing-Valve Guide (Intake Valve)

913 494409 Seat-Check Valve

921 795397 Cover-Blower Housing

922 692135 Spring-Brake

923 691487 Brake

957 497929s Cap-Fuel

969 694046 Screw (Blower Housing Cover)

976 694394 Primer-Carburetor

Ref. No. Part No. Description

1036 Emissions Label

1058 277038 Operator’s Manual

1095 498526 Gasket Set-Valve

1210 499901 Pulley/Spring Assembly (Pulley)

1211 499901 Pulley/Spring Assembly (Spring)

1218 695866 Seal-O Ring (Carburetor)

1329 10T802-0015 Replacement Engine

1330 270962 Repair Manual

• IncludedinEngineGasketSet,Key.No.358

+ IncludedinValveGasketSet,Key.No.1095

Craftsman Engine Model No. 10T802-0711-B1 For Craftsman Edger/Trencher Model No. 247.772460
