Craftsman 316.773800 Operator's Manual de usuario

Operator's Manual

4-CycJe

Lawn Edger

Model No. 316.773800

,, SAFETY

*ASSEMBLY

*OPERATION

*MAINTENANCE

*PARTS LIST

*ESPANOL, R 13

CAUTION: Before using this

product, read this manual and

follow all safety rules and

operating instructions.

Sears Brands Management Corporation, Hoffman Estates, IL 60179 U.S.A.

Visit our website: www.craftsman.com

769-06843 P00 03/11

TABLE OF CONTENTS

Safety Rules ................................................. 2

Warranty .................................................... 4

Know Your Unit ............................................... 4

Assembly Instructions .......................................... 4

Oil and Fuel Information ........................................ 5

Starting/Stopping Instructions ................................... 6

Operating Instructions ......................................... 6

Maintenance and Repair Instructions .............................. 7

Cleaning and Storage .......................................... 9

Optional Accessory ............................................ 9

Troubleshooting Chart ........................................ 10

Specifications ............................................... 11

Parts List ................................................... 29

Service Numbers ..................................... Back Cover

SPARK ARRESTOR NOTE

NOTE: For users on U.S. Forest Land and in the states of California, Maine,

Oregon and Washington. All U.S. Forest Land and the state of California (Public

Resources Codes 4442 and 4443), Oregon and Washington require, by law that

certain internal combustion engines operated on forest brush and/or grass-covered

areas be equipped with a spark arrestor, maintained in effective working order, or

the engine be constructed, equipped and maintained for the prevention of fire.

Check with your state or local authorities for regulations pertaining to these

requirements. Failure to follow these requirements could subject you to liability or

a fine. This unit is factory equipped with a spark arrestor. If it requires

replacement, ask your LOCAL SERVICE DEALER to install the Accessory Part

#753=05245 Muffler Assembly.

The purpose of safety symbols is to attract your attention to possible dangers.

The safety symbols, and their explanations, deserve your careful attention and

understanding. The safety warnings do not by themselves eliminate any danger.

The instructions or warnings they give are not substitutes for proper accident

prevention measures.

SYMBOL MEANING

SAFETY ALERT: Indicates danger, warning or caution.

Attention is required in order to avoid serious personal injury.

May be used in conjunction with other symbols or pictographs.

DANGER: Failure to obey a safety warning will result in serious

injury to yourself or to others. Always follow the safety precautions

to reduce the risk of fire, electric shock and personal injury.

WARNING: Failure to obey a safety warning can result in injuryto yourself and others. Always follow the safety precautions to

reduce the risk of fire, electric shock and personal injury.

_1_ CAUTION: Failure to obey a safety warning may result in

property damage or personal injury to yourself or to others.

Always follow the safety precautions to reduce the risk of fire,

electric shock and personal injury.

NOTE: Advises of information or instructions vital to the operation or

maintenance of the equipment.

Read the Operator's Manual and follow all warnings and safety instructions.

Failure to do so can result in serious injury to the operator and/or bystanders.

FOR QUESTIONS, CALL 1=800=4=MY=HOME®.

All information, illustrations, and specifications in this manual are based on the

latest product information available at the time of printing. We reserve the right

to make changes at any time without notice.

• iMPORTANT SAFETY iNSTRUCTiONS

READ ALL INSTRUCTIONS BEFORE OPERATING

WARNING: When using the unit, all safety rules must be

followed. Please read these instructions before operating the unit

in order to ensure the safety of the operator and any bystanders.

Please keep these instructions for later use.

CALiFORNiA PROPOSiTiON 65

WARNING: Engine exhaust, some of its constituents and

certain finished components contain or emit chemicals known to

the State of California to cause cancer and birth defects or other

reproductive harm. Wash hands after handling.

• Read the instructions carefully. Be familiar with the controls and proper

use of the unit.

Do not operate this unit when tired, ill, or under the influence of alcohol,

drugs, or medication.

Children and teens under the age of 15 must not use the unit, except for

teens guided by an adult.

All guards and safety attachments must be installed properly before

operating the unit.

Inspect the unit before use. Replace damaged parts. Check for fuel leaks.

Make sure all fasteners are in place and secure. Replace parts that are

cracked, chipped, or damaged in any way. Do not operate the unit with

loose or damaged parts.

Carefully inspect the area before starting the unit. Remove all debris and

hard or sharp objects such as glass, wire, etc.

Be aware of the risk of injury to the head, hands and feet.

Clear the area of children, bystanders, and pets. At a minimum, keep all

children, bystanders, and pets outside a 50 feet (15 m) radius; there still may

be a risk to bystanders from thrown objects. Bystanders should be

encouraged to wear eye protection. If approached, stop the unit immediately.

Squeeze the throttle control and check that it returns automatically to the

idle position. Make all adjustments or repairs before using unit.

SAFETY WARNINGS FOR GAS UNITS

_L_WARNING: Gasoline is highly flammable and its vapors can I

exp ode f gn ted. Take the fo ow ng precaut ons: /

Store fuel only in containers specifically designed and approved for the

storage of such materials.

Always stop the engine and allow it to cool before filling the fuel tank.

Never remove the fuel tank cap or add fuel when the engine is hot.

Always loosen the fuel tank cap slowly to relieve any pressure in the tank

before fueling. Do not smoke.

• Always add fuel in a clean, well-ventilated outdoor area where there are

no sparks or flames. Do not smoke.

• Never operate the unit without the fuel cap securely in place.

Avoid creating a source of ignition for spilled fuel. Wipe up any spilled fuel

from the unit immediately, before starting the engine. Move the unit at

least 30 feet (9.1 m) from the fueling source and site before starting the

engine. Do not smoke.

Never start or run the unit inside a closed room or building. Breathing exhaust

fumes can kill. Only operate this unit in a well-ventilated outdoor area.

WHILEOPERATING +Ifstrikingorbecomesentangledwithaforeignobject,stoptheengine

+WearsafetyglassesorgogglesthataremarkedasmeetingANSIZ87.1-

1989standards.Alsowearear/hearingprotectionwhenoperatingthis

unit.Wearafaceordustmaskiftheoperationisdusty.Longsleeveshirts

arerecommended.

+Wearheavy,longpants,bootsandgloves.Donotwearlooseclothing,

jewelry,shortpants,sandalsorgobarefoot.Securehairaboveshoulderlevel.

+Thisunithasaclutch.Thebladeremainsstationarywhentheengineisidling.

Iftheydonot,havetheunitadjustedbyanauthorizedservicetechnician.

+Besurethebladeisnotincontactwithanythingbeforestartingtheunit.

+Usetheunitonlyindaylightorgoodartificiallight.

+Avoidaccidentalstarting.Beinthestartingpositionwheneverpullingthe

starterrope.Theoperatorandunitmustbeinastablepositionwhile

starting.SeeStarting/Stopping Instructions.

+ Use the right tool. Only use this tool for the purpose intended.

+ Use extreme caution when reversing or pulling the unit backwards.

+ Do not overreach. Always keep proper footing and balance. Take extra

care when working with on steep slopes or inclines.

+ Always hold the unit with both hands when operating. Keep a firm grip on

the handle.

+ Keep hands, face, and feet at a distance from all moving parts. Do not

touch or try to stop the blade while it is rotating.

+ Do not touch the engine or muffler. These parts get extremely hot from

operation. They remain hot for a short time after turning off the unit.

+ Do not operate the engine faster than the speed needed for the job. Do

not run the engine at high speed when the unit is not in use.

+ Always stop the engine when work is delayed or when walking from one

location to another.

immediately and check for damage. Do not operate before repairing

damage. Do not operate the unit with loose or damaged parts.

+ Stop and switch the engine to off for maintenance or repair

+ Use only original equipment manufacturer replacement parts and

accessories for this unit. These are available from an authorized service

dealer The use of any unauthorized parts or accessories could lead to

serious injury to the user, or damage to the unit, and void the warranty.

+ Keep unit clean of vegetation and other materials that may become

lodged or entangled in the unit.

+ To reduce fire hazard, keep the engine and muffler free from grass, leaves,

excessive grease or carbon build up.

AFTER USE

+ Clean the unit with household cleaner to remove any gum buildup. Oil the

blade with machine oil to prevent rust.

OTHER SAFETY WARNINGS

+ Never store a fueled unit inside a building where fumes may reach an

open flame or spark.

+ Allow the engine to cool before storing or transporting. Be sure to secure

the unit while transporting.

+ Store the unit in a dry area, locked up or up high to prevent unauthorized

use or damage. Keep out of the reach of children.

+ Never douse or squirt the unit with water or any other liquid. Keep handles

dry, clean and free from debris. Clean after each use. See the Cleaning

and Storage instructions.

+ Keep these instructions. Refer to them often and use them to instruct other

users. If loaning someone this unit, also loan them these instructions.

SAVE THESEINSTRUCTIONS

+ SAFETY & iNTERNATiONAL SYMBOLS +

This operator's manual describes safety and international symbols and pictographs that may appear on this product. Read the operator's manual for complete

safety, assembly, operating and maintenance and repair information.

SYMBOL MEANING SYMBOL MEANING

;;U_E;;;E

||NG

warran

ING:

c_p_rat

+ii_t

_+ii;;;;;;;;;iiii+i

;St

CRAFTSMAN 2 YEAR FULL WARRANTY

FOR 2 YEARS from the date of purchase, this product is warranted against any defects in material or workmanship. Defective product will receive free repair or

free replacement if repair is unavailable.

For warranty coverage details to obtain repair or replacement, visit the web site: www.craftsman.com

This warranty covers ONLY defects in material and workmanship. Warranty coverage does NOT include:

• Expendable items that can wear out from normal use within the warranty period, such as edger blades, filters or spark plugs.

Product damage resulting from user attempts at product modification or repair or caused by product accessories.

Repairs necessary because of accident or failure to operate or maintain the product according to all supplied instructions.

Preventive maintenance, or repairs necessary due to improper fuel mixture, contaminated or stale fuel.

This warranty is void if this product is ever used while providing commercial services or if rented to another person.

This warranty gives you specific legal rights, and you may also have other rights, which vary from state to state.

Sears Brands Management Corporation, Hoffman Estates, IL 60179

APPLiCATiONS

Edging along paths, driveways, rockeries, etc.

Handle

Throttle Control

On/Off Control Fuel Cap Oil Fill Plug

Starter Rope Grip Spark Plug

Muffler

Air Filter

Cover

Red Cold Weather

Starter Lever

NO TOOLS REQUIRED!

Depth Adjustment

Lever

Primer Bulb

Edger Blade --_ Blade Shield

HANDLE ASSEMBLY

1. Slide the ends of the middle

shaft over the ends of both

lower shafts and align the

holes (Fig. 1).

NOTE: Keep the throttle cable

and wire assembly to the

front of the unit when

assembling the middle

shaft.

2. Insert a flange-headed bolt

Middle Shaft into each of these two holes

(Fig. 2).

3. Install a washer and knob

onto each bolt (Fig. 2).

Tighten the knobs securely.

Lower Washer,_

Shaft

Washer

Bolt

Fig. 1 Fig. 2

4. Align the holes on the upper _ /Upper Shaft

shaft with the holes toward

the upper end of the middle

shaft (Fig. 3).

NOTE: Make sure the "V" bend % ob _ _Nasher

in the handle is pointing Kn s

up, so that the throttle Washer

control is on the right /____,_ f_ Holt

side when the operator is Bolt _ Middle

standing in the operating

position (Fig. 3). _ % \_---- Shaft

NOTE: Keep the throttle cable Fig.3

and wire assembly to the

front of the middle shaft. Starter Rope

5. Insert a flange-headed bolt

into each of these two holes

(Fig. 3).

6. Install a washer and knob UPPa_tr

onto each bolt (Fig. 3).

Tighten the knobs securely. Eye Hook

7. Pull out the starter rope and

run it through the eye hook

(Fig. 4).

8. Insert the throttle cable and Fig.4

wire assembly into the cable

restraints on the lower and

upper shafts (Fig. 5). Shaft

NOTE: DO NOT run the cables Cable

though the eye hook. Restraint

NOTE: DO NOT pinch or bend

the cables.

Wire Assembly

Throttle Cable

Fig. 5

L_I_.[ WARNING: OVERFILLING OIL CRANKCASE MAY CAUSE

SERIOUS PERSONAL INJURY. Check and maintain the proper oil

level in the crankcase; it is important and cannot be

overemphasized. Check the oil before each use and change it as

needed. See Changing the Oil.

RECOMMENDED OiL TYPE

Using the proper type and weight of oil in the crankcase is extremely important.

Check the oil before each use and change the oil regularly. Failure to use the

correct oil, or using dirty oil, can cause premature engine wear and failure.

Use a high-quality SAE 30 weight oil of API (American Petroleum Institute)

service class SF,SG, SH.

ADDING OiL TO CRANKCASE: INITIAL USE

NOTE: This unit is shipped

without oil. In order to

avoid damage to the unit,

put oil in the crankcase

before attempting to start

the unit.

The unit is supplied with one 3.04

fluid oz. (90 ml) bottle of SAE 30

SF, SG, SH oil (Fig. 6).

NOTE: Save the bottle of oil. It

can be used to measure

the correct amount

during future oil changes.

See Changing the Oil. Fig. 6

1. Unscrew the top of the bottle of oil and remove the paper seal covering

the opening. Replace the top. Next, cut the tip off the funnel spout (Fig. 6).

2. Place unit on a flat, level surface.

3. Remove the oil fill plug from the crankcase (Fig.8).

4. Pour the entire bottle of oil into the oil fill hole (Fig. 7).

NOTE: Never add oil to the fuel or fuel tank.

5. Wipe up any oil that may have spilled and reinstall the oil fill plug.

Check oil before each use and change as needed. Refer to Checking the Oil

Level.

RECOMMENDED FUEL TYPE

Old fuel is the primary reason for

improper unit performance. Be

sure to use fresh, clean, unleaded

gasoline.

NOTE: Dispose of the old

gasoline in accordance

with federal, state and

local regulations.

NOTE: This is a four cycle

engine. In order to avoid oil Fill Hole

damage to the unit, do

not mix oil with Fig. 7

gasoline.

Definition of Blended Fuels oil FillPlug

Today's fuels are often a blend of

gasoline and oxygenates such as

ethanol, methanol or MTBE (ether).

Alcohol-blended fuel absorbs

water. As little as 1% water in the O-Ring

fuel can make fuel and oil separate

or form acids when stored. Use

fresh fuel (less than 30 days old), Oil Fill

when using alcohol-blended fuel. Hole

Using Blended Fuels

If choosing to use a blended fuel, Fig. 8

or its use is unavoidable, follow recommended precautions:

• Always use fresh unleaded gasoline

• Use the fuel additive STA-BIL® or an equivalent

• Drain tank and run the engine dry before storing unit

Using Fuel Additives

WARNING: Gasoline is extremely flammable. Ignited vapors

may explode. Always stop the engine and allow it to cool before

filling the fuel tank. Do not smoke while filling the tank. Keep

sparks and open flames at a distance from the area.

WARNING: Add fuel in a clean, well ventilated outdoor area. Wipe

up any spilled fuel immediately. Avoid creating a source of ignition for

spilt fuel. Do not start the engine until fuel vapors dissipate.

The use of fuel additives, such as STA-BIL® Gas Stabilizer or an equivalent, will

inhibit corrosion and minimize the formation of gum deposits. Using afuel additive

can keep fuel from forming harmful deposits in the carburetor for up to six (6)

months. Add 0.8 oz. (23 ml)of fuel additive per gallon of fuel according to the

instructions on the fuel additive container. NEVER add fuel additives directly to the

unit's gas tank.

FUELING THE UNIT

1. Remove the fuel cap (Fig. 9).

2. Place the gas container's spout into the fill hole on the fuel tank (Fig. 9)

and fill the tank.

_[_ WARNING: Remove fuel cap slowly to avoid injury from fuel

spray. Never operate the unit without the fuel cap securely in place.

_ ARNING: DO NOT USE E85 FUEL IN THIS UNIT. It has

been proven that fuel containing greater than 10% ethanol will

likely damage this engine and void the warranty.

NOTE: Do not overfill the tank.

3. Wipe up any gasoline that

may have spilled.

4. Reinstall the fuel cap.

5. Move the unit at least 30 ft.

(9.1 m) from the fueling

source and site before

starting the engine.

Gas Can Spout

Fuel Tank

Fig. 9

_L_ WARNING: Operate this unit only in a well-ventilated outdoor area. I

Carbon monoxide exhaust fumes can be lethal in a confined area. j

]

_ WARNING: Avoid accidental starting. Make sure to be in the

starting position when pulling the starter rope (Fig. 12). To avoid

serious injury, the operator and unit must be in a stable position

while starting.

NOTE: This unit uses the Incredi-PuIF Mstarting system, which

significantly reduces the effort required to start the engine. There is

no harsh resistance when pulling the starter rope. Be aware that

this starting method is vastly different from (and much easier than)

previous starting techniques.

STARTING INSTRUCTIONS

1. Check the oil level in the

crankcase. Refer to Checking

the Oil Level.

2. Fill the fuel tank with fresh,

clean unleaded gasoline.

Refer to Fueling the Unit.

NOTE: There is no need to turn

the unit on. The On/Off

Control is in the ON (I)

position at all times

(Fig. 10).

IF COLD... In cold weather

conditions (below 40°F),

push the red cold weather

start lever (Fig. 11) down

to the closed position and

continue to step 3. DO

NOT push this lever down

if the temperature is above

40OR

NOTE: DO NOT squeeze the

throttle control until step 8.

3. Fully press and release the

primer bulb 10 times, slowly.

Some amount of fuel should

be visible in the primer bulb

(Fig. 11). If fuel cannot be

seen in the bulb, press and

release the bulb until fuel is

visible.

4. Stand in the starting position

(Fig. 12).

5. Pull the starter rope in a

controlled motion until the

unit starts.

IF COLD... In cold weather

conditions (below 40°F),

pull the red cold weather

start lever back up to the

Throttle

Control

Fig. i0

ResdtCold Weather

Primer _

Bulb i

Fig. f I

On/Off

Control

open position after the unit starts.

Wait 60 seconds.

Starting

Position

Fig. 12

7. Tip the unit back so the blade does not touch the ground.

8. Squeeze the throttle control and allow the engine to warm up for 30 to

60 seconds. The unit may be used during this time.

IF... The engine does not start, go back to step 3.

IF... The engine stops while squeezing the throttle, go back to step 4.

STOPPING INSTRUCTIONS

1. Release the throttle control and allow the engine to cool down by idling.

2. Press and hold the On/Off Control in the OFF (O) position until the unit

comes to a complete stop. (Fig. 10)

HOW TO START THE UNIT USING THE PLUG=IN POWER START OR

POWER BiT START ACCESSORY

NOTE: This unit can use a Plug-in Power Start or Power Bit Start

optional accessory!

Please refer to the Plug-In Power Start or Power Bit Start operator's

manual for proper use of this feature. (Plug-In Power Start sold

separately /Power Bit Start included. Please refer to page 9 of this

manual for more information about these accessories.)

STARTING INSTRUCTIONS

1. Check the oil level in the crankcase. Refer to Checking the Oil Level.

2. Fillthe fuel tank with fresh, clean unleaded gasoline. Refer to Fueling the Unit.

NOTE: There is no need to turn the unit on. The On/Off Control is in the

ON (I) position at all times (Fig. 10).

IF COLD... For cold weather conditions (below 40°F), push the red cold weather

start lever (Fig. 11)down to the closed position and continue to step 3.

DO NOT push this lever down if the temperature is above 40°E

NOTE: DO NOT squeeze the throttle control until step 9.

3. Fully press and release the primer bulb 10 times, slowly. Some amount

of fuel should be visible in the primer bulb (Fig. 11). Iffuel can not be

seen in the bulb, press and release the bulb until fuel is visible.

4. Place the Plug-In Power Start or Power Bit Start into the back of the

unit. Refer to the Operation section of the Plug-In Power Start or Power

Bit Start operator's manual.

5. Press and hold the ON (I) button of the Plug-in Power Start or Power Bit

Start equipped drill in intervals no longer than 2 seconds each until the

unit starts.

IF COLD... For cold weather conditions (below 40°F), pull the red cold

weather start lever back up to the open position after the unit starts.

6. Remove the Plug-In Power Start or drill from the unit.

7. Wait 60 seconds.

8. Stand in the starting position (Fig. 12). Tip the unit back so the blade

does not touch the ground.

9. Squeeze the throttle control and allow the engine to warm up for 30 to

60 seconds. The unit may be used during this time.

IF... The engine does not start, go back to step 3.

IF... The engine stops while squeezing the throttle, go back to step 4.

STOPPING INSTRUCTIONS

1. Release the throttle control and allow the engine to cool down by idling.

2. Press and hold the On/Off Control in the OFF (O) position until the unit

comes to a complete stop. (Fig. 10)

HOLDING THE UNIT

_ ARNING: Always wear eye, hearing, foot and body protection

to reduce the risk of injury when operating this unit.

Before operating the unit, stand in the

operating position (Fig. 13). Check for the

following:

• The operator is wearing eye protection and

proper clothing.

• Both hands are holding the handle bar firmly.

• The edger wheel adjusted for proper cut

depth as shown in Figure 14 and edger

positioned as shown in Figure 13.

ADJUSTING EDGER CUTTING DEPTH

1. Gently pull the depth adjustment lever

away from the wheel bracket (Fig 14).

2. To raise the cutting blade, \\_ \- '

move the lever toward the

front of the wheel bracket

(Fig. 14). Lowering the wheel

decreases the cutting depth.

3. To lower the cutting blade,

move the lever toward the

rear of the wheel bracket.

Raising the wheel increases

the cutting depth.

Fig. 13

Lever

2#1¢'t

Fig. f 4

TiPS FOR BEST EDGING RESULTS

• After starting the engine, keep

the unit tilted back so the blade

does not touch the ground.

Move the unit to the desired

location and slowly lower the

blade into the ground.

Do not force the edger. Edge

the first time at a lesser depth

(no more than 1/2" depth cut

per pass), then do the area

again with a deeper setting.

• Walk the edger at a slow, even

pace.

Blade Edge

Fig. 15

Check the blade condition (Fig. 15). As it wears it becomes smaller, thus

reducing the cutting depth performance. Replace the blade when it no

longer makes contact with the ground.

MAINTENANCE SCHEDULE

-- i

_ ARNING: To avoid serious personal injury, always turn the

unit off and allow it to cool before cleaning or maintaining it.

Perform these required maintenance procedures at the frequency stated in

the table. These procedures should also be a part of any seasonal tune-up.

NOTE: Some maintenance procedures may require special tools or skills. If

NOTE:

unsure about these procedures take the unit to Sears or other qualified

service dealer. Call 1-800-4-MY-HOME® for more information.

Maintenance, replacement, or repair of the emission control devices

and system may be performed by a Sears or other qualified service

dealer. Call 1-800-4-MY-HOME® for more information.

Please read the California/EPA statement that came with the unit for

a complete listing of terms and coverage for the emissions control

devices, such as the spark arrestor, muffler, carburetor, etc.

FREQUENCY MAINTENANCE REQUIRED SEE

Every 10 hours Clean and oil air filter p. 8

After 1st 10 Change oil p. 7

hours Check rocker arm to valve clearance and adjust p. 8

Check spark plug condition and gap p. 9

Every 40 hours Change oil p. 7

Check rocker arm to valve clearance and adjust p. 8

Check spark plug condition and gap p. 9

BLADE REPLACEMENT

1. Place the 5/16" Allen wrench

in the spindle hole (Fig. 16).

2. While holding the Allen

wrench in place, loosen the

nut with a 15/16" wrench by

turning it counterclockwise

(Fig. 16).

3. Remove the nut and blade.

Keep the nut for new blade

installation.

4. Install the new blade and nut

(Fig. 17).

NOTE: Make sure the blade

edges are facing the

proper direction (Fig. 17).

The unit will not function

correctly if the edger

blade is installed

backward.

5. While holding the Allen

wrench in the spindle hole,

tighten the nut by turning the

wrench clockwise until tight

(Fig. 16).

NOTE:

Spindle

Tighten Hole

Fig. 16

Edger Blade

Fig. 17

Make sure that the blade stays flat and centered against the output

shaft throughout installation.

CHECKING THE OiL LEVEL

The importance of checking and maintaining the proper oil level in the

crankcase cannot be overemphasized. Check oil before each use:

1. Stop the engine and allow oil to drain into the crankcase.

2. Place unit on a flat, level

surface.

3. Keep dirt, grass clippings

and other debris out of the

engine. Clean the area

around the dipstick before

removing it.

4. Remove the oil fill plug.

5. Look into the oil fill hole, use

a flashlight if needed. The oil

should be just touching the

inner most thread (Fig. 18).

Oil Max Fill Line

6. Ifthe oil level is not touching Oil Fill Plug

Fig. 18

the inner most thread on the

oil fill hole, add a small

amount of oil to the oil fill hole

and recheck (Fig. 21). Repeat

this procedure until the oil

level reaches the inner most O-Ring

thread on the oil fill hole.

NOTE: Do not overfill the unit. Oil Fill

NOTE: Make sure the O-ring is Hole

in place on the oil fill

plug when checking and

changing the oil (Fig. 19). Fig. 19

CHANGING THE OiL

Change the oil while the engine is still warm. The oil will flow freely and carry

away more impurities.

1. Remove the oil fill plug.

2. Pour the oil out of the oil fill hole and into a container by tipping the unit

to a vertical position (Fig. 20). Allow ample time for complete drainage.

3. Wipe up any oil residue on the unit and clean up any oil that may have

spilled. Dispose of the oil according to federal, state and local

regulations.

4. Refill the crankcase with

3.04 fl.oz. (90 ml) of SAE 30

SF, SG, SH oil.

NOTE: Use the bottle and

spout saved from initial

use to measure the

correct amount of oil.

The top of the label on

the bottle measures

approximately 3.04 fl.oz.

(90 ml) (Fig. 22). Check

the level, See Checking

the Oil Level. If the level

is low, add a small

amount of oil and

recheck. Do not overfill

(Fig. 18).

5. Replace the oil fill plug.

Fig. 20

Fill Line

Fig. 21

Fig. 22

AiR FILTER MAINTENANCE

Cleaning the Air Filter

Failure to maintain the air filter

properly can result in poor

performance or can cause

permanent damage to the engine.

1. Open the air filter cover.

Unscrew the knob on the left

side of the cover. Swing the

cover out (Fig. 23).

Remove the air filter (Fig. 23).

Air Filter Air Filter Cover Knob

Back Plate

Fig. 23

Hooks

Wash the filter in detergent and water. Rinse the filter thoroughly and

allow it to dry.

4. Apply enough clean SAE 30 motor oil to lightly coat the filter.

5. Squeeze the filter to spread and remove excess oil.

6. Replace the filter (Fig. 23).

NOTE: Operating the unit without the air filter, will VOID the warranty.

7. Make sure the back plate is correctly positioned (Fig. 23).

8. Swing the air filter cover closed and tighten the knob (Fig. 23).

iDLE SPEED ADJUSTMENT

The idle speed of the engine is adjustable. An idle adjustment screw is

between the air filter cover and the engine starter housing (Fig. 24).

NOTE: Careless adjustments can seriously damage the unit. Aside from idle

speed, only a Sears or other qualified service dealer should make

carburetor adjustments.

If, after checking the fuel and cleaning the air filter, the engine still will not

idle, adjust the idle speed screw as follows:

I _i_ ! WARNING: The blade may spin during idle speed adjustments.

Wear protective clothing and observe all safety instructions toprevent serious personal injury.

1. Start the engine and let it run at a high idle for a minute to warm up.

Refer to Starting/Stopping Instructions.

2. Release the throttle lever and

let the engine idle. If the Idle Adjustment

engine stops, insert a small Screw

Phillips in between the air

filter cover and the engine

cover (Fig. 24). Turn the idle

speed screw in, clockwise,

1/8 of a turn at a time (as

needed) until the engine idles

smoothly.

NOTE: The blade should not Fig. 24

rotate when the engine

idles.

3. If the blade rotates when the engine idles, turn the idle speed screw

counterclockwise 1/8 of a turn at a time (as needed), to reduce idle

speed.

Checking the fuel, cleaning the air filter, and adjusting the idle speed should

solve most engine problems. If not and any of the following are true have the

unit serviced by a Sears or other qualified service dealer:

• the engine will not idle

the engine hesitates or stalls on acceleration

there is a loss of engine power

ROCKER ARM CLEARANCE

This requires disassembly of the engine. If unsure or unqualified to perform this,

take the unit to a Sears or other qualified service dealer.

The engine must be cold when checking or adjusting the valve clearance.

This task should be performed inside, in a clean, dust free area.

1. Remove the six (6) screws on the back of the engine cover with a Flat-

head or T-25 Torx screwdriver (Fig. 25).

2. Disconnect the spark plug wire.

3. Clean dirt from around the spark plug. Remove the spark plug from the

cylinder head by turning a 5/8 in. socket counterclockwise.

4. Remove the engine cover (Fig. 25).

5. Clean dirt from around the rocker arm cover. Remove the screw holding

the rocker arm cover with a large flat blade screwdriver or Torx T-25 bit

(Fig. 26). Remove the rocker arm cover and gasket.

6. Pull the starter rope slowly to bring the piston to the top of its travel,

(known as top dead center). Check that:

The piston isat the top of its travel. This should be done by looking into the

spark plug hole. (Fig. 26)

Both rocker arms move freely,

and both valves are closed View of the Rear Engine Cover

If these statements are not true,

repeat step 6.

7. Slide the feeler gauge between Screws

the rocker arm and the valve Screws

return spring. Measure the

clearance between the valve

stem and rocker arm (Fig. 28).

Measure both the intake and

exhaust valves.

The recommended clearance for Fig. 25

both intake and exhaust is .003 - Screw _

.006 in. (.076 = 0.152 rnm). Use a 0

standard automotive .005 in. Rocker Arm

(0.127 mm) feeler gauge. The Cover

feeler gauge should slide between

the rocker arm and valve stem Spark Plug

with a slight amount of resistance, Hole

without binding (Fig. 27 and 28).

8. If the clearance is not within

specification: Fig. 26

a. Turn the adjusting nut using a

5/16 inch (8 mm) wrench or Adjusting Nuts

nut driver (Fig. 28).

To increase clearance, turn INTAKE

the adjusting nut

counterclockwise. EXHAUST

• To decrease clearance, turn Rocker

the adjusting nut clockwise. Arms

b. Recheck both clearances,

and adjust as necessary.

9. Reinstall the rocker arm Fig. 27

cover using a new gasket.

Torque the screw to 20-30 Exhaust Rocker Arm

Adjusting ----

in'lb (2.2-3.4 N,m}. Nut __ Feeler

10. Check the spark plug and _ Gauge

reinstall. See Replacing the -_ _ --

Spark Plug. . . .

O003-0 006in.

11. Replace the spark plug wire. (0.076-0.152 ram)

12. Reinstall the engine cover.

Check alignment of the cover

before tightening the screws. _ Valve Stem

Tighten screws. Fig. 28

REPLACING THE SPARK PLUG

Use a replacement Champion ® #RDZ4H spark plug. The correct air gap

is 0.025 in. (0.635 rnrn).

1. Stop the engine and allow it to cool. Remove the six (6)screws on the back

of the engine cover with a Flat-head or T-25 Torx screwdriver (Fig. 25).

2. Grasp the plug wire firmly and pull the cap from the spark plug.

3. Clean dirt from around the spark plug. Remove the spark plug from the

cylinder head by turning a 5/8 in. socket counterclockwise.

-- i

_, I WARNING: Do not sand blast, scrape or clean spark plug

the engine could damage the cylinder.

e ectrodes. Gr t n

4. Replace cracked, fouled or I I

dirty spark plug. Set the air

gap at 0.025 in. (0.635 rnrn)

using a feeler gauge (Fig. 29).

5. Install a correctly-gapped

spark plug in the cylinder

head. Turn the 5/8 in. socket

clockwise until snug.

If using a torque wrench torque to: 0.025 in. $

110-120 in.olb. (12.3-13.5 Nora) (0.635ram} f

Do not over=tighten. Fig. 29

PLUG=IN POWER START AND POWER BiT START FEATURES

This unit can be started with an optional Plug-In Power Start or Power Bit

Start (Plug-In Power Start sold separately /Power Bit Start included). If

choosing to start the unit using one of these features or have questions,

please contact your local Craftsman retailer or call 1-800=4=MY-HOME® for

more information and purchasing. You may also go to www.craftsman.com.

Power Start Feature

item No. Description

316.85951 ..................................... Plug-In Power Start

316.85952 ........................................ Power Bit Start

CLEANING

m i_ ARNING: To avoid serious personal injury, always turn the

unit off and allow it to cool before cleaning or maintaining it.

Use a small brush to clean off the outside of the unit. Do not use strong

detergents. Household cleaners that contain aromatic oils such as pine and

lemon, and solvents such as kerosene, can damage plastic housing or handle.

Wipe off any moisture with a soft cloth.

STORAGE

Never store the unit with fuel in the tank where fumes may reach an open

flame or spark.

Allow the engine to cool before storing.

Lock up the unit to prevent unauthorized use or damage.

Store the unit in a dry, well-ventilated area.

Store the unit out of the reach of children.

LONG TERM STORAGE

1. Remove the fuel cap, tip the unit and drain the fuel into an approved

container.

NOTE: Do not use gasoline that has been stored for more than 30 days.

Dispose of old gasoline in accordance with federal, state and local

regulations.

2. Start the engine and allow it to run until it stalls. This ensures that all

gasoline has been drained from the carburetor.

3. Allow the engine to cool. Remove the spark plug and put 5 drops of

high quality motor oil into the cylinder. Pull the starter rope slowly to

distribute the oil. Reinstall the spark plug.

NOTE: Remove the spark plug and drain all of the oil from the cylinder

before attempting to start the edger after storage.

4. Change the oil, referring to Changing the Oil. Dispose of the old oil in

accordance with federal, state and local regulations.

5. Thoroughly clean the unit and inspect for any loose or damaged parts.

Repair or replace damaged parts and tighten loose screws, nuts or

bolts. The unit is ready for storage.

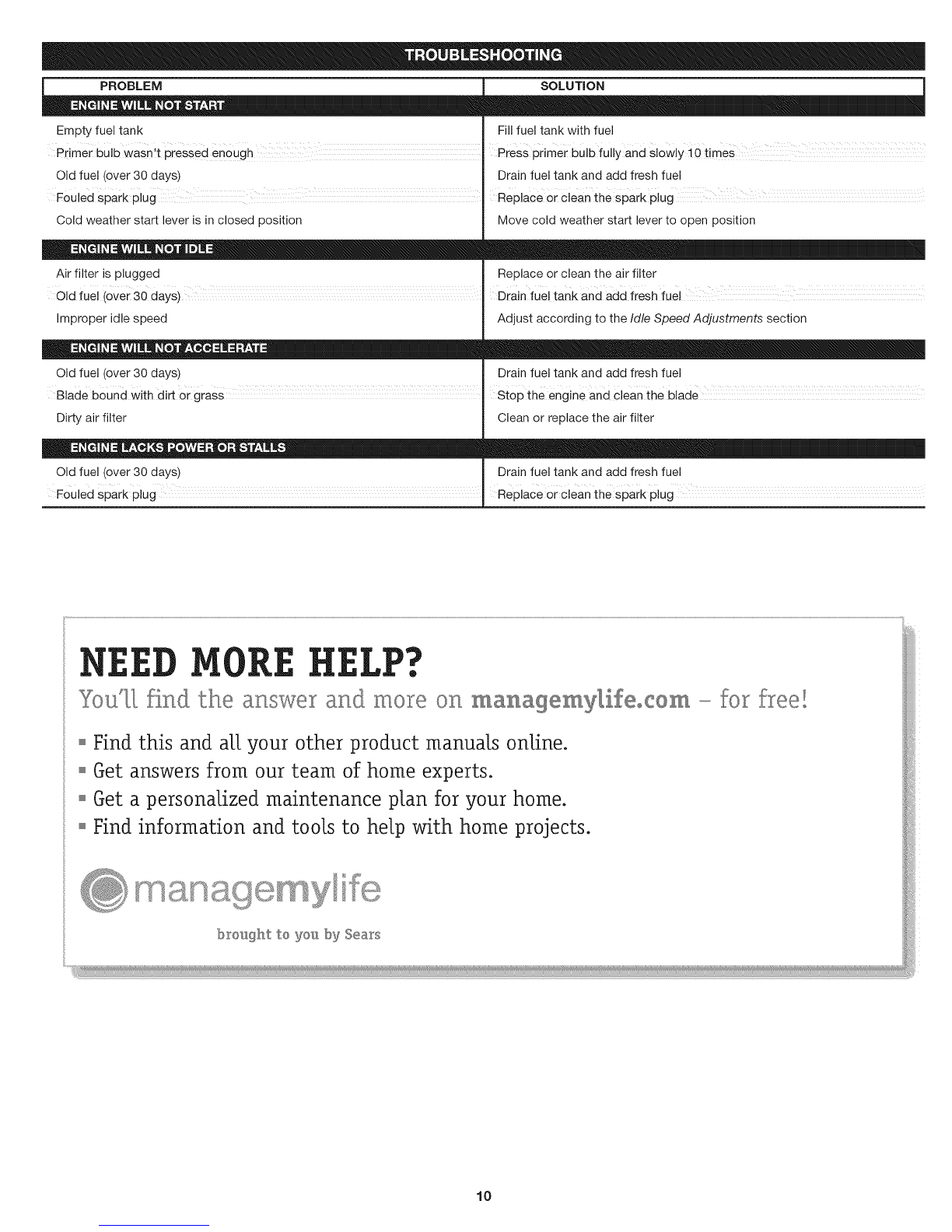

PROBLEM SOLUTION

Empty fuel tank

Old fuel (over 30 days)

FouJed spark plug

Cold weather start lever is in closed position

Air filter is plugged

Fill fuel tank with fuel

Press primer bulb fully and sioWJy i 0 times

Drain fuel tank and add fresh fuel

Replace oi Clean the SPaik Piug

Move cold weather start lever to open position

Replace or clean the air filter

Old fuel (ovei 30 daYs)Drain fuel tank and add fresh fueJ

Improper idle speed

Old fuel (over 30 days)

Blade bound With dirt or grass

Dirty air filter

Old fuel (over 30 days)

Adjust according to the Idle Speed Adjustments section

Drain fuel tank and add fresh fuel

Stop the engine and clean the blade

Clean or replace the air filter

Drain fuel tank and add fresh fuel

Fouled spark plug Replace or clean the Spark plug

Otros manuales para 316.773800 Operator's

Tabla de contenidos

Idiomas:

Otros manuales de Arista de Craftsman

Craftsman

Craftsman 536.772320 Manual de usuario

Craftsman

Craftsman Weedwacker 358.796050 Manual de usuario

Craftsman

Craftsman 257.857240 Manual de usuario

Craftsman

Craftsman 358.796471 Manual de usuario

Craftsman

Craftsman 536.772350 Manual de usuario

Craftsman

Craftsman 316.772380 Manual de usuario

Craftsman

Craftsman 989.799310 Manual de usuario

Craftsman

Craftsman 172.79183 Manual de usuario

Craftsman

Craftsman 536.797540 Manual de usuario

Craftsman

Craftsman CMEED400 Manual de usuario

Craftsman

Craftsman 536.772300 Manual de usuario

Craftsman

Craftsman 900.74547 Manual de usuario

Craftsman

Craftsman 247.772460 Manual de usuario

Craftsman

Craftsman 247.772460 Manual de usuario

Craftsman

Craftsman 257.796422 Manual de usuario

Craftsman

Craftsman 247.772460 Manual de usuario

Craftsman

Craftsman 536.797561 Manual de usuario

Craftsman

Craftsman 358.773110 Manual de usuario

Craftsman

Craftsman 79653 - 12 Amp Edger Manual de usuario

Craftsman

Craftsman 172.79183 Manual de usuario

Craftsman

Craftsman 536.772101 Manual de usuario

Craftsman

Craftsman 247.762460 Manual de usuario

Craftsman

Craftsman 358.796520 Manual de usuario

Craftsman

Craftsman 536.772400 Manual de usuario

Manuales populares de Arista de otras marcas

Ryobi

Ryobi EXPAND-IT RYEDG12VNM Manual de usuario

VEVOR

VEVOR ASYTM02230 Manual de usuario

CRL

CRL SM5C Manual de usuario

Ryobi

Ryobi RED1220 Manual de usuario

Kunzle & Tasin

Kunzle & Tasin SILVER BACK Manual

Scotts

Scotts S20300 Manual de usuario

Husqvarna

Husqvarna LE475 Manual de usuario

Echo

Echo PE-230 Manual de usuario

Mantis

Mantis Edger Manual de usuario

Echo

Echo PE-225 Manual de usuario

MTD

MTD 520 Series Manual de usuario

RedMax

RedMax HEZ2602S Manual de usuario

Ryobi

Ryobi RED1850Li40 Manual de usuario

Clarke

Clarke Super E Manual de usuario

MTD

MTD 244-595-000 Manual de usuario

Husqvarna

Husqvarna 426EX Manual de usuario

MTD

MTD 24596B Manual de usuario

Clarke

Clarke American B-2 Manual de usuario
