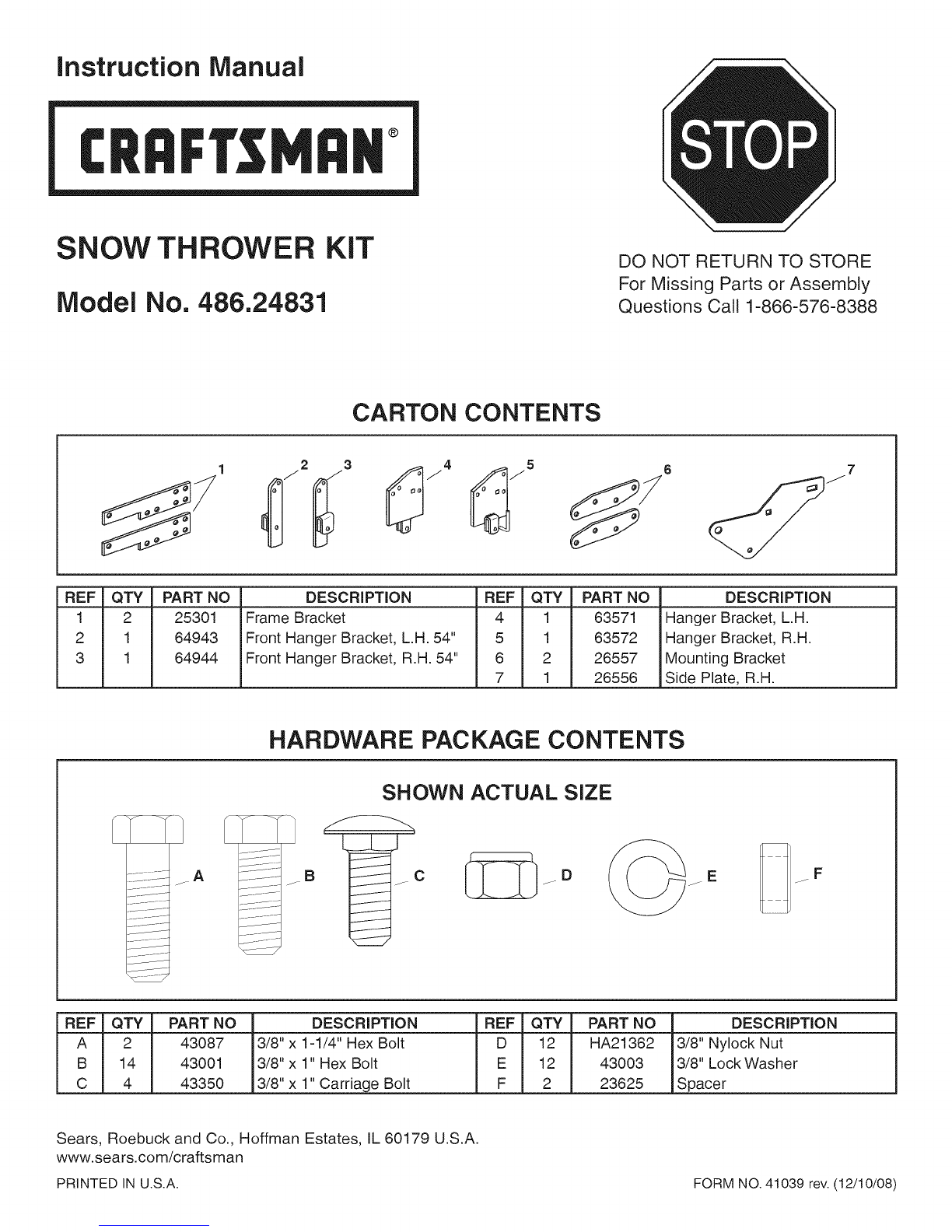

Craftsman 486.24831 Manual de usuario

instruction Manual

CR!FTSMRN°

SNOW THROWER KiT

Model No. 486.24831

DO NOT RETURN TO STORE

For Missing Parts or Assembly

Questions Call 1-866-576-8388

CARTON CONTENTS

12/3 5

REF QTY PART NO

1 2 25301

2 1 64943

3 1 64944

DESCRIPTION REF QTY

Frame Bracket 4 1

Front Hanger Bracket, L.H. 54" 5 1

Front Hanger Bracket, R.H. 54" 6 2

7 1

PART NO

63571

63572

26557

26556

DESCRIPTION

Hanger Bracket, L.H.

Hanger Bracket, R.H.

Mounting Bracket

Side Plate, R.H.

HARDWARE PACKAGE CONTENTS

SHOWN ACTUAL SIZE

BjC _jD E F

REF QTY PART NO

A 2 43087

B 14 43001

C 4 43350

DESCRIPTION

3/8" x 1-1/4" Hex Bolt

3/8" x 1" Hex Bolt

3/8" x 1" Carriage Bolt

REF QTY

D 12

E 12

F 2

PART NO

HA21362

43003

23625

DESCRIPTION

3/8" Nylock Nut

3/8" Lock Washer

Spacer

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.

www.sears.com/craftsman

PRINTED IN U.S.A. FORM NO. 41039 rev. (12/10/08)

USE THE FOLLOWING INSTRUCTIONS

IN PLACE OF STEPS #1 THRU #46 IN THE

SNOW THROWER MANUAL.

PARTS SHOWN IN GRAY ARE SUPPLIED WITH THE KIT.

Right hand (R.H.) and left hand (L.H.) are determined

from the operators position while seated on the tractor.

STEP 1: (SEE FIGURE la or lb)

• Determine if your tractor has bolts like those shown in

figure la or lb.

Remove either the hex bolts as shown in figure la or

the nuts as shown in figure lb.

Repeat for the L.H. front suspension bracket.

REMOVE BOLTS

FRONT SUSPENSION

BRACKET (R.H.)

FIGURE la RIGHT SIDE VIEW

REMOVE NUTS

FRONT SUSPENSION

BRACKET (R.H.)

FIGURE lb RIGHT SIDE VIEW

STEP 2: (SEE FIGURE 2a or 2b)

Attach the R.H. side plate (supplied with the kit) to the

tractor. If you removed bolts as shown in figure la,

install two 3/8" x 1" hex bolts and 3/8" lock washers as

shown in figure 2a. If you removed nuts as shown in

figure lb, install two 3/8" x 1" carriage bolts, 3/8" lock

washers and 3/8" nylock nuts as shown in figure 2b.

NOTE: If you remove the side plates from the tractor, be

sure to reassemble bolts and nuts back into the frame.

318" × 1"

HEX BOLT

3/8" LOCK

WASHER

R.H. SiDE PLATE

supplied with kit

FIGURE 2a RIGHT SIDE VIEW

3/8" NYLOCK NUT 3/8" x1"

CARRIAGE BOLT

3/8" LOCK

WASHER

R.H. SiDE PLATE

supplied with kit

FIGURE 2b RIGHT SIDE VIEW

STEP 3" (SEE FIGURE 3)

Attach the L.H. side plate (supplied with the snow

thrower) to the left side of the tractor frame in the

same manner as the R.H. side plate.

SiDE PLATE (L.H.)

supplied with snow thrower

FIGURE 3 LEFT SiDE VIEW

2 Call 1-866-578-8388 for missing parts or assembly help

DO NOT RETURN TO STORE

if you have a54" mower deck skip to step #9.

For smaller decks use the following instructions.

STEP 4: (SEE FIGURE 4)

• Remove the mower stop bracket and its two bolts and

nuts from the R.H. side of the tractor frame.

If the tractor has a muffler guard at the front of the

R.H. foot rest, remove the bottom bolt and nut, and

the washer which is located between the guard and

the tractor frame.

Remove the two bolts from the bottom of both the

R.H. and L.H. foot rests.

MUFFLER GUARD

(onlyon models

with side muffler)

FIGURE 4

REMOVE BOLTS, NUTS

& WASHERS SHOWN REMOVE

BRACKET

RIGHT SiDE ViEW

STEP 5. (SEE FIGURE 5)

Assemble the R.H. hanger bracket to the bottom hole

where the mower stop bracket was removed and to

the upper hole under the front of the foot rest. Fasten

with two 3/8" x 1" hex bolts, 3/8" lock washers and

3/8" nylock nuts. (On tractors with muffler guards,

slide the hanger bracket between the guard and the

tractor frame.)

R.H. HANGER

BRACKET

3/8" NYLOCK 3/8" LOCK

NUT WASHER

3/8" x 1"

HEX BOLT

FIGURE 5RIGHT SIDE VIEW

Call 1-866-576-8388 for missing parts or assembly help

DO NOT RETURN TO STORE

STEP 6: (SEE FIGURE 6)

• Assemble the LH. hanger bracket to the left side of

the tractor frame using two 3/8" x 1" hex bolts, two

3/8" lock washers and two 3/8" nylock nuts.

L.H. HANGER

BRACKET

\\\\

3/8" LOCK

WASHER \

3/8" NYLOCK

....._- NUT

3/8" x 1"

HEX BOLT

FIGURE 6 LEFT SiDE ViEW

STEP 7: (SEE FIGURE 7)

Assemble a frame bracket to the L.H. foot rest and

sway bar bracket. Use two 3/8" x 1-1/4" hex bolts, two

3/8" lock washers and one spacer.

Assemble a shoulder bolt (P) and a 3/8" flanged nut

(BB) (both supplied with the snow thrower) to the

frame bracket.

3/8" x 1=1/4" FRAME

HEX BOLT BRACKET

3/8" LOCK

WASHER \

SPACER A

3/8" FLANGED NUT (BB) /\\

(snow thrower) /_

SWAYBAR _,

BRACKET

SHOULDER

BOLT (P)

(snow thrower)

FIGURE 7 LEFT SIDE ViEW

STEP8: (SEEFIGURE8)

•Assemble a frame bracket to the R.H. foot rest. Use

two 3/8" × 1" he× bolts and two 3/8" lock washers.

•Assemble a shoulder bolt (P) and a 3/8" flanged nut

(BB) (both supplied with the snow thrower) to the

frame bracket.

•Proceed to step #14 on page 6.

FRAME

BRACKET 318" LOCK

WASHER

SHOULDER

BOLT (P)

(snow thrower)

3/8"FLANGED NUT (BB)

(snow thrower)

FIGURE 8 RIGHT SiDE ViEW

STEP 10: (SEE FIGURE 10)

Only for 54" mower decks

*Assemble the 54" R.H. hanger bracket to the holes on

the right side of the tractor frame where the mower stop

bracket was removed. Fasten with two 3/8" × 1" he×

bolts, two 3/8" lock washers and one 3/8" nylock nut.

54" MOWER DECKS

3/8" NYLOCK 3/8" LOCK

NUT WASHER

R.H. HANGER

BRACKET (54")

3/8" x 1"

HEX BOLT 3/8" LOCK

WASHER

3/8" x 1"

HEX BOLT

FIGURE 10 RIGHT SiDE ViEW

Steps #9 thru #13 for tractors with 54" mower decks.

STEP 9: (SEE FIGURE 9)

Only for 54" mower decks

* Remove and store the mower stop bracket and bolt

from both sides of the tractor frame.

* Remove the two bolts from the bottom of the foot

rests on both sides of the tractor frame.

STEP 11: (SEE FIGURE 11)

Only for 54" mower decks

* Assemble the 54" L.H. hanger bracket to the holes

where the mower stop bracket was removed on the left

side of the tractor frame. Fasten with two 3/8" x 1" hex

bolts, two 3/8" lock washers and two 3/8" nylock nuts

54" MOWER DECKS 54" MOWER DECKS

L.H. HANGER

BRACKET (54")

3/8" x 1"

HEX BOLT

3/8" LOCK

WASHER

3/8" NYLOCK NUT

FIGURE 9

RIGHT SiDE ViEW FIGURE II LEFT SiDE ViEW

Call 1-866-576-8388 for missing parts or assembly help

DO NOT RETURN TO STORE

STEP 12: (SEE FIGURE 12)

Only for 54" mower decks

*Assemble a frame bracket to the L.H. foot rest. Use

two 3/8" × 1-1/4" hex bolts, two 3/8" lock washers and

two spacers.

*Assemble a shoulder bolt (P) and a 3/8" flanged nut

(BB) (both supplied with the snow thrower) to the

frame bracket.

54" MOWER DECKS

3/8" x 1-1/4"

HEX BOLT

3/8" LOCK

WASHER

FRAME

BRACKET

SPACER SPACER

3/8" FLANGED NUT (BB)

(snow thrower)

SHOULDER

BOLT (P)

(snow thrower)

FIGURE 12 LEFT SiDE ViEW

STEP 13 (SEE FIGURE 13)

Only for 54" mower decks

*Assemble a frame bracket to the R.H. foot rest. Use

two 3/8" × 1" hex bolts and two 3/8" lock washers.

*Assemble a shoulder bolt (P) and a 3/8" flanged nut

(BB) (both supplied with the snow thrower) to the

frame bracket.

54" MOWER DECKS

FRAME 3/8" x1"

BRACKET HEX BOLT

3/8" LOCK

WASHER

SHOULDER

BOLT (P)

(snow thrower) 3/8" FLANGED NUT (BB)

(snow thrower)

FIGURE 13 RIGHT SiDE ViEW

ALL PARTS IN THE FOLLOWING iNSTRUCTiONS

ARE SUPPLIED WITH THE SNOWTHROWER EXCEPT

FOR THOSE PARTS SHOWN IN GRAY,WHICH ARE

SUPPLIED WITH THE KiT.

STEP 14: (SEE FIGURE 14)

*Attach the two suspension arms to the outside of the

clutch/idler assembly using two 5/16"× 3/4" hex bolts

(E) and 5/16" nylock nuts (CC) for each arm.

5/16" NYLOCK _

NUT (CO) >

SUSPENSION _ 5/16" x 3/4"

ARM HEX BOLT (E)

FIGURE 14

STEP 15: (SEE FIGURE 15)

*Attach the two mounting brackets to the front of the

clutch/idler assembly using four 3/8" x 1" hex bolts

and 3/8" nylock nuts. Place the frame brackets on the

outside of the assembly frame.

3/8" x 1"

HEX BOLT MOUNTING

BRACKET

3/8" NYLOCK

NUT

FIGURE 15

Call 1-866-576-8388 for missing parts or assembly help 5

DO NOT RETURN TO STORE

STEP 16:

(SEE FIGURE 16)

Turn the clutch/idler assembly upside down.

Hook the end of the spring (GG) onto the bottom of the

bolt and nut which secure the idler pulley to the upper

idler arm. Hold the bolt head and assemble a 3/8" hex

lock nut (DD) onto the bolt, leaving enough space for

the spring to pivot freely between the two nuts.

SPRING (GG)

3/8" HEX

LOCK NUT

(DD)

UPPER

iDLER

ARM

\ •

FIGURE 16 VIEWED FROM BOTTOM

STEP 18: (SEE FIGURE 18)

*Two different length drive belts are supplied with your

snow thrower. Select the shorter belt with #46989

printed on it.

*Slightly loosen the hex bolt next to the upper idler

pulley. Install the drive belt down between the hex bolt

and the upper idler pulley with the fiat side of the belt

against the pulley. Retighten the hex bolt.

*Loop the belt around the large v-pulley, placing it

between the v-pulley and the hex bolt next to the pulley.

HEX BOLTS UPPER iDLER

PULLEY

DRIVE BELT

#46989

FIGURE 18

STEP17:

(SEE FIGURE 17)

Turn the clutch/idler assembly right side up.

insert the tensioning chains through the holes shown

on the left and right sides. Attach the ends of the chains

to the springs on the upper and lower idler arms.

install a 3/32" hairpin cotter (LL) into the left side

chain. If the tractor's engine pulley is smaller than 6",

place it in link #3 from the spring. For larger engine

pulleys, place it in link #6 from the spring.

3/32" HAiRPiN

COTTER (LL)

iN LiNK #3 or #6

LEFT & RIGHT

TENSiONiNG

CHAINS (PP)

FIGURE 17

6 Call 1-866-576-8388 for missing parts or assembly help

DO NOT RETURN TO STORE

STEP 19: (SEE FIGURE 19)

Only for mower decks smaller than 54"

•Attach the rear of the clutch/idler assembly to the tractor

frame by sliding the notched arms of the assembly onto

the shoulder bolts assembled to the frame brackets.

Lift the front of the assembly, positioning the upper idler

pulley so that it clears the engine pulley. Attach the front

of the assembly to the hanger brackets using two pivot

lock pins (MM) and two hairpin cotters (KK).

......... PIVOT LOCK PiN (MM)

FIGURE 19

STEP 20: (SEE FIGURE 20)

Only for 54" mower decks

•Attach the rear of the clutch/idler assembly to the tractor

frame by sliding the notched arms of the assembly onto

the shoulder bolts assembled to the frame brackets.

Lift the front of the assembly, positioning the upper idler

pulley so that it clears the engine pulley. Attach the front

of the assembly to the hanger brackets using two pivot

lock pins (MM) and two hairpin cotters (KK).

54" MOWER DECKS

.............................PIVOT LOCK PiN (MM)

COMPLETE STEPS #47 THRU #59 iN THE

SNOW THROWER MANUAL, THEN RETURN

TO STEP 21 ON THiS PAGE.

STEP 21: (SEE FIGURE 21)

• Loosen the two hex bolts and nuts which fasten the top

of the tractor drawbar to the rear of the tractor frame.

Assemble the notched end of the side brace arms

down onto both loosened bolts. Do not tighten yet.

Fasten the weight tray to the drawbar using a

1/2" x 1-1/4" hex bolt (A), a 1/2" washer (V) and a 1/2"

nylock nut (EE). Do not tighten yet.

Fasten the weight tray to the side brace arms using

two 5/16"x 1" carriage bolts (N) and two 5/16" nylock

nuts (CC). Do not tighten yet.

Fasten the cross brace to the side brace arms using

two 5/16"x 1" carriage bolts (N) and two 5/16" nylock

nuts (CC). Tighten all loose bolts at this time.

1/2" x 1-1/4"

HEX BOLT (A)

CROSS LOOSENED

BRACE NUT AND BOLT

5/16" x 1"

CARRIAGE

BOLT (N)

SIDE BRACE

ARM

5/16" NYLOCK

(_ NUT(CC)

WEIGHTTRAY

1/2" WASHER (V)

1/2" NYLOCK NUT (EE)

FIGURE 21 VIEWED FROM REAR

RETURN TO STEP #64 iN THE SNOW

THROWER MANUAL AND FiNiSH

ASSEMBLING THE SNOW THROWER.

FIGURE 20

Call 1-866-576-8388 for missing parts or assembly help

DO NOT RETURN TO STORE

Your Home

For expert troubleshooting and home solutions advice:

www.managemyhome.com

For repair - in your home - of all major brand appliances,

lawn and garden equipment, or heating and cooling systems,

no matter who made it, no matter who sold it!

For the replacement parts, accessories and

owner's manuals that you need to do-it-yourself.

For Sears professional installation of home appliances

and items like garage door openers and water heaters.

1-800-4-MY-HOME ®(1-800-469-4663)

Call anytime, day or night (U.S.A. and Canada)

www.sears.com www.sears.ca

Our Home

For repair of carry-in items like vacuums, lawn equipment,

and electronics, call anytime for the location of your nearest

Sears Parts & Repair Service Center

1-800-488-1222 (U.S.A.)

www.sears.com 1-800-469-4663 (Canada)

www.sears.ca

To purchase a protection agreement on a product serviced by Sears:

1-800-827-6655 (U.S.A.) 1-800-361-6665 (Canada)

Para pedir servicio de reparaci6n

a domicilio, y para ordenar piezas:

1-888-SU-HOGAR ®

(1-888-784-6427)

Au Canada pour service en fran£ais:

1-800-LE-FOYER Mc

(1-800-533-6937)

www.sears.ca

TM SM

® Registered Trademark /Trademark /Service Mark of Sears Brands, LLC

® Marca Registrada /TM Marca de F&brica /SMMarca de Servicio de Sears Brands, LLC

Otros manuales de Accesorios de Craftsman

Craftsman

Craftsman 315.212400 Manual de usuario

Craftsman

Craftsman 486.24100 Manual de usuario

Craftsman

Craftsman FRONT BUMPER 486.245981 Manual de usuario

Craftsman

Craftsman 917.242450 Manual de usuario

Craftsman

Craftsman 944.511573 Manual de usuario

Craftsman

Craftsman 22252 Manual de usuario

Craftsman

Craftsman 316.792410 Manual de usuario

Craftsman

Craftsman BACKWALL WITH METAL PEGBOARD Manual de usuario

Craftsman

Craftsman 320.16494 Manual de usuario

Craftsman

Craftsman Trimmer Products Manual de usuario

Craftsman

Craftsman 316.792490 Manual de usuario

Craftsman

Craftsman 486.24275 Manual de usuario

Craftsman

Craftsman 486.245452 Manual de usuario

Craftsman

Craftsman CMHT77636 Manual de usuario

Craftsman

Craftsman 875.59750 Manual de usuario

Craftsman

Craftsman ASF 486.246213 Manual de usuario

Craftsman

Craftsman 486.24608 Manual de usuario

Craftsman

Craftsman SP6721 Instrucciones de uso

Craftsman

Craftsman 240.74295 Manual de usuario

Craftsman

Craftsman 316.792401 Manual de usuario

Craftsman

Craftsman 944.511572 Manual de usuario

Craftsman

Craftsman 486.24599 Manual de usuario

Craftsman

Craftsman 139.53724 Manual de usuario

Craftsman

Craftsman 351.264271 Manual de usuario

Manuales populares de Accesorios de otras marcas

Hillco

Hillco 2810 Manual de usuario

Siemens

Siemens QSA2700D Manual del operador

Contours

Contours ZY024 Manual de usuario

Saivod

Saivod VS621 Manual de usuario

Virtuox

Virtuox VirtuCLEAN 2.0 Manual de usuario

SCE

SCE ENVIRO-THERM SCE-TE170B24VSS Manual de usuario

Z-Wave

Z-Wave HSD-200Z Manual de usuario

turck

turck FMX-IM-2UPLI63FX Manual de usuario

Decagon Devices

Decagon Devices 10HS Manual de usuario

UPPAbaby

UPPAbaby Cup Holder Manual de usuario

Elko

Elko SmartSensor Leakage Wireless Manual de usuario

Grizzly

Grizzly H8371 Manual de usuario

Panasonic

Panasonic HG-T Series Manual de usuario

IFM Electronic

IFM Electronic Efector 250 Series Guía de referencia

DigiDesign

DigiDesign 888/24 I/O Manual de usuario

PROZIS

PROZIS QUAY Manual de usuario

patagonia

patagonia PSI Vest Manual de usuario

SFC Energy

SFC Energy EFOY GO! Manual de usuario
