Craftsman 320.16494 Manual de usuario

UNIVERSAL QUICK-RELEASE

MOUNTING BRACKETS

For Craftsman Stands

Model No. 320.16494

_WARNING" To reduce the risk of injury,

the user must read and understand the

Operator's Manual before using this product.

,A WARNING" To reduce the risk of injury,

the user must always read and follow all

instructions in the bench top tool operating

manual before mounting the tool to

this stand.

•WARRANTY

•SAFETY

•ASSEMBLY

•DESCRiPTiON

• OPERATION

• MAINTENANCE

•ESPA_IOL

Sears Brands Management Corporation, Hoffman Estates,

IL 60179 U.S.A.

www,craftsman,com

Warranty Page 2

Safety Symbols Pages 4-5

Safety Instructions Page 6

Description Page 7

Assembly Pages 8-9

Operation Pages 10-13

Maintenance Page 13

Parts List Pages 14-15

CRAFTSMAN ONE YEAR FULL WARRANTY

FOR ONE YEAR from the date of purchase, this product is warranted

against any defects in material or workmanship. With proof of purchase,

defective product will be replaced free of charge.

For warranty coverage details to obtain free replacement, visit the web

site: www.craftsman.com

This warranty is void if this product is ever used while providing commercial

services or if rented to another person.

This warranty gives you specific legal rights, and you may also have other

rights which vary from state to state.

Sears Brands Management Corporation, Hoffman Estates, IL 60179

The quick-release mounting brackets have many features for making their use more

pleasant and enjoyable. Safety, performance, and dependability have been given top

priority in the design of this product making it easy to maintain and operate.

SAVE THESE INSTRUCTIONS!

READ ALL iNSTRUCTiONS!

Page 2 16494 ManuaLRevised_12 0522

_,WARNING: Some dust created by power sanding, sawing, grinding, drilling

and other construction activities contains chemicals known to the state of

California to cause cancer, birth defects or other reproductive harm. Some

examples of these chemicals are:

• Lead from lead-based paints,

Crystalline silica from bricks and cement and other masonry products, and

Arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you do this type

of work. To reduce your exposure to these chemicals: work in a well ventilated

area, and work with approved safety equipment, such as those dust masks that

are specially designed to filter out microscopic particles.

The purpose of safety symbols is to attract your attention to possible dangers.

The safety symbols and the explanations with them deserve your careful

attention and understanding. The symbol warnings do not, by themselves,

eliminate any danger. The instructions and warnings they give are no substitutes

for proper accident prevention measures.

16494 ManuaLRevised_12 0522 Page 3

,_ WARNING: Be sure to read and understand all safety instructions in this

Operator's Manual, including all safety alert symbols such as "DANGER",

"WARNING", and "CAUTION" before using this tool. Failure to follow all

instructions listed below may result in electric shock, fire, and/or serious

personal injury.

SYMBOL MEANING

SAFETY ALERT SYMBOL: Indicates DANGER, WARNING, OR CAUTION. May

be used in conjunction with other symbols or pictographs.

DANGER: Indicates an imminently hazardous situation, which, if not

avoided, will result in death or serious injury.

_, WARNING: Indicates a potentially hazardous situation, which, if not avoided,

could result in death or serious injury.

_, CAUTION: Indicates a potentially hazardous situation, which, if not avoided,

could result in minor or moderate injury.

Damage Prevention and information Messages

These inform the user of important information and/or instructions that could

lead to equipment or other property damage if they are not followed. Each

message is preceded by the word "NOTICE," as in the example below:

NOTICE: Equipment and/or property damage may result if these instructions are

not followed.

_WARNING: To ensure safety and reliability, all repairs should be performed

by a qualified service technician.

_WARNING: The operation of any power tools can result in

foreign objects being thrown into your eyes, which can result

in severe eye damage. Before beginning power tool operation,

always wear safety goggles or safety glasses with side shield

and a full face shield when needed. We recommend a Wide

Vision Safety Mask for use over eyeglasses or standard safety

glasses with side shields. Always use eye protection which is

marked to comply with ANSI Z87.1.

Page 4 16494 ManuaLRevised_12 0522

SAVE THESE iNSTRUCTiONS

Some of the following symbols may be used on this tool. Please study them

and learn their meaning. Proper interpretation of these symbols will allow you to

operate the tool better and more safely.

SYMBOL NAME DESIGNATION/EXPLANATION

V Volts Voltage

A Amperes Current

Hz Hertz Frequency (cycles per second)

W Watt Power

min Minutes Time

,m_j Alternating Current Type of current

Direct Current Type or a characteristic of current

n o No Load Speed Rotational speed, at no load

] Class II Construction Double-insulated construction

.../min Per Minute Revolutions, strokes, surface speed,

orbits, etc., per minute

Wet Conditions Alert Do not expose to rain or use in damplocations.

To reduce the risk of injury, user must

Read The Operator's Manual read and understand operator's manual

before using this product.

O Always wear safety goggles or safety

Eye Protection glasses with side shields and a full face

shield when operating this product.

Alert Precautions that involve

Safety your safety.

Failure to keep your hands away from the

No-Hands Symbol blade will result in serious personal injury.

No-Hands Failure to keep your hands away from the

Symbol blade will result in serious personal injury.

Failure to keep your hands away from the

No-Hands Symbol blade will result in serious personal injury.

No-Hands Symbol Failure to keep your hands away from the

blade will result in serious personal injury.

To reduce the risk of injury or damage,

Hot Surface avoid contact with any hot surface.

16494 ManuaLRevised_12 0522 Page 5

GENERAL POWER TOOL SAFETY WARNINGS

,_, WARNING: Read and understand all instructions. Failure to follow all

instructions in this Operator's Manual may result in electric shock, fire, and/or

serious personal injury.

Save all warnings and instructions for future reference.

READ AND SAVE THESE iNSTRUCTiONS

• Know your mounting brackets. Do not attempt to assemble or operate

this product until you have read the safety instructions in this section.

Keep your work area clean and well lit. Cluttered or dark areas invite accidents.

Do not permit children to use the brackets unsupervised. They are not a toy.

Always firmly attach the power tool you will use. Do not attempt to use

your stand until the power tool is fastened firmly.

Take care when moving the clamp when apower tool is mounted.

Make sure to unplug the power tool before moving your stand or

repositioning the tool

Page 6 16494 ManuaLRevised_12 0522

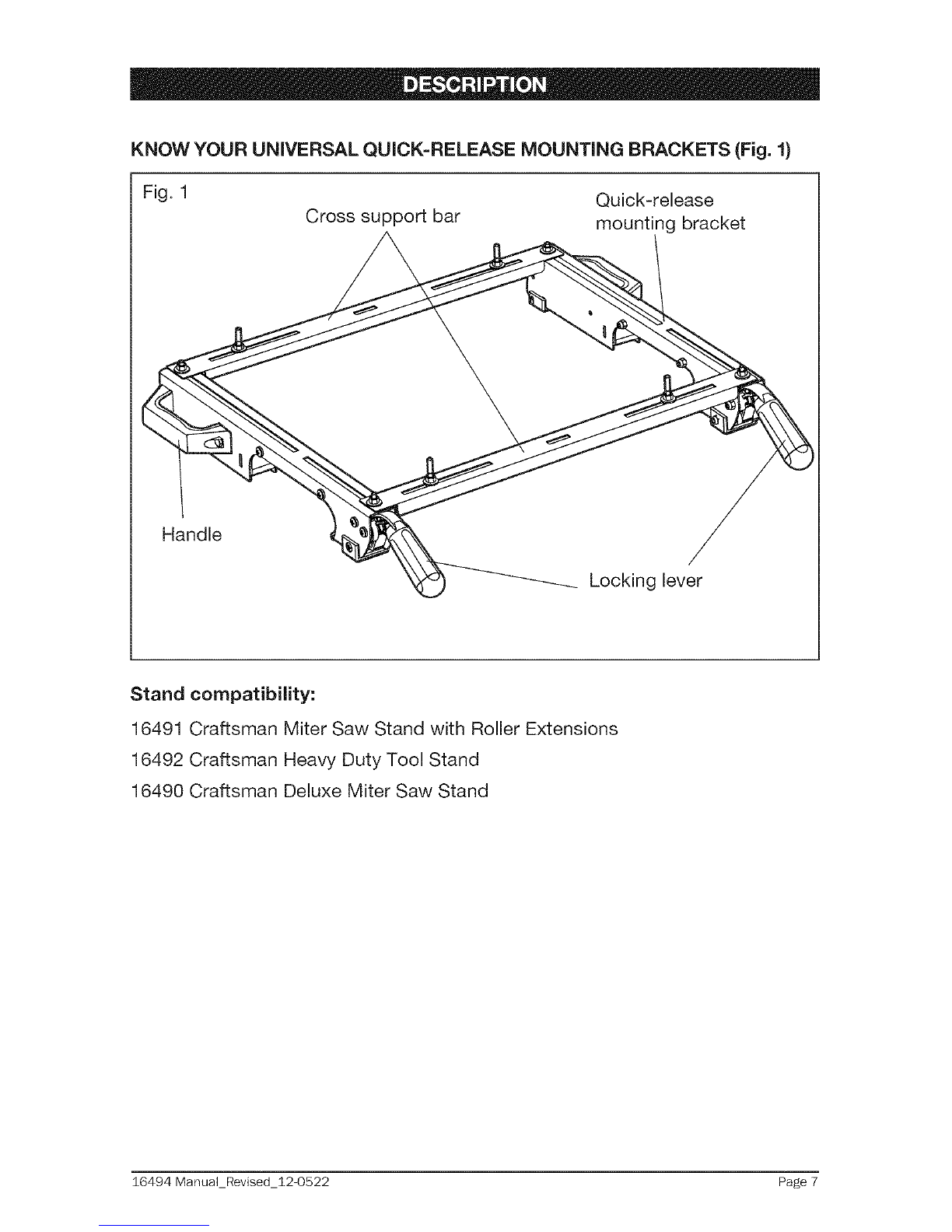

KNOW YOUR UNIVERSAL QUICK-RELEASE MOUNTING BRACKETS (Fig. 1)

Fig. 1 Quick-release

Cross support bar mounting bracket

Handle

Locking lever

Stand compatibility:

16491 Craftsman Miter Saw Stand with Roller Extensions

16492 Craftsman Heavy Duty Tool Stand

16490 Craftsman Deluxe Miter Saw Stand

16494 ManuaLRevised_12 0522 Page 7

_L WARNING: If any parts are broken or missing, do not attempt to operate the

mounting brackets until the broken or missing part is replaced. Failure to do so

could result in possible serious injury.

_WARNING: Do not attempt to modify the mounting brackets or create

accessories not recommended for use with the mounting brackets. Any such

alteration or modification is misuse and could result in a hazardous condition

leading to possible serious injury.

UNPACKING

* Carefully remove all the parts and accessories from the carton. Make sure

that all items listed in the packing list are included.

* Inspect the mounting brackets carefully to make sure that no breakage or

damage occurred during shipping.

* Do not discard the packing material until you have carefully inspected and

satisfactorily operated the brackets.

* If any parts are damaged or missing, please return the mounting brackets to

the place of purchase.

Page 8 16494 ManuaLRevised_12 0522

PACKAGE CONTENTS AND HARDWARE

item Description Quantity

Quick-release

mounting

bracket

FiJ _ iJ

Cross support

bar

Miter saw

C mounting bolt 4

Miter saw

D mounting 4

washer

Support bar

E mounting bolt 4

Support bar

F mounting 4

washer

G Spring washer 8

H Nut 8

16494 ManuaLRevised_12 0522 Page 9

These universal quick-release mounting brackets are designed for mounting

power tools on Craftsman work stands.

MOUNTING MITER SAWS

,_ WARNING: Failure to unplug the tool before attaching it to the stand could

result in accidental starting and possibly serious personal injury.

WARNING: To avoid serious personal injury,always make sure that power

tools are fully supported and securely attached to a level work surface.If

necessary, move the stand to a location where it will be more stable.

,_, WARNING: Do not mount a table saw on this stand. The direction of feed

on a table saw is perpendicular the axis of stability on this stand. Aggressive

feeding of sheet materials into a table saw could cause the stand to tip over.

Mounting Standard Miter Saws to Your Craftsman Stand

(stand sold separately)

NOTICE: This configuration allows

for miter saws on which the 4

mounting holes form a rectangular

pattern (most miter saws).

1. Mount your miter saw to

the quick-release mounting

brackets (A) using the miter

saw mounting bolts (C),

washers (D), spring washers

(G)and locking nuts (H) (Fig. 2).

2. With the miter saw securely

mounted on the quick-release

mounting brackets, place the

assembly onto the work stand

(sold separately) (Fig. 3).

Fig. 3

Page 10 16494 ManuaLRevised_12 0522

Tabla de contenidos

Idiomas:

Otros manuales de Accesorios de Craftsman

Craftsman

Craftsman 486.24586 Manual de usuario

Craftsman

Craftsman 214.50145 Manual de usuario

Craftsman

Craftsman 351.264271 Manual de usuario

Craftsman

Craftsman 358.792442 Manual de usuario

Craftsman

Craftsman 486.24535 Manual de usuario

Craftsman

Craftsman 358.792430 Manual de usuario

Craftsman

Craftsman 240.74295 Manual de usuario

Craftsman

Craftsman 31293 Manual de usuario

Craftsman

Craftsman 139.53724 Manual de usuario

Craftsman

Craftsman 183.287660 Guía de configuración rápida

Craftsman

Craftsman 944.511573 Manual de usuario

Craftsman

Craftsman 358.792421 Manual de usuario

Craftsman

Craftsman 509347 Manual de usuario

Craftsman

Craftsman 509398 Manual de usuario

Craftsman

Craftsman FRONT BUMPER 486.245981 Manual de usuario

Craftsman

Craftsman 358.792421 Manual de usuario

Craftsman

Craftsman CMXZDCG480 Manual de usuario

Craftsman

Craftsman 240.74291 Manual de usuario

Craftsman

Craftsman Trimmer Products Manual de usuario

Craftsman

Craftsman 486.246212 Manual de usuario

Craftsman

Craftsman 315.22283A Manual de usuario

Craftsman

Craftsman 486.24508 Manual de usuario

Craftsman

Craftsman 320.64180 Manual de usuario

Craftsman

Craftsman 316.792401 Manual de usuario

Manuales populares de Accesorios de otras marcas

Hillco

Hillco 2810 Manual de usuario

Siemens

Siemens QSA2700D Manual del operador

Contours

Contours ZY024 Manual de usuario

Saivod

Saivod VS621 Manual de usuario

Virtuox

Virtuox VirtuCLEAN 2.0 Manual de usuario

SCE

SCE ENVIRO-THERM SCE-TE170B24VSS Manual de usuario

Z-Wave

Z-Wave HSD-200Z Manual de usuario

turck

turck FMX-IM-2UPLI63FX Manual de usuario

Decagon Devices

Decagon Devices 10HS Manual de usuario

UPPAbaby

UPPAbaby Cup Holder Manual de usuario

Elko

Elko SmartSensor Leakage Wireless Manual de usuario

Grizzly

Grizzly H8371 Manual de usuario

Panasonic

Panasonic HG-T Series Manual de usuario

IFM Electronic

IFM Electronic Efector 250 Series Guía de referencia

DigiDesign

DigiDesign 888/24 I/O Manual de usuario

PROZIS

PROZIS QUAY Manual de usuario

patagonia

patagonia PSI Vest Manual de usuario

SFC Energy

SFC Energy EFOY GO! Manual de usuario
