USER'S MANUAL
TV STAND
1/6
PRODUCT ASSEMBLY
34 pcs
32 pcs
4 pcs
2pcs
2 pcs
4 pcs
2 pcs
2 pcs
34 pcs
5 pcs
J
4 pcs
Fixed Button
4 pcs
3*16mm
L
M
18 pcs
3*14mm
1 pc
2 pcs
Shelf
Top Connect
Bar
Upper Back
Panel
Lower Back
Panel
Left Door
Right Door
Shelf and
Bottom
Connect Bar
12 2 pcs
5
2/6
PRODUCT ASSEMBLY
1
2
3
4
5
6
7
7
12
12
8
9
10
11
Parts List Assembly Overview
STEP 2
3/6
PRODUCT ASSEMBLY
2
3
12
12
3
2
5
5
STEP 1
a) Screw in Cam-bolt (A) into designated
holes on Shelf and Bottom Connect Bar (5).
b) Insert Wood Dowel (C) into
designated holes on Shelf (2)
and Bottom Panel (3).
c) Attach (12) to (2 & 3) via
Cam-bolts and Wood Dowels.
d) Insert Cam-lock (B) into
designated holes on (2 & 3)
then turn clockwise to lock onto
Cam-bolt. Do not overtighten.
b) Attach Magnetic Catch (G) to Divide Panel (5) with
Screw (F).
c) Insert Wood Dowel (C) into designated holes on (5)
as shown.
d) Attach (5) to (2) via Cam-bolts and Wood Dowels.
e) Attach (3) to (5) via Cam-bolts and Wood Dowels.
f ) Insert Cam-lock (B) into designated holes on (5) then
turn clockwise to lock onto Cam-bolt. Do not overtighten.
a) Screw in Cam-bolt (A) into designated
holes on Shelf and Bottom Panel (2 & 3).
STEP 3
STEP 4
4/6
PRODUCT ASSEMBLY
7
7
4
4
A
C
B
2
3
12
12

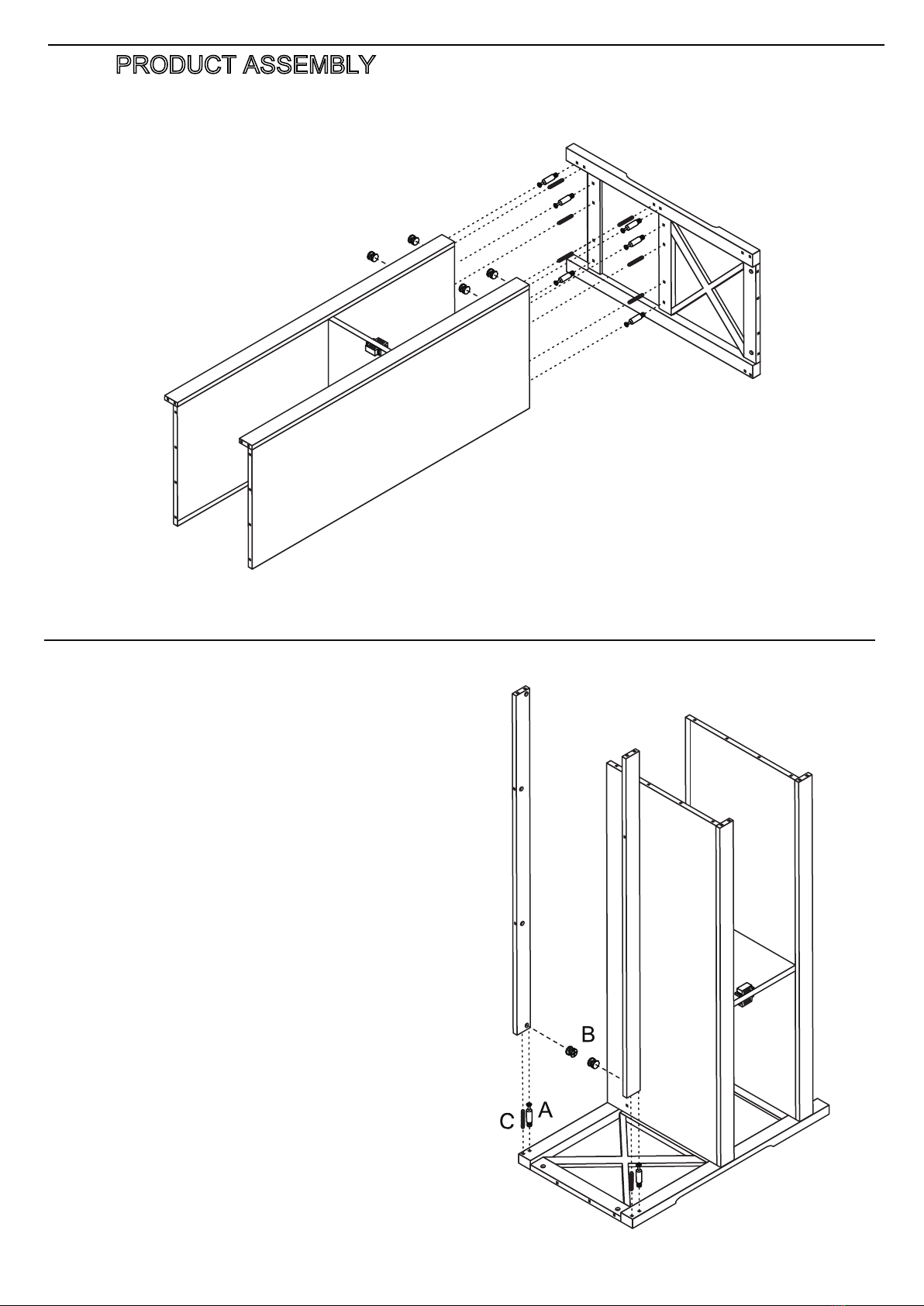

a) Screw in Cam-bolt (A) into designated holes on Left Side
Panel (4).
b) Insert Wood Dowel (C) into designated holes on (2, 3 & 12).
c) Attach (4) to (2, 3 & 12) via Cam-bolts and Wood Dowels.
d) Insert Cam-lock (B) into designated holes on (2, 3 & 12)
then turn clockwise to lock onto Cam-bolt. Do not overtighten.
a) Screw in Cam-bolt (A) into designated holes on Left Side
Panel (4).
b) Insert Wood Dowel (C) into designated holes on Top
Connect Bar (7).
c) Attach (7) to (4) via Cam-bolts and Wood Dowels.
d) Insert Cam-lock (B) into designated holes on (7)
then turn clockwise to lock onto Cam-bolt. Do not overtighten.
STEP 6
5/6
STEP 5
PRODUCT ASSEMBLY
A
B
C
8
9
8
4
1
a) Screw in Cam-bolt (A) into designated holes on Right Side
Panel (6).
b) Insert Wood Dowel (C) into designated holes on (2, 3, 7 & 12).
c) Attach (6) to (2, 3, 7 & 12) via Cam-bolts and Wood Dowels.
d) Insert Cam-lock (B) into designated holes on (2, 3, 7 & 12)
then turn clockwise to lock onto Cam-bolt. Do not overtighten.
7
7
4
6
B
CA
2
3
12
12
a) Screw in Cam-bolt (A) into designated holes on Top Panel (1).
b) Insert Wood Dowel (C) into designated holes on (4 & 6).
c) Fit Lower Back Panel (9) and Upper Back Panel (8) to
Side Panels (4 & 6) via groove on respective side
Panels.
d) Attach (1) to (4, 6 & 7) via Cam-bolts and Wood
Dowels.
e) Insert Cam-lock (B) into designated holes
on (4, 6 & 7) then turn clockwise to lock
onto Cam-bolt. Do not overtighten.
7
7
6
4
STEP 7
6/6
STEP 8
PRODUCT ASSEMBLY
L
F
F
10
11
8
9
J
L
M
LM
a) Insert Fixed Button (L) to the gap between Back Panel and Side Panel.
b) Fix the Fixed Button (L) by using Screw (M).
c) Fix Back Panels to Shelf by using Screw (J) as shown.
a) Attach Hinge (I) and Magnetic Bar (H) to Door
(10 & 11) by using Screw (K) as shown.
b) Attach Door (10 & 11) to Side Panel by using
Screw (K).
c) Attach Knob (E) to Doors by using Knob Bolt (D).
The assembly of the Tv Stand unit is complete.
TIPS：
Your suggestions and comments for Costway are really important to us!
We sincerely solicit you to go back to our shop and leave a good rating in just a
simple click. It would be quite encouraging if you could kindly do so like below:
February 24, 2018
Great product so far. Fast delivery, easy setup, and working without any issues.
Great products so far
With your inspiring rating, Costway will be more consistent to offer you
EASY SHOPPING EXPERIENCE, GOOD PRODUCTS and EFFICIENT SERVICE!
