Costar CDIH226VIRF Manual de usuario

Quick Installation Guide

CDIH226VIRF

101 Wrangler, Suite 201 • Coppell, Texas 75019 • Phone: 469-635-6800 • Fax: 469-635-6822 • Toll Free: 1-888-694-STAR (7827)

www.costarvideo.com

Features:

•2 mega pixel resolution (1080p)

•3-9 mm auto iris and vari-focal lens

•1/2.7” CMOS Progressive Scan image sensor

•Remote focus capability and zoom control

•True day/night with IR cut filter

•OnVIF supported; iNEX compatible

•Two-way audio communication

•Black Light Compensation (BLC)

•2 Dimensional Noise Reduction (2DNR)

•SD memory card supported

•Multiple compression (H.264, MJPEG, MPEG-4)

•Motion detection

•Dual IP streaming

•Event buffering

•Password protection, IP filtering

•Weatherproof IP66 rated

•Power over Ethernet (PoE), DC12V or AC24V

Description:

The CDIH226VIRF dome camera provides

high quality video with (1080p) 2.0 mega

pixel resolution. The

Remote Focus

capability allows you to optically zoom and

fine-focus the camera over the network,

eliminating the need to use two installers to

hand-focus the camera.

The IP66

weatherproof rating makes this bullet camera

suitable for outdoor applications such as gas

stations, retail parking lots and many others.

Costar Video’s IP cameras are compatible

with the iNEX user interface platform. The

iNEX user interface incorporates features

such as simplified user management,

advanced camera mapping and logical

camera grouping making it easier to monitor

and access each of your cameras. The iNEX

user interface also has the ability to integrate

both analog and IP camera technology on

the same platform allowing you to have a

diverse surveillance system. Costar Video’s

IP cameras are OnVIF supported. The

industry standard OnVIF protocol makes it

easy to integrate Costar branded IP cameras

with OnVIF compatible recorders.

Quick Installation Guide

1. Description

The Network Camera supports the network service for a sensor image with progressive scan, which

can be monitored on a real-time screen regardless of distances and locations. By using its dedicated

program, many users are able to have an access to the Network Camera at once or a single user can

monitor various network cameras at the same time. It also enables users to play, store and retrieve a

monitoring image by using a PC. All the settings and real-time monitoring screens are also provided

through an access to the web.

The Network Camera is fully featured for security surveillance and remote monitoring needs. It is

based on the DSP compression chip, and makes it available on the network as real-time, full frame

rate Motion JPEG and H.264 (or MPEG-4) video streams.

The alarm input and alarm output can be used to connect various third party devices, such as, door

sensors and alarm bells.

• Installation Steps

Follow these steps to install the network camera on your local network (LAN):

1. Check the package contents against the list below.

2. Connect the Network Camera. See page 3.

3. Set an IP address. See page 6.

4. Set the password. See page 8.

• Package Component

The system comes with the following components:

Check your package to make sure that you received the complete system, including all components

shown above.

Quick Installation Guide

• Contents in the installation CD

1. The Network Camera User’s Manual

2. The SmartManager User’s Manual

3. The NCTitanium User’s Manual

4. The SmartManager Installation software

5. The NCTitanium Installation software

Note:Check your package to make sure that you received the complete system, including all

components shown above.

2. Installation

For the operation of the Network Camera, it is necessary to connect a network cable for data

transmission, power connection from supplied power adapter. Depending on operation methods, it is

possible to connect an alarm cable additionally. For its fixation on different locations, please consult

with an installer.

2.1 Connection

Connection Description

Connector Name

Description

Micro-SD Slot

Micro-SD memory slot

Service Monitor

Port

Service Monitor & OSD Controller Communication Port, Stereo Jack

3 Audio In & Out Port Audio Input and Output, Stereo Jack.

4 Alarm In & Out Port

Alarm Input and Output, 3pin terminal.

Pin1: Alarm In, Pin2: GND, Pin3: Alarm Out

5 Main Power

Main Power, 2pin terminal,

DC12V 470mA(4.0W) / AC24V 520mA(6.5W) with heater Off,

or AC24V 1.13A(25.5W) with heater On

Pin1: DC12V/AC24V, Pin2: GND/AC24V

6 RJ-45 Port

Ethernet, RJ-45 port compatible with 10/100Mbps having PoE

functionality.

Quick Installation Guide

Micro SD memory slot on the Board

Card Slot for Micro SD memory: Socket “J15”

• Connecting to the RJ-45

Connect a standard RJ-45 cable to the network port of the network camera. Generally a

cross-over cable is used for directly connection to PC, while a direct cable is used for connection

to a hub.

You can also use a router featuring PoE (Power over Ethernet) to supply power to the camera.

• Connecting Alarms

AI(Alarm In) :

You can use external devices to signal the network camera to react on events. Mechanical or

electrical switches can be wired to the AI (Alarm In) and G (Ground) connectors.

G(Ground) :

Connect the ground side of the alarm input and/or alarm output to the G (Ground) connector.

Alarm Out :

The network camera can activate external devices such as buzzers or lights. Connect the device

to the AO (Alarm Out) and G (Ground) connectors.

• Connecting the Power

Connect the power of DC12V or AC24V for the network camera. Connect the positive(+) pole to

the ‘+’ position and the negative(-) pole to the ‘-‘ position for the DC power.

Be careful not to reverse the polarity when you connect the power cable.

You can also use a router featuring PoE (Power over Ethernet) to supply power to the

camera.

The heater will operate properly only by the power source of AC 24V.

If using PoE, the heater will not operate at all.

If PoE and DC 12V are both applied, this camera will get supplied with power from PoE.

• Connecting Service Monitor Port

Service monitor output port (J7) is located on the board of the dome camera, and is used for an

easy OSD setup.

▶ID & IP assignment

To make changes in the OSD menu, please use the OSD controller provided optionally with your

camera purchase. You can set Camera Title and IP Address.

Quick Installation Guide

1. Connect the OSD Controller to the Service Monitor port of the network camera.

2. Connect Service Monitor and the Video Output port of the OSD Controller.

3. Press the SET button to access main Menu.

4. Change Camera ID, and IP Address. You can change the Name or Title and IP address of the

camera. Using the ↑↓←→ buttons on the controller, you can change the parameters.

5. Select SAVE or CANCEL to exit the Main Menu.

Video Output is used for an easy zoom and focus control when installing lens. Video Output is

restricted to 704x480(576) resolution.

▶Zoom & Focus Control

The camera enters Zoom and Focus control mode as soon as connecting OSD Controller to the

Service Monitor port.

-. Zoom Control: ↑(Zoom In), ↓(Zoom Out)

-. Focus Control: ←(Focus Near), →(Focus Far)

-. Smart Focus: Press and hold the SET button for 2 or more seconds. The camera readjusts

focus automatically.

Note: You can get the Optional OSD Controller from your installer.

Heater Kit Installation(Optional)

1. Place the heater element is slot “A”. Please ensure that the cables are facing upwards and the

heater is pointing towards the Dome.

2. Place the plug in the Connector “B” (J13) which is found on the controller board.

•Heater (IF Applicable)

Power Supply

AC24V

Power Consumption

20Watt

Heater On

at 41°F (5°C)

Heater Off

at 59°F (15°C)

Note:The Heater module does not come equipped with the camera; however can be purchased as

an option.

Quick Installation Guide

2.2 Network Connection and IP assignment

The Network Camera supports the operation through the network. When a camera is first connected

to the network it has no IP address. So, it is necessary to allocate an IP address to the device with the

“Smart Manager” utility on the CD. The factory default IP is “192.168.30.220”.

1. Connect the Network Camera / device to the network and power up.

2. Start SmartManager utility (All Programs>SmartManager>SmartManager), the main window will

be displayed, after a short while any network devices connected to the network will be displayed

in the list.

3. Select the camera on the list and click right button of the mouse. You can see the pop-up menu

as below.

4. Select Assign IP. You cam see a Assign IP window.

Enter the required IP address.

Quick Installation Guide

3. Operation

The Network Camera can be used with Windows operating system and browsers. The recommended

browsers are Internet Explorer, Safari, Firefox, Opera and Google Chrome with Windows.

3.1 Access from a browser

1. Start a browser (Internet Explorer).

2. Enter the IP address or host name of the Network Camera in the Location/Address field of your

b r o w s e r.

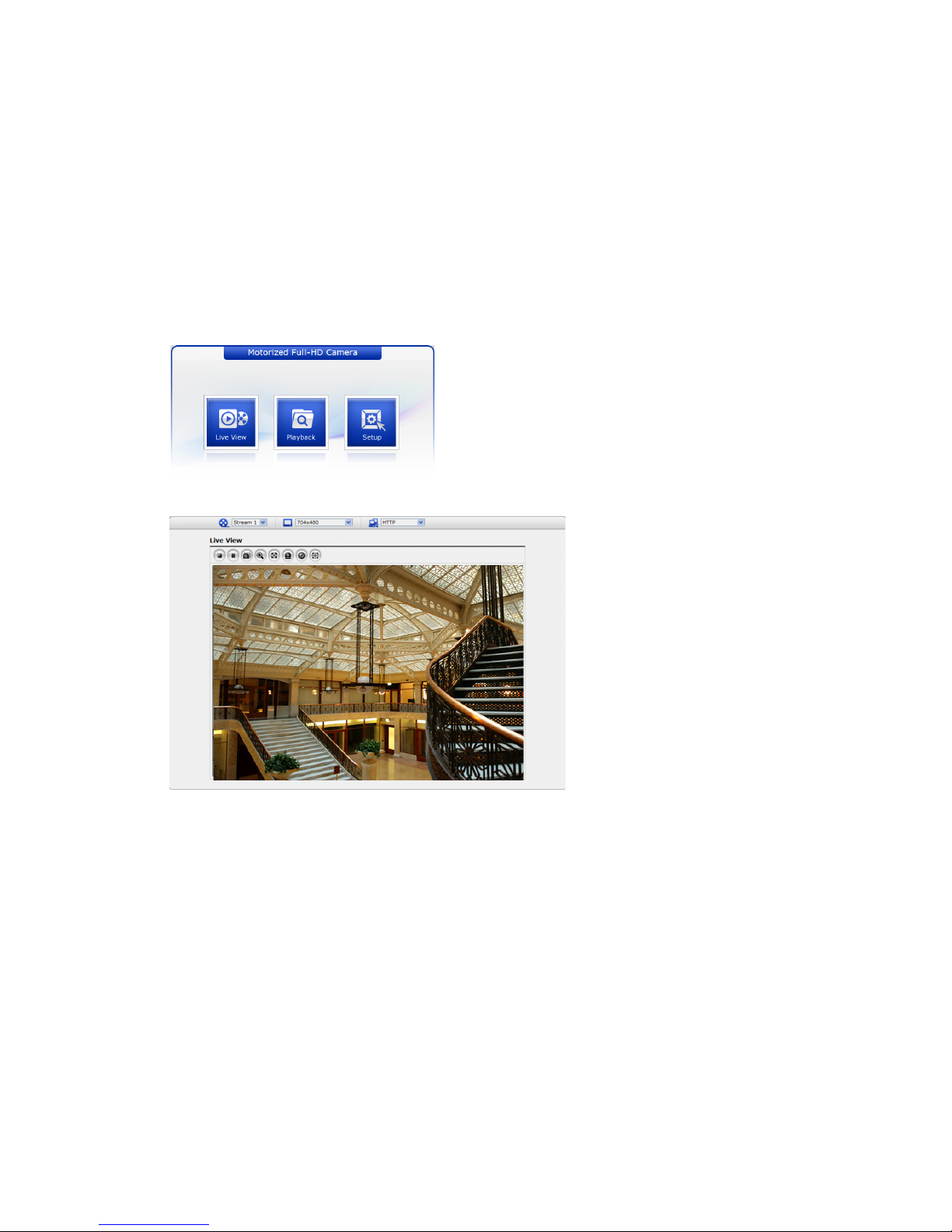

3. You can see a starting page. Click Live View or Setup to enter web page.

4. The network camera’s Live View page appears in your browser.

3.2. Access from the internet

Access from the internet once connected, the Network Camera is accessible on your local network

(LAN). To access the network camera from the Internet you must configure your broadband router to

allow incoming data traffic to the network camera. To do this, enable the NAT-traversal feature, which

will attempt to automatically configure the router to allow access to the network camera. This is

enabled from Setup > System > Network > NAT.

For more information, please see “3.5.5 System>Network>NAT” of User’s Manual.

Quick Installation Guide

3.3 Setting the admin password over a secure connection

To gain access to the product, the password for

the default administrator user must be set. This

is done in the “Admin Password” dialog, which is

displayed

when the network camera

is accessed

for the setup at the first time.

Enter your admin

name and password, set by the administrator.

Note: The default administrator username and

password is “admin”. If the password is lost, the

Network Camera must be reset

to the factory

default settings. See

“3.6 Resetting to the Factory

Default Settings”

3.4 Live View Page

The live view page comes in several screen

modes

: 1920x1080, 1280x1024, 1280x720,

x480(576), 640x480, 352x240(288),

and

320x240. Users are a

llowed to select

the most suitable one out of those modes.

Please, adjust the mode in accordance with

your PC specifications and monitoring

purposes.

1) General controls

Live View Page Search & Playback Page Setup Page Help Page

The video drop-down list allows you to select a customized or pre-programmed

video stream on the live view page. Stream profiles are configured under Setup > Basic

Configuration > Video & Image. . For more information, please see “3.5.1 Basic Configuration >

Video & Image” of User’s Manual.

The resolution drop-down list allows you to select the most suitable one

out of video resolutions to be displayed on live view page.

The protocol drop-down list allows you to select which combination of

protocols and methods to use depends on your viewing requirements, and on the properties of

your network.

2) Control toolbar

The live viewer toolbar is available in the web browser page only. It displays the following

buttons:

The Stop button stops the video stream being played. Pressing the key again toggles the

start and stop. The Start button connects to the network camera or start playing a

video stream.

Quick Installation Guide

The Pause button pause the video stream being played.

The Snapshot button takes a snapshot of the current image. The location where the

image is saved can be specified.

The digital zoom activates a zoom-in or zoom-out function for video image on the live

screen.

The Full Screen button causes the video image to fill the entire screen area. No other

windows will be visible. Press the 'Esc' button on the computer keyboard to cancel full

screen view.

The Manual Trigger button activates a pop-up window to manually start or stop the event.

The Remote Focus button enables users to adjust focus and zoom remotely via network.

The Smart Focus button readjusts focus automatically.

Use this scale to control the volume of the speakers.

Use this scale to control the volume of the microphone.

Use this scale to control the volume of the speakers and microphones.

3) Video and Audio Streams

The network camera provides several images and video stream formats. Your requirements and

the properties of your network will determine the type you use.

The Live View page in the network camera provides access to H.264, MPEG-4 and Motion JPEG

video streams, and to the list of available video streams. Other applications and clients can also

access these video streams/images directly, without going via the Live View page.

4) Focus and Zoom Control

You can control Zoom and Focus in the live screen. Press the button on the left top in the live

screen to activate the Zoom & Focus control panel.

Quick Installation Guide

•Adjusting Zoom:

Click “–“ button to zoom out and click “+” button to zoom in.

The focus is moved slightly after adjusting zoom; adjust the

focus again, as necessary.

•Adjusting Focus:

Click “–“ button for far focus and click “+” button to near focus.

Note: Click the button in the live screen to set the focus to the optimum position.

3.5 Network Camera Setup

This section describes how to configure the network camera, and is intended for product

Administrators, who have unrestricted access to all the Setup tools; and Operators, who have access

to the settings for Basic, Live View, Video & Image, Audio, Event, and System Configuration.

You can configure the network camera by clicking Setup in the top right-hand corner of the Live View

page. Click on this page to access the online help that explains the setup tools

When accessing the Network Camera for the first time,

the “Admin Password” dialog appears. Enter your admin

name and password, set by the administrator.

Note: If the password is lost, the Network Camera must

be reset to the factory default settings.

See “3.6 Resetting to the Factory Default Settings”.

3.6 Resetting to the factory default settings

To reset the Network Camera to the original factory settings, go to the Setup>System> Maintenance

web page (described in “3.5.5 System > Maintenance”) or use the Reset button (SW1) on the board

of the dome camera, as described below:

Otros manuales para CDIH226VIRF

Tabla de contenidos

Otros manuales de Cámara de seguridad de Costar

Costar

Costar CCI2525R Manual de usuario

Costar

Costar Arecont Vision Contera AV-1AK Manual de usuario

Costar

Costar CBT2S12IFW Manual de usuario

Costar

Costar CDI2110IRF Manual de usuario

Costar

Costar CDI2510VIFWLH Manual de usuario

Costar

Costar CCI3500 Manual de usuario

Costar

Costar CDT2S12VIFW Manual de usuario

Costar

Costar Arecont Vision MegaDome AV12ZMD-401 Manual de usuario

Costar

Costar CDI2512VIFWH Manual de usuario

Costar

Costar CDI125360V Manual de usuario

Costar

Costar CDT4H12IFW Manual de usuario

Costar

Costar CDIH226VIRF Manual de usuario

Costar

Costar Arecont Vision ConteraIP Bullet EX Manual de usuario

Costar

Costar CBC3112IR Manual de usuario

Costar

Costar Arecont Vision ConteraIP AV5456PMIR-S Manual de usuario

Costar

Costar ARECONT VISION CONTERA Manual de usuario

Costar

Costar CCIH200 Manual de usuario

Costar

Costar Arecont Vision ConteraIP Panoramic Manual de usuario

Costar

Costar ARECONT VISION MegaDome AV08ZMD-400 Manual de usuario

Costar

Costar CDI2528W Manual de usuario

Costar

Costar CDI4512VTIR Manual de usuario

Costar

Costar DirectIP DC-B Series Manual de usuario

Manuales populares de Cámara de seguridad de otras marcas

Okina USA

Okina USA SIR36-870VF650LP Manual de usuario

Divio

Divio NDR155PA Manual de usuario

Canon

Canon VB-C500D Manual de usuario

Easy Access

Easy Access EasyGuard Manual de usuario

Vivotek

Vivotek FD9389-EHV-v2 Manual de usuario

TUYA

TUYA COSMO W2 Manual de usuario

Eusso

Eusso UNC7500-IR Guía de configuración

urmet domus

urmet domus 1096/204 Manual de usuario

VC VC20 series Manual de usuario

Axis

Axis Q1614 Manual de usuario

ieGeek

ieGeek DD201 Manual de usuario

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manual de usuario

Vicon

Vicon V662-D-1 Instrucciones de funcionamiento

Grundig

Grundig GCH-K0274P Manual de usuario

Lorex

Lorex VANTAGE LBC7032 Manual de usuario

4xem

4xem WPT Manual de usuario

Samsung

Samsung SCV-3082 Manual de usuario

Vitek

Vitek VTC-C544 Manual de usuario
