Cornelius Enduro ED-250 BCP Guía de configuración

IMI CORNELIUS INC.

www.cornelius.com

1-800-238-3600

ED250 BCP 1 of 6 Part Number: 620916502IPL

Revision: E

ILLUSTRATED PARTS LIST

ED250 BCP

ENDURO COMPONENT OVERVIEW

AGITATOR MOTOR AND

BIN COMPONENTS

(SEE PAGE 2)

WRAP AND OUTSIDE

COMPONENTS (SEE PAGE 3)

DRIP TRAY AND COLD PLATE

COMPONENTS (SEE PAGE 4)

IMI CORNELIUS INC.

www.cornelius.com

Telephone 1-800-238-3600

Part Number: 620916502IPL 2 of 6 ED250 BCP

March 10, 2006 © IMI Cornelius Inc., 2002-2006

Revision: E

AGITATOR MOTOR AND BIN COMPONENTS

1314

2223

26 27

3030

Item

No. Part No. Name

1 620031818 Gate Slide Asy

2 629088367

620506006

Air Cylinder ED 250 Pro Kit

Elbow Air Cylinder

3 620701208 Nut Hex 5/8-18

4 29541R Plate Motor Mtg

5 29694 Agitator Asy

6 30794 Heater Agit Mtr

7 629088531

620314922

Agitator Motor Kit (prior to

SN 62A0540ED248

Agitator Motor (from SN

62A0540ED248)

8 620045909 Brkt Mtr

9 620505903 Gasket Gate

10 620702505 Bushing

11 70122 Screw SM 4 TRPH 12

12 620705901 Screw SM 4 PAPH 12

13 53199 Seal Motor Shaft

14 32953 Switch Reed Asy

15 31981 Actuator

16 620516432 Strap 3/8-16

17 620518501

620505901

Ice Chute Assembly (Gate

Slide, Ice Chute, Chute

Cover, Cylinder, Hardware)

Ice Chute

Item

No. Part No. Name

18 620505902 Ice Chute Cover

19 620052843 Brkt Mtr Strap

20 620701202 Nut Hex 1/4-28

21 620506008 Hopper Foamed

22 620506006 Fitg L Swv 1/8-NPT x 1/4

23 70017 Nut Hex 10-32

24 70015 Nut Hex 10-32 Keps

25 70056 Washer Ft .219 I.D.

26 620513506 Shield Drip Cylinder

27 50130 Tubg Insul .625 I.D.

28 70204 Screw SM 8 TRPH 16

29 50705 Tie Cable

30 71033 Bolt MA 3/8-16 HX 24

31 70068 Washer Lk .382 I.D.

32 71061 Washer Ft .480 I.D.

33 70341 Spring Hopper Gate

34 70959 Nut No. 8-32

35 15087 Retainer Agitator

36 71059 Nut Wing 3/8-16

37 71028 Bolt SH 1/4-20

IMI CORNELIUS INC.

www.cornelius.com

1-800-238-3600

ED250 BCP 3 of 6 Part Number: 620916502IPL

Revision: E

WRAP AND OUTSIDE COMPONENTS

11 12

14 15

33 34

2727 34

Item

No. Part No. Name

1 29555 Panel Back Cover

2 629086701 Panel Splash Assy

3 28708 Holder Lid and Straw Asy

4 29547 Wrap Cabinet

5 31934 Switch On/Off

6 31960 Swt Toggle

7 32839

629081401

Portion Control Ice

Overlay for Portion Control

Module

8 50767 Bushing Snap

9 52084

08052

Splash Guard R/L (One)

Splash Guard Kit (Two Clear

Splash Guard)

10 30894 Switch Push Button Red

11 620031807 Support Box Elec Uppr

12 620031812 Brkt Mtg E-Box

13 620031814 Box Control Portion

14 620031804 Cover Box Elec

15 620307702

620311502

620311503

Box Elec Assembly

Wire Harness - Gate Manual

Override

Wire Harness Assy Merch

16 71010 Washer Retaining No. 8

Item

No. Part No. Name

17 620308301 Conn Power Inlet

18 620046001 Cover Accs Air Cylinder

19 620019701 Hinge Gusset

20 70188 Screw WG 8-32 KN 16

21 70075 Nut Hex 6-32

22 52909 Lid Plastic Black

53018 Lid Dispenser Gray

23 620028283 Retainer Corner Cushion

24 629088313 Merchndsr Assembly ED250

Pro Kit

25 620506018 Cushion Corner

26 70242 Screw MA 10-32 TRPH 12

27 70171 Screw MA 8-32 TRPH 12

28 70178 Screw MA 8-32 TRPH 16

29 70204 Screw SM 8 TRPH 16

30 92000 Label Plmbg LT to RT

92344 Label Plmbg RT to LT

31 70320 Rivet Pop 1/8 Dia.

32 71006 Screw MA 8-32 TRPH 72

33 620701601 Screw TF SM 10 PNPH 16

34 70959 Nut No. 8-32

N/A 70970 4” Black Plastic Leg (sold by

the each)

IMI CORNELIUS INC.

www.cornelius.com

Telephone 1-800-238-3600

Part Number: 620916502IPL 4 of 6 ED250 BCP

March 10, 2006 © IMI Cornelius Inc., 2002-2006

Revision: E

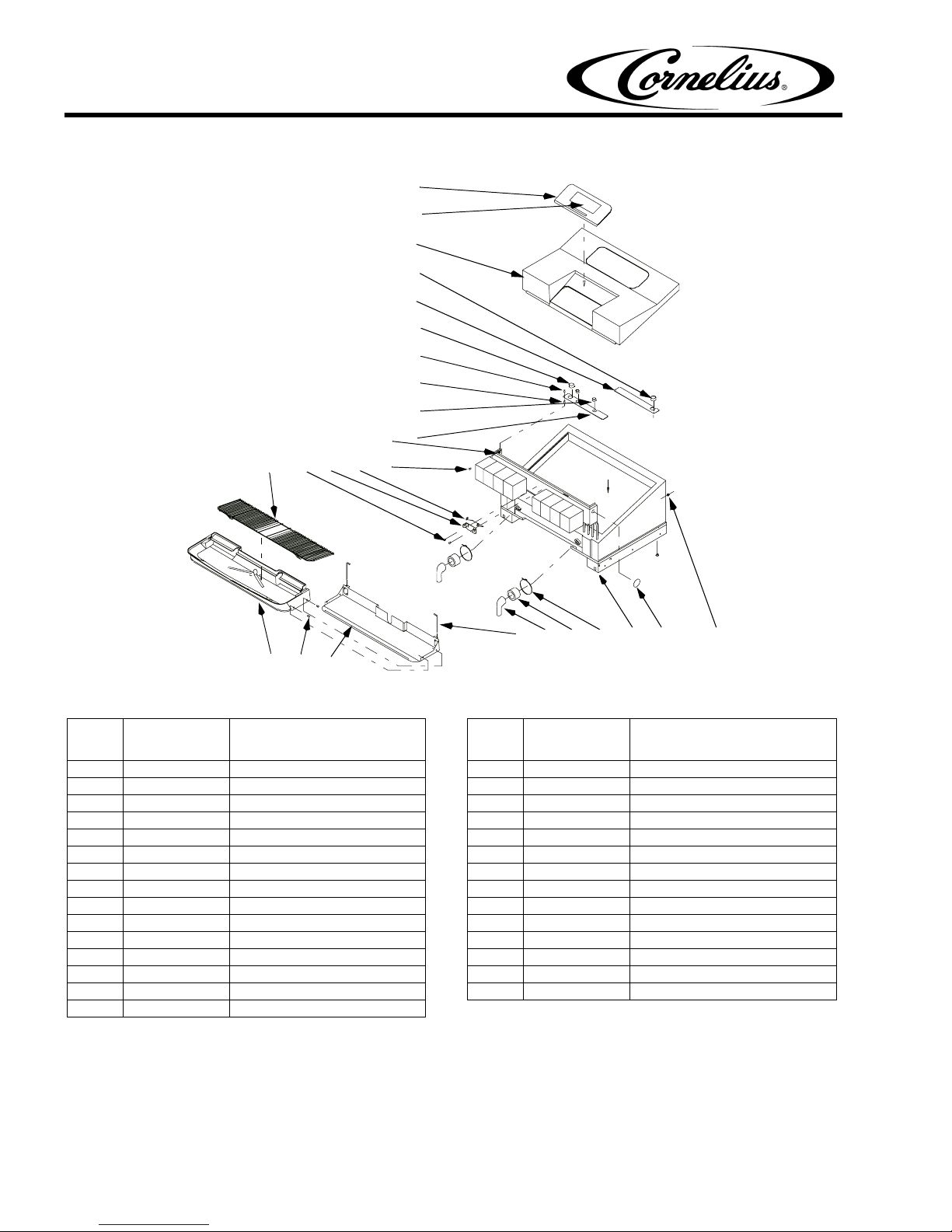

DRIP TRAY AND COLD PLATE COMPONENTS

234

16 17

2021

Item

No. Part No. Name

1 620028702 Drip Tray Ext Asy

2 C-Plt Val Asy

3 53011 Fitg Elbow C-Plt Drain

4 10145 Pin Mtg Drip Tray

5 15090 Baffle Upper Left

6 620041018 Baffle Upper Left

7 53268 Cover C-Plt Asy

8 620041016 Brkt Ice Chute

9 620041017 Chute Ice Wire Stabilizer

10 53255 Cover Access Asy

11 71010 Washer Retaining No. 8

12 51908 Plug Butn

13 53210 Drip Tray Black

14 325192000 Bushing Snap 1.1 Dia.

15 50475 Bushing Snap .875 Dia.

Item

No. Part No. Name

16 50335 Insulation Armaflex

17 50822 Tie Mtg Nylon

18 70171 Screw MA 8-32 TRPH 12

19 70478R Clip Push on

20 70555 Screw MA 8-32 TRPH 84

21 620701601 Screw SM 10-16 PNPH 16

22 70959 Nut No. 8-32

23 92334 Label Inlet LT to RT

92345 Label Inlet RT to LT

24 71094 Cup Rest

25 51288 Adapter 3/4 (Not Shown)

26 50952 Adapter 3/4 (Not Shown)

27 70750 Clamp Hose (Not Shown)

28 620702201 Brush (Not Shown)

IMI CORNELIUS INC.

www.cornelius.com

1-800-238-3600

ED250 BCP 5 of 6 Part Number: 620916502IPL

Revision: E

ELECTRICAL BOARD

* Not Shown

25 16 24 12 9 13 15 20 4 27 3 318

28 25 19 11 610 171426 1

Item

No. Part No. Name

1 620031802 Box Elec

2 32714 Diode Asy

3 449999999 Transfrmr 120V-24V

4 31107 Board Terminal

6 620307501 Relay 240V

9 620701206 Nut Knrl Plastic Swt

10 620031811 Brkt Mtg Solenoid Valve

11 620701204 Reg Filter Asy

12 620702504 Fitg T 1/8-MPT x 1/8-FPT

13 620702501 Fitg T 1/8-FPT

14 620702503 Display Pressure Bot Con

15 620404301 Fitg Nipple 1/8-NPT

16 629088755

620609102

Kit Valve Pilot Solenoid

Replacement For units

prior to SN 62D0605ED289

Valve Pilot Solenoid (For

units beginning with SN

62D0605ED289)

Item

No. Part No. Name

17 620702102 Valve Solenoid Pilot

18 620701207 Fitg Nipple Close 1/8-NPT

19 70663 Fitg 1/4-Barb x 1/8-MPT

20 620506006 Fitg L 1/8-NPT

21* 620512101 Tube Poly .250 O.D.

22* 50299 Tube .265 I.D.

23 30995 Cord Asy

24 620720629 Bushing 1/8-FPT 1/8-MPT

25 620720630 Fitg L Swv 1/8-MPT

26 620702506 Fitg Nipple Close 1/8-NPT

27 31206 Relay

28 620053206 Brkt Mtg Solenoid

IMI CORNELIUS INC.

www.cornelius.com

Telephone 1-800-238-3600

Part Number: 620916502IPL 6 of 6 ED250 BCP

March 10, 2006 © IMI Cornelius Inc., 2002-2006

Revision: E

FLEX MANIFOLD COMPONENTS

Item

No. Part No. Name

1 620407728 Manifold Flex

2 620709065 Fitg L 1/2 x 3/8-Barb

3 100057 O-Ring Coupler

4 70204 Screw SM 8 TRPH 16

5 620519005 Plug Manifold

6 620709066 Conn Inlet 3/8 x 1/4-Barb

7 620046316 Retainer Fitg

Item

No. Part No. Name

8 620706632 Screw 8-15 PAPH 56

620711913 Insulation Manifold LH

(Not Shown)

620711914 Insulation Manifold RH

(Not Shown)

620715408 Hook and Loop Fastener

(Not Shown)
