Copernicus RC106 Manual de usuario
Chart Loop Hook (2)
This assembly guide provides instructions to build the Standard Reading Writing Center
Check out our full line of products at www.copernicused.com
Standard Reading Writing Center -Assembly Guide
RC106
1-800-267-8494 or email [email protected]
Have your packing slip ready for reference
If parts are missing or you require assistance,
please call:
RC106_2009_B
Please Recycle Rc106 - Version B - 1 October 2009 - Copernicus Educational Products Inc.
This Product is meant to be assembled by an Adult.
In its unassembled state, small parts present a hazard.
This product to be used under the direct supervision of an adult.
WARNING
Front Frame (1)
Ultra Safe
Premium Bookledge (1)
Base (2)
Caster (4)
Upper Frame (2)
Lower Frame (2)
Center Frame (1)
Stretcher (2)
Front Frame Support (2)
1 Left, 1 Right 10
Warranty
Year
Frame
Before beginning, you should have:
A
12x
D
2x
B
2x
E
16x
Additional tools required: Adjustable wrench
Base
2x
I
2x
(Not to Scale)
Standard Reading Writing Center - Parts
J
1x
3” Caster
4x
Center Frame
1x
Lower Frame
2
1 Left, 1 Right
x
Upper Frame
2
1 Left, 1 Right
x
Stretcher
2x
Rear Whiteboard
Hooks
2x
Front Frame Support
2x
(1 Left, 1 Right)
Front Frame
1x
Ultra Safe Premium
Book Ledge
1x
Hardware
Actual Size
Contents - Box 1
In Box 1In Box 1
Whiteboard Channel
1x
Chart Loop Hook
2x
Removable Rear Whiteboard
1x
H
2x
C
2x
F
2x
G
2x
Rc106 - Version B - 1 October 2009 - Copernicus Educational Products Inc.
This symbol denotes a 2 Person Task. For safety, please ensure that there are two
people working on steps displaying this symbol
Watch for this symbol throughout the Assembly Instructions. Wherever you see it, pay
close attention. The symbol denotes a step needing extra attention to ensure it is done
correctly
The Star symbol highlights an advisory note
Tips for Assembly - Using this Manual
2 Person Task
!
Watch for These Helpful Symbols
Before You Begin
As You Assemble the Unit
Layout and identify all of the included parts
The hardware has been packed according to size, separate them based on those sizes
Read the assembly instructions over once to familiarize yourself with them
Please note that in its unassembled state, this product contains parts that can be a
hazard to small children; it should be assembled by an adult
If you have a cordless drill, a hex head driver bit has been included for use. This will
help to speed up assembly. Make sure that the torque is on a low setting, to ensure the
bolt head does not get stripped
Follow the steps in sequence
Before beginning each step, find the part(s) that you need for that step
Pay attention to the labeling on the parts, they are there to help direct you at certain stages
The title of each step states what you will be doing. Review the text and the pictures as you
build the unit
After Assembly; Before Use
Remove the plastic film from the Whiteboard before writing on it
Clean the Whiteboard surface well with soapy water and then rinse clean
Rc106 - Version B - 1 October 2009 - Copernicus Educational Products Inc.
1
Base x 2 Caster x 4
You will need: (Not to Scale)
Actual Size:
Do not tighten any fasteners, unless instructed
Install Casters
You should begin the installation with the brakes in the UP position
Note: The front of the Base is the end with the brake mechanism
Press Casters firmly into the base
- Caster will click into place
- If necessary, place a wrench between the wheels & tap in with a rubber mallet.
Repeat for remaining Base
!
Front
Rc106 - Version B - 1 October 2009 - Copernicus Educational Products Inc.
2
Center Frame x 1 Rear Frame Lower x 2
You will need: (Not to Scale)
x4 x4
Actual Size: AE
Rc106 - Version B - 1 October 2009 - Copernicus Educational Products Inc.
Install Center Frame & Rear Frame Lower
Use L & R stickers on the Rear Frame Lowers to help you distinguish the Left & Right
side of the unit when looking at it from the Front
Slide Center Frame into the front holes of the Base & Lower Frames into the rear holes
of the Base
- Fasten with four Bolt A’s & Washer E’s
- Tighten bolts
Front of the Base is the end with the Brake
!
!Note - Front of base is the
end with the brake
Washer E
Bolt A
L
L
R
R
!
!!
3
Rear Frame Upper x 2
Stretcher x 2
You will need: (Not to Scale)
x4 x2 x6
Actual Size: AB
E
Rear Whiteboard Hook x 2
Build Rear Frame
Slide Rear Frame Upper Assembly onto Rear Frame Lower Assembly
- Use the L & R stickers to help you determine which goes on which side
Align one of the Stretchers with the holes at the bottom of the Rear Frame Lower
- Fasten with two Bolt A’s & Washer E’s
- Tighten bolts
Fasten the Upper Frame to the Rear Frame Lower
- At the connection point, fasten with two Bolt B’s, Washer E’s & Nut H’s
- Tighten bolts
Align the remaining Stretcher with the holes in the Upper Frame
- Slide Rear Whiteboard Hooks on before fastening
- Fasten with two Bolt A’s & Washer E’s
- Tighten bolts
2
4
1
2
3
Hooks slide on
prior to assembly
!
Washer E
Bolt B
x2
H
Nut H
4
3
Washer E
Bolt A
Rc106 - Version B - 1 October 2009 - Copernicus Educational Products Inc.
L
R
!!
L
R
2
1
!
Washer E
Bolt A
4
Front Frame Support x 2
1 Left, 1 Right
You will need: (Not to Scale)
x2 x2
Actual Size: AE
Install Front Frame Supports
Align the end of the Left Front Frame Support marked with a Left sticker with the hole
marked with a dot sticker in the Center Frame on the left side.
Repeat for Right side
- Ensure that the Front Frame Supports angle outward; there is a definite Left & Right,
ensure that each is on the correct side
- Fasten with one Bolt A & Washer E
- Tighten bolt
!Note outward angle
Use labels to help you
assemble correctly
R
R
Rc106 - Version B - 1 October 2009 - Copernicus Educational Products Inc.
5
Front Frame Assembly x 1
You will need: (Not to Scale)
x2 x2
Actual Size: CF

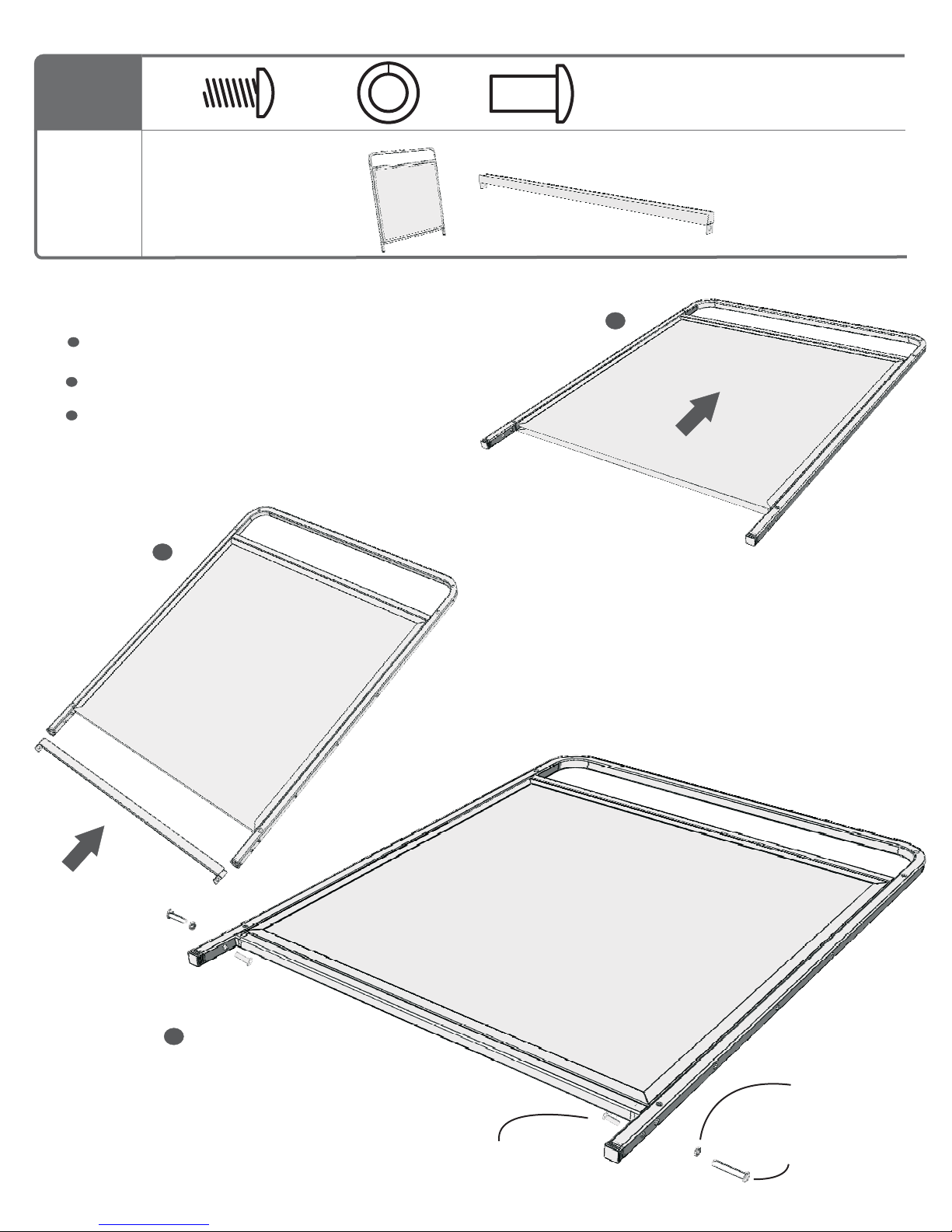

Whiteboard Channel x 1
Build Front Frame Assembly
Slide Whiteboard as far upwards as it will go
Slide Whiteboard Channel up to the bottom of Whiteboard surface
Fasten the Whiteboard Channel in place
- Use two Bolt C’s, Washer F’s & Barrel Nut G’s
- Tighten fasteners
1
2
3
x2
G
Washer F
Barrel Nut G
Bolt C
Rc106 - Version B - 1 October 2009 - Copernicus Educational Products Inc.
6
Attach Whiteboard
Front Frame Assembly x 1
You will need: (Not to Scale)
x2 x4
Actual Size: AE
Peel plastic film
before use
!
Put Brakes in the locked/down position to hold the unit steady
Align the holes in the Front Frame Assembly with the Rear Frame and the Front Frame
Supports
- Fasten with two Bolt D’s & Washer E’s
- Tighten Bolts
Peel off the plastic film on the Whiteboard before use
- It is easiest to fasten the top first, then the bottom bolts
- Fasten with two Bolt A’s & Washer E’s
- Tighten Bolts
For Top two Holes:
For Bottom two Holes:
!
Bolt A
Washer E
Bolt D
Washer E
Top Two Holes:
Bottom Two Holes:
x2
B
Rc106 - Version B - 1 October 2009 - Copernicus Educational Products Inc.
7
Install Book Ledge
Note: There are multiple locations on the side of the Whiteboard to install the Book
Ledge. Choose the location that works the best for your classroom.
Insert one hook into the appropriate hole on one side of the Whiteboard Frame
Pull out opposite hook & snap into place
Note: The spring tension is designed to discourage children from unhooking the Book
Ledge
Book Ledge x 1
You will need: (Not to Scale)
12
3
Rc106 - Version B - 1 October 2009 - Copernicus Educational Products Inc.
