Tips for Assembly
Before You Begin:
ŸLay out and identify all of the included parts.
ŸThe hardware has been packed according to step.
ŸRead the assembly guide over once to familiarize yourself with them.
As You Assemble the Unit:
ŸFollow the steps in sequence.
ŸBefore beginning each step, find the part(s) that you need for that step.
ŸThe title of each step states what you will be doing. Review the text and
the pictures as you build the unit.
Please read the warnings below for important safety information regarding your product. Failure to read these
warnings or to follow the instructions below could result in personal injury or damage to your product that could
void your warranty.
Indoor Use
Only This product is intended for indoor use only.
In its unassembled state, this product contains parts that can be hazardous to small children.
This product should be assembled by an adult.
Small Parts
This product is to be used under the supervision of an adult.
Adult
Supervision
Do not climb on, hang from or suspend objects from any components of your product
unless otherwise specified.
Climb
Hazard
Important Information! Warning!
This product does NOT require maintenance. Please contact customer service if repairs are
required.
No
Maintenance
The symbol denotes a
step needing extra
attention to ensure it is
done correctly.
Watch for This Helpful Symbol:
LLS100 - Version 2023A - Released February 3, 2023 - Copernicus Educational Products Inc.
4

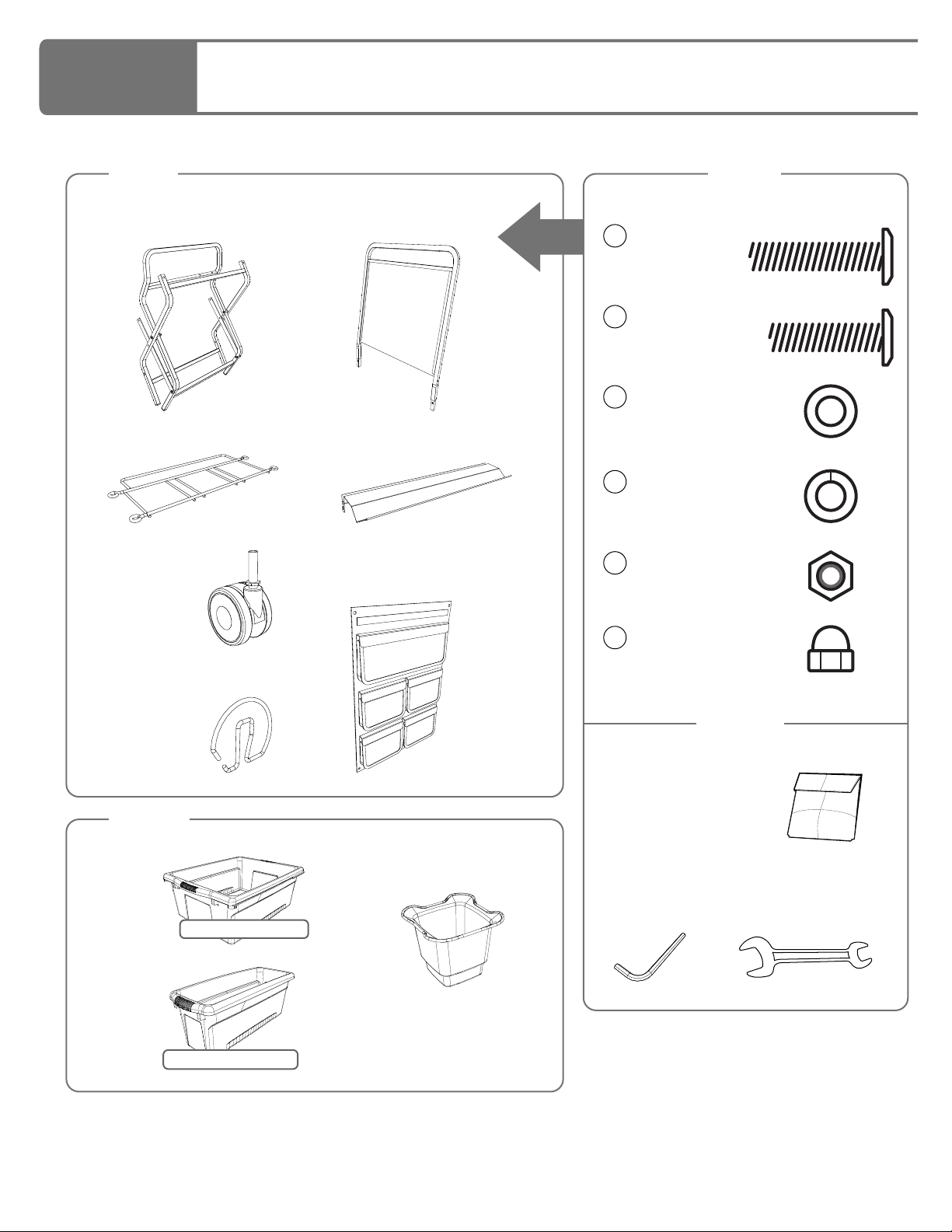

Hardware
(Actual Size)
LLS100-0
Before beginning, you should have:
AM6 x 30mm Screw
8x
In LLS100-0
Tools
(Not to Scale)
Parts
Lower Frame Assembly
1x
Whiteboard
1x
Storage Pocket Center
1x
Book Ledge
1x
Tiny Tub Rack
1x
3” Locking Caster
4x
Chart Paper Loop Hook
2x
LLS100-AC
4mm Hex Key
(43281)
1x
8mm/10mm Hex Wrench
1x
BM6 x 25mm Screw
2x
CM6 Flat Washer
4x
DM6 Lock Washer
2x
EM6 Lock Nut
8x
FM6 Acorn Nut
2x
Bag of extra hardware
x1
Open Tub
(CC4068)
1x
Tiny Tub
(CC4072)
3x
Small Tub
(CC4070)
3x
10 lbs Weight Limit
5 lbs Weight Limit
LLS100 - Version 2023A - Released February 3, 2023 - Copernicus Educational Products Inc.
5
1
Actual Size:
Unfold frame and assemble into open position
You will need: (Not to Scale)
1A2x
C4x E2x
Lower Frame Assembly
1x Hex Key
1x
Wrench
1x
Unfold frame
1
1
Actual Size:
Install tiny tub rack
You will need: (Not to Scale)
2A4x
E4x
Hex Key
1x
Wrench
1x
Tiny Tub Rack
1x
Align stretchers with hole
2Fasten stretchers to frame
3
C
E
C
A
Insert washer
between leg
and stretcher
LLS100 - Version 2023A - Released February 3, 2023 - Copernicus Educational Products Inc.
6
1
Install casters on frame
You will need: (Not to Scale)
33” Locking Caster
4x
Flip frame over
Press casters into legs
CLICK!
1
2
Fit book ledge onto bottom edge of whiteboard
1
Fasten book ledge to whiteboard
2
1
Actual Size:
Install book ledge and whiteboard
You will need: (Not to Scale)
4Hex Key
1x
Wrench
1x
B2x
D2x F2x
Whiteboard
1x Book Ledge
1x
After caster installation, flip
frame and stand on wheels
B
F
D
F
B
D
Do not fully tighten
hardware!
Install whiteboard in lower frame
3
CLICK!
Fully tighten book
ledge hardware
LLS100 - Version 2023A - Released February 3, 2023 - Copernicus Educational Products Inc.
7
A
A
E
Assemble storage pocket center to frame
Install chart paper loop hooks
Place empty hardware bags over the top bar of
the whiteboard during installation of chart paper
loop hooks to prevent scratching. Remove bags
once installation is complete.
1
Actual Size: You will need: (Not to Scale)
5A2x
E2x
Hex Key
1x
Wrench
1x
1
You will need: (Not to Scale)
6
Storage Pocket Center
1x
E
Chart Paper Loop Hook
2x
LLS100 - Version 2023A - Released February 3, 2023 - Copernicus Educational Products Inc.
8
Place tiny tubs in rack Place open tub on top stretchers
Place small tubs on bottom stretchers The tiny tub rack has a built in loop that
allows you to hang file folders (not included)
on Teacher Trolley.
Install the small tubs with the curved
front handles pointing to the front of unit.
1
3
2
Install tubs
1
You will need: (Not to Scale)
7Open Tub
1x
Tiny Tub
3x
Small Tub
3x
10 lbs Weight Limit 5 lbs Weight Limit
