COP-USA CD55NV-HD22 Guía

Installation/Operation

Manualfor High Speed Dome Camera

V1.5

※ Please read the operation manual carefully before installing this unit

SAFETY PRECAUTIONS

CAUTION

RISK OF ELECTRIC

SHOCK. DO NOT OPEN!

CAUTION:

TO REDUCE THE RISK OF ELECTRICAL SHOCK, DO DOT

OPEN COVERS. NO USER SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL

The lighting flash with a arrowhead symbol, in an

equilateral triangle, is intended to alert the user.

There is uninsulated “dangerous voltage” presence

near by the product's enclosure which may be risk of

to persons .

The exclamation point within an equilateral

triangle is intended to alert the user to reference

of the important operating and maintenance

(servicing ) instructions .

THE PRODUCT CODE MARKED ON THE BOTTOM COVER. PLEASE

FILL THE CODE IN THE FOLLOWING BLANK. PLEASE SAVING

THIS SPECIFICATION CAREFULLY, SO THAT CHECKING.

MODEL:________________________

PRODUCT CODE:________________________

INDEX

INSTALLATION INDEX

Important Safeguards…………………………………………………….1

I. The Installation of the System……………………………………………2

1. The Style of the Installation………………………………………….2

2. Steps of Installation………………………………………………...3

II. The outlines description………………………………………………....6

Ⅲ.. Appendix I Lightning Proof and Surge Signal Proof… ……………..9

Appendix II The Cleaning of Clear Down Cover……………………..9

AppendixⅢAC24VWire diameter and transmission Distanc

Comparison chart.................................................................................10

Appendix Ⅳ：Wire Gauge Conversion Chart…………………….....11

OPERATION INDEX

Important Safeguards………………………………………………..........12

I. Description of Functions…………………………………………………..13

II. Setup of the Menu of the Dome Camera………………………………....15

III. Setup of the Dome Camera……………………………………………...18

1. Connection of the System…………………………………………….23

2. Setup of Coding Switch of Dome Camera……………………………24

3. Setup of the Protocol and the Default Baud Rate…………………….24

4. Setup of the Baud Rate of Communication…………………………..25

5. Selection of the Terminal Resistor of the Dome Camera…………….25

6.Shortcut control function……………………………………………...26

IV Technical data table……………………………………………………….28

V Troubleshooting……………………………………………………………29

VI Appendix

Ⅰ

: RS485 Bus Basic Knowledge………………………………..30

- １-

IMPORTANT SAFEGUARDS

1. All the safety and operating instruction should be read before the units is operated.

2. The power supply for the dome：AC24V/1.7A, Which is displayed on the bottom of

the pedestal or other place of the dome.

3. Do not attempt to disassemble the camera. In order to prevent electric shock, do not

remove screws or covers. There are no user-serviceable parts inside.

4. The product should be indoor installed and operated to avoid rain and moisture. Do

not use it in wet places. If outdoor installation is needed, the closed protect cover

should be used and it is absolutely prohibited to use it in open air independently.

5. Do not operate it in case temperature, humidity and power supply are beyond the

limited stipulations.

6. Do not let the camera aim at the sun or the object with extreme light whatsoever it is

switched on or not. Do not let the camera aim at or monitor bright and standstill object

for a long time.

7. Do not use aggressive detergent to clean the main body of the camera. Wipe dirt with

dry cloth. If needed, mild detergent can be used suitably.

8. Operate the intelligent speed dome camera with great care to avoid shock or vibration.

It operate incorrectly, the Speed Dome could be damaged.

9. Please install the dome to the suitable place for bearing enough capacity.

10.If necessary, use a commercial lens cleaning paper to clear the lens windows. Gently

wipe the lens window untilclean.

²We offer three-year guarantees on all products,excepting the CCDS for one-year

guarnntee.

- ２-

Ⅰ. The Installation of the System

1．The Style of the Installation

a) Wall Installation

4 9 58

Figure 1

b) In-Ceiling Installation

Figure 2

c) Indoor Ceiling Installation

d) Indoor Embedded Installation

135

197

Figure 3 Figure 4

- ３-

2．Steps of Installation

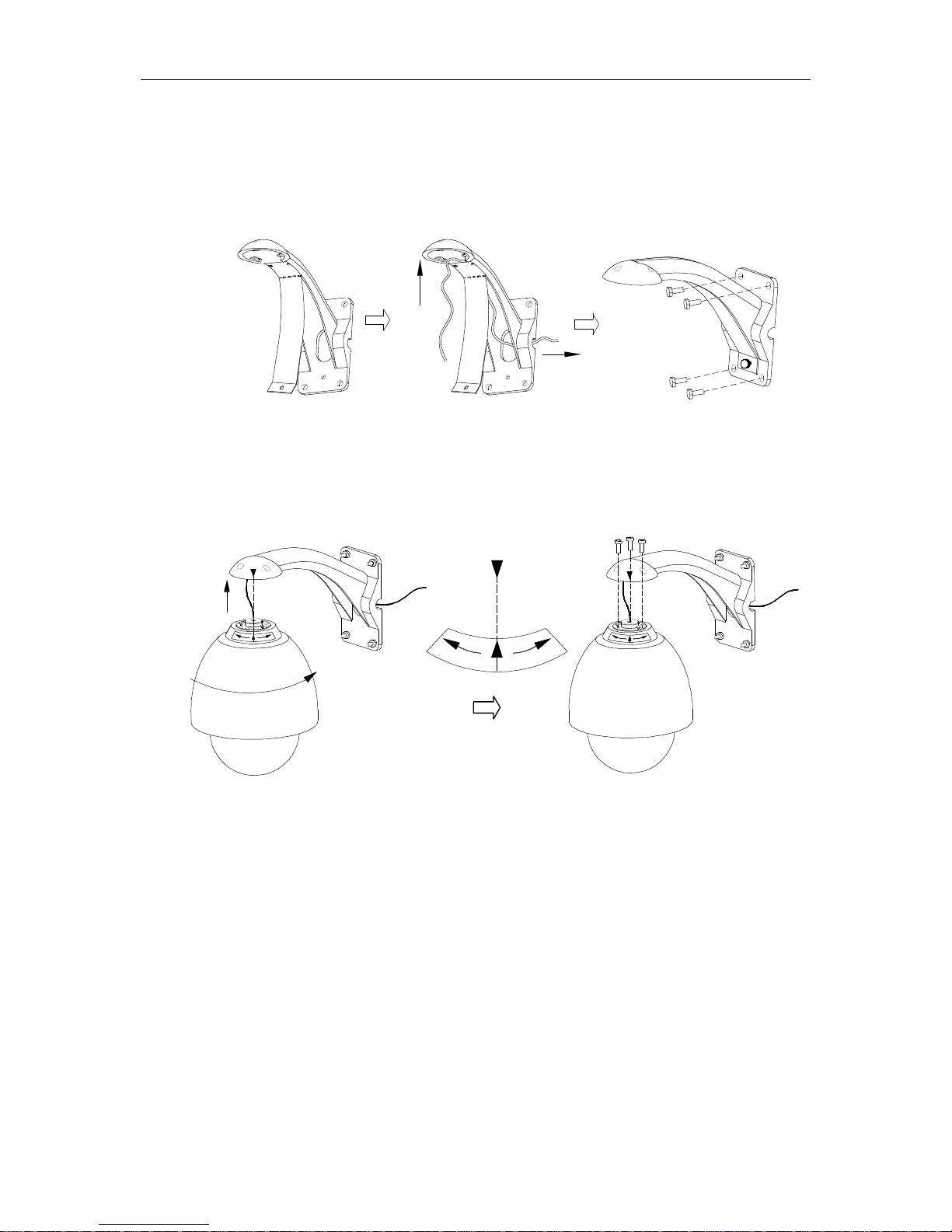

a) Wall Installation

1) Unpacking the carton and carefully take out the dome camera and its attachments.

2) Take out the cover of the wall-installed bracket.（Figure5）.

3) Take out system control wires from the bracket（Figure 6）.

4) Fix the bracket on the wall（Figure7）.

Figure 5 Figure 6 Figure7

5）Aiming the "MARK" of the bracket to the "MARK“ of the flange, push the dome

upward to the end and rotate it with the direction of the arrow until it is clicked and

tightened.（Figure 8）.

6）It's ok to fix the dome to the bracket with hexagon socket head cap screw（Figure 9）

LOCK

Figure 8 Figure 9

b) Steps of Installation for Indoor Ceiling Style

1) Unpacking the carton and carefully take out the dome camera and its attachments .

2) Take out of the bracket, and fix the bracket on the wall.（Figure10）.

3) Please connect the system control wires, video wires, power wires with the bracket

and go through it. Aiming the "MARK" of the bracket to the "MARK“ of the

flange, push the dome upward to the end and rotate it with the direction of the

arrow until it is clicked and tightened（Figure11）.

4) And then, please fix the dome to the bracket with bolts.（Figure12）.

LOCKOPEN

PUSH

MARK

- ４-

Figure10 Figure11 Figure12

c) Steps of Installation for Indoor Ceiling Style.

1) Install the pedestal on the base plate（Figure13）.

Q6: M2.5×5 round head

black screw

Q3: M4×1.25

″stainless

steel wood screw

Figure 13 Figure 14

2) Fix the pedestal assembly on the ceiling (Figure14).

3) Aiming the “MARK” on the dome at the notch on the pedestal, push the dome

upward to the end and rotate clockwise until it is clicked（Figure15）.

4) Put the decoration ring near the ceiling and rotate it clockwise until it is tightened

（Figure15）.

5) (Figure 16) shows the system is installed.

6) The names of some parts are as follows:

A):Base Plate B): Pedestal C): Decoration Ring D):PedestalAssembly

- ５-

MARK

Decoration Ring

Figure 15 Figure16

d) Notice: The thickness of the ceiling to install speed dome must be ≤1.65 inch

(4.2 cm) and ≥0.38 inch (0. 8cm).

Notice: The ceiling should withstand 4 times the load of the speed dome weight.

1) It has the drill map in embedded bracket，tip the black parts of double paper, the

central of drill map have a red spot, which is central spot（Figure17）.

2) Base on the red spot to draw the sign（Figure18）.

Figure17 Figure 18

3) According the material of ceiling, choose the different tools to drill（Figure19）.

4) Fixup the “installation pedestal” with the embedded mount（Figure 20）.

Figure 19 Figure 20

5) For easy installation, adjust the three swing mounting clips to let the distance between

the clips and the flange a little longer than ceiling thickness.

6) Swing the three mounting clips to adhere to back box wall. Place the back box inside

the ceiling hole. Let the flange cling to the ceiling.

- ６-

7) Turn the three mounting clip bolts to let the mounting clips press the ceiling and

swing out gradually. The ceiling is clamped between the mounting clips and the

flange, thus the back box is secured above the ceiling.（Figure 21）.

Indoor drop celing

installation bracket

Swing mounting Clip

Ceiling

Flange

Decoration Ring

Figure 21

II .The outlines description.

1) The synthetical wires as follows（Figure22），Orange isRS485+、Yellow is

RS485-；While you are using AC24V power line，the red and black is the input

side of the power ；BNC connector is the video-out side(Take carefully while

you connect these wires).

RED CONNECTOR

(POWER IN)

BLACK CONNECTOR

(RS485 CONTROL IN

)

VIDEO OUT

RED LINE(AC24V IN)

BLACK LINE(AC24V IN)

ORANGE LINE(RS485+)

YELLOW LINE(RS485-)

Figure 22

2) The description ofAlarm out-line（Figure23）.

Figure 23

- ７-

3) The o description ofAlarm out-line.

According the fig of D3 to connection. As show of figure 24-1, when dome

identify the alarm signal, that will set according the program immediately, then

startup camera, switching the image of alarm field to main monitor. Surveillance

the alarm preset, then record it in time. Fig24-2 is connection of alarm control.

Input of alarm: Input signal of switch type, any other input signal will damage dome.

When multi-channel with alarm signal, dome will respond one by one, the removed time is

two sec.

Once the dome have alarm input, dome will not respond“scanning”、“patrol”、

“remember tracking”etc function.

D2:

connect fan/heate

(AC24V)

NO:

Open collector alarm output：8

NC:

Close collector alarm output：7

COM:

Common

collector alarm output：6

GND:

Common

collector alarm input：5

ALM-1:

Channel 1

collector alarm input：4

ALM-2:

Channel 2

collector alarm input：3

ALM-3:

Channel 3

collector alarm input：2

ALM-4:

Channel 4

collector alarm input：1 VIDEO OUT

VIDEO GND

1：AC24V IN

2：AC24V IN

3：RS485+

4：RS485-

Figure24-1

Figure24-2
