Cooper Lighting BCHE Manual de usuario

WARNING: If the lens has a Factory-applied trim color,these solvents will also remove this paint.

Replacement of the entire lens is recommended in this case.

1961.0817.1274

CHARLESTON GRAPHICS, INC.

BC, BW,BWVE, BCVE,

BCHE, BWHE, SERIES LUMINAIRES

INCANDESCENT AND COMPACT

FLUORESCENT

6/93 IMI-313

INSTALLATION INSTRUCTIONS

IMPORTANT:Read carefully before installing fixture.

Retain for future reference.

General: Upon receipt of fixture thoroughly inspect for

any freight damage, which should be brought to the

attention of the delivering carrier. Compare the catalog

description listed on the packing slip with the fixture

label on the housing to assure you have received the

correct merchandise.

Safety: This fixture must be wired in accordance with

the National Electrical Code and applicable local codes

and ordinances. Proper grounding is required to insure

personal safety. Carefully observe grounding procedure

under installation section. All work should be done by a

qualified electrician.

WARNING: Make certain power is OFF before starting installation or attempting any maintenance.

CLEANING: The reflector and lens may be cleaned with any non-abrasive cloth

and mild detergent (i.e. 409 Cleaner). Cleaning should be done on the lens at room

temperature, and out of direct sunlight. To remove paint, lipstick, marker, etc., the

following solvents may be used:

RECOMMENDED: a solution of three (3) parts alcohol, one (1) part TOLUOL.

OR: four (4) parts alcohol, one part Methylethylketone (MEK).

Also safe, but less effective: Naphtha, Butyl Cellosolve, Kerosene.

NEVER USE: Gasoline,Benzene,Acetone,Carbon Tetrachloride or highly

alkaline cleaners. Never clean Luminaire while energized, or while lens is

hot.

1. Remove lens, using a torx screwdriver (for screws with center-pin).

2. Remove the four 5/10” knock-outs.

3. Determine correct fasteners to use for the mounting surface. Fasteners should be 1/4” normal.

4. The mounting gasket may be used as a template to lay out the fastener locations.

5. Make wiring connections.

Place two of the mounting screws through the mounting plate, and position the mounting gasket into position

on the back (wall-side) of the plate.

7. Position mounting plate on wall in one of the “UP” orientations, according to the embossed arrows on the

mounting plate. Check position of internal reflector, if equipped (see Note).

8. Start mounting fasteners but do not tighten.

9. Check the gasket position. At least 1

/4of gasket should extend beyond the mounting plate, all the way around.

10. Tighten all four mounting fasteners.

11. Install lamp. Screw base lamps should be tightened, then loosened one to two turns, then re-tightened. This

will properly seat the lamp for best mechanical and electrical connection.

12. Replace lens, tighten screws.

NOTE: For optional Internal Reflectors

If the fixture has a reflector attached to the mounting plate, it should be positioned above the lamp. If the lens

has a portion “Painted Out” to form an “Eyelid”, this portion should be positioned toward the ceiling, and over

the internal reflector.

These instructions do not claim to cover all details or variations in the equipment, procedure, or process

described, nor to provide directions for meeting every possible contingency during installation, operation or

maintenance. When additional information is desired to satisfy a problem not covered sufficiently for user’s

purpose, please contact your nearest representative.

1961.0817.1274

CHARLESTON GRAPHICS, INC.

Photoelectric Control

A Photoelectric Control may be added by first obtaining the following accessories from your Cooper Lighting

Distributor:

Surface Conduit Box CAT#SCB

“Photocell Kit” CAT#PB-120V OR #PB-277V

Follow the instructions provided with the kit, installing the photocell in an unused conduit entry location which

positioned the Photocell in a horizontal orientation.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Luminaria de Cooper Lighting

Cooper Lighting

Cooper Lighting Halo H2573 Manual de usuario

Cooper Lighting

Cooper Lighting Combolight LV416SQ Manual de usuario

Cooper Lighting

Cooper Lighting Metalux P3 Series Manual de usuario

Cooper Lighting

Cooper Lighting SURE-LITES UN Series Manual de usuario

Cooper Lighting

Cooper Lighting Invue Vision Wall Manual de usuario

Cooper Lighting

Cooper Lighting INVUE Vision Flood Manual de usuario

Cooper Lighting

Cooper Lighting Ametrix ADY071451 Manual de usuario

Cooper Lighting

Cooper Lighting Sure Lites AEL1SD Manual de usuario

Cooper Lighting

Cooper Lighting ALL-PRO ET700 Manual de usuario

Cooper Lighting

Cooper Lighting Cobolight CR2111100 Manual de usuario

Cooper Lighting

Cooper Lighting NEO-Ray FENESTRA 112R Manual de usuario

Cooper Lighting

Cooper Lighting ComboLight CO Recessed w/ Trim Series none Manual de usuario

Cooper Lighting

Cooper Lighting Halo LZR510 Manual de usuario

Cooper Lighting

Cooper Lighting UEL Series Manual de usuario

Cooper Lighting

Cooper Lighting Metalux VT3-132 Manual de usuario

Cooper Lighting

Cooper Lighting IRIS RPN3MR Manual de usuario

Cooper Lighting

Cooper Lighting FAIL-SAFE 2VRGC Series Manual de usuario

Cooper Lighting

Cooper Lighting Neo-Ray 547 Manual de usuario

Cooper Lighting

Cooper Lighting METALUX 248VHO Manual de usuario

Cooper Lighting

Cooper Lighting CHG Manual de usuario

Cooper Lighting

Cooper Lighting Neo-Ray Omni 66-DIP Manual de usuario

Cooper Lighting

Cooper Lighting Downlight Metal Halide ED17P Manual de usuario

Cooper Lighting

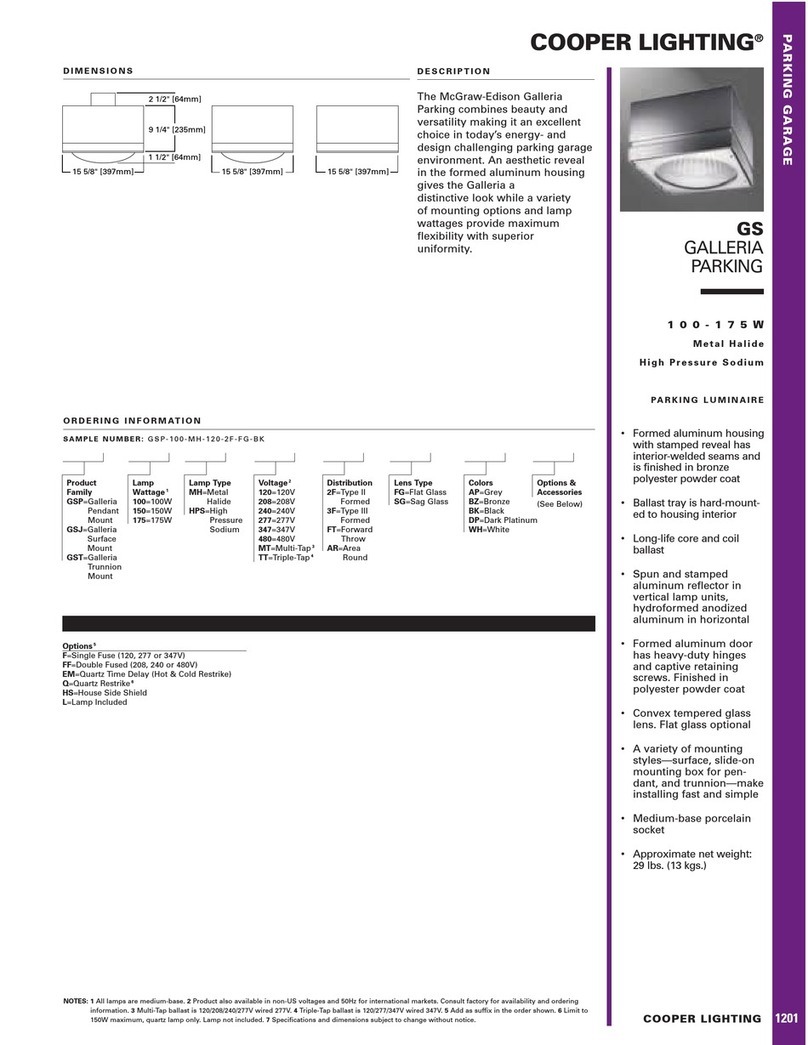

Cooper Lighting GS Manual de usuario
