Cooper Lighting Ametrix P2R Manual de usuario

Cover plate

1/4-20 x4"

(2x)

Exploded view and part call-out

Hex bolt

Canopy

(2x)

Wiring the fixture

. Replace canopy and secure usin both set screws.

(2x)

Set screw

Fixture head

#8-32 x3/8"

assembly

1. Remove both 1/4-20 x4 hex bolts from bottom of pendant.

2. Remove both #8-32 x3/8" set screws and allow canopy to

slide down pendant.

3. Run wires from J-box into pendant, ensure there is enou h

wire to reach cover plate.

4. Usin appropriate fasteners, secure fixture to ceilin . Use

additional bracing around J-box to support fixture.

Aiming the fixture

Attention:

Large fixtures require additional bracing/structure

around J-box to support fixture.

Secure cover plate

1/4-20 x4

(2x)

Hex bolts

properly matched

Slide fixture assembly onto pendant and secure with both

Attach appropriate wires and ensure all connections are

1/4-20 x4 hex bolts.

Cover plate

1. To aim fixtures, loosen both #10-32 end screws on one

fixture. When both indicators are lined up, the slope of the

lens face is 40-de rees. Each subsequent notch is an

additional +/- 10-de rees.

2. When fixture head is rotated to the desired an le, reti hten

end screws to secure the position.

3. Repeat for second fixture head.

Fixture head

indicatorindicator

Yoke arm

#10-32

End screw

Mounting pendant to ceiling

Cover plate

#8-32 x3/8"

(by others)

J-box

3/8" fasteners

(by others)

Canopy

Set screw

(2x)

1/4-20 x4

Hex bolts

(2x)

These installation instructions are valid with the above Ametrix styles.

Sheet 1 of 3

that all sources of power are turned off. All

Visor and Non-Visor

Warning

performed by a certified electrician.

: Before startin any work ensure

work must meet local/national codes and be

Do not

mount fixtures vertically.

Installation Instructions

Vault C-Scroll Roundel

Large, INDOOR

P2R

(Pendant, 2-way, Remote ballast)

ADY071471 REV A(ECN070347)

Installation Instructions

Vault w/ visor C-Scroll w/ visor Roundel w/ visor

These installation instructions are valid with the above Ametrix styles

Warning

: Before startin any work ensure

that all sources of power are turned off. All

work must meet local/national codes and be

performed by a certified electrician. Do not

mount fixtures vertically.

Large, INDOOR

P2R

(Pendant, 2-way, Remote ballast)

Visor and Non-Visor

Sheet 2 of 3

ADY071471 REV A(ECN070347)

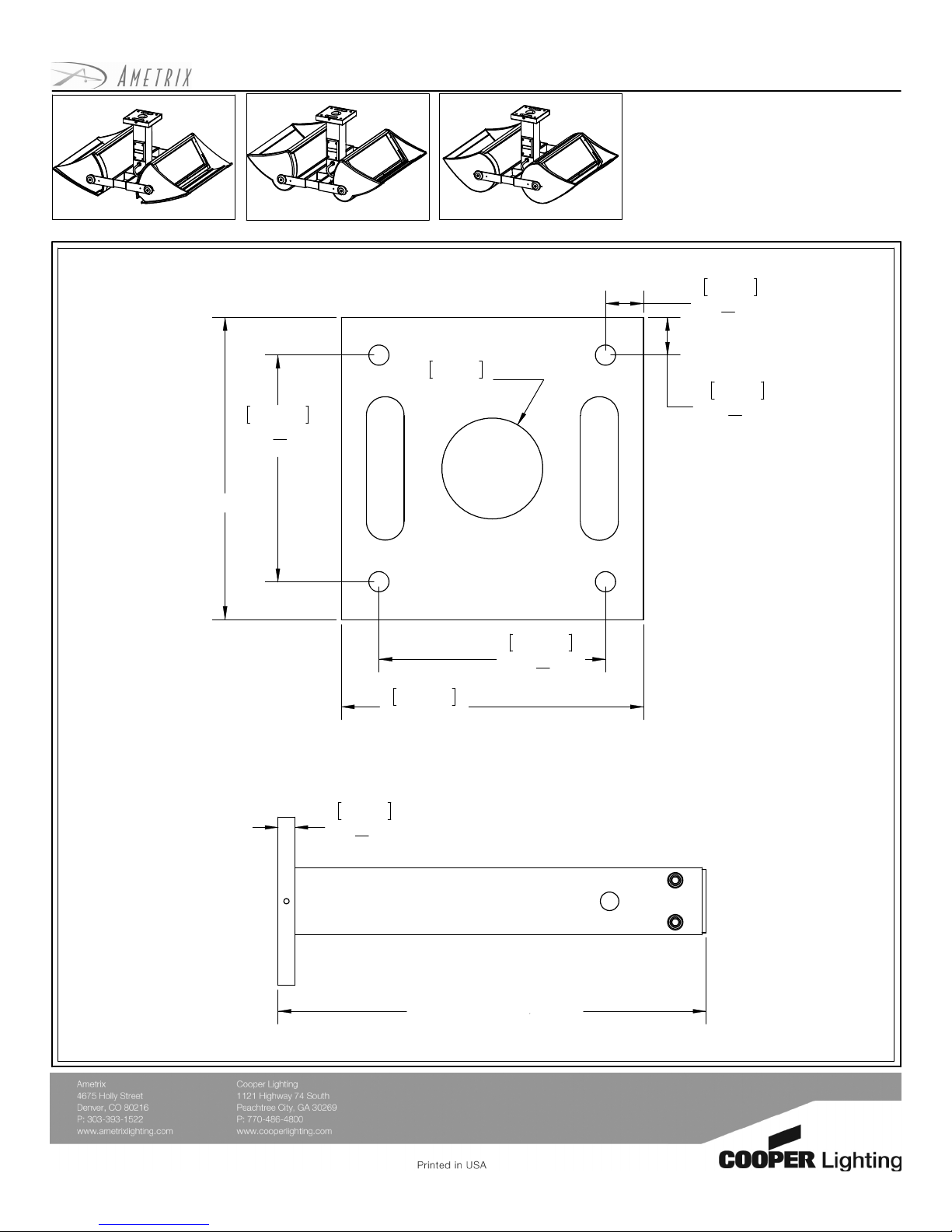

Mounting plate dimensions In[mm]

12.70

on order

Length dependant

Top View

Side View

19.05

114.30

152.40

"4 2

114.30

19.05

R1"

25.40

Lamping Size Chart

(lamps provided by others)

Installation Instructions

Vault w/ visor C-Scroll w/ visor Roundel w/ visor

These installation instructions are valid with the above Ametrix styles

Warning

: Before startin any work ensure

that all sources of power are turned off. All

work must meet local/national codes and be

performed by a certified electrician. Do not

mount fixtures vertically.

Large, INDOOR

P2R

(Pendant, 2-way, Remote ballast)

Visor and Non-Visor

Sheet 3 of 3

ADY071471 REV A(ECN070347)

FIXTURE SIZE

(inches/ mm) WATTAGE

# OF

LAMPS LAMP TYPE LAMP DESCRIPTION

Lamp

(not to scale)

1/2

/ 419.1 32 W 1 T4 Compact Flourescent

1/2

/ 419.1 42 W 1 T4 Compact Flourescent

1/2

/ 419.1 57 W 1 T4 Compact Flourescent

1/2

/ 419.1 100 W 1 ED17 Ceramic Metal Halide

1/2

/ 419.1 150 W 1 T6 Ceramic Metal Halide

1/2

/ 419.1 175 W 1 ED17 Ceramic Metal Halide

1/2

/571.5 mm 250 W 1 ET18 Metal Halide

1/2

/571.5 mm 400 W 1 ET18 Metal Halide

1/2

/571.5 mm 150 W 2 T6 Ceramic Metal Halide

1/2

/571.5 mm 32 W 2 T4 Compact Flourescent

1/2

/571.5 mm 42 W 2 T4 Compact Flourescent

1/2

/571.5 mm 250 W 1 ET18 Metal Halide

1/2

/571.5 mm 400 W 1 ET18 Metal Halide

1/2

/571.5 mm 150 W 2 T6 Ceramic Metal Halide

1/2

/571.5 mm 350 W 1 T3 Halogen(Double Ended)

1/2

/571.5 mm 500 W 1 T3 Halogen(Double Ended)

1/2

/ 774.7 36 W 1 T5 Twin Tube

1/2

/ 774.7 40 W 1 T5 Twin Tube

1/2

/ 774.7 50 W 1 T5 Twin Tube

1/2

/ 774.7 55 W 1 T5 Twin Tube

1/2

/ 774.7 36 W 2 T5 Twin Tube

1/2

/ 774.7 40 W 2 T5 Twin Tube

1/2

/ 774.7 50 W 2 T5 Twin Tube

1/2

/ 774.7 55 W 2 T5 Twin Tube

1/2

/ 774.7 250 W 2 ET18 Metal Halide

1/2

/ 774.7 400 W 2 ET18 Metal Halide

1/2

/ 774.7 900 W 1 T3 Halogen(Double Ended)

1/2

/ 774.7 1000 W 1 T3 Halogen(Double Ended)
