Cooper Lighting HMX High-Mast Manual de usuario

130 STREETWORKS Outdoor Lighting Solutions Cooper Lighting

ROADWAY

ACCESSORIES (order separately)

OA/RA1016=105-285V Photocontrol

OA/RA1027=480V Photocontrol

OA1153=External Cutoff Shield (.90 EPA)

HMX HIGH MAST 400-1000W

MH/HPS

HOUSING

Die-cast aluminum housing and

cover. Standard bronze polyester

powder coat finish. Other finish

colors available. Consult your

Streetworks Representative.

MOUNTING

Clamp type slipfitter for 2 3/8"

O.D. pipe.

OPTICS

Anodized spun aluminum reflector

housing.

LAMPHOLDER

Die-cast aluminum lampholder

allows several different lamp

positions.

DOOR

Die-cast aluminum door with

tempered convex glass lens and

silicone rubber gasket.

NOTE: 1 Refer to technical section for lamp/ballast/voltage compatibility. 21000W HPS only. 3Not available on 750 or 1000W units. 4Four-Stage air filter prevents entrance of dust particles .00025mm and larger. 5MOV option is

not available for any system requiring a three position terminal block (Example—120/240V incoming line). In order for MOV option to function center terminal of three position terminal block must be connected to “Earth”

ground.

LARGE AREA LUMINAIRE

EPA:

Effective Projective Area: 1.46

SHIPPING DATA

Approximate Net Weight:

64 lbs. (29 kgs.)

ORDERING INFORMATION

SAMPLE NUMBER: HMX40SC2NM

OPTIONS (add as suffix)

1=Single Fuse, Internally Mounted (120 or 277V)

2=Double Fuse, Internally Mounted (208, 240, or 480V)

3=Four-Stage Air Filter 4

4=Photocontrol Receptacle

AP=Grey

B=Plastic Two Position Terminal Block

M=MOV Lighting Surge Protector 5

OPTIONS + ACCESSORIES [Must be listed in the order shown and separated by a dash]

STREETWORKS™

OPTIONS +

ACCESSORIES

(See Below)

PRODUCT

FAMILY

HMX

LAMP

WATTAGE

40=400W

75=750W

91=1000W

LAMP TYPE 1

S=HPS

M=MH

BALLAST TYPE 1

C=CWI

K=10KV CWA 2

M=Mag. Reg. 3

W=CWA

AVOLTAGE 1

2=120V

0=208V

4=240V

7=277V

8=480V

9=347V

W=Multi-Tap wired 120V

N=Multi-Tap wired 277V

V=Multi-Tap wired 240V

OPTICAL

PACKAGE

C=Flat Glass

D=Convex Glass

N=Open

DISTRIBUTION

M=Type V Medium

S=Type V Short

W=Type V Wide

23 3/4"

[503mm]

19 3/8"

[492mm]

2 3/8"

[61mm]

O.D. Pipe

4 3/8"

[111mm]

28" [711mm]

Vertical Lamp Configuration

OPTIONAL COLORS [Standard color is bronze, other finish colors available. Consult your Cooper Lighting representative]

Grey

STREETWORKS Outdoor Lighting Solutions 131Cooper Lighting

HMX HIGH MAST ROADWAY

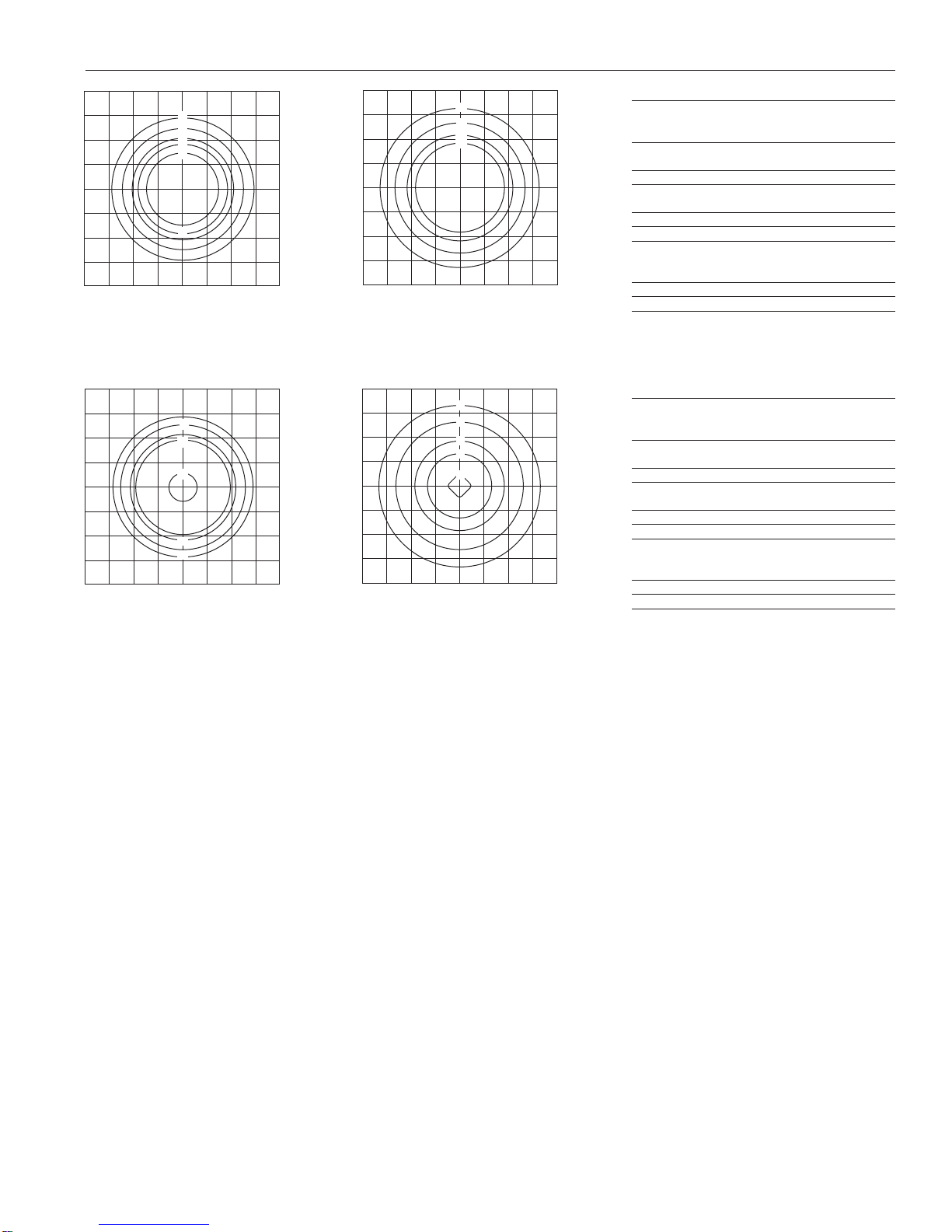

PHOTOMETRICS [Complete IES files available at www.cooperlighting.com]

HMX91MCM

1000-Watt MH

110,000-Lumen Clear Lamp

4 3 2 1 0 1 2 3 4

HMX91MDW

1000-Watt MH

110,000-Lumen Clear Lamp

4 3 2 1 0 1 2 3 4

FOOTCANDLE TABLE

Select mounting height and read across for footcandle values

of each isofootcandle line. Distance in units of mounting

height.

Mounting Footcandle Values for

Height Isofootcandle Lines

ABCDE

HMX91SCM.IES

80' 0.78 0.47 0.31 0.16 0.08

100' 0.50 0.30 0.20 0.10 0.05

120' 0.35 0.21 0.14 0.07 0.03

HMX91SDW.IES

80' 0.78 0.47 0.31 0.16 0.08

100' 0.50 0.30 0.20 0.10 0.05

120' 0.35 0.21 0.14 0.07 0.03

FOOTCANDLE TABLE

Select mounting height and read across for footcandle values

of each isofootcandle line. Distance in units of mounting

height.

Mounting Footcandle Values for

Height Isofootcandle Lines

ABCDE

HMX91MCM.IES

80' 0.78 0.47 0.31 0.16 0.08

100' 0.50 0.30 0.20 0.10 0.05

120' 0.35 0.21 0.14 0.07 0.03

HMX91MDW.IES

80' 0.78 0.47 0.31 0.16 0.08

100' 0.50 0.30 0.20 0.10 0.05

120' 0.35 0.21 0.14 0.07 0.03

HMX91SCM

1000-Watt HPS

140,000-Lumen Clear Lamp

4 3 2 1 0 1 2 3 4

HMX91SDW

1000-Watt HPS

140,000-Lumen Clear Lamp

4 3 2 1 0 1 2 3 4
