AUTOMOTIVE DESIGN GUIDE

TABLE OF CONTENTS

Outdoor Site Lighting that heightens consumer awareness ...................3

- Feature Display Lighting...................................................................7

- High Competition Displays ...............................................................8

- Medium Competition Displays ........................................................11

- Low Competition Displays ..............................................................13

Showroom Lighting that enhances merchandise appeal.......................15

Office Lighting that creates a comfortable environment ......................16

Service Department Lighting that increases productivity .....................17

SITE |SHOWROOM |SERVICE

LEADING THE LIGHTING INDUSTRY

Cooper Lighting is a recognized industry leader offering first-class lighting solutions for even the most challenging applications. Addressing every area

of an automotive dealership, Cooper Lighting manufactures high performance products that create inviting areas of uniform illumination, endure the

most rigorous operating environments and offer exceptional energy savings opportunities.

Purchasing a vehicle is an emotional decision for consumers. Lighting displays can help showcase the outward appeal of an automobile, but more

importantly, lighting can evoke the feeling of comfort for customers craving luxury, the rush of wind for an individual longing for the freedom of a

sporty convertible or portray ironclad safety for the family desiring protection for their loved ones. Regardless of the emotions you would like to stir,

Cooper Lighting’s team of application experts have over 50 years of experience turning customer vision into reality. Whether the project calls for

straight-forward illuminance calculations or state-of-the-art three dimensional renderings, Cooper Lighting can provide the supporting documentation

necessary to complete your next automotive dealership project.

4OUTDOOR SITE LIGHTING

CONSIDER YOUR LOCATION

When selecting the proper light levels for your next dealership project, first determine how much visual competition is created by adjoining properties.

The human eye is drawn to the brightest area in its field of view. In order to capture consumer attention, site lighting illuminance levels should be at

least comparable with that of neighboring establishments without being over-illuminated. If neighboring property is yet to be developed, review what

type of future growth is currently in the zoning documentation. Note IESNA competition levels associated with these common development types.

Neighboring Development IESNA Competition Level

Auto Mall/Auto City High-Enhanced

Service Stations/Convenience Store Medium-High

Large National Retailers Medium

Small Retail Centers Low

The Illuminating Engineering Society of North America [IESNA] characterizes surrounding ambient

environments as high, medium or low competition areas. Based on this competition level, an

average maintained illuminance target and a maximum allowable uniformity level are

recommended for each section of an automotive dealership.

Exterior lighting requirements continue to grow more stringent. Many states and municipalities have adopted legislation that impacts lighting design

applications. For areas requiring dark sky friendly solutions, full cutoff flat glass optical assemblies provide focused illumination with zero uplight and

minimal high angle light while retaining superior uniformity. When strict spill light control is mandated, house-side shields and application-specific

optical assemblies keep light on task. Whether the goal of your site lighting design is safety, general ambiance or highlighting feature displays, Cooper

Lighting offers application-specific optical solutions that provide the highest level of photometric performance and control.

Horizontal

High Competition Medium Competition Low Competition Uniformity

Area to Illuminate Maintained Level [fc] Maintained Level [fc] Maintained Level [fc] [Max.Min.]

Parking and Circulation [Non-Merchandising Area] 10 7 5 10:1

General Merchandise [Main Automotive Display Lot] 50 30 20 5:1

Featured Displays [Front Row and Display Stands] 75 50 35 3:1

Exterior site lighting provides the first impression of an automotive dealership and is an outward expression of image. During daytime hours, the form

of the exterior site light should compliment dealership architecture and tie to dealership branding. For evening operation, properly designed site

lighting entices customers, attracting business to the dealership. When developing site lighting configurations careful consideration should be given

to surrounding establishments, the image you would like to portray to customers and the impact the lighting system will have on operating costs.

CONSIDER YOUR IMAGE

Site lighting provides a means of navigation through the exterior merchandising area and rounds out the overall aesthetic appeal of the automotive

dealership. Whether your style calls for the simple elegance of a square housing or the fluid appeal of a rounded architectural luminaire, Cooper

Lighting is a recognized site lighting leader offering a variety of fixture forms to compliment any architectural motif.

Customers are more likely to enter a dealership and remain on the premises when the lighting creates a

comfortable environment. Accel Optics, Cooper Lighting’s family of automotive reflector solutions,

specialize in focused front row product displays that engage the customer, general merchandise lighting

that creates an inviting dealership appearance emanating safety and security and perimeter lighting that

precisely frames the automotive dealership lot.

OUTDOOR SITE LIGHTING THAT HEIGHTENS CONSUMER AWARENESS.

STANDARD ARCHITECTURAL FINISHES

Graphite Metallic

White

Dark Platinum

Bronze

Black

Grey

OPTIONAL STRIPED REVEAL COLORS [Galleria Only]

CSS

Silver

CSW

White

CSG

Green

CSD

Gold

CSY

Yellow

CSR

Red

CSB

Blue

MCGRAW-EDISON [Talon] MCGRAW-EDISON [Galleria Square] MCGRAW-EDISON [Galleria Round]

MCGRAW-EDISON [CLM] MCGRAW-EDISON [Landau] INVUE [Icon]

Site lighting luminaires can be further tied to dealership colors or branding through a full

line of architectural finish options and available custom color striping on select products.

CONSIDER YOUR POCKETBOOK

When selecting site lighting products, three important cost factors should be evaluated—fixture construction, energy consumption and maintenance

cycle. Corrosive moisture, broad temperature variation and flocking insects make the outdoor environment particularly challenging for optimal

luminaire performance. Premium materials and precisely toleranced construction allow site lighting products to perform efficiently with minimal

maintenance. Cooper Lighting uses silicone gasketing, enhanced TGIC powder coat paint and premium reflector materials to ensure the highest

level of photometric performance and unwavering endurance over the fixture’s installed life.

In addition to luminaire construction, light source selection can dramatically impact the operating and maintenance costs of the lighting system.

Pulse Start Metal Halide technology is being embraced for its efficiency, extended life, high lumen maintenance and color consistency. The increased

color rendering index [CRI] of pulse start lamps improves visibility and heightens the overall safety and security of the site. Higher lumen maintenance

reduces the number of fixtures needed to achieve a consistent illuminance level over the fixture’s installed life. Initial savings are compounded by

decreased energy consumption and less frequent maintenance intervals. By supporting a full array of both horizontal and vertical lamp positions,

Cooper Lighting’s outdoor luminaire portfolio offers the broadest selection of energy saving pulse start solutions.

Lumen Output Over Time

Hours of Operation [4000 hours ~ 1 year]

0 2000 4000 6000 8000 10000

750W Pulse Start MH 1000W Probe Start MH

12000 14000 1800016000

120

100

Lumen Output [In Thousands]

Lamp Type Lamp Orientation Maintained Lumens Life [hrs.] Input Watts Efficacy [lms/w]

1000W Probe Start MH Vertical 82,000 10,000 1080 102

Horizontal 71,500 9,000 1080 97

1000W Pulse Start MH Vertical 96,000 15,000 1100 109

Horizontal 86,000 9,000 1100 98

875W Pulse Start MH Vertical 80,000 20,000 940 106

Horizontal 76,000 12,000 940 101

750W Pulse Start MH Vertical 62,000 16,000 820 100

Horizontal 47,500 12,000 820 83

Beyond efficient light source selection, close-of-business site light dimming offers the next level of energy savings opportunities. On average, site

lighting installations operate for approximately 10 hours each evening. During this time, only 4-6 hours are during actual business hours. Through

close-of-business dimming protocol an average sized dealership could reduce operating expenses related to lighting system energy consumption in

excess of 38%. Cooper Lighting’s Hi-Low dimming option enables increased energy savings through an internally integrated dimming relay that

reduces power while closely maintaining site lighting uniformity levels that ensure safety and inventory protection throughout the site.

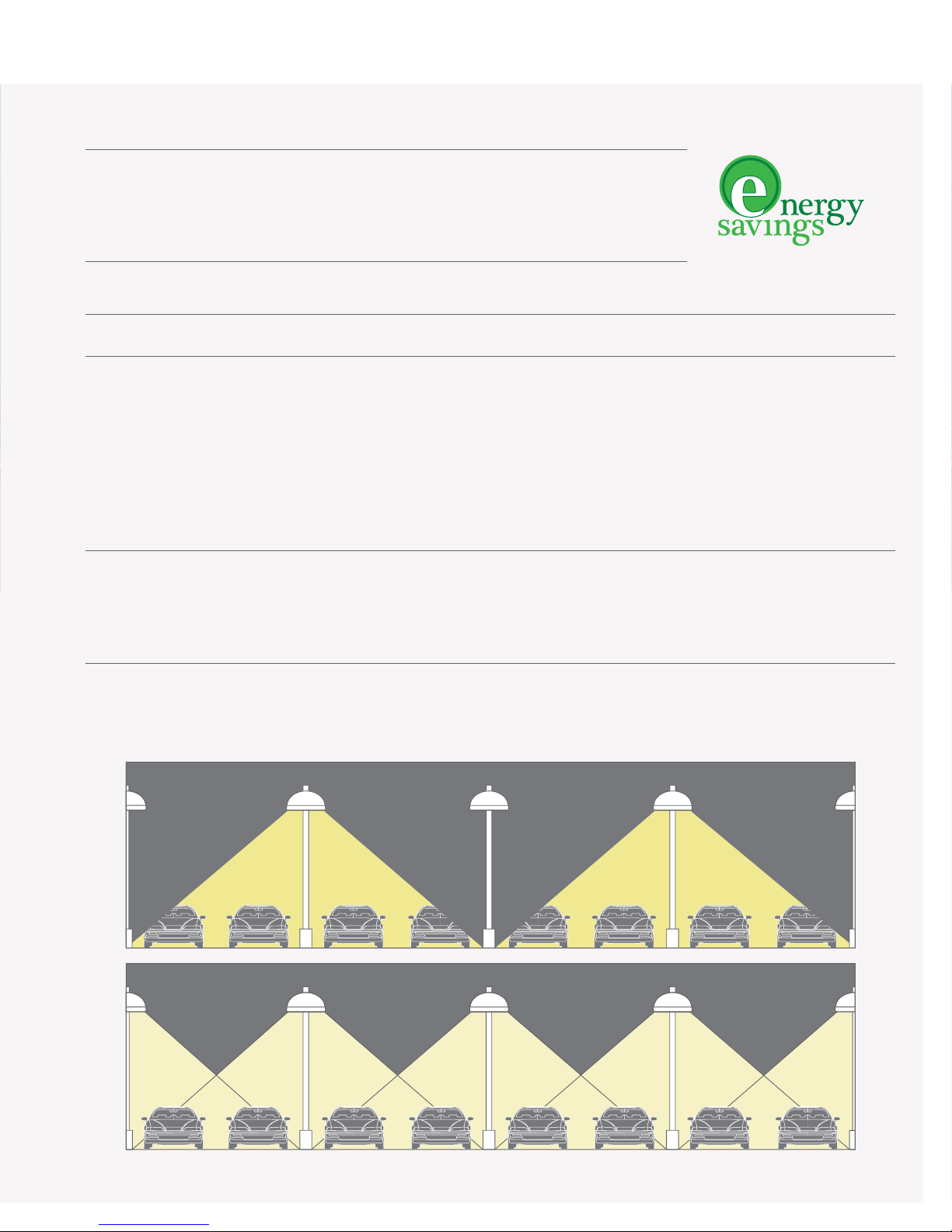

Alternating Fixture Switching

Hi-Low Dimming

Off Business Dimming

Average Input Number of Operating Days/ Total Annual Annual

Lamp Type Watts Fixtures 1Hours/Day Year $/KWH Operating Cost 2Savings 3% Savings

1000W Probe Start MH [Full Power] 1080 150 5 365 0.10 $29,565

1000W Probe Start MH [Hi-Low Dimming] 665 150 5 365 0.10 $18,204 $11,361 38%

875W Pulse Start MH [Full Power] 940 150 5 365 0.10 $25,733

875w Pulse Start MH [Hi-Low Dimming] 575 150 5 365 0.10 $15,741 $9,992 39%

750W Pulse Start MH [Full Power] 820 150 5 365 0.10 $22,448

750W Pulse Start MH [Hi-Low Dimming] 498 150 5 365 0.10 $13,633 $8,815 39%

Average Input Number of Operating Days/ Total Annual Annual

Lamp Type Watts Fixtures 1Hours/Day Year $/KWH Operating Cost 2Savings 3% Savings

1000W Probe Start MH 1080 150 10 365 0.10 $59,130

875W Pulse Start MH 940 150 10 365 0.10 $51,465 $7,665 13%

750W Pulse Start MH 820 150 10 365 0.10 $44,895 $14,235 24%

NOTES: 1 A medium sized automotive dealership typically has 150 fixtures on site. If your dealership varies from this size, savings can be calculated using the following multiplier: 0.67 [100 fixtures], 1.33 [200

fixtures], 1.67 [250 fixtures]. 2 Total annual cost is the cost of operating 150 fixtures 5 hours per day with a national average energy cost of $0.10 per KWH. Annual Cost = (Input watts)*(# of

fixtures)*(operating hours)*(days/year)*(KWH/1000). 3 Annual Savings is the money saved by operating 150 fixtures in dimmed operation for 5 hours per day. Annual Savings = (Total Annual [Full Power]

Cost) - (Total Annual [Hi-Low Dimming] Cost).

fixtures], 1.67 [250 fixtures]. 2 Total annual cost is the cost of operating 150 fixtures 10 hours per day with a national average energy cost of $0.10 per KWH. Annual Cost = (Input watts)*(# of

fixtures)*(operating hours)*(days/year)*(KWH/1000). 3 Annual Savings is the money saved by operating 150 fixtures for 10 hours per day with the listed pulse start lamp over the standard 1000W probe

start lamp. Annual Savings = (Total Annual 1000W Probe Start MH cost) - (Total Annual Cost Pulse Start MH).

8FEATURE DISPLAY LIGHTING

FLEXIBILITY AND VERSATILITY

The use of floodlighting products to highlight an automobile on an exterior display stand or platform is a powerful merchandising technique.

Directional sources play off the vehicle’s form to reveal its appeal, attracting attention and increasing the likelihood of connecting with the customer.

Display stands require floodlighting fixtures with flexibility and versatility to accommodate continuous change while maintaining eye-catching

illumination on the featured vehicle. Display stands are classified as feature displays with recommended 50-75 FC average illuminance.

Controlled optical systems limit wasted energy by focusing

illumination on the vehicle. For dark sky friendly locations, the

addition of supplemental shielding and other light control options

limit unwanted stray light and minimize direct lamp glare.

Maintained Uniformity

Area to Illuminate Levels [fc] [Max./Min.]

Featured Displays 75-100 3:1

INVUE [Phocus] INVUE [Vision Flood] LUMARK [Impact Flood] LUMARK [SF Falcon]

4-SIDED SHIELD

Controls lamp glare and spill light in all directions. Useful when

aiming direction or intended target lies in close proximity to

pedestrian traffic and motor vehicle activity.

TOP VISOR

Controls excess spill and glare on top portion of distribution.

Especially useful in uplighting vehicles to limit light travel

above the intended target.

With 4-Sided Shield

With Top Visor

Without Top Visor

Without 4-Sided Shield

HIGH COMPETITION SITE LIGHTING

High Horizontal

Maintained Uniformity

Area to Illuminate Levels [fc] [Max.Min.]

Parking and Circulation [Non-Merchandising Area] 10 10:1

General Merchandise [Main Automotive Display Lot] 50 5:1

Featured Displays [Front Row and Display Stands] 75 3:1

1000W MH FLAT GLASS

ENHANCED FRONT ROW DISPLAY

Areas with extremely high visual

competition could use enhanced

illumination levels between 75-100 FC.

Mounting Height [ft.] 25

Spacing [ft.] 40

Maintained Average FC 94.5

Uniformity 1.22

POLE FIXTURE COMBINATION ORDERING LOGIC

Distribution Fixture Configuration Product Family 180 MPH 90 MPH 100 MPH 2

Automotive Front Row [AF] 2 @ 180° Talon [TLL] TLL21KMFF25XX 3TLL21KMFF25XX 3TLL21KMFF25XX0 4

Galleria Square [GSM] GSM21KMFF25XX 3GSM21KMFF25XX 3GSM21KMFF25XX0 4

Galleria Round [GRM] GRM21KMFF25XX 3GRM21KMFF25XX 3GRM21KMFF25XX 3

CLM CLM21KMFF25XX 3CLM21KMFF25XX 3CLM21KMFF25XX0 4

NOTES: 1 Pole fixture combination includes pole, fixtures, lamp, and mounting hardware. Fixture supplied with 5-Tap [120/208/240/277/480V] ballast wired 480V. 2 0 noted where needed to designate a

heavier gauge pole. 3 Combination supplied with SSS5A25S square straight steel shaft, anchor bolts [AB1], template [TMP1] and base cover. Replace XX with color designation [page 4]. 4 Combination

supplied with SSS5M25S square straight steel shaft, anchor bolts [AB1], template [TMP1] and base cover. Replace XX with color designation [page 4].

1000W MH FLAT GLASS

ENHANCED MERCHANDISE DISPLAY

Areas with extremely high visual

competition could use enhanced

illumination levels between 50-60 FC.

Mounting Height [ft.] 27.5

Spacing [ft.] 55

Maintained Average FC 54.6

Uniformity 1.15

POLE FIXTURE COMBINATION ORDERING LOGIC

Distribution Fixture Configuration Product Family 180 MPH 90 MPH 100 MPH

Area Round [AR] 3 @ 90° Talon [TLL] TLL31KMRF25XX 2TLL31KMRF25XX 2TLL31KMRF25XX 2

Galleria Square [GSM] GSM31KMRF25XX 2GSM31KMRF25XX 2GSM31KMRF25XX 2

Galleria Round [GRM] GRM31KMRF25XX 2GRM31KMRF25XX 2GRM31KMRF25XX 2

CLM CLM31KMRF25XX 2CLM31KMRF25XX 2CLM31KMRF25XX 2

NOTES: 1 Pole fixture combination includes pole, fixtures, lamp, and mounting hardware. Fixture supplied with 5-Tap [120/208/240/277/480V] ballast wired 480V. 2 Combination supplied with SSS5M25S

square straight steel shaft, anchor bolts [AB1], template [TMP1] and base cover. Replace XX with color designation [page 4].

HIGH COMPETITION DISPLAY

When your automotive dealership lot is neighbored by well illuminated

dealerships or service stations high competition lighting levels are

recommended. Create a front row feature display along the roadway

with primary traffic flow. To prevent obstructing the view of displayed

vehicles, mount poles at grade [25' pole/fixture mounting height].

The remaining areas of the dealership displaying vehicles are

considered general merchandise areas. To protect merchandise,

mount poles on a 2.5' concrete base [25' pole, 27 1/2' fixture

mounting height].

80 52 34 22 14 9 6 4

General Merchandise

Front Row

Arrow denotes optical orientation.

Footcandles [fc]

ENHANCED 1000W MH FLAT GLASS

ENERGY SAVING DIMMING

After hours operation of money and energy

saving Hi-Lo dimming relay mounted

internal to the fixture.

Mounting Height [ft.] 27.5

Spacing [ft.] 55

Maintained Average FC 32.1

Uniformity 1.15

POLE FIXTURE COMBINATION ORDERING LOGIC

Distribution Fixture Configuration Product Family 180 MPH 90 MPH 100 MPH

Area Round [AR] 3 @ 90° Talon [TLL] TLL31KMRF25XXHL 2TLL31KMRF25XXHL 2TLL31KMRF25XXHL 2

Galleria Square [GSM] GSM31KMRF25XXHL 2GSM31KMRF25XXHL 2GSM31KMRF25XXHL 2

Galleria Round [GRM] GRM31KMRF25XXHL 2GRM31KMRF25XXHL 2GRM31KMRF25XXHL 2

CLM CLM31KMRF25XXHL 2CLM31KMRF25XXHL 2CLM31KMRF25XXHL 2

NOTES: 1 Pole fixture combination includes pole, fixtures, lamp, and mounting hardware. Fixture supplied with 5-Tap [120/208/240/277/480V] ballast wired 480V. 2 Combination supplied with SSS5M25S

square straight steel shaft, anchor bolts [AB1], template [TMP1] and base cover. Replace XX with color designation [page 4].

1000W MH FLAT GLASS

FRONT ROW DISPLAY

IESNA recommends 75 FC average

illuminance for areas of high competition.

Mounting Height [ft.] 25

Spacing [ft.] 50

Maintained Average FC 75.2

Uniformity 1.23

POLE FIXTURE COMBINATION ORDERING LOGIC

Distribution Fixture Configuration Product Family 180 MPH 90 MPH 100 MPH 2

Automotive Front Row [AF] 2 @ 180° Talon [TLL] TLL21KMFF25XX 3TLL21KMFF25XX 3TLL21KMFF25XX0 4

Galleria Square [GSM] GSM21KMFF25XX 3GSM21KMFF25XX 3GSM21KMFF25XX0 4

Galleria Round [GRM] GRM21KMFF25XX 3GRM21KMFF25XX 3GRM21KMFF25XX 3

CLM CLM21KMFF25XX 3CLM21KMFF25XX 3CLM21KMFF25XX0 4

NOTES: 1 Pole fixture combination includes pole, fixtures, lamp, and mounting hardware. Fixture supplied with 5-Tap [120/208/240/277/480V] ballast wired 480V. 2 0 noted where needed to designate a

heavier gauge pole. 3 Combination supplied with SSS5A25S square straight steel shaft, anchor bolts [AB1], template [TMP1] and base cover. Replace XX with color designation [page 4]. 4 Combination

supplied with SSS5M25S square straight steel shaft, anchor bolts [AB1], template [TMP1] and base cover. Replace XX with color designation [page 4].

750W MH FLAT GLASS

FRONT ROW DISPLAY

IESNA recommends 75 FC average

illuminance for areas of high competition.

Mounting Height [ft.] 25

Spacing [ft.] 40

Maintained Average FC 75.1

Uniformity 1.22

POLE FIXTURE COMBINATION ORDERING LOGIC

Distribution Fixture Configuration Product Family 180 MPH 90 MPH 100 MPH 2

Automotive Front Row [AF] 2 @ 180° Talon [TLL] TLL275PFF25XX 3TLL275PFF25XX 3TLL275PFF25XX0 4

Galleria Square [GSM] GSM275PFF25XX 3GSM275PFF25XX 3GSM275PFF25XX0 4

Galleria Round [GRM] GRM275PFF25XX 3GRM275PFF25XX 3GRM275PFF25XX 3

CLM CLM275PFF25XX 3CLM275PFF25XX 3CLM275PFF25XX0 4

NOTES: 1 Pole fixture combination includes pole, fixtures, lamp, and mounting hardware. Fixture supplied with 5-Tap [120/208/240/277/480V] ballast wired 480V. 2 0 noted where needed to designate a

heavier gauge pole. 3 Combination supplied with SSS5A25S square straight steel shaft, anchor bolts [AB1], template [TMP1] and base cover. Replace XX with color designation [page 4]. 4 Combination

supplied with SSS5M25S square straight steel shaft, anchor bolts [AB1], template [TMP1] and base cover. Replace XX with color designation [page 4].

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Iluminación de paisajes de Cooper Lighting

Cooper Lighting

Cooper Lighting Bollard Series Manual de usuario

Cooper Lighting

Cooper Lighting MCGRAW-EDISON 1192 Manual de usuario

Cooper Lighting

Cooper Lighting Avenue ARC25MWW5C652 Manual de usuario

Cooper Lighting

Cooper Lighting MCGRAW-EDISON GAR-C Manual de usuario

Cooper Lighting

Cooper Lighting Pole Mount Icon Manual de usuario

Cooper Lighting

Cooper Lighting MCGRAW-EDISON WBG Manual de usuario

Cooper Lighting

Cooper Lighting MPN50SR255 Manual de usuario

Cooper Lighting

Cooper Lighting SURE-LITES CCX20RWH Manual de usuario

Cooper Lighting

Cooper Lighting N175MV Manual de usuario

Cooper Lighting

Cooper Lighting MEL25MWW2SXSWBK Manual de usuario

Cooper Lighting

Cooper Lighting McGraw-Edison ZD Credenza Manual de usuario

Cooper Lighting

Cooper Lighting Lexington LXF70SR2554 Manual de usuario

Cooper Lighting

Cooper Lighting Talon Architectural Area Luminaire Manual de usuario

$Cooper Lighting Drop Prismatic Refractor OVX40SWW3E4 Manual de usuario$

Cooper Lighting

Cooper Lighting Drop Prismatic Refractor OVX40SWW3E4 Manual de usuario

Cooper Lighting

Cooper Lighting McGraw-Edison WTM Manual de usuario

Cooper Lighting

Cooper Lighting OVL91SWW4E Manual de usuario

Cooper Lighting

Cooper Lighting Galleria Round 150-1000W Manual de usuario

Cooper Lighting

Cooper Lighting Cambria 203 LED Manual de usuario

Cooper Lighting

Cooper Lighting Acorn ANE50SR2554 Manual de usuario

Cooper Lighting

Cooper Lighting Westminster WST50SR2554 Manual de usuario

Cooper Lighting

Cooper Lighting ORL15SWWXX Manual de usuario

Cooper Lighting

Cooper Lighting CI Cirrus Manual de usuario

Cooper Lighting

Cooper Lighting 50 - 400W Manual de usuario

Cooper Lighting

Cooper Lighting 902-PT CS Series Manual de usuario

Manuales populares de Iluminación de paisajes de otras marcas

Intex

Intex SL1006 Manual de usuario

LED Group

LED Group ROBUS R2IN13W Manual de usuario

Patriot Lighting

Patriot Lighting 343-1484 Manual de usuario

Hess

Hess SERA G: SERA S Manual de usuario

LIGMAN

LIGMAN JET 44 Manual de usuario

LIGMAN

LIGMAN MALTA 1 Manual de usuario

Saxby Lighting

Saxby Lighting Islay 68784 Manual

LIGMAN

LIGMAN EU-10016-3 Manual de usuario

LIGMAN

LIGMAN KI-60475 Manual de usuario

Malibu Boats

Malibu Boats CL905K Manual de usuario

LIGMAN

LIGMAN NYB-30161 Manual de usuario

LIGMAN

LIGMAN SI-80021 Manual de usuario

Volt

Volt 2-in-1 Tiki-Brass Torch Light Manual de usuario

Malibu Boats

Malibu Boats CM110P Manual de usuario

U.S.T.E.

U.S.T.E. VISTA 8202 Manual de usuario

LIGMAN

LIGMAN VIENNA 1 Manual de usuario

LIGMAN

LIGMAN LA-60022 Manual de usuario

LIGMAN

LIGMAN EU-10016-2 Manual de usuario
