Envoy

Parking Garage Luminaire

LIGHTING SOLUTIONS

Parking structures are dynamic settings

requiring special considerations in planning,

construction and safety. In both day and evening

conditions, safe and effective movement of

pedestrian and vehicular traffic is the number

one priority in designing for parking structures.

Beyond the construction and code requisites,

the element of human interaction, pleasantry

and security is the reoccurring focus.

ENVOY

PARKING GARAGE LUMINAIRE

TABLE OF CONTENTS

Design Considerations .....................................3

Innovation........................................................4

Installation + Maintenance...............................5

Lamps + Egress Options ..................................6

Mounting Configurations .................................7

Optical Versatility.............................................9

Configurations + Layouts ..............................11

Optical Renderings.........................................15

Energy ...........................................................16

Specification Features ....................................19

Options..........................................................21

Ordering Information .....................................22

DESIGN + FORM

Envoy is a unique presentation of form, function

and performance. Uniformity, minimum

foot-candles and other design criteria are

accomplished through Envoy’s multitude of

reflector and shielding options. Coupled with

toolless access and release features throughout

the mounting, maintenance and removal process,

Envoy offers service friendly solutions throughout

every aspect of its design.

MATERIALS + PERFORMANCE

The Envoy design is driven by material and

performance specifications. The alliance of lens

and reflector has been tactfully planned with

careful considerations of fit and function. The

lens and reflector embody the foundation of

Envoy. Completing the blueprint is the housing

and mounting framework, with its intricate yet

elementary system that locates and secures the

unit in place, allowing unparalleled toolless

maintenance solutions.

PARKING |CANOPY |PATH OF EGRESS

DESIGN CONSIDERATIONS

[1] Adequate horizontal and vertical

illumination is required for the safety

and security of occupants within the

structure. Direct and indirect

illumination allows safe movement of

pedestrian and vehicular traffic,

including the ability to easily identify

vehicles, parking spaces and direction

of traffic flow.

[2] Glare from luminaires can distract

pedestrians and drivers, ultimately

compromising safety. Optical systems

should minimize glare and improve

visual comfort allowing drivers and

pedestrians to safely navigate their

paths.

[3] Quality and control of the installed

lighting system as viewed from both

the interior and exterior of the

structure. Avoid light trespass to the

surrounding properties.

[4] Parking structures tend to create a

feeling of enclosure also known as the

“cave effect”, caused by dark ceilings

and walls. System designs that offer an

uplight component help illuminate

ceiling surfaces and create an open

feeling of space while improving depth

perception.

[5] When the power goes out, emergency

“path of egress” is the highest concern.

Exiting individuals in a safe and timely

manner needs to be planned for

accordingly.

[6] Garage lighting should be viewed as an

investment in property, savings and

safety. Fixture design, installation and

maintenance all play an important role

and should heavily influence buying

decisions. Garage luminaries should

offer flexibility in mounting, resist

accumulation of insects, dirt and water,

and offer options that impede bird

nesting and vandalism.

[7] Luminaires must be flexible to account

for varying needs of the garage and

lighting design. Elements including

size, ceiling heights, depth of

structural beams and complexities of

parking stalls and pathways needs to

be considered.

THE MULTITUDE OF TASKS ENCOUNTERED IN A PARKING GARAGE ENVIRONMENT REQUIRE FORETHOUGHT AND PLANNING WHEN DESIGNING A NEW

LIGHTING SYSTEM.

1 2

INNOVATION

Envoy is truly unique in form and construction. Practical and useful features abound throughout the design, culminating in an extremely versatile

parking garage luminaire. By focusing on solutions that meet contractor and end user needs, Envoy overcomes the challenges of effectively and

efficiently lighting parking structures.

• FIXTURE DESIGN-Envoy’s form is clean and

practical with minimal ledges and a smooth

surface finish to minimize dirt and insect

accumulation. Coupled with an IP66 ingress

rating, Envoy can safely be cleaned by power

washing.

• REFLECTOR DESIGN-Lens contains “locate and

lock” emboss features allowing the reflector to

be positioned accurately offering repeatable

optical performance. Envoy’s industry leading

reflector systems are composed of three

elements and are specified based on

distribution requirements of the application.

• ADJUSTABLE LIGHT SHIELDS-Mounted

internally, all shield media has the ability to

rotate 360° per user preference, promoting

maximum light control flexibility and visual

comfort. Three [3] different types of light

control shields are available. House Side Shield

[HS], offers 120° of coverage in upper and lower

windows which may be used together or

independently. Drive Lane Shield [DLS], offers

60° of coverage on the lower window and can

be used with one-way or two-way directional

traffic via use of two shields. Concentrated

Downlight [CD], offers 360° of coverage around

the uplight window for a true “cutoff” rated

garage fixture.

• QUICK MOUNT/RELEASE BRACKET SYSTEM-

Spring loaded mounting bracket and toolless

lever action release, coupled with toolless

release hand latches for access to the lens and

electrical compartment. Envoy is the market

leader in ease of installation, maintenance and

removal.

• EGRESS LAMP OPTIONS-For path of egress

requirements, Envoy offers 26 different options,

featuring compact fluorescent, quartz and MR16

lamp sources. Multiple circuit options including

integral battery pack are available. An exclusive

Task Light [TL] option featuring an adjustable

light head is available for emergency or task

lighting needs.

• MOUNTING OPTIONS-Envoy offers 6 different

mounting configurations to accomodate any

garage lighting application.

PATENTS PENDING

INSTALLATION

[1] Install “Quick Mount” plate

[2] Loop hook, hang fixture and make

wiring connections

[3] Guide the wires into center access

hole. Swing up and slide fixture onto

bracket hooks. When “click” is heard,

installation is complete.

[4] ACCESS + INSPECTION + REMOVAL

Other garage fixtures force you to remove the

lens and ballast cover to access the

connections within the junction box. Envoy’s

“quick release” mechanism allows access with

the simple act of sliding an external lever. No

need to undo your work if you need to inspect

connections. Slide the lever in and push the

fixture away to lower the luminaire and

inspect electrical connections.

[5] MAINTENANCE

All of the fundamental tasks, including

re-lamping, inspection and fixture

removal, are achieved without the use

of tools. Toolless latches allow the user

easy access to the lens and electrical

compartments. By unlatching two latches,

the lens swings out of the way and is self-

retained during service and relamping. The

“quick release” system allows the user to

remove the fixture by sliding the lever in,

pushing away and lowering the luminaire,

removing the electrical connections and

finally removing the fixture off the

mounting plate. This is especially useful

when servicing or replacing fixtures and

allows service to take place without having

to block or shut down driving lanes for

extended periods of time.

SIMPLE, EFFICIENT AND SECURE.

Envoy’s “quick mount + release” attachment mechanism is standard on all fixtures and may be used with standard 4" J-Boxes and Envoy’s multiple

mounting accessories. A positive audible “click” is heard which signals the fixture is firmly secured and locked into place.

INSTALLATION + MAINTENANCE

[1]

[3] [4]

[2] [5]

QUARTZ HALOGEN

Utilizing a T4 double contact bayonet base [DCB],

this lamp is a traditional option for various types of

circuit and lighting needs. Options [Q and EM]

utilize a relay device to sense power supply

conditions and extinguish the standby lamp when

power is restored. Option [EM/SC] features the

same lamp with no relay device, and is designed to

connect directly to a backup power source via a

separate circuit.

COMPACT FLUORESCENT [CF]

Advancements in compact fluorescent technology

have influenced migration to these sources for

emergency lighting needs. Compact fluorescent

technology offers an effective solution for egress

applications in providing equivalent circuit options

similar to quartz lamps with better uniformity, less

power consumption and longer lamp life. When

using HID as the primary lamp, various compact

fluorescent wattage options are available using two

[2] CF lamps in standby mode. Integral and remote

mounted battery pack options are available in

multiple wattages when either HID or compact

fluorescent lamps are used as the primary source.

TASK LIGHT [TL] MR16

Unique to Envoy, the flexibility and usefulness of

the task light option is immense as seen through

the number of circuit options and lamp types

available. Featuring a rugged vandal resistant die-

cast aluminum housing, the task light is mounted

to the exterior of the Envoy fixture and carries the

same IP66 rating.

Using the MR16 lamp source, this option can be

used as a primary means to light signage and retail

entrances or as a standby means to illuminate

pathways and stairwells in the event of power

interruptions and outages. Task Light features a

lamp head that can be rotated in both vertical and

horizontal planes. Various types of MR16 lamp

sources can be used to fit your lighting

applications. 120V lamps can be used with restrike

relays or can be placed on separate circuits to

provide light while HID lamps are in restrike mode.

12V MR16 lamps can be used with remote mounted

battery packs for power outage applications. For

the most lighting punch, Task Light is even

available with a dedicated transformer contained

within the Envoy housing that will operate 50 and

75W MR16 12V lamps. Envoy is available with up to

four [4] task lights to meet your general and egress

lighting needs.

PATH OF EGRESS.

Safe movement of pedestrian and vehicular traffic is the number one priority when designing for required “path of egress” codes. Envoy offers the

most comprehensive selection of path of egress options available to the market, with a board range of lamp sources and configurations to

choose from.

LAMPS + EGRESS OPTIONS

STANDARD J-BOX MOUNT

[Recessed]

The J-Box is recessed/cast into ceiling.

Envoy is attached using the quick mount

release bracket system.

STANDARD J-BOX MOUNT

[Surface]

The J-Box is surface mounted to ceiling

where J-Box and conduit are visible. Envoy

is attached using the quick mount release

bracket system.

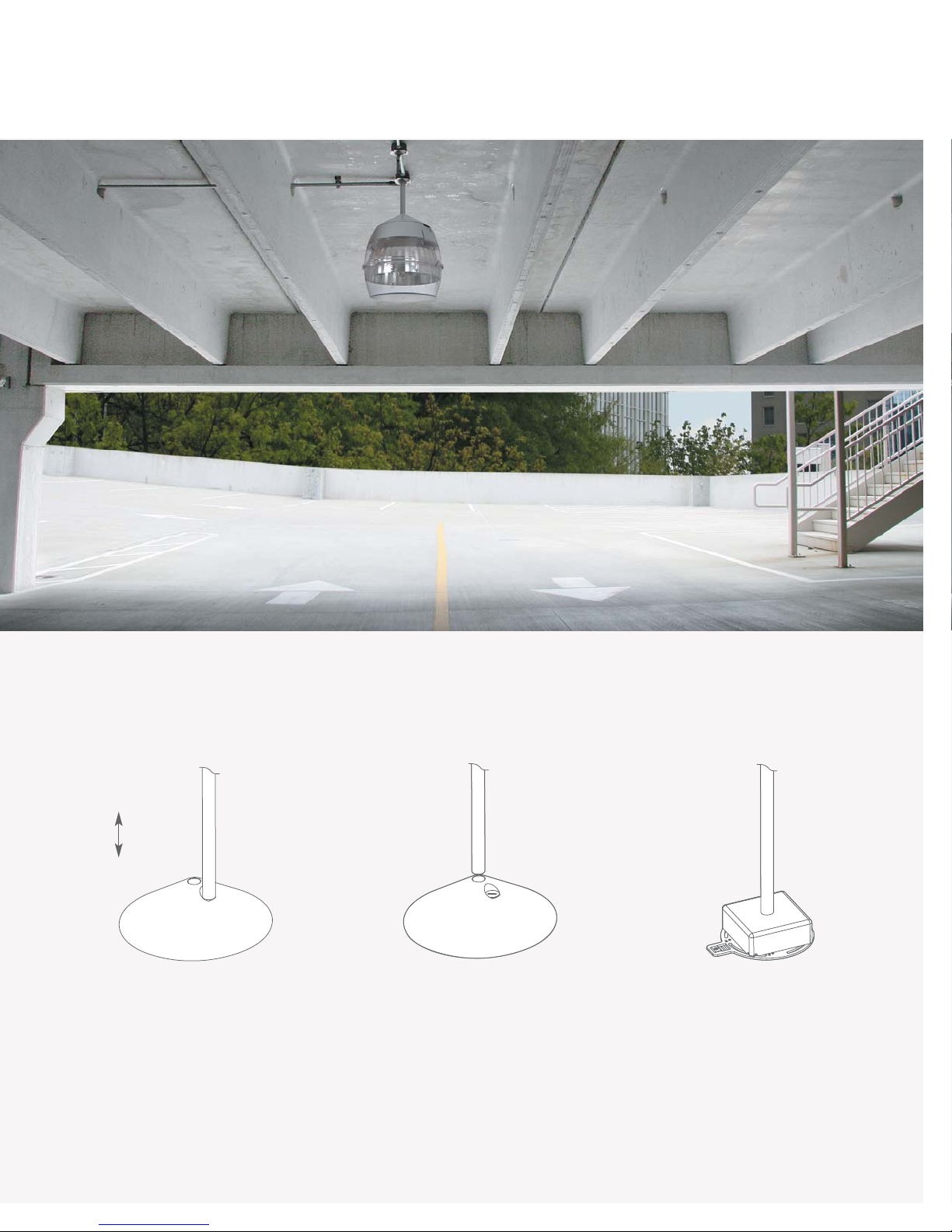

PENDANT BOX/BIRD GUARD [PBG]

The pendant box accessory also acts as a

bird guard and may be used with a free

swinging or rigid pendant system,

allowing the fixture to level and hang

straight. Envoy is attached using the same

quick mount release bracket similar to

J-Box installation.

TRUNNION-MOUNT [TM]

The trunnion mount bracket allows direct

attachment to ceiling using anchors and

provides a 1/2" threaded connection box

for wiring connections outside the fixture.

Trunnion mount is adjustable from 8 3/8"

to 13 1/4" depth off mounting surface to

top of fixture. Water-tight power cord

option is available.

DIRECT SURFACE MOUNT WITH

CONDUIT

Cast in “knock outs” are provided on the

back surface of the cast housing to allow

mounting directly to concrete surface

using anchors. Power is routed through

Conduit Taps [CT] option, that are located

90° offset from latches.

WALL MOUNT [WM]

The wall mount arm allows you to match

path or perimeter lighting within or

outside the garage. Envoy is attached

using the same quick mount release

bracket similar to J-Box installation.

Power is routed in wall and through

access hole within arm to fixture.

MOUNTING CONFIGURATIONS

14 7/8"

[378mm]

Approx.

3 7/16" [88mm]

16 5/8"

[423mm]

13 1/2"

[343mm]

Approx.

8 3/8"

[213mm]

Adustable to

13 1/4"

13 1/8"

[334mm] 13 1/8"

[334mm]

7/8"

[22mm]

20 7/16" [519mm]

13 15/16"

[354mm]

4 1/16"

[104mm]

THROUGH BRANCH WIRING

Rated for use with 4IN/4OUT #12GA wires. Through branch wiring requires Conduit Tap [CT] option and provides [2] 3/4" NPSM threaded hubs for wire

access into side of fixture.

PENDANT MOUNT APPLICATIONS

Garage fixtures are commonly mounted to pendant pipes to bring the light source closer to ground level to achieve increased light levels. Many times

this is desirable due to higher ceiling heights or structural supports at the ceiling level that interfere and block light emitted from the luminaire. Envoy

offers multiple pendant mount solutions. When a bird nesting deterrent is required in pendant applications, use the [PBG] accessory.

FREE SWING PENDANT + PBG

ACCESSORY [OFFSET POSITION]

Envoy is attached to the pendant box [PBG]

accessory using the standard quick mount

release bracket system. The pendant

conduit pipe and free swing swivel hanger

system are provided by others. Because

the system is free swinging, the offset

pipe position must be used to allow the

fixture to hang straight.

RIGID PENDANT + PBG ACCESSORY

[CENTER or OFFSET POSITION]

Envoy is attached to the pendant box [PBG]

accessory using the standard quick mount

release bracket system. The pendant

conduit pipe and suspension mechanism

are provided by others. Because the

system is rigid and non-moving, the

center or offset pipe position may be used

to hang the fixture.

RIGID PENDANT + J-BOX

[CENTER POSITION]

Envoy is attached to a 4" junction box

using the standard quick mount release

bracket system. The pendant conduit

pipe and junction box with center

pendant entry access are provided by

others. The center position of the J-Box

may be used to hang the fixture.

DOUBLE-T STRUCTURAL CEILING

In typical double-T structural ceiling designs, the luminaire is placed between 2 beams that are no more than 4 feet apart. In a surface mount

scenario this method traps a significant amount of light within the ceiling structure, leading to compromised light levels on the work plane.

Envoy

Luminaire

Parking Garage

Ceiling

When designing for T structure ceilings, the optimal

solution is to mount the fixture via pendant pipe at or

below the bottom plane of the beam level. Since beams

typically traverse laterally along the width of the garage,

using the rectangular [TG] distribution in the same

direction generally offers the best solution.

OPTICAL VERSATILITY

ROUND [RD]

Bright specular Alzak® anodized aluminum

main reflector and diffuse anodized

aluminum upper reflector.

CONCENTRATED DOWN LIGHT [CD]

360° Internal shield efficiently redirects

uplight downward to offer higher

illumination values on the ground where

light may be needed most. Useful in areas

requiring higher footcandle values such as

parking garage entrances/exits or where

restricted uplight is desired. The

concentrated downlight option may be

used with any of the three primary optical

distributions: Round [RD], Square [SQ] and

Rectangular [TG].

RECTANGULAR [TG]

Bright specular Alzak® anodized aluminum

main reflector, two [2] sets of premium

95% reflective specular pre-anodized

sheet aluminum inserts and diffuse

anodized aluminum upper reflector.

DRIVE LANE SHIELD [DLS]

The drive lane shield accessory covers a

60° horizontal range. Shield is adjustable

but is most often centered in line with the

driving lane. Shield blocks direct high

angle light towards oncoming drivers in

the vertical plane from above 70° down to

40°. Two [2] sets of shields may be used

for 2-way traffic. Shields install without

the use of tools. Drive lane shields may be

used with any of the three [3] primary

optical distributions: Round [RD], Square

[SQ] and Rectangular [TG].

SQUARE [SQ]

Bright specular Alzak® anodized aluminum

main reflector, four [4] sets of premium

95% reflective specular pre-anodized

sheet aluminum inserts and diffuse

anodized aluminum upper reflector.

HOUSE SIDE SHIELD [HS]

The house side shield is a two-part

internal shield accessory controlling both

an uplight and downlight component.

Each shield covers a 120° horizontal range

and is 360° rotationally adjustable [upper

shield in 30° increments]. Shields may be

used together or independently to control

different angles and elevations of light.

House side shield may be used with any

of the three primary optical distributions:

Round [RD], Square [SQ] and Rectangular

[TG].

[RD]

[CD]

[SQ]

[HS]

[TG]

[DLS]

Tabla de contenidos

Otros manuales de Iluminación de paisajes de Cooper Lighting

Cooper Lighting

Cooper Lighting Galleria Square GMA25SWWAR Manual de usuario

Cooper Lighting

Cooper Lighting Lumiere Maui 1503 Manual de usuario

Cooper Lighting

Cooper Lighting Westminster Post Top Luminaire Manual de usuario

Cooper Lighting

Cooper Lighting Breckenridge 50-250W Manual de usuario

Cooper Lighting

Cooper Lighting Bollard SBS100M12W366 Manual de usuario

Cooper Lighting

Cooper Lighting Lexington LXF70SR2554 Manual de usuario

Cooper Lighting

Cooper Lighting High Mast HMC40SC23E Manual de usuario

Cooper Lighting

Cooper Lighting Deep Prismatic Glass OVD15SWW2F4 Manual de usuario

Cooper Lighting

Cooper Lighting Flat Glass OVF15SWW2D4 Manual de usuario

Cooper Lighting

Cooper Lighting INVUE IMI-575 Manual de usuario

Cooper Lighting

Cooper Lighting Acorn ANE50SR2554 Manual de usuario

Cooper Lighting

Cooper Lighting MPN50SR255 Manual de usuario

Cooper Lighting

Cooper Lighting Breckenridge MPB50SR255 Manual de usuario

Cooper Lighting

Cooper Lighting Avenue ARC25MWW5552 Manual de usuario

Cooper Lighting

Cooper Lighting Invue 42 - 175W Manual de usuario

Cooper Lighting

Cooper Lighting MEM17MWW2SXSNBK Manual de usuario

Cooper Lighting

Cooper Lighting Lumark SF Falcon Manual de usuario

Cooper Lighting

Cooper Lighting Generation CLB25MWW5C373 Manual de usuario

Cooper Lighting

Cooper Lighting MEL25MWW2SXSWBK Manual de usuario

Cooper Lighting

Cooper Lighting Galleria Round 150-1000W Manual de usuario

Cooper Lighting

Cooper Lighting Traditionaire UTR50SR2554 Manual de usuario

Cooper Lighting

Cooper Lighting ADH080747 Guía

Cooper Lighting

Cooper Lighting Tribute Manual de usuario

Cooper Lighting

Cooper Lighting Talon Architectural Area Luminaire Manual de usuario

Manuales populares de Iluminación de paisajes de otras marcas

Intex

Intex SL1006 Manual de usuario

LED Group

LED Group ROBUS R2IN13W Manual de usuario

Patriot Lighting

Patriot Lighting 343-1484 Manual de usuario

Hess

Hess SERA G: SERA S Manual de usuario

LIGMAN

LIGMAN JET 44 Manual de usuario

LIGMAN

LIGMAN MALTA 1 Manual de usuario

Saxby Lighting

Saxby Lighting Islay 68784 Manual

LIGMAN

LIGMAN EU-10016-3 Manual de usuario

LIGMAN

LIGMAN KI-60475 Manual de usuario

Malibu Boats

Malibu Boats CL905K Manual de usuario

LIGMAN

LIGMAN NYB-30161 Manual de usuario

LIGMAN

LIGMAN SI-80021 Manual de usuario

Volt

Volt 2-in-1 Tiki-Brass Torch Light Manual de usuario

Malibu Boats

Malibu Boats CM110P Manual de usuario

U.S.T.E.

U.S.T.E. VISTA 8202 Manual de usuario

LIGMAN

LIGMAN VIENNA 1 Manual de usuario

LIGMAN

LIGMAN LA-60022 Manual de usuario

LIGMAN

LIGMAN EU-10016-2 Manual de usuario
