Cooper Lighting FAIL-SAFE TC Manual de usuario

Catalog #

Project

Comments

Prepared by

Type

Date

SPECIFICATION FEATURES

04/30/2007 8:47:23 AM

Consult your representative for additional options and finishes.

Specifications and Dimensions subject to change without notice.

ADC041425

SIDE DIMENSIONS

DESCRIPTION

The Fail-Safe VR 2000 11" Round Series combines strength-gaining

architecture with energy-saving technology. Architecturally angled facets

blend with its circular form to actually increase the ability of the lens to

deflect blows and absorb impact. Extra thick injection molded polycarbonate

lens incorporates an optical design that obscures the lamp image and

spreads light evenly. An emergency battery pack is also available on

fluorescent fixtures. U.L. listed and C.S.A. certified for wet locations. The

durable, versatile 11" Round TC/TW is perfect for use in corridors,

dormitories, public rest rooms, rapid transit stations, loading docks and

minimum security institutions.

A ... Lens

One-piece injection molded UV

stabilized polycarbonate min.

0.130" thick. All light control prisms

& blondels are on the inside

surface of the lens, reducing dirt

build-up and making cleaning

easier.

B ... Fasteners

Four stainless steel TORX® screws

with center reject pin. Screw-heads

are recessed into lens to maximize

tamper-resistance. Fasteners are

captive in the lens and sealed by

means of a neoprene O-ring.

C ... Reflector

16 ga. CRS with white high

reflectance polyester powder coat

finish.

D ... SCT Housing

(Optional Accessory) Cast

aluminum. Four 1/4" dia. fasteners

are required for maximum vandal

resistance. Three 1/2" NPT entries

for surface conduit. Standard black

polyester powder coat finish.

Housing is designed for surface

mount. Any other application will

void Cooper's warranty.

E ... Socket

Polycarbonate: Dedicated to

correct lamp wattage.

Incandescent is porcelain medium

base with nickel-plated brass screw

shell.

F ... Gasket

One-piece die cut closed-cell EPDM

mounting gaskets seal entire lens

and housing.

G ... Ballast

Copper-wound NPF, HPF or

electronic ballast are available with

certain wattages. Consult ordering

information.

7W - 32W

Fluorescent

75W

Incandescent

POLYCARBONATE

11" ROUND SURFACE LUMINAIRE

Clear Prismatic or White

Vandal Resistant

Luminaire

11" dia.

[279mm]

11"

[279 mm]

[102 mm]

11"

[279 mm]

[102 mm]

3 1/2"

[89 mm]

Deep

Flat

ENERGY DATA

For Energy Management related

technical data to support the

performance of this fixture series,

refer to the ordering information for

input wattage.

FAIL-SAFE®

Fail-Safe • Customer First Center • 1121 Highway 74 South • Peachtree City, GA 30269 • TEL 770.486.4800 • FAX 770.486.4801 04/30/2007 8:47:23 AM

Specifications and Dimensions subject to change without notice.

ADC041425

PHOTOMETRICS

ORDERING INFORMATION

ORDERING MATRIX

11" ROUND

TC/TW

0o30o

60o

90o

Zone Lumens %Lamp %Fixture

0- 30 136 7.6 15.9

0- 40 245 13.6 28.6

0- 60 535 29.7 62.7

0- 90 839 46.6 98.2

0-180 854 47.5 100.0

CTTC-PP-26A-120

(1) PL-T/26W/30/4P Lamp

1800 Lumens

Efficiency: 47.5%

Spacing Criterion: 1.7

Ballast Factor: 1.0

Report # 767200

Zonal Lumen Summary

56 56 56 56 55 55 55 55 52 52 52 50 50 50 48 48 48 47

50 48 45 43 49 46 44 42 42 42 41 42 41 39 40 39 38 37

45 41 37 34 44 40 36 33 38 35 32 36 33 31 34 32 30 29

41 35 30 27 39 34 30 26 32 29 26 31 28 25 29 27 25 24

37 30 26 22 36 30 25 22 28 25 22 27 24 21 26 23 21 20

33 27 22 18 32 26 22 18 25 21 18 24 20 18 23 20 17 16

30 23 19 15 29 23 18 15 22 18 15 21 17 15 20 17 14 13

28 21 16 13 27 20 16 13 19 15 12 18 15 12 18 15 12 11

26 18 14 11 25 18 14 11 17 13 11 17 13 11 16 13 10 9

24 17 12 9 23 16 12 9 16 12 9 15 12 9 14 11 9 8

22 15 11 8 21 15 11 8 14 10 8 14 10 8 13 10 8 7

Angle 0.0

0 151

5 152

10 153

15 157

20 161

25 165

30 169

35 173

40 175

45 177

50 176

55 171

60 163

65 148

70 127

75 101

80 71

85 46

90 27

Candlepower

Coefficients of Utilization

Effective floor cavity reflectance 20%

rc 80% 70% 50% 30% 10% 0%

rw 70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0

RCR

Notes:

For additional options, consult your Cooper Lighting Representative. Specifications and dimensions subject to change without notice.

Products also available in non-US voltages and 50Hz for international markets.

1. Supplied from factory with deep casting. 2. Only available in HPF. 3. RP option not required when casting in supplied.

*-Does not apply when using electronic ballast.

Este manual sirve para los siguientes modelos

Otros manuales de Mobiliario de interior de Cooper Lighting

Cooper Lighting

Cooper Lighting SCALA 801-IW Manual de usuario

Cooper Lighting

Cooper Lighting Shaper 687/4 Manual de usuario

Cooper Lighting

Cooper Lighting HALO H2600 Manual de usuario

Cooper Lighting

Cooper Lighting Sure-Lites CAX Series Manual de usuario

Cooper Lighting

Cooper Lighting HUD Manual de usuario

Cooper Lighting

Cooper Lighting Viceroy 501-IP Manual de usuario

Cooper Lighting

Cooper Lighting Portfolio 828 Manual de usuario

Cooper Lighting

Cooper Lighting Westwood 912 Manual de usuario

Cooper Lighting

Cooper Lighting Fenestra 152 Manual de usuario

Cooper Lighting

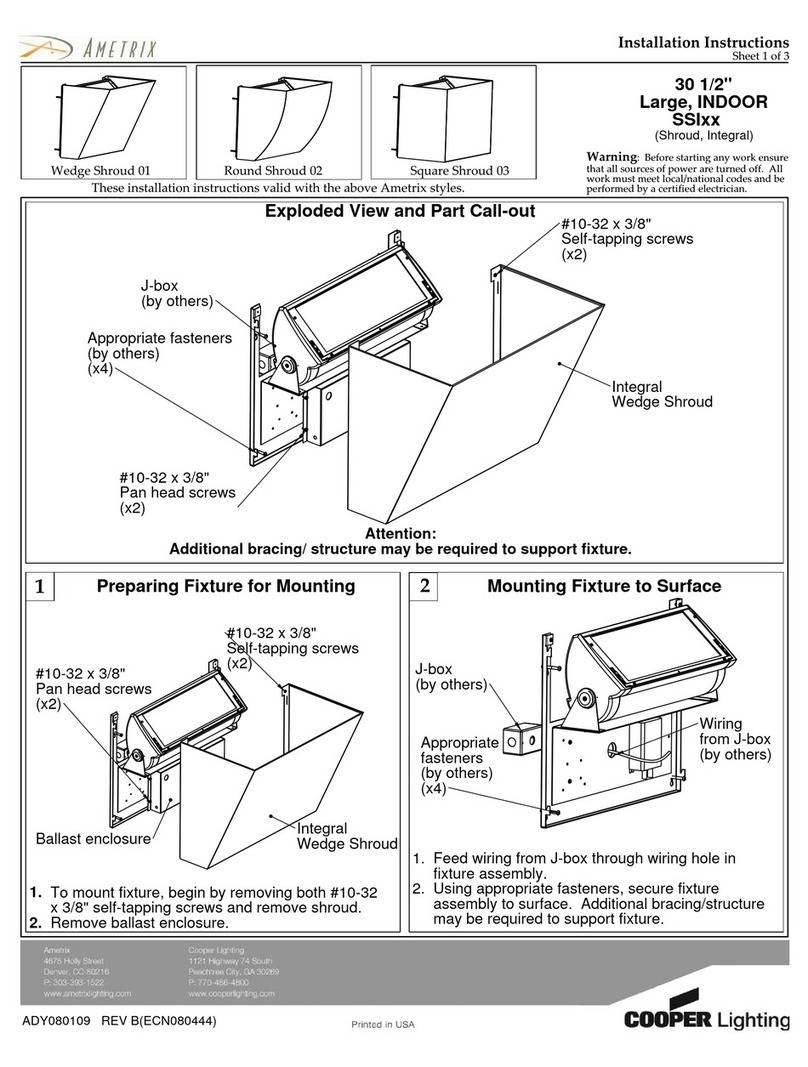

Cooper Lighting SSIXX Manual de usuario
