INSTALLATION INSTRUCTIONS
AIADES SHOWER DOOR HANDLE
ADE-13700

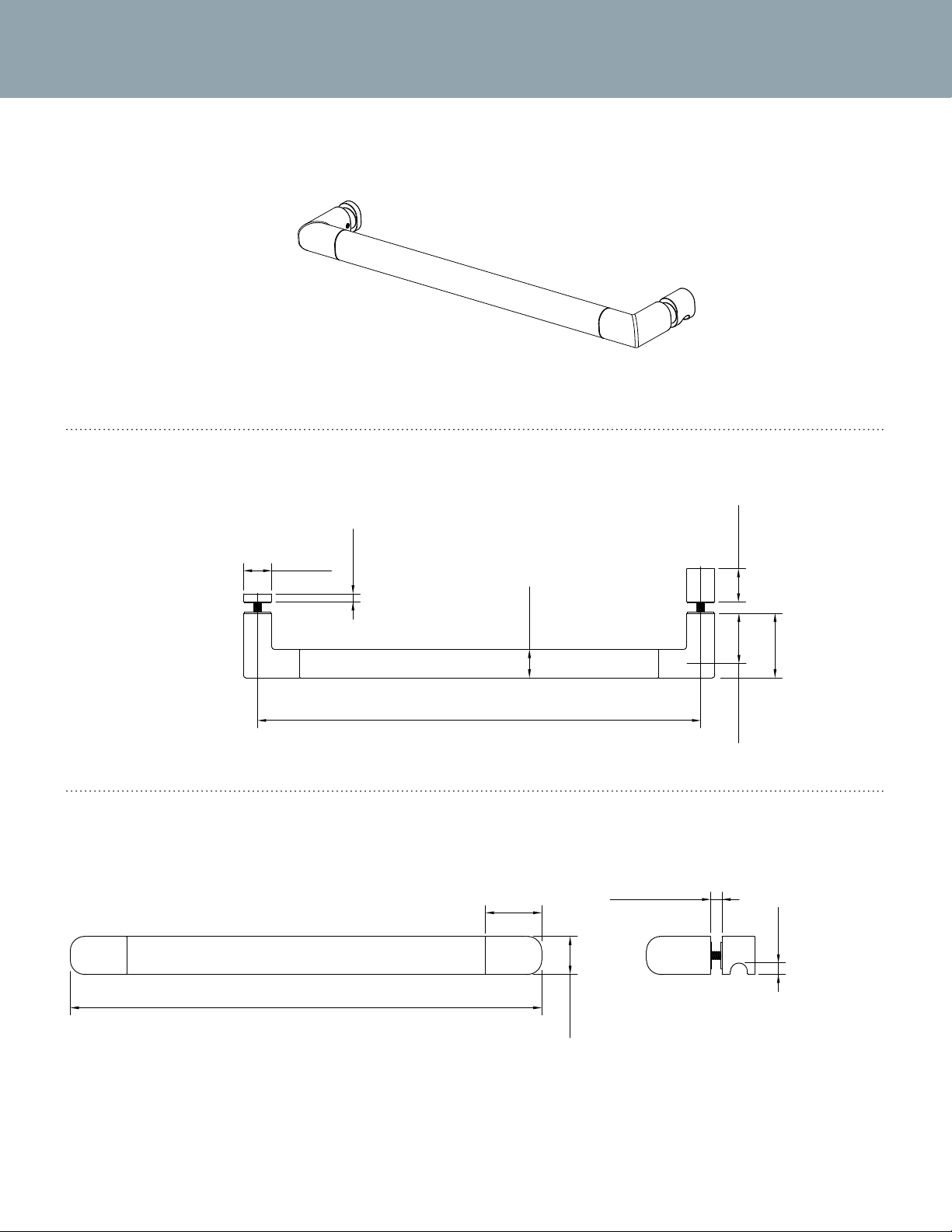

SIDE VIEWFRONT VIEW
DIMENSIONSIn Inches & Millimetres
AIADES SHOWER
DOOR HANDLE
TOP VIEW
2
1 9/16"
(40mm)
19 11/16"
(500mm)
18 1/2"
(470mm)
2 11/16"
(68mm)
2 1/16"
(53mm)
5/16"
(8.5mm)
1 3/8"
(35mm)
1 3/16"
(30mm)
1/16"-1 1/8"
(1-28mm)
1 3/16"
(30mm)
2 3/8"
(60mm)
1/2"
(12mm)
PRODUCT INFORMATION
3

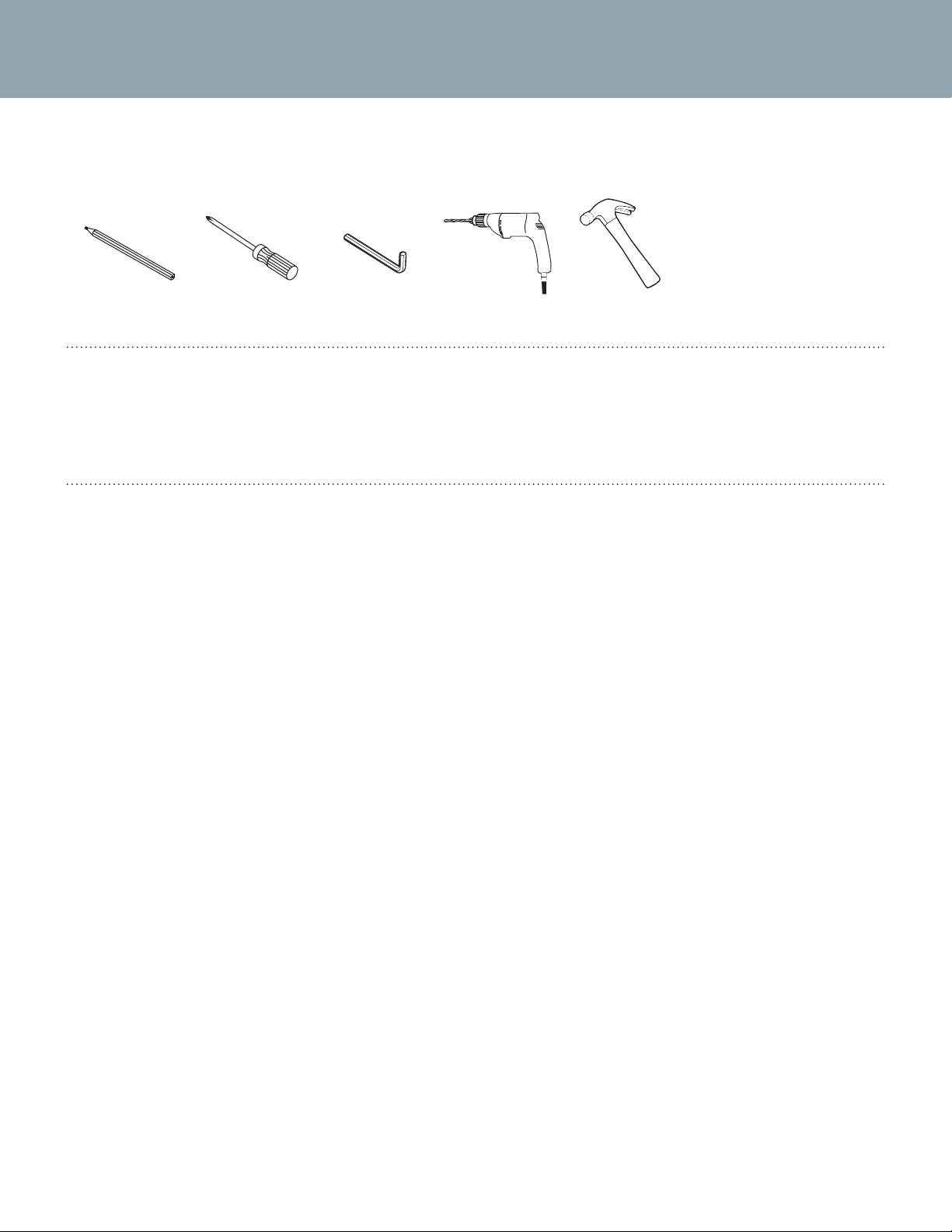

TOOLS
Phillips
Screwdriver
Marking Pencil Allen Key Power Drill Hammer
MAINTENANCE
• Your new Cooper and Graham product is designed for years of trouble-free performance.
• Keep it looking new by cleaning it periodically with a soft cloth. Avoid abrasive cleaners,
wire wool and harsh chemicals as these will dull the nish and void your warranty.
IMPORTANT POINTS
• Overtightening nuts may cause damages.
• When cutting or soldering, use safety glasses to protect your eyes.
INSTALLATION METHOD STEPS 1 - 3
1.
2.
Cooper and Graham always recommends that plumbing produts be installed by a licensed professional.
Before installation make sure the
dimensions for the shower door are as
indicated.
Please note: this product can also be
orientated vertically.
Insert the Stud Bolts through the holes
with washers and nuts.
Adjust the direction of the Stud Bolts
and tighten the nuts.
4
18 1/2"
(470mm)
Ø3/8"~Ø1/2"
(Ø10mm~Ø12mm)
1/16"~1 1/8”
(1mm~28mm)
3.
In case you are buying two sets of this
product and want to convert them into a
double shower door handle, please take
the following steps. Firstly screw the stud
bolts into the nuts.
Ensure the stud bolts protrude from each
side of the door as evenly as possible, to
prevent them conicting with the door
handle brackets once they are tted. Then
tighten the xing nuts securely.
Attach the two door handles on to the
nuts then x them tightly with set screws.
SERVICE PARTS PARTS LIST
5
1.
2.
3.
4.
1. Holding Hardware (19AD27-PP01)
2. Pull Knob (19AD27-A014)
3. Fixed Seat (19AD27-A015)
4. Set Screw (SBH-M5X0_8X8)
9AM-5PM EST, MONDAY - FRIDAY
FOR ADDITIONAL ASSISTANCE OR SERVICE CALL
COOPER AND GRAHAM
1828 TROUTMAN STREET, RIDGEWOOD, NY, 11385
WWW.COOPERANDGRAHAM.COM
T: 929.432.1699 F: 929.432.1833
