CoolGear USBG-4U2ML Manual de usuario

Thank you for purchasing this high-speed 4-port USB2.0 hub. It

provides an ideal solution to expand 4 USB2.0 ports from one

single USB2.0 host port. It provides a self power source

(+7~24VDC from 3-pin Terminal Blocks) to provide enough

power on USB2.0 buses.

Features:

Compliant with USB Specification Revision 2.0

Rigid and Wall-mountable Metal Case

Supports High-speed and or Full-speed Packet

Protocol Sequencer for Endpoint 0/1

Provides 4 Downstream Facing Ports

Supports 480Mbps, 12Mbps and 1.5Mbps Speed

Supports Self-powered and Bus-powered Mode

4-Port USB2.0 Metal Hub

with DIN RAIL Mounting Kit

1. Introduction

2. Connector La

out

Power LED Activity LEDs for

Downstream Ports

Upstream Port

Connector Downstream Port

Connectors

Self Power

Input

Connectors

4-Port USB2.0 Metal Hub with DIN RAIL Mounting Kit

Activity LEDs for Downstream Ports: These 4 LED indicators

are blinking whenever the USB ports are transferring data.

Upstream Port Connector: Type-B connector from upstream

USB2.0 port. It is connected from host or another USB2.0

hub.

Self Power Input Connectors: This 3-pin (one pin plus voltage

and the other 2 pins are GND) terminal block connectors

are used to connect strong power to self-power the hub,

the voltage can be in the range from +7V to 24VDC.

Warning!!

Please make sure the polarity of the input power should be

correctly match the terminal block pins, otherwise it will

damage the hub.

1. Use static electricity discharge precautions.

Remove possible static discharge potential from any

objects that the hub may come in contact with before

installation. This can be accomplished by touching a bare

metal chassis rail after you have turned off the power.

2. Apply DC power (range from +7V to 24V) to the 3-pin

Terminal Block Connector. The hub was bus-powered by

the upstream USB port, this terminal block connector is to

add power to ensure enough power for the 4 downstream

ports.

3. Hardware Installation

-+7~24V

-GND

4-Port USB2.0 Metal Hub with DIN RAIL Mounting Kit

3. Connecting USB Host cable: The host cable is a standard

A-to-B USB2.0 cable. Please connect the type-A end

connector of the cable to your upstream USB port, then

connect the type-B end connector to this hub. Since the

USB hub is plug-and-play, you don’t have to turn off your

host computer when installing the hub.

Note: In some cases, you will see an error message said

that the USB Hub caused the USB bus power over the current limit,

please ignore this message since the hub is hot plug and its power

capacitor will cause a very short period of current. It will NOT affect

your USB function.

4. Connect the USB devices to the downstream ports of this

hub.

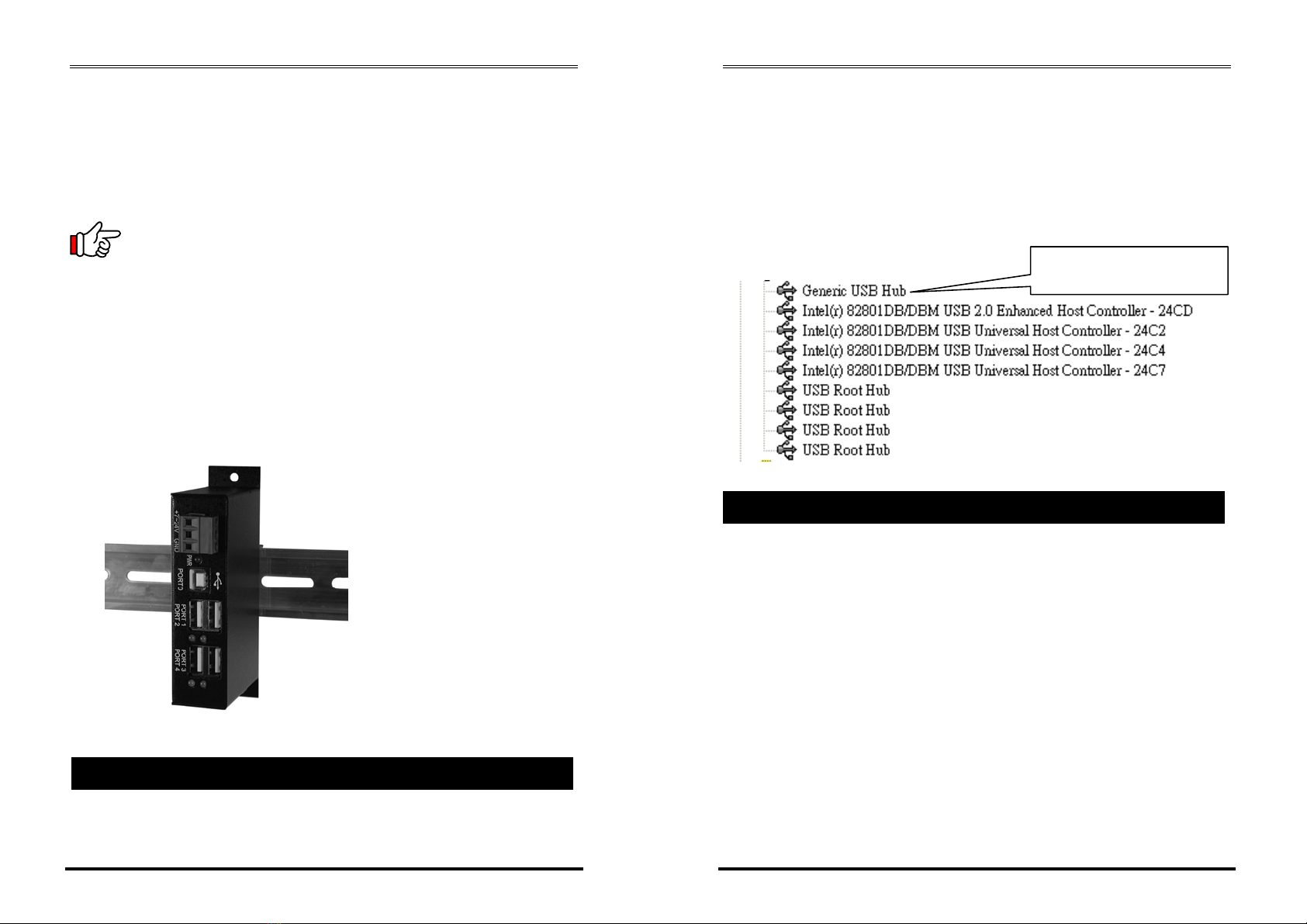

5. Mount your hub on the wall or DIN RAIL if required.

To check the USB hub installation in Windows device manager,

please follow the following steps:

4. Checkin

the Hub Installation

4-Port USB2.0 Metal Hub with DIN RAIL Mounting Kit

1. Click Start

2. Click Control Panel

3. Click System

4. Click Device Manager button

5. Double click Universal Serial Bus Controller

6. Double click Generic USB Hub, the message will show that

this device is working properly.

Operating temp.: 0 to 55C (32 to 131F)

Operating humidity: 5 to 95% RH

Dimensions (LxWxH): 4.50”(L)x2.26”(W)x1.03”(H)

(11.45x5.73x2.63 cm)

5. Environmental S

ecifications

Here is your USB2.0 Hub
