Cooler Master Cosmos RC-1010 Manual de usuario
Ver 1.0: 2007/10
RC-1010
CONTENTS
1. Product Overview
1.1 Specifications
1.2 Diagram
1.3 Part List
1.4 Accessory Carrying Case
2. Installation Guide
2.1 How to remove the Side Panel and install the Power Supply
2.2 How to install the Motherboard
2.3 How to install the add-on cards
2.4 How to install the 3.5” and 5.25” Devices
2.5 How to install / replace case fans
2.6 How to clean the filter
2.7 Change the opening direction of the front panel
2.8 Cable Management
2.9 Completing Installation
............................................................................................
....................................................................................................
..............................................................................................................
..............................................................................................................
........................
............................................................................
............................................................................................
..............................................
.........................................................................
........................................................................
.......................................................
....................................................................
.......................................................................................
............................................
............................................................................................
......................................................................................
...................................................................................
01
02
02
02
03
04
Icon Description
A tool for assembling is needed
03
04
11
05
05
05
07
08
08
10
10
12
3. I/O Function Panel Installation Guide
4. Connection Diagram
02
1. Product Overview
1.2 Diagram
Product specifications are subject to change without notice。
I/O Panel
Cooling System
Expansion Slot
3.5" Drive Bay
5.25" Drive Bay
M/B Type
Material
Dimensions
Available Color Chassis:Silver , Bezel:Black
Power Supply PS2 / EPS 12V ( Optional )
(W)266mm x (H)598mm x (D)628mm
Chassis:STEEL Appearance:AL
Extended ATX, ATX
5 Exposed (without the use of exposed 3.5" Drive bay)
4 Expose (with the use of one 3.5" Drive bay)
6 Hidden; 1 Exposed (converted from one 5.25" Drive Bay)
7
USB 2.0 x 4, IEEE 1394 x 1, Audio x 1, SPK x 1, eSATA x 1(Support Intel HD Audio)
FRONT-VIEW BACK-VIEW TOP-VIEW
1.1 Specifications
POWER
USB2.0USB2.0
RESET
E-SATA
IEEE1394
MICMIC
HEADSET
Bottom fan: 120x120x25 mm x 1, 1200 rpm, 17 dBA (intake, included)
Top fan: 120x120x25 mm x 2, 1200 rpm, 17 dBA (exhaust, included)
Rear fan: 120x120x25 mm x 1 , 1200 rpm, 17 dBA (exhaust, included)
Side fan: 120x120x25 mm x 1, 1200 rpm, 17 dBA(intake, included)
All case fans included support PWM function
HDD fan: 120x120x25 mm x 1, 1200rpm, ( Optional )
03
1.4 Accessory Carrying Case
1.3 Part List
Item
10
11
12
13
14
15
16
17
Q'ty
6
1
5
1
2
1
1
1
CD-ROM,FDD,3.5'' Bracket
Figure Q'ty
1
24
Parts Name
20
Used for
HDD-Screw
3 M/B Tray ( )for Extend ATX M/B
17 M/B Tray
#6-32 40 MB Tray, Power
M3 30
Bottom Fan 120x25mm
Parts Name
Front Door
5.25'' Shield
Right Side Panel
Parts Name
Casing
Top Fan 120x25mm
Top Cover
Filter (Rear)
Shutter Fan Cover
Fan Holder
HDD Tray
Filter (Front)
Screw Driver (Keyring)
Stand-off (16.9mm)
Stand-off (6.5mm)
Cable Management
For HDD
FDD-Bracket
1
Left Side Panel
Side Fan 120x25mm
Exclusive Giveaway
For system install
Cable Tie
17
5
8
710
9
3
1
4
2
12
13
14
11
15
CM Accessory Box
CM Accessory Box
16
Item
1
2
3
4
5
7
8
9
Rear Fan 120x25mm
Q'ty
1
1
2
1
1
1
1
Extended Cable For Power Cable 8 pin
Tie Mount Power cable management
8
6
6
1
1
2. Installation Guide
04

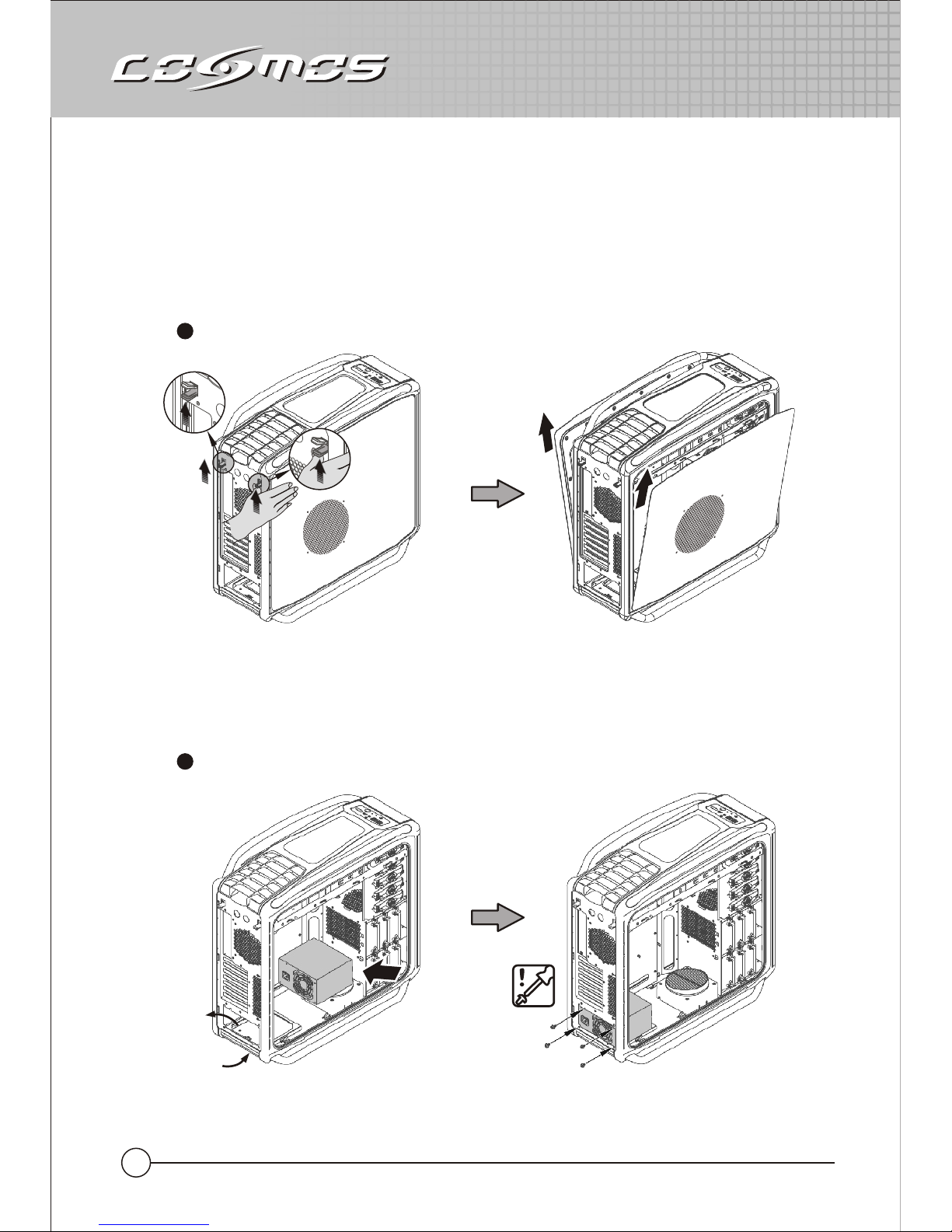

2.1 How to remove the Side Panel and install the Power Supply.
Note: The sequence of installation may differ depending on the type of case and devices used.
Remove the Side Panel
Install the Power Supply
11
22
Inlet for PSU
#6-32
05
2.2 How to install the Motherboard.
Remove the back slot plate and install the
add-on card into the slot on the Motherboard
22
11
Align the stand-off holes of M/B with
MB tray and screw the stand-offs.
Note: If the I/O plate of the case does not fit your motherboard,please remove the I/O plate and replace
it with the one provided with the motherboard.
11
2.3 How to install the add-on cards.
22Secure the screw
Make sure the holes on the Motherboard and chassis
line up completely before securing the screws.
2.4 How to install the 3.5” and 5.25” Devices.
112244
33M3
#6-32
Stand-off (16.9mm) for Extend ATX M/B
th
Notice: We strongly recommend installing a device that is no bigger then 3.5" in the 5 device bay to
guarantee optimal thermal performance for HDDs.
Stand-off (6.5mm) for ATX M/B
Insert the device into 5.25” drive bay
FDD/Card Reader Installation
*
*
11
22
11M3*5
33
55
22
44
06
Unlock
Lock
Unlock
Lock
Installation of IDE and SATA Hard Drives
*
11
22
33
07
2.5 How to install / replace case Fans
* Install or replace the top fans
* Replace the bottom fan
1 2 3
1 2 3
4
Supports 120mm Fan
Supports two 120mm or 140mm Fans
4
Install the rear fan (Optional item)
* Install the HDD fan (Optional item)
*
12
08
2.6 How to clean the filter
2.7 Change the opening direction of the front panel
112233
Press Down
Lift up and out
Push up to
remove hinge.
