Controls MVP-L6100 Manual de usuario

P.O. Box 368 • Sharon Center, OH 44274

Phone 330.239.4345 • Fax 330.239.2845 • www.controlsinc.com

Product Manual

Pump Display & Control Panel

Mechanical Engines

Part Number: MVP-L6100

Revision: 2.0

CONTROLS, INCORPORATED

C O N T R O L S Y S T E M S & S O L U T I O N S

TABLE OF CONTENTS

INSTALLATION INFORMATION……...........………………………………...……………………………………………………………....2

MODULE CONNECTOR ……..........................………………………………...………………………………………………………………….4

PANEL CONNECTOR…………………………………………………………………..……………………………………………………………5

CUSTOMER CONNECTIONS……………………………………………………..……………………………………………………………6

ENGINE ALARMS, CODES AND MESSAGES………………………………………………………………………….…..……..7

ALARM ANNUNCIATION AND CODE READER

PANEL INDICATION LAMPS

CONTROL PANEL ANALOG AND DIGITAL INPUTS……………………………………………………………………..…9

MENU SYSTEM……………………………………………………………………………………………..…………………………………….……11

MENU ACCESS, EXIT AND NAVIGATION

MENUS TO VIEW INFORMATION

MENUS TO CONFIGUREMODULE SETTINGS

CONTROLS, INCORPORATED

C O N T R O L S Y S T E M S & S O L U T I O N S

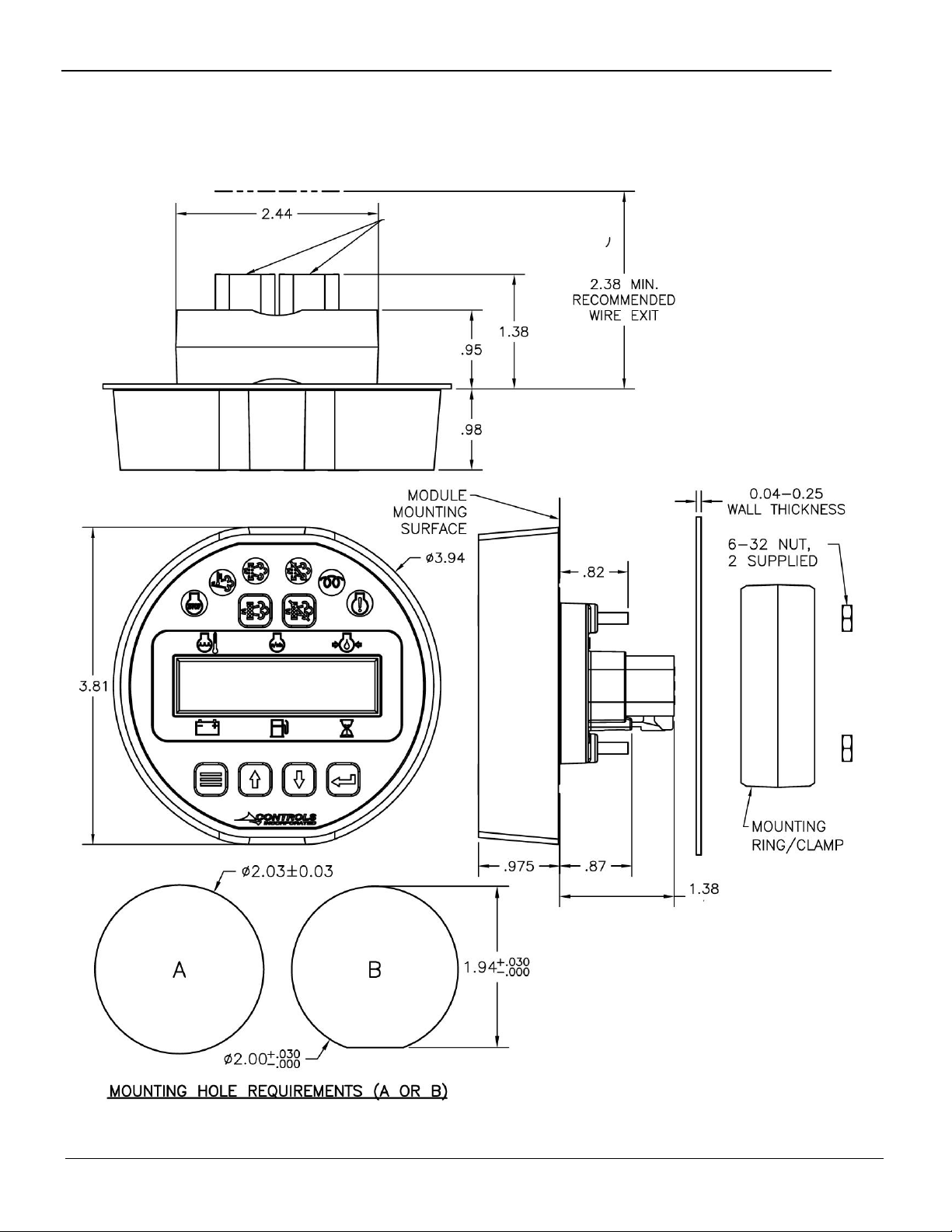

INSTALLATION INFORMATION

CONTROLS, INCORPORATED

C O N T R O L S Y S T E M S & S O L U T I O N S

MODULE CONNECTOR INFORMATION

BATTERY +

CAN HIGH

CAN LOW

SPEED INPUT

FUEL LEVEL INPUT

BATTERY -

DIGITAL INPUT #1

FUEL HOLD

TEMP INPUT

OIL PRESS INPUT

PREHEAT OUTPUT

ALARM OUTPUT

CONTROLS, INCORPORATED

C O N T R O L S Y S T E M S & S O L U T I O N S

ENGINE HARNESS CONNECTOR INFORMATION

Engine Harness Connector –Deutsch 16 pin (HDP24-24-16PE)

16 Pin Engine Harness Connector

Function

Battery Positive

Battery Negative

Fuel Hold

Pre Heat

Crank Signal

Oil Pressure Sender Input

Engine Temperature Sender Input

MPU-

MPU+ or Tach Input

Alternator Excite

Fuel Level

Digital Input #1

Output #3

CANbus High

CANbus Low

CONTROLS, INCORPORATED

C O N T R O L S Y S T E M S & S O L U T I O N S

CUSTOMER CONNECTIONS

CONTROLS, INCORPORATED

C O N T R O L S Y S T E M S & S O L U T I O N S

CONTROL PANEL SPECIFIC ALARMS AND SHUT DOWNS

The panel has its own engine safety alarms and shut downs that can be enabled. These alarms and

shut downs are managed by the control panel. The available options are listed below and can be

accessed via the Engine Safety Configuration menu.

Each alarm must be enabled in the Engine Safety Configuration menu to activate.

Heading

Default

Range

Units

Sender Check Bypass

0:10

0:05 –1:00

Min:Sec

Fuel Level Check

Off

Off / Always / Run

Low Fuel Pre Alarm

0 - 100

Low Fuel Alarm

0 - 100

Fuel Alarm Delay

0:05

0:01 –1:40

Sec

Oil Pressure Check

Run

Off / Always / Run

Low Oil Press Pre Alarm

0 - 100

PSI

Low Oil Press Alarm

0 - 100

PSI

Oil Press Alarm Delay

0:10

0:01 –1:40

Sec

Temperature Check

Run

Off / Always / Run

Low Temp Pre Alarm

0 - 300

Deg F

Low Temp Alarm

0 - 300

Deg F

High Temp Pre Alarm

244

150 - 300

Deg F

High Temp Alarm

245

150 - 300

Deg F

Temp Alarm Delay

0:10

0:01 –1:40

Min:Sec

Battery Volts Check

Off

Off / Always / Run

Low Battery Pre Alarm

12.0

0.0 –40.0

Volts

Hi Battery Pre Alarm

15.0

0.0 –40.0

Volts

Over Speed Check

Off

Off / Always / Run

Over Speed Alarm

3000

650 - 5000

RPM

Over Speed Alarm Delay

0:05

0:01 –1:40

Min:Sec

1) Off / Always / Run –Describes when the parameter will be monitored for alarm conditions. Run

refers to when the engine is running. Off disables the alarm conditions. Always enables the alarm

constantly regardless of engine state.

2) Alarm Delay –The time period, after Sender Check Bypass, that the parameter must be on the alarm

condition before the alarm becomes latched.

CONTROLS, INCORPORATED

C O N T R O L S Y S T E M S & S O L U T I O N S

Indicator Lamps

Engine

Fault

Lamp

Engine

Alarm

Lamp

CONTROLS, INCORPORATED

C O N T R O L S Y S T E M S & S O L U T I O N S

CONTROL PANEL ANALOG AND DIGITAL INPUTS

The panel has one analog input and up to one digital input available to monitor other components,

sendersor signals. These inputs can be used for a number of purposesincluding alarms and shut

downs.

Input

Heading

Default

Options

Connector

Digital 1

Normally

Open

Open / Closed

Function

None

Message

None

Check

Off

Off / Always / Run

Digital Outputs

1) Alarm –Engine shutdown when active with display message as assigned. A red lamp will also be

illuminated.

2) Pre Alarm –Warning message will be displayed along with a yellow lamp when active.

3) Pre Alarm & Alarm - Energizes an external audible alarm when a pre alarm or alarm condition is

present. Pressing the ENTER button will silence.

4) Alarm Horn - Energizes an external audible alarm when an alarm condition is present. Pressing

the ENTER button will silence.

5) Engine Run - Relay will be active when engine RPM is greater than 600. Typically used to drive

an auxiliary circuit such as louvers or send a signal to a monitoring station.

6) Low Oil Press Alarm - Relay closes if a low oil pressure shutdown is detected.

7) High Coolant Temp Alarm - Relay closes if a high engine temperature shutdown is detected.

8) Over Speed Alarm - Relay closes if an over speed shutdown is detected.

9) Over Crank Alarm - Relay closes if an over crank alarm is detected.

10) Low Fuel Level Alarm - Relay closes if a low fuel level shutdown is detected.

11) Fuel / Run - Relay will be active during an engine start request and while the engine is running.

12) Custom 1 - Reserved for OEM applications.

13) Preheat - Relay will be active during programmed preheat period. Used to drive a preheat relay.

CONTROLS, INCORPORATED

C O N T R O L S Y S T E M S & S O L U T I O N S

Digital Function Activation

1) Off / Always / Run –Describeswhen the parameter will be monitored for alarmconditions. Run

refers to when the engine isrunning. Off disables the alarmconditions. Always enablesthe

alarm constantly regardless of engine state.

2) AlarmDelay –The time period,after Sender Check Bypass, that the parameter must be on the

alarmcondition before the alarmbecomes latched.
