Contemporary Research System Tools offer simple solutions to specic

systems needs. The Video Tools series features controllable closed-

captioning tools and S-Video conversion.

• All connections available from one side to simplify wiring

• Compact metal enclosure mounts anywhere

• Rack-mount three across with optional RK3 Rack Mount

• Designed for systems integrators with exible control options

• Includes DC power supply

Models

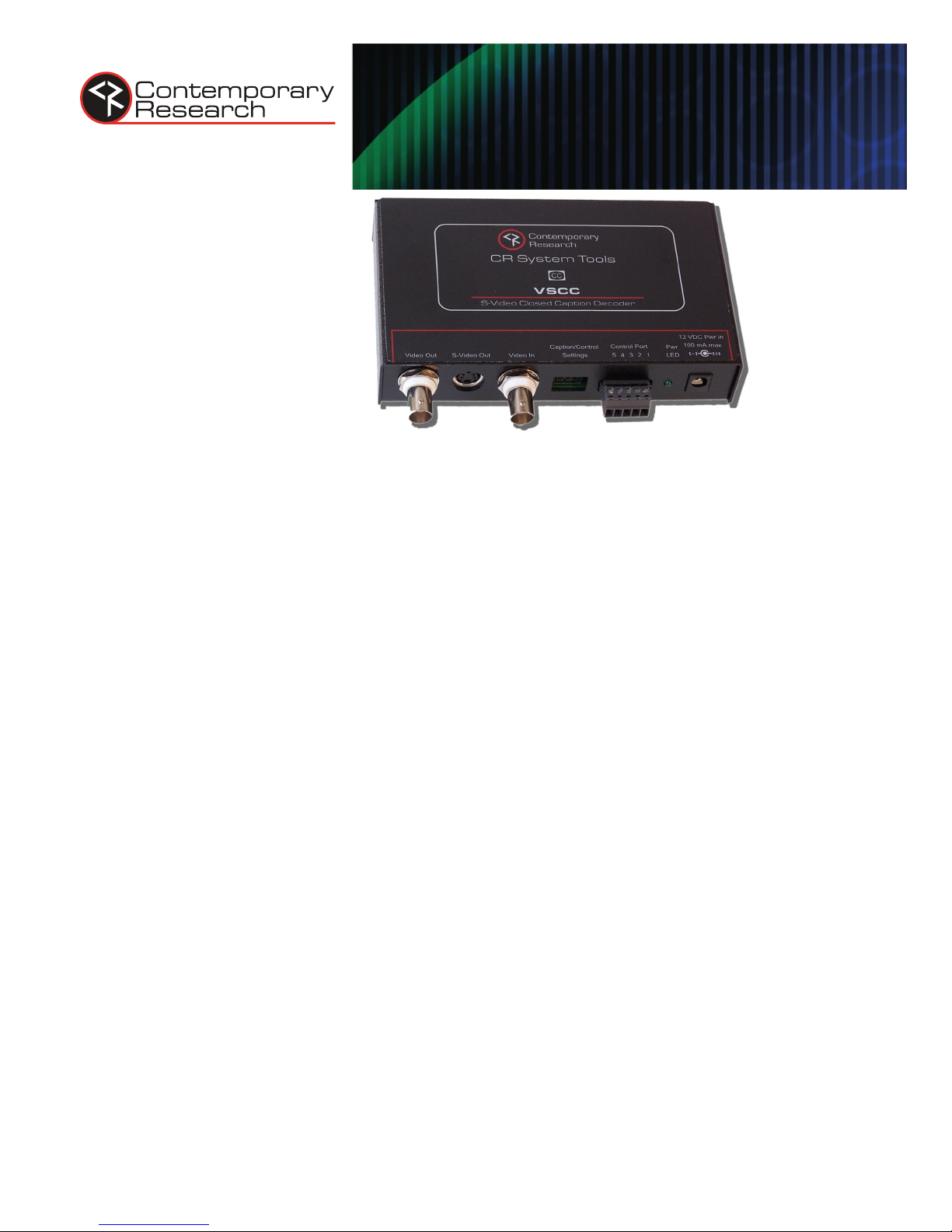

VSCC S-Video Closed-Caption Decoder

• Inserts closed captions over composite NTSC video

• Converts output to S-Video

• Offers eight selectable captioning modes

• Features closure caption on/off and video sense feedback

• Includes captive screw terminal with closed caption on/off, video

sense output, and alternate DC power connection

VCC Closed-Caption Decoder

• Inserts closed captions over composite NTSC video

• Offers eight selectable captioning modes

• Features closure caption on/off

• Includes captive screw terminal with closed caption on/off and

alternate DC power connection

VSC S-Video Interface

• Outputs S-Video from composite NTSC video input

• Features selectable Y/C gain and video in termination

Related Products

232-STS AV Tuner with Captioning

IR-232 IR to RS-232 Interface

Applications

Meet ADA Requrements

Control captioning on/off

Convert video to S-Video

crwww.com

AV Tuners

Sales Support

Planning an application for System

Tools? Our Sales Support staff

will be happy to work with you,

providing expert integration

assistance and a complete systems

proposal.

Tech Support

Need tech help? Give us a call. Our

tech support staff are experts in

the integration industry, so we can

research solutions in the proposal

stage, advise on programming

requirements, and resolve

installation issues.

Our job is to make our solutions

work seamlessly with your system,

performing as promised.

Video Tools

System Tools

Feature VSCC VCC VSC

Type S-Video Closed Captioning Video Closed Captioning S-Video Conversion

Physical 5.5” [140mm] W x 1.1” [28mm] H x 3.5” [86mm] D

8 oz [226g]

All aluminum enclosure with durable black powder coat paint

Surface moun or in equpment rack, up to 3 units in optional RK3 Rack Mount

Front Panel BNC Video Out

Mini-DIN S-Video Out

BNC Video In

DIP Switch, 4 position

Captive Screw Terminal

1 GND

2 Captions

3 Unassigned

4 Video Detect

5 DC Power

Power LED

DC Power In

BNC Video Out

BNC Video In

DIP Switch, 4 position

Captive Screw Terminal

1 GND

2 Captions

3 Unassigned

4 Unassigned

5 DC Power

Power LED

DC Power In

Mini-DIN S-Video Out

BNC NTSC Video In

DIP Switch, 4 position

DC Power In

DIP Switch Sets Caption modes CC1-4, TT1-4

Sets control options, including momentary/latching

1 Video Termination

2 Y gain (15%)

3 C gain (15%)

S-Video Out VSCC and VSC Video Tools

Mini DIN 4-pin, Y - 1V p-p at 75 ohms, C - 0.286 V p-p at 75 ohms

Digital adaptive 2-D Y/C separation ltering, cross-color and cross-luminance reduction

Differential Phase .3° max, Differential Gain .2% max

Video bandwidth 10MHz, Luma S/N 77dB

Maximum video output 1.5V p-p

Power 2.1mm coaxial jack, 100 mA max

11.5 to 16.5 VDC, 12 VDC typical, may be unregulated

Includes 12 VDC power supply, inside center conductor positive, 100 mA (domestic shipments only)

Options RK3 Rack Mount, 1 RU, mounts three System Tools across

Speciﬁcations

Contemporary Research • 17630 Davenport Rd., Suite 113 • Dallas, TX 75252

Phone: 972-931-2728 • Toll Free: 888-972-2728 • Fax: 972-931-2765

VSCC

VCC

Warranty

All CR products feature a full

two-year warranty.

Video Tools

VSC

System Tools

crwww.com
