Consonance Reference8 Pro Manual de usuario

Reference8 Pro music player Fast Operation Guide

Introduction

1/2 Front

1. Display

2. Power Switch

3. USB2.0 for Memory

4. Down Button

5. Menu Button

6. Up Button

7. IR Window

2/2 Rear

8. Power Socket

9. Fuse

10. Vacuum unbalanced Analog Outputs

11. UnbalancedAnalog Outputs

12. Balanced Analog Outputs

13. Bluetooth ANT

14. Optical Digital input

15. Coaxial Digital input

16. USB2.0 for Memory

17. EtherneRJ45

18. USB2.0 for WiFi Adapter

1. Set up a network connection

Reference8 Pro has both wired and wireless models connected to the router. Wired

connection via the RJ45 ETHERNET port, a network cable connected directly to the router.

Wireless connection needs to be done once set up, in the future each boot can

automatically connect with the router.

The first wireless settings, you need to use on a network cable from RJ45 ETHERNET port

to the router. Plugged WiFi adapter and power on more than 30 seconds. Let the cell phone

or computer connected to the same network. Open the browser in Apple systems or Google

browser in windows. Write opera.local/ to enter user interface. If use Android system please

download the dedicated “Opera APP” (…..link).

Entering the user interface (pic1) then press the button and choose the NETWORK

option (pic2).

pic 1 pic 2

Select WiFi name, enter your password and press (pic3).The right corner (pic4) shows

"Wireless restart, Wireless successful restarted". The WiFi setting is successful.

pic 3 pic 4 pic 5

When you see these information (pic5) remove the Ethernet wire and turn power off.

2. How to play

1. Plug in USB memory (U disk or hard disk) remaining on the USB2.0 port. Tune on about

40 seconds and make sure the cell phone (Pad or computer) is connected to the same

network. Open the browser, enter “opera.local” into the interface (Android system please

download the dedicated “Opera APP” (…link).

2. First enter the option (pic6).You can find the music album folders and tracks from

four different options: Music Library, Artists, Albums and Genres in local USB memory. If the

NAS is connected to the network you can also browse it. There are many Internet radio

stations to choose from in “WEBRADIO”. You can also add your own stations.

pic6

3. When you found the music, in the far right of the folder or track name has a button.

Album folder has 4 modes: Play or Clear and play (direct playback), Add to queue and “Add

to playlist”. Track added a "Add to favourites " mode.

pic7 pic8

4. In Queue, you can see different playlist. It has 4 playback modes: random play,

loop, save playlist and cancel playlist.

pic9 pic10

5. Web Radio have five options (pic11).You can add the Radio station in “My Web Radio”

(pic12, pic13). When you enter any options you can select playback mode (pic14).

pic11 pic12

Pic13 pic14

6. When you plug DVD Rom to R8pro, you can direct play CD (pic15, pic16).

pic15 pic16

You also can Rip CD to the memory. The memory should renamed “OPERA”in computer.

(pic17~19)

pic17 pic18 pic19

7. If you want to Add the Network Devices, please press the button and choose Add

New Drive in the My Music option (pic20).

Pic20

8.Enter the playback (pic21) you can see the currently playing track information,

including album art, track information and schedule .

Playback function buttons are : next, return to the previous, pause/play,

Favorite, random play, loop, and create playlists and software volume

(default none).

pic21

The function of remote control or on the front panel buttons：

1. Digital inputs selections: Press the on the panel or use the left and right arrows

buttons on the remote control, it can choose the digital channel. They are Stream, Coaxial,

Optical and Bluetooth.

2. Press the on the panel for 2 seconds or the menu button on the remote control.

Reference8Pro go into the digital filter Settings.

3. Continue to press , it can choose four Settings: PCM DIGITAL FILTER，DSD CUT

OFF FILTER, OUTPUT PHASE and SOUND MODE. Press and on the remote or panel

select what you want.

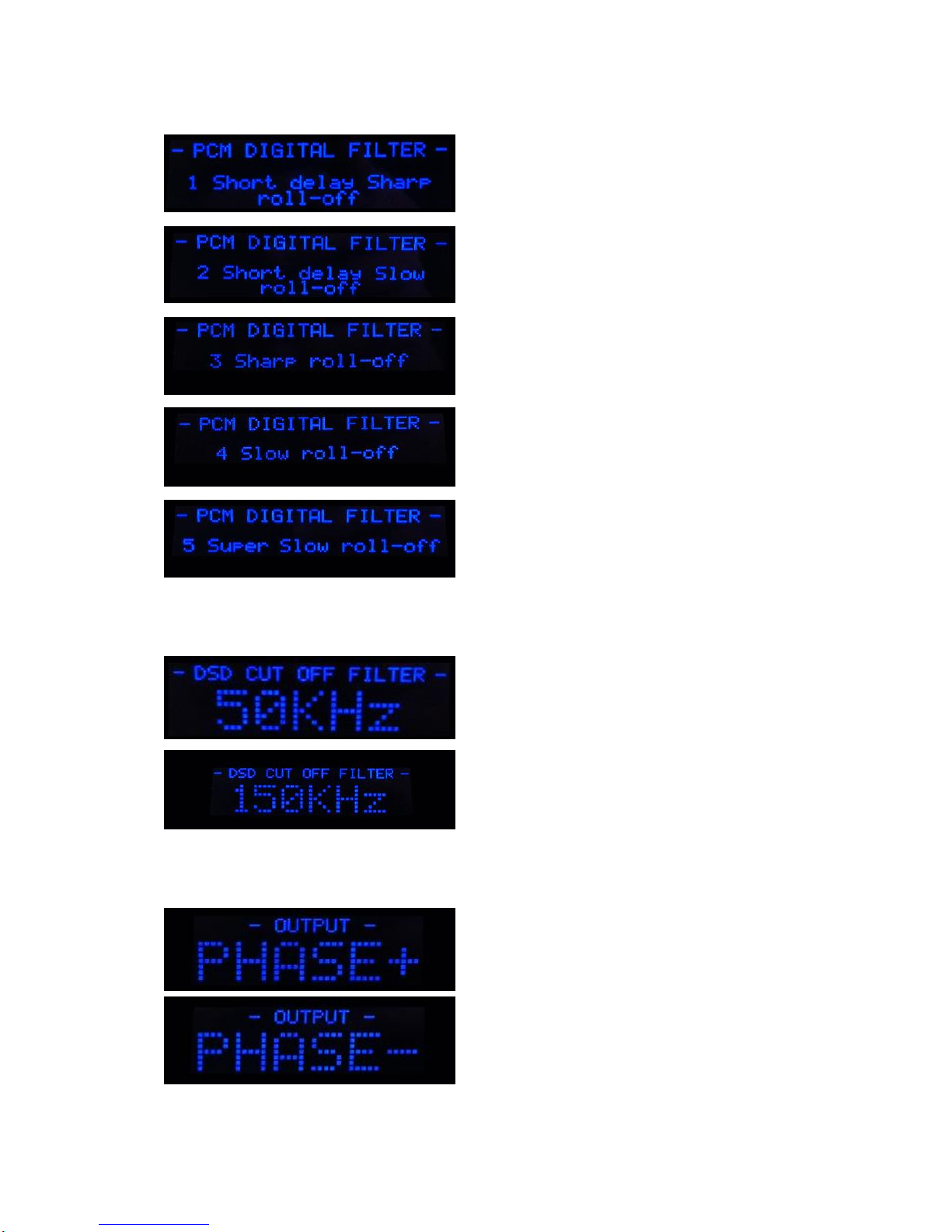

Five selections of PCM digital filter:

Two selections of DSD cut off filter:

Selections of Phase:

Selections of Sound Mode:

When R8 pro play the music, the “up” and “down” buttons will adjust the volume of the

analog outputs.

Specification

USB2.0 port×2 for hard disk up to 4TB, 10/1000Mbps LAN, RJ-45 port, support UPnP, NAS

and PC sharing.

Supported audio file formats:

DSD: DSF (DSD), DIFF (DSD)

PCM: FLAC, Apple Lossless (ALAC), WAV, AIFF, APE, MP3, AAC

Supported audio sample rates, bit depths, number of channels：

PCM, 44.1khz-384kHz, 16-32bit, Stereo

DSD, 2.8MHz-11.2MHz, 1bit, Stereo

Digital inputs:

USB2.0, Coaxial, Optical, Bluetooth (Name: consonance)

Analog output:

Vacuum unbalanced: 2.4V RMS, Distortion: <0.08%

unbalanced: 2.4V RMS, Distortion: <0.003%

Balanced: 4.8V RMS, Distortion: <0.0025%

Dimensions: 14cm×44cm×33cm (H×W×D)

Weight: 8.9kg (wooden top cover) 12.9kg (aluminium top cover)
