CONCORD

5.0 Megapixels Digital Camera

Quick Start Guide

ENU

This Quick Start Guide provides a quick reference for operating

your new Camera. Refer to the User’s Guide, which can be found

on the CD-ROM, for detailed instructions on how to use all of your

camera’s features. Before using the camera, make sure to read all

safety instructions and precautions outlined in the User’s Guide.

1INSTALLING THE BATTERIES

Insert two (2) AA-size batteries (Alkaline or Ni-MH rechargeable).

1. Slide the Battery/Memory Card door in the direction of the arrow,

and lift it open.

2. Insert two AA batteries with the positive (+) and negative (-) poles

matching the directions indicated inside the battery cover.

3. Close the Battery/Memory Card door.

2INSERTING AN SD CARD

The digital camera is equipped with a 16 MB internal memory. If no SD card is inserted in the camera, all

pictures/video clips recorded by the camera will be stored in the internal memory. When SD card is inserted in

the camera, all pictures and video clips recorded by the camera will be stored on the SD card.

1. Turn off the camera.

2. Slide the Battery/Memory Card Door in the direction of the arrow to open the door.

3. Insert the SD card in the direction as shown in the figure aside.

4. Close the Battery/Memory Card Door.

QUICK START GUIDE

ENU

3TURNING THE CAMERA ON

Press the Power button and hold it until the LCD indicator begins flashing green. It takes about 1 second to

power on the camera.

To turn off the camera

Press the Power button to turn off the camera.

Note: The camera might be powered off automatically

after being idle for some time. The Auto-Off setting can

be changed in Set-Up menu.

4SETTING THE LANGUAGE

1. Press the button.

2. Press the to select the Setup Menu.

3. Press the or to select Language then press the SET or button

to enter its submenu.

4. Press the or to select a Language.

5. Press the SET button to save the setting.

5SETTING THE DATE AND TIME

1. Turn on the camera.

2. Press the button.

3. Press the to select the Setup Menu.

4. Press the or to select Date & Time then press the or SET

button.

5. Press the and to select a field to change.

6. Press the and to set the values.

7. Press the SET button to save the settings.

8. Press the button to close the menu window.

6SETTING THE CAMERA MODE

Slide the camera mode switch to change the camera mode.

Shooting Mode For shooting still images.

Review Mode For viewing the recorded images

and video clips.

Video Mode For shooting video clips.

Power switch

Camera mode switch

ENU

7TAKING PICTURES

1. Set the camera mode switch to .

2. Aim the camera at the subject.

3. Press the Tor Wbutton to zoom in or zoom out the subject.

4. Press the Shutter button halfway down to activate the auto-focus until AF

LED stops blinking and the white AF Frame turned into green.

• The shutter speed and aperture values will appear on the LCD monitor.

5. Press the Shutter button fully down to capture the image.

8SETTING IMAGE QUALITY AND RESOLUTION

You can change the image quality and resolution settings to suit your shooting purpose. Image resolution

determines the size of a captured image. Higher resolution images contain more details and have larger file

sizes. Image quality determines the amount of compression used to reduce the size of the stored image file in

order to economize space in the memory.

1. Press the MENU button.

2. Press the or button to select Resolution or Quality, then press

the SET or button.

3. Press the or button to select the settings you wish to set then

press the SET button.

4. Press the MENU button to close the menu window.

SETTING THE FLASH

Use the flash according to the guidelines below:

Auto The camera judges if a flash is required. If the environment is too dark, the

flash will fire.

Red-eye

reduction,

The flash fires automatically as required by the lighting level, and the flash

pre-strobes before shooting to reduce red-eye phenomenon.

Force on The flash always fires.

Force Off The flash does not fire.

1. Press the button repeatedly to switch between flash modes. The

selected flash mode icon will appear on the LCD monitor.

2. Shoot the image.

Flash icon

ENU

TAKING PICTURES IN MACRO MODE

Use the macro mode to shoot close-up of subjects in the range of

10 cm to 50 cm (3.94 in. to 19.89 inches)

1. Press the DISP button to turn the LCD monitor on.

2. Press the button. The icon appears on the LCD

monitor.

3. Shoot the image.

TAKING PICTURES WITH THE SELF-TIMER

Use the self-timer to set a delay from the time the shutter button is pressed to the time the image is shot.

1. Press the button to until the Self-Timer icon ( ) is shown on the

LCD.

2. Shoot the image.

• The self-timer lamp starts blinking after the shutter button is fully

pressed down. The image will be shot in approximately 10 seconds.

The self-timer will blink faster two seconds before the shutter

activates.

TAKING CONTINUOUS PICTURES

1. Press the button until the Continuous Shooting icon ( ) is shown on the LCD.

2. Shoot the image. The camera will capture 3 continuous pictures in 1600x1200 or 640x480 resolution.

Note: If the resolution is set at 2592 x 1944 or 2304x1728, when continuous shooting is selected, the

resolution will be changed to 1600x1200 automatically.

To deactivate the Continuous Shooting, press until the continuous icon disappears.

RECORDING MOVIE CLIPS

The digital camera can shoot movie clips with audio in 320 x 240

resolution.

1. Set the camera mode switch to .

• The LCD monitor displays the maximum recording time.

2. Press the shutter button all the way down to start record movie clip.

3. Press the shutter button again to stop recording. Otherwise the

camera will keep recording until memory is full.

Macro

icon

Drive

Mode

Movie

icon

Maximum

Recording

Tieme

ENU

REVIEWING THE STORED FILES

1. Set the camera mode switch to .

• The last recorded image or video clip appears on the LCD monitor.

2. Press the button to move to the previous file and press the button

to move to the next file.

3. For video clips, only the first frame will be shown. When video clip icon is

shown, press SET to start playing the video. Press SET again to pause or

resume playing.

DELETING ONE FILE

1. In the Review mode, press the or to find out the file to be

deleted.

2. Press .

3. Press or to select YES or NO.

4. Press SET to confirm the choice.

Note: Do not press SET repeatedly. Otherwise you may have other files

deleted.

5. Press MENU to exit the submenu of Deleting One.

Note: Files deleted cannot be recovered. Exercise caution before erasing a file.

DELETING ALL FILES

You can protect important files from being accidentally erased.

1. In the Review mode , press the MENU button.

2. Press the button to select Delete ALL and then press SET or

button.

3. Press the or to select All and then press SET or button.

4. Press the or to select Yes or No, then press the SET button to

confirm the choice.

5. Press the MENU button to close the menu window.

PROTECTING YOUR FILES

You can protect important files from being accidentally erased.

1. In the Review mode, press the MENU button.

2. Press to select Protect then press the SET or button.

3. Press or to select Single or All and then press the SET or

button.

4. Press or to select Yes or No, then press the SET button to

confirm the choice. The file(s) being protected will have a key shape icon

shown on the upper left corner of the LCD.

5. Press the MENU button to close the menu window.

To remove the protection, follow the steps 1 to 3 above to remove protection. When the file is

un-protected, the protect icon ( ) will disappear.

ENU

COPYING FILES

The camera allows you to copy all files that are stored in the camera’s internal memory to an installed SD

memory card.

1. Set the camera to the Review mode.

2. Press the MENU button.

3. Press the to select Copy To Card then press the SET or button.

4. Press the or to select YES or NO, and then press SET to

confirm.

5. Press the MENU button to close the menu window.

INSTALLING SOFTWARE (FOR WINDOWS USERS)

The functions of the software that were bundled with the supplied CD-ROM are listed as below:

Camera Driver Enable Win 98 SE users to download files from the camera to your

computer.

Ulead Photo Explorer 8.0 SE Enable Windows 98 SE/2000/ME/XP users to view the pictures and or

video clips recorded with the camera, and to edit or manage pictures.

Ulead VideoStudio 7 SE Enable Windows 98 SE/2000/ME/XP users to view the video clips

recorded with the camera, and to edit video files.

MicroSoft DirectX

They are optional software. You can choose to install or not.Apple QuickTime

Indeo

Windows Media Format Enable Windows ME/XP users to view video clips recorded with the

camera.

Adobe Reader 5 Enables Windows users to view the electronic version of the User’s

Guide.

Note for Win 98 SE user: You must install the camera driver. Otherwise you will not able to download files

from the camera to your computer.

Note for Win ME/XP users: If your computer does not have Windows Media Player 9 preinstalled and you

do not want to install Ulead VideoStudio 7 SE or Ulead Photo Explorer 8.0 SE, you must install the Windows

Media Format, otherwise you will not able to view the video clips recorded with this camera.

Note for Win 98 SE/2000 users: If your computer does not have Windows Media Player 9 preinstalled, you

must install Ulead VideoStudio 7 SE or Ulead Photo Explorer 8.0 SE, otherwise you will not able to view the

video clips recorded with this camera.

ENU

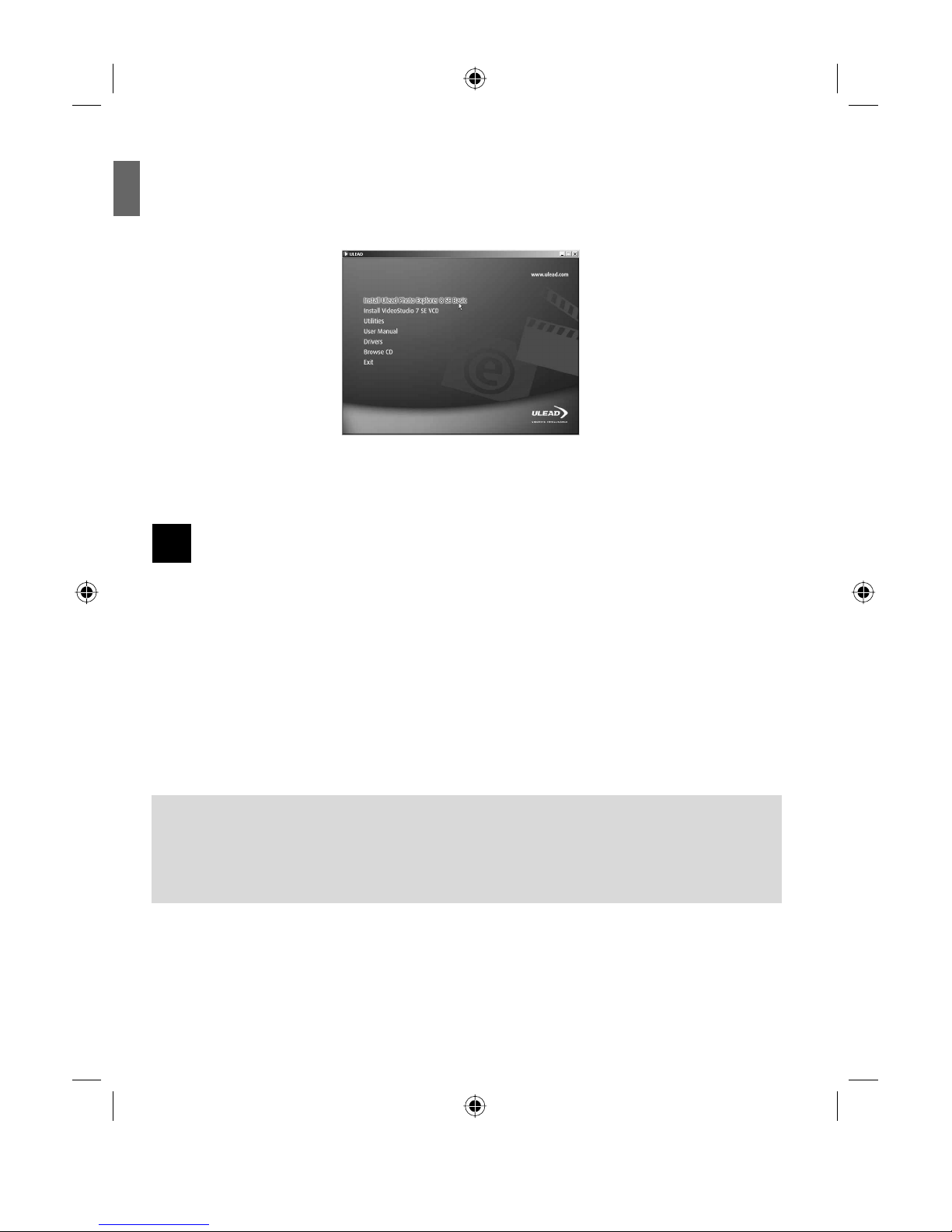

1. Start up your computer, and insert the supplied CD-ROM into your computer’s CD-ROM drive. The splash

screen will appear. (Fig. 1.1)

NOTE: If the installer does not start automatically within 30 seconds after the CD-ROM has been inserted,

click on “My Computer” either on the Desktop or in the Start Menu and locate the CD-ROM Drive. Double

click on the CD-ROM Drive icon for installation.

2. Choose the software that you would like to install by clicking on it, then follow the on-screen instructions to

install the software.

DOWNLOADING FILES ONTO YOUR COMPUTER

Note: Win 98 SE user must install the camera driver first.

1. Connect the camera with your computer by using the supplied USB cable.

Note: If the Ulead Photo Explorer has been installed, the Photo Explorer program will be launched

automatically when the USB connection is completed.

2. Double-click on My Computer.

3. For WINDOWS 98 SE/2000/ME: Double-click “Removable Disk”.

For WINDOWS XP: Double-click “Internal”.

4. Double-click “DCIM”.

5. Double-click the folder that contains the desired files.

• The file names of the pictures (JPG) and video clips (MPEG4) stored in the memory will be displayed.

6. Drag or copy the files onto your computer.

Note:

1. Video clips may not be played by clicking directly on the video clip files, if your computer did not install

Windows Media Player 9. To view the video clips, please install and launch the Ulead Photo Explorer or

Ulead VideoStudio first.

2. You may also transfer the stored pictures and video clips on your memory card onto your

computer by using a memory card reader (sold separately).

Concord and the Concord logo are registered trademarks or trademarks of Concord Camera Corp., in the United States and/or

other countries. Microsoft and Windows are either registered trademarks or trademarks of Microsoft Corporation in the United

States and/or other countries. Mac and Macintosh are registered trademarks or trademarks of Apple Computer, Inc. in the U.S.

and other countries. All other brands and product names are either registered trademarks or trademarks of their respective

owners.Ut loreet luptati scidunt lobor si tetum veliquisse feum quatem nonsequis amcore dit augait dio od diamet et ad duis.

FRA

Le présent Guide de référence rapide vous explique rapidement

le fonctionnement de votre nouvel appareil photo. Reportez-vous

au Manuel de l’utilisateur figurant sur le CD-ROM pour obtenir

des instructions détaillées relatives à l’utilisation des fonctions

de votre appareil. Avant d’utiliser votre appareil photo, veuillez

lire attentivement l’ensemble des instructions et consignes de

sécurité énoncées dans le Manuel de l’utilisateur.

1INSTALLATION DES PILES

Insérez deux (2) piles de format AA (alcalines ou rechargeables NiMH).

1. Faites glisser le volet du compartiment de la carte-mémoire/des

piles dans le sens indiqué par la flèche et soulevez-le pour ouvrir le

compartiment.

2. Insérez deux piles AA avec les extrémités positives (+) et négatives (-)

vers la borne correspondant aux directions indiquées à l’intérieur du

volet du compartiment des piles.

3. Fermez le volet du compartiment de la carte-mémoire et des piles.

2INSERTION D’UNE CARTE SD

Cet appareil photo numérique est équipé d’une mémoire interne de 16 Mo. Si aucune carte SD n’est insérée

dans l’appareil, l’ensemble des photos/clips vidéo enregistré par l’appareil sera stocké dans la mémoire

interne. Si une carte SD est insérée dans l’appareil, l’ensemble des photos/clips vidéo enregistré par l’appareil

sera stocké sur la carte SD.

1. Éteignez l’appareil photo.

2. Faites glisser le volet du compartiment de la carte mémoire/batterie dans

le sens du bouton pour ouvrir le volet.

3. Insérez la carte SD dans le sens indiqué sur la figure ci-contre.

4. Fermez le volet du compartiment de la carte mémoire/batterie.

GUIDE DE DEMARRAGE RAPIDE

Otros manuales para 5340z

Este manual sirve para los siguientes modelos

Tabla de contenidos

Idiomas:

Otros manuales de Cámara digital de Concord Camera

Concord Camera

Concord Camera Eye-Q 3X Manual de usuario

Concord Camera

Concord Camera Eye-Q 3042 AF Manual de usuario

Concord Camera

Concord Camera Eye-Q 2133z Manual de instrucciones

Concord Camera

Concord Camera Eye-Q 3345z Manual de usuario

Concord Camera

Concord Camera 5345z Manual de usuario

Concord Camera

Concord Camera Eye-Q Easy Eye-Q Easy Digital Camera Manual de usuario

Concord Camera

Concord Camera Eye-Q Mini Manual de usuario

Concord Camera

Concord Camera DUO 1300 Guía de inicio rápido

Concord Camera

Concord Camera Eye-Q Duo LCD Guía de inicio rápido

Concord Camera

Concord Camera Eye-Q 4363z Manual de usuario

Concord Camera

Concord Camera PZ3300 Manual de usuario

Concord Camera

Concord Camera Eye-Q 4062AF Manual de usuario

Concord Camera

Concord Camera 3047 Manual de usuario

Concord Camera

Concord Camera 6340z Manual de usuario

Concord Camera

Concord Camera 4340z Manual de usuario

Concord Camera

Concord Camera 252BV Manual de usuario

Concord Camera

Concord Camera Eye-Q 4060 AF Manual de usuario

Concord Camera

Concord Camera 5340z Manual de usuario

Concord Camera

Concord Camera 3.1 Megapixels Digital Camera Manual de usuario

Concord Camera

Concord Camera Eye Q Duo 1.3 Mega Pixels Camera Manual de usuario

Concord Camera

Concord Camera 3043 Manual de usuario

Concord Camera

Concord Camera 2040 - Manual de usuario

Concord Camera

Concord Camera 3341Z Questio Manual de usuario

Concord Camera

Concord Camera Eye-Q 5330z Manual de usuario

Manuales populares de Cámara digital de otras marcas

Mercury

Mercury 350K Manual de usuario

Pentax

Pentax Optio LS 465 Manual de usuario

Sanyo

Sanyo VPC-S1085 Manual de usuario

GE SMART A1255 Manual de usuario

Point Grey

Point Grey Gazelle Manual de usuario

Nikon

Nikon COOLPIX A Manual de usuario

Pentax

Pentax P-5 Manual de usuario

BlazeVideo

BlazeVideo A280 Manual de usuario

Sony

Sony MCA-20 Manual de usuario

Sony

Sony Alpha DSLR-A290 Manual de usuario

ATIK Cameras

ATIK Cameras One Manual de usuario

CohuHD Costar

CohuHD Costar 3930 Series Manual de usuario

Leica

Leica M10-R Manual de usuario

FujiFilm

FujiFilm FinePix A700 Manual de usuario

Lorex

Lorex LNZ81P25 Series Manual de usuario

GE J1470S Manual de usuario

Sony

Sony A6700 Guía del usuario

Canon

Canon EOS ELAN7 Manual de usuario
