Comprehensive CHE-HDBT250 Manual de usuario

CHE-HDBT250

Pro AV/IT HDBaseT™ 4K60 18G HDMI Extender Kit

with Audio, RS232, IR, PoC up to 492ft

VER 1.0

Thank you for purchasing this product

For optimum performance and safety, please read these instructions carefully

before connecting, operating or adjusting this product. Please keep this manual

for future reference.

Surge protection device recommended

This product contains sensitive electrical components that may be damaged

by electrical spikes, surges, electric shock, lighting strikes, etc. Use of surge

protection systems is highly recommended in order to protect and extend the

life of your equipment.

Table of Contents

1. Introduction...............................................................................................

2. Features. ....................................................................................................

3. Package Contents. ..................................................................................

4. Specifications............................................................................................

5. Operation Controls and Functions.........................................................

5.1 Transmitter Panel................................................................................

5.2 Receiver Panel. ..................................................................................

5.3 IR Pin Definition. ..................................................................................

6. Application Example...............................................................................

1 / 8

1. Introduction

The CHE-HDBT250 HDBaseT HDMI Extender can extend high-definition

video / audio signals, RS-232, bi-directional IR, and the distance is up to 492ft

/ 150 meters between transmitter and receiver via a single Cat5e/6 cable. It

supports resolution up to 4K2K@60Hz 4:4:4, 18Gbps and HDCP 2.2. One

HDMI loop port is available for output. It also supports de-embedded audio

for L/R audio output and PoC function. In addition, the CHE-HDBT250 is

equipped with two-way IR pass-through which allows for source and display

control.

This CHE-HDBT250 includes two units: transmitter unit and receiver unit. The

transmitter unit is responsible for capturing HDMI input signal and carrying

the signal via one cost effective Cat5e/6 cable, and transmitting / emitting IR

control signals. The receiver unit is responsible for receiving the HDMI signal

and transmitting / emitting IR control signal.

The CHE-HDBT250 offers the most convenient solution for HDMI extension

via a single Cat5e/6 with long distance capability, and is the perfect solution

for any application.

2. Features

☆HDCP 2.2 / HDCP 1.4 and DVI 1.0 compliant

☆Supports 18Gbps video bandwidth

☆The maximum extended transmission distance via a single Cat5e/6 cable:

394ft / 120 meters for 4K2K signal;

492ft / 150 meters for 1080P signal

☆Supports one HDMI loop output on the transmitter

☆De-embedded audio to analog stereo output on receiver

☆With bi-directional IR, RS-232 and CEC pass-through

☆HDR, HDR10+, Dolby Vision and HLG function supported

☆Supports PoC (Power over Cable) function

☆Compact design for easy and flexible installation

2 / 8

3. Package Contents

Qty

Item

CHE-HDBT250 (Transmitter & Receiver kit)

IR Blaster cable (1.5 meters)

20~60KHz IR Receiver cable (1.5 meters)

Mounting Ear

3-pin Phoenix connector

24V/1A Locking Power adapter

User Manual

4. Specifications

Technical

HDCP Compliance HDCP 2.2 / HDCP 1.4

Video Bandwidth

18Gbps

Video Resolution

4K2K 50/60Hz 4:4:4

4K2K 50/60Hz 4:2:2

4K2K 50/60Hz 4:2:0

4K2K 30Hz 4:4:4

1080p, 1080i, 720p, 720i, 480p, 480i

All HDMI 3D TV formats

All PC resolutions including 1920 x 1200

Color Space RGB / YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0

Color Depth

8/10/12-bit (1080P60Hz, 4K30Hz, 4K60Hz YCbCr

4:2:2/4:2:0)

8-bit (4K60Hz 4:4:4 )

HDMI Audio Formats

LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby

TrueHD, Dolby Digital Plus(DD+), DTS-ES, DTS

HD Master, DTS HD-HRA, DTS-X

L/R Audio Formats

PCM 2.0

ESD Protection

Human body model — ±8kV (Air-gap discharge) &

±4kV (Contact discharge)

3 / 8

Connection

Transmitter

Inputs: 1x HDMI Type A [19-pin female]

Outputs: 1x HDMI Type A [19-pin female]

1x HDBT OUT [RJ45, 8-pin female]

Control: 1x IR IN [3.5mm Stereo Mini-jack]

1x IR OUT [3.5mm Stereo Mini-jack]

1x RS-232 [Phoenix jack]

1x SERVICE [Mini-USB, Update port]

Receiver

Inputs: 1x HDBT IN [RJ45, 8-pin female]

Outputs: 1x HDMI Type A [19-pin female]

1x AUDIO OUT [3.5mm Stereo Mini-jack]

Control: 1x IR IN [3.5mm Stereo Mini-jack]

1x IR OUT [3.5mm Stereo Mini-jack]

1x RS-232 [Phoenix jack]

1x SERVICE [Mini-USB, Update port]

Mechanical

Housing Metal Enclosure

Color

Black

Dimensions

Transmitter / Receiver:

140mm [W] x 65mm [D] x 18mm [H]

Weight Transmitter: 160g, Receiver: 155g

Power Supply Input: AC 100 - 240V 50/60Hz

Output: DC 24V/1A (Locking connector)

Power Consumption

9.36 W

Operating

Temperature 32 - 104°F / 0 - 40°C

Storage Temperature

-4 - 140°F / -20 - 60°C

Relative Humidity

20 - 90% RH (no condensation)

Resolution / Distance

4K2K

394ft / 120M

1080P

492ft / 150M

Resolution /

Cable Length

4K60 -

Feet / Meters

4K30 -

Feet / Meters

1080P60 -

Feet / Meters

HDMI IN / OUT

16ft / 5M

32ft / 10M

50ft / 15M

The use of “Premium High Speed HDMI” cable is highly recommended.

4 / 8

5. Operation Controls and Functions

5.1 Transmitter Panel

No.

Name

Function Description

Power LED

Red LED indicates that the transmitter is powered on.

SERVICE port

Firmware update port.

DC 24V

DC 24V/1A power supply input port.

Note that the extender supports PoC function, it means that either

transmitter or receiver is powered on by 24V/1A power adapter, the

other one doesn’t need power supply.

4HDBT OUT

RJ45 connector for connecting the HDBT IN port of receiver

with a CAT 5e/6 cable.

Connection

Signal

Indicator lamp

▪Illuminating: Transmitter and Receiver are in good

connection status.

▪Flashing: Transmitter and Receiver are in poor connection

status.

▪Dark: Transmitter and Receiver are not connected.

Data Signal

Indicator lamp

▪Illuminating: HDMI signal with HDCP.

▪Flashing: HDMI signal without HDCP.

▪Dark: No HDMI signal.

HDMI OUT

HDMI loop output for display.

8HDMI IN HDMI source input.

IR IN

IR input port for receiving the signal of IR remote.

10 IR OUT IR output port for control of source device. This IR output

signal

is from the IR IN port of receiver.

SERVICE

HDM I O UT

HDM I IN

IR IN IR OUT

546

9 10

DC 24V

HDBT OUT

5 / 8

RS-232

3-pin Phoenix connector for RS-232 command transmission.

The RS-232 command will pass-through from transmitter to

receiver or from receiver to transmitter.

5.2 Receiver Panel

No.

Name

Function Description

Power LED

Red LED indicates that the receiver is powered on.

SERVICE port

Firmware update port.

DC 24V

DC 24V/1A power supply input port.

Note that the extender supports PoC function, it means that either

transmitter or receiver is powered on by 24V/1A power adapter, the

other one doesn’t need power supply.

4HDBT IN

RJ45 connector for connecting the HDBT OUT port of

transmitter with a CAT 5e/6 cable.

Connection

Signal

Indicator lamp

▪Illuminating: Transmitter and Receiver are in good

connection status.

▪Flashing: Transmitter and Receiver are in poor connection

status.

▪Dark: Transmitter and Receiver are not connected.

Data Signal

Indicator

▪Illuminating: HDMI signal with HDCP.

▪Flashing: HDMI signal without HDCP.

▪Dark: No HDMI signal.

HDMI OUT

HDMI output for display.

AUDIO OUT

3.5mm stereo connector for analog audio output.

SERVICE

HDM I OUT

AUDIO OU T

IR IN IR OUT

546

9 10

DC 24V

HDBT IN

6 / 8

IR IN

IR input port for receiving the signal of IR remote.

10 IR OUT IR output port for control of display device. This IR output signal

is from the IR IN port of transmitter.

RS-232

3-pin Phoenix connector for RS-232 command transmission.

The RS-232 command will pass-through from transmitter to

receiver or from receiver to transmitter.

5.3 IR Pin Definition

IR Receiver and Blaster pin’s definition is as below:

IR RECEIVER IR BLASTER

IR Blaster Signal

Power

IR Signal

Power

Grounding

IR Blaster

IR Receiver

7 / 8

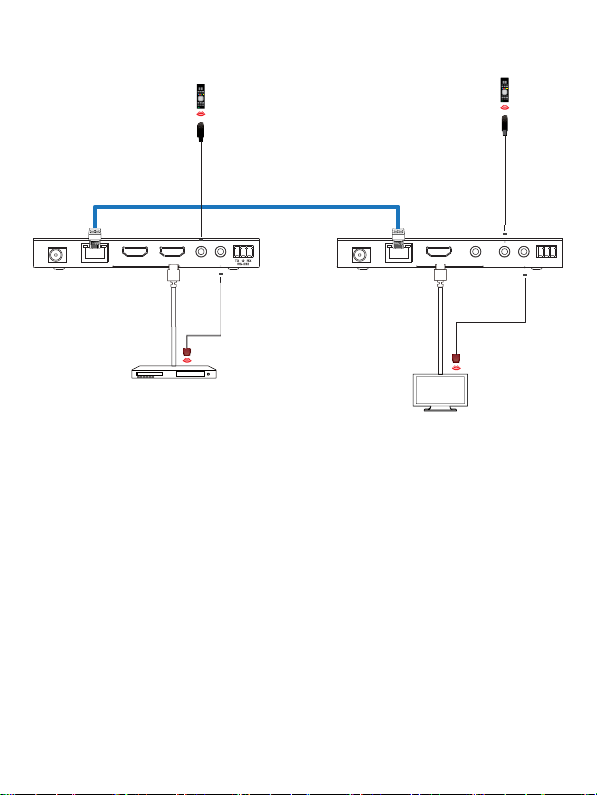

The following is IR system diagram about IR cable use method.

Note: When the angle between the IR receiver and the remote control is ± 45 °, the

transmission distance is 0-5 meters; when the angle between the IR receiver and the

remote control is ± 90 °, the transmission distance is 0-8 meters.

TV remote

DVD remote

IR Receiver cable

CAT 5e/6 cable

HDMI OUT HD M I IN IR IN IR O UT

HDM I OUT A UDIO O UT IRIN IR O UT

Transmitter

Receiver

IR Blaster cable

DVD

DC 24V

HDBT OUT

DC 24V

HDBT IN

8 / 8

DMI OU

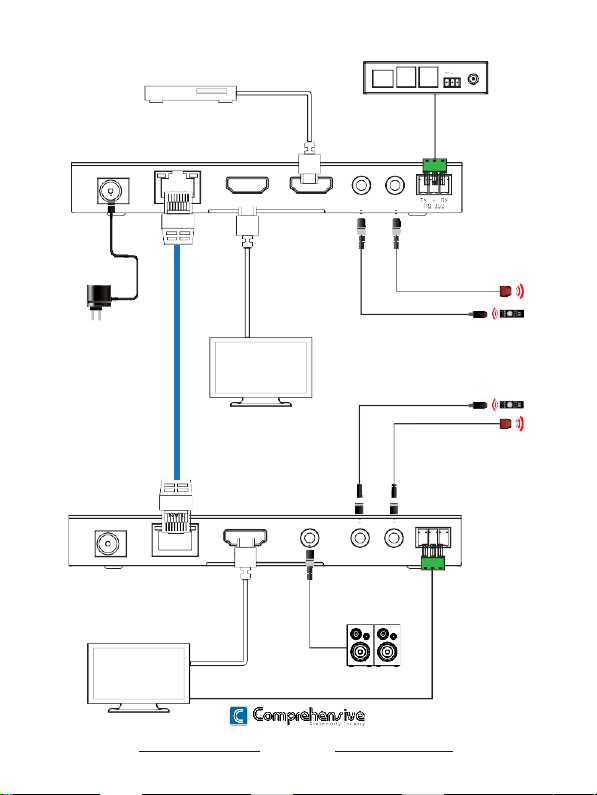

6. Application Example

DVD or Blu-ray Player

LAN

USB

RS-2 32 DC 12V

Controller

Transmitter

LAN

HDM I OUT HDMI IN

IR IN IR OUT

IR Blaster

Power Supply IR Receiver

CAT 5e/6 cable

UHDTV

IR Receiver

IR Blaster

Receiver

H T AUDIO OU T IR IN IR OUT

UHDTV

2.0 Speakers

DC 24V

HDBT IN

HDBT OUT

80 Little Falls Road, Fairfield, NJ 07004

sales@comprehensiveco.com | 800-526-0242 | www.ComprehensiveCo.com

Tabla de contenidos

Otros manuales de Extensor de Comprehensive

Comprehensive

Comprehensive CHE-HD300 Manual de usuario

Comprehensive

Comprehensive CHE-HD200 Manual de usuario

Comprehensive

Comprehensive CHE-HDBT300U Manual de usuario

Comprehensive

Comprehensive CHE-HDBTWP242K Manual de usuario

Comprehensive

Comprehensive CE-DVISM Manual de usuario

Comprehensive

Comprehensive CHE-HDBT300 Manual de usuario

Comprehensive

Comprehensive CE-HD330RS Manual de usuario

Comprehensive

Comprehensive CHE-HDBT2010 Manual de usuario

Comprehensive

Comprehensive CHE-1 Manual de usuario

Comprehensive

Comprehensive CHE-1 Manual de usuario

Comprehensive

Comprehensive CHE-HDBTWP230RX Manual de usuario

Comprehensive

Comprehensive CHE-HDBT200 Manual de usuario

Comprehensive

Comprehensive CHE-1 Manual de usuario

Comprehensive

Comprehensive CVE-TRX01 Manual de usuario

Comprehensive

Comprehensive CHE-HDBT255U Manual de usuario

Comprehensive

Comprehensive CHE-HDBTWP125MC Manual de usuario

Comprehensive

Comprehensive CHE-HDBTWP110K Manual de usuario

Comprehensive

Comprehensive CHE-HDRT200 Manual de usuario

Comprehensive

Comprehensive CHE-HDF18G01 Manual de usuario

Comprehensive

Comprehensive CHE-HD300 Manual de usuario

Comprehensive

Comprehensive CHE-HDBT400U Manual de usuario

Comprehensive

Comprehensive CHE-HDBTWP230K Manual de usuario

Comprehensive

Comprehensive CHE-HDBTWP100K Manual de usuario

Comprehensive

Comprehensive CUE-104FE Manual de usuario

Manuales populares de Extensor de otras marcas

SY HDBT-60T Manual de usuario

Appsys ProAudio

Appsys ProAudio ADX-16 Manual de usuario

Atlona

Atlona RS232 Manual de usuario

IDK

IDK OPF-TH1000-A Manual de usuario

Enable-IT

Enable-IT 824WP Manual de usuario

Worx

Worx Landroid RadioLink WA0864 Hoja de especificaciones

TP-Link

TP-Link TL-WA730RE Manual de usuario

Camplex

Camplex CMX-HDMI-SFPL Manual de usuario

SC&T

SC&T HE03-4K Manual de usuario

Marmitek

Marmitek MegaView70 Manual de usuario

Samsung

Samsung SCS-26UC4 Manual de usuario

Foxun

Foxun SX-GES24 Manual de usuario

MuxLab

MuxLab 500771 Manual de usuario

foxunhd

foxunhd SX-AEX01 Manual de usuario

TERK Technologies

TERK Technologies LFIRX2 Manual de usuario

Devolo

Devolo Audio Extender Manual

Edimax

Edimax EW-7438RPn V2 Manual de usuario

Shinybow USA

Shinybow USA SB-6335T5 Manual de usuario
