Compex NetPassage 28G Manual de usuario
Quick Install Guide
Wireless-G Multimedia Router
NetPassage 28G
(RoHS-compliant)
1
TABLE OF CONTENTS
CHAPTER 1: INTRODUCTION.......................................................................... 1
CHAPTER 2: NETWORK INFRASTRUCTURE...................................................... 2
CHAPTER 3: LET’S GET GOING-HARDWARE SETUP........................................ 3
POWER UP IN 4 STEPS: ......................................................................................... 3
CHAPTER 4: CONFIGURING WIRELESS NETWORK CONNECTION ................ 4
CHAPTER 5: CONFIGURING TCP/IP SETTINGS............................................... 6
CHAPTER 6: GETTING STARTED WITH WIZARD SETUP..................................... 8
CHAPTER 7: PANEL VIEWS AND DESCRIPTIONS.................................................15
CHAPTER 8: TECHNICAL SPECIFICATIONS.................................................. 18
WARRANTY REGISTRATION CARD............................................................... 23
Chapter 1 Introduction
1
Chapter 1: Introduction
Thank you for purchasing the Compex
NetPassage 28G Wireless-G Multimedia
Gateway. The Multimedia Gateway with four
USB2.0 ports is the latest innovation from Compex
which allows USB devices connected it to be
shared with others. Typical devices include
printers, webcams and hard drives. There are
endless possibilities with what you can do using
the Multimedia Gateway. Download songs and
store them in the shared hard drive so others can
play them as well. Download photos and print them to the shared printer.
Capture pictures with the webcam and store them on the shared hard drive.
Of course, it is also a full-fledge broadband Internet Gateway allowing you to
share the broadband connection with several users in your home. The
NetPassage 28G Multimedia Gateway is, additionally, equipped with
advanced features that will make it suitable for the office as well.
Chapter 2 Network Infrastructure
2
Chapter 2: Network Infrastructure
Only a few simple steps are required to set up the router to begin your
broadband Internet sharing as part of your wired and wireless network
infrastructure.
Example : BroadBand Internet Access Distribution to a Fast
Ethernet Network & Wireless Network
Connect from Cable/ADSL
Modem to WAN port. Connect from computers
to the integrated 3-port
10/100Mbps switch to form
LAN.
Wireless LAN clients access
the Internet and the wired
LAN via the router.
Router
Chapter 3 Let’s Get Going – Hardware Setup
3
Chapter 3: Let’s Get Going-Hardware Setup
Power Up in 4 Steps:
In 4 simple steps, you shall have your router wired and functional. After which, you may
proceed to the software configuration and get yourself ready to surf the Internet at high-
speeds!
Connect the Ethernet cable from your Cable/ADSL modem on one end, and
then connect the cable to the socket labeled WAN on the router.
For Wired user, connect an Ethernet cable from your computer’s network port
to any of the LAN ports of the router.
Connect the USB devices (such as USB printer, webcam, etc ) to the USB ports
of the router.
Connect the power adapter from the main power supply to the router. Please
do not turn on the power during the installation for safety reasons. Once the
hardware setup is dome, you may power on the device.
2
4
1
4
2
1
3
3
3
Chapter 4 Configuring Wireless Network Connection
4
Chapter 4: Configuring Wireless Network
Connection
Depending on your client’s wireless adapter, you may set up Windows XP’s
Wireless Network Connection as follows:
Right-click on Wireless Network
Connection corresponding to
the wireless Ethernet adapter
you wish to connect with the
router, and click on Properties.
At the Wireless Networks tab,
click on the Add button under
Preferred Networks.
Chapter 4 Configuring Wireless Network Connection
5
At the Network name (SSID)
field, type in ‘compex’ ( the
factory default of the router ).
Click OK.
Chapter 5 Configuring TCP/IP Settings
6
Chapter 5: Configuring TCP/IP Settings
You should configure your PC or wireless client to obtain IP address
automatically. For users of Microsoft Windows XP, you may configure the TCP/IP
settings as follows:
Click the Start button. Select
Settings and click the Control
Panel icon. Then double-click the
Network Connection icon.
Right click on Local Area
Connection or Wireless Network
Connection corresponding to
the Ethernet adapter you wish to
connect to the router.
Under General tab at This
connection uses the following
item, make sure the box next to
Internet Protocol (TCP/IP) is
checked. Then highlight Internet
Protocol (TCP/IP), and click the
Properties button.
Chapter 5 Configuring TCP/IP Settings
7

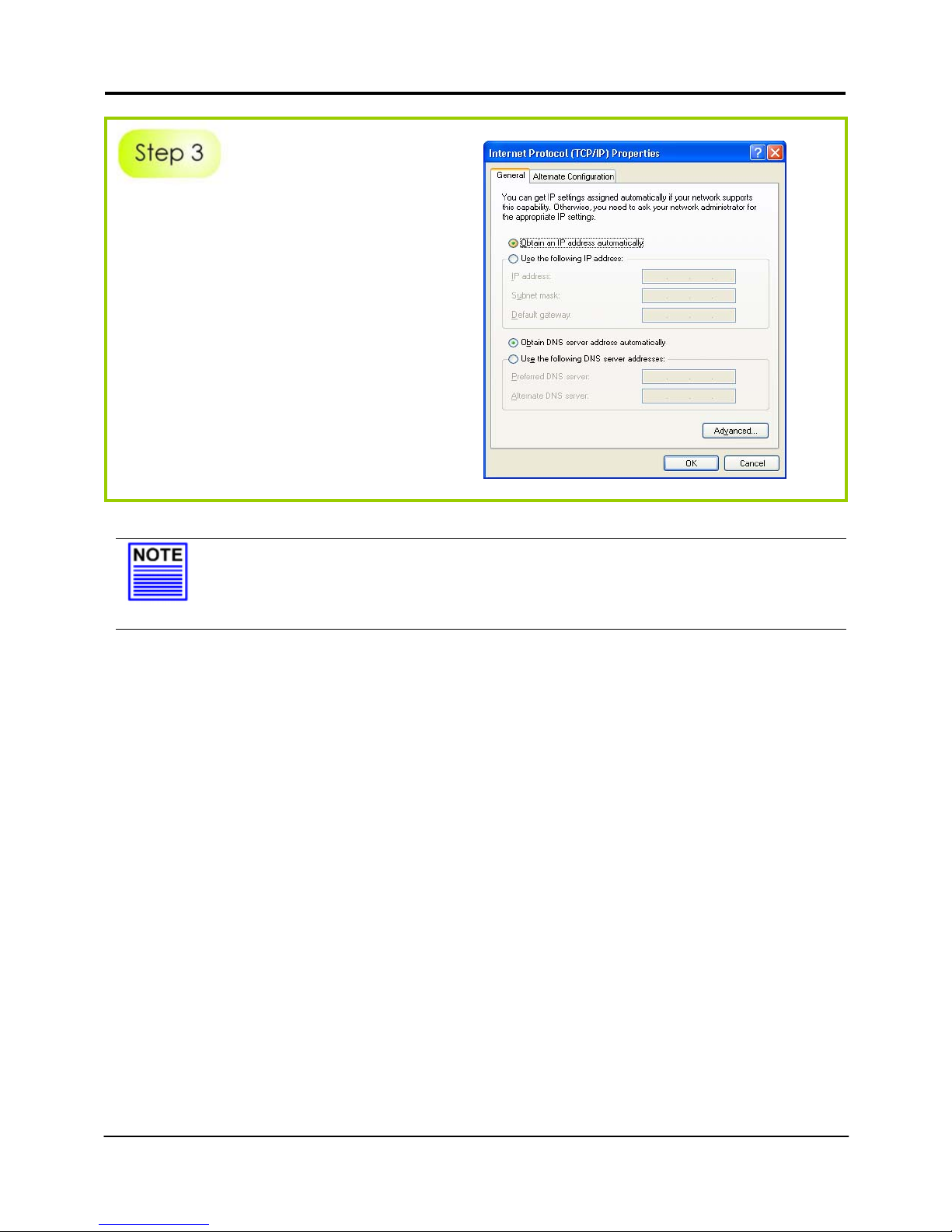

Check the radio button next to
Obtain an IP address
automatically .
Then click the OK button on this
page, and the OK button on the
previous page it returns you to.
Restart your computer to
complete the PC configuration.
NOTE
The Advanced Setup is not mentioned in this quick guide. Please
refer to User’s Manual for more information.
Chapter 6 Getting Started with Wizard Setup
8
Chapter 6: Getting Started with Wizard Setup
You should configure your PC or wireless client to obtain IP address
automatically. For users of Microsoft Windows XP, you may configure the TCP/IP
settings as follows:
Insert the Product CD to your CD-ROM
drive, run the uConfig program. Select
Wireless-G Multimedia Gateway and click
on OpenWeb button.
Alternatively, launch Internet Explorer
Browser ( or Netscape). At the Address
field, key in http://192.168.168.1.
The default password is pre-entered in the
field provided. Just click on the LOGIN!
button to access the main page of the
router. The factory default password is
‘password’.
