Compaq Dc7700 - Convertible Minitower PC Instrucciones de uso

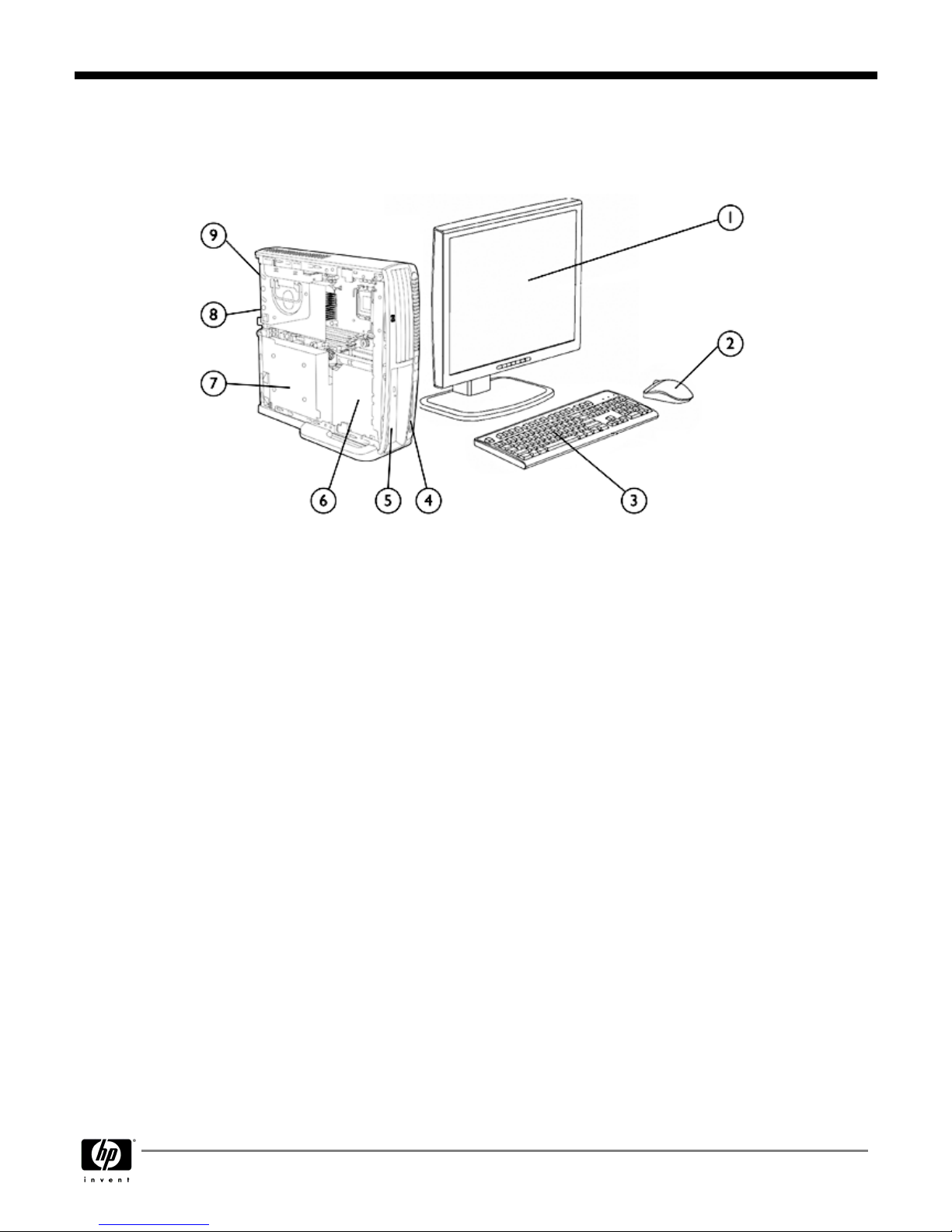

Ultra-slim Desktop

Monitor (sold separately)

(1) 3.5" internal bay

2-Button Scroll Mouse (PS/2) or Optical Scroll Mouse

(PS/2 or USB)

200-watt Active Power Factor Correction (PFC) power

supply

HP Standard Keyboard (PS/2 or USB) or HP USB

Smartcard Keyboard

(1) full-height PCI slot (with optional riser) , (1) low profile

PCI Express x16 slot (with optional riser)*

Front I/O: (2) USB 2.0, headphone and microphone

Rear I/O: (6) USB 2.0, (1) optional serial port (available via

adapter), (1) optional parallel port (available via adapter),

(1) optional DVI graphics port (available via DVI ADD2

adapter), (2) PS/2, (1) RJ-45, (1) VGA, audio in/out

(1) Slimline Drive Bay

NOTE:

Only one optional riser is allowed: either the PCI riser or the PCI Express x16 riser.

QuickSpecs

HP Compaq dc7700 Business PC

Overview

DA - 12543 Worldwide QuickSpecs — Version 3 — 9.28.2006

Page 1

Small Form Factor

Monitor (sold separately)

(1) 3.5" internal bay

2-Button Scroll Mouse (PS/2) or Optical Scroll Mouse

(PS/2 or USB)

240-watt Active Power Factor Correction (PFC) power

supply

HP Standard Keyboard (PS/2 or USB) or HP USB

Smartcard Keyboard

Rear I/O: (6) USB 2.0, (1) standard serial port, (1) optional

serial port, (1) parallel port, (2) PS/2, (1) RJ-45, (1) VGA,

(1) optional DVI graphics port (available via DVI ADD2

adapter), audio in/out

Front I/O: (2) USB 2.0, headphone and microphone

(1) 3.5" external bay for optional HP 16-in-1 Media Card

Reader, diskette drive, or other 3.5" device

(1) 5.25" external bay for optional optical drive, or other

5.25" device (bay tilts up for device removal and insertion)

10.

(2) low profile PCI slots, (1) low profile PCI Express x1

slot, (1) low profile PCI Express x16 slot standard*; (2) full-

height PCI slots with optional riser card

NOTE:

With riser card option, PCI Express x1 and x16 slots are inaccessible.

QuickSpecs

HP Compaq dc7700 Business PC

Overview

DA - 12543 Worldwide QuickSpecs — Version 3 — 9.28.2006

Page 2

Convertible Minitower

Monitor (sold separately)

(2) full-height PCI slots, (1) full-height PCI Express x1 slot,

(1) full-height PCI Express x16 slot, (2) additional full-

height PCI slots optional

2-Button Scroll Mouse (PS/2) or Optical Scroll Mouse

(PS/2 or USB)

HP Standard Keyboard (PS/2 or USB) or HP USB

Smartcard Keyboard

Rear I/O: 6 USB 2.0, 1 standard serial port, 1 optional

serial port, 1 parallel port, 2 PS/2, 1 RJ-45, 1 VGA, audio

in/out, mic in

Front I/O: (2) USB 2.0, headphone and microphone

(1) 3.5" external bay for optional HP 16-in-1 Media Card

Reader, diskette drive, or other 3.5" device

365-watt Active Power Factor Correction (PFC) power

supply

(3) 5.25" external bays and (2) 3.5" internal bays

QuickSpecs

HP Compaq dc7700 Business PC

Overview

DA - 12543 Worldwide QuickSpecs — Version 3 — 9.28.2006

Page 3

At A Glance

Designed for long-term, networked deployment within medium and large organizations in commercial business,

finance and public sector industries

Created using industry leading Design for Environment standards. Upgradeable, recyclable and energy efficient.

Long purchase lifecycles and image stability for demanding enterprise environments

Support for new Intel technologies introduced in 2006: Intel® Q965 Express chipset, Intel Core™ 2 Duo Processors,

and Intel Graphics Media Accelerator 3000 integrated graphics

Select models with new Intel vPro technology support the latest in manageability and security technology

Value-added software

HP ProtectTools Security Software Suite, including embedded security, now preinstalled standard

HP Client Manager (

http://h18000.www1.hp.com/im/index.html

)

HP OpenView Configuration Management Solutions

Altiris Deployment Solution Agent

Symantec AntiVirus 10.0 with 60 day Live Update Subscription

HP Insight Diagnostics software

Fully compatible software OS image across all three models (Ultra-slim Desktop, Small Form Factor,

and Convertible Minitower)

HP BIOS for better security, manageability and software image stability

Selected configurations with global availability easily set up and ordered through HP.com Business to Business portals

(

http://h10019.www1.hp.com/business-site/index.html

)

Tailored HP Factory Express deployment and lifecycle services available

(

http://h71028.www7.hp.com/enterprise/cache/97688-0-0-225-121.aspx

)

Protected by HP Services, including standard warranties up to 5-5-5 (terms and conditions vary by country; certain

restrictions and exclusions apply)

Security

Embedded TPM1.2 compliant security module (requires HP ProtectTools Embedded Security software),

providing compatibility with future security features expected in Microsoft Vista

Redundant Array of Independent Disks (RAID) 1 configurations to protect data against hardware failures

HP Backup and Recovery Manager to protect data against software corruption or incompatibilities due to

patching or upgrades

Tool-less serviceability features for easier upgrades and repairs

Choice of professional chassis form factors to accommodate the desired mix between expandability and size

NOTE:

All models and features may not be available in all countries.

QuickSpecs

HP Compaq dc7700 Business PC

Overview

DA - 12543 Worldwide QuickSpecs — Version 3 — 9.28.2006

Page 4

Model Key and Example

NOTE:

This diagram is an example that illustrates how to read the model number. It is not intended to give every available

configuration choice specified in the body of this document and may include references to modules that are out of date and

no longer available.

QuickSpecs

HP Compaq dc7700 Business PC

Configurable Components - Select Models (localized by Regions)

DA - 12543 Worldwide QuickSpecs — Version 3 — 9.28.2006

Page 5

Operating System

–

One of the following

Genuine Windows XP Professional SP2

Genuine Windows XP Home SP2

FreeDOS

Windows Vista Capable – Not all Windows Vista features are available for use on all Windows

Vista Capable PCs. All Windows Vista Capable PCs will run the core experiences of Windows

Vista, such as innovations in organizing and finding information, security, and reliability. Some

features available in premium editions of Windows Vista -- like the new Windows Aero™ user

interface -- require advanced or additional hardware.

Check

http://www.windowsvista.com/getready

for details.

NOTE:

Microsoft Windows NT 4.0 and Microsoft Windows 2000 are not available on these

systems. Some drivers for Windows 2000 are available for download from

http://www.hp.com

Value-added Software

(not included with

FreeDOS)

HP ProtectTools Security Solutions

Microsoft Office 2003 Basic

Altiris Deployment Solution Agent

Microsoft Office 2003 Personal

HP OpenView Configuration Management

Solutions Agent (visit

http://www.hp.com/go/easydeploy

)

Microsoft Office 2003 Professional

Microsoft Office 2003 Small Business

HP Insight Diagnostics (on documentation CD)

Microsoft Works 8.5

Computer Setup Utility

Microsoft Internet Explorer with Google Toolbar

HP Backup and Recovery Manager

Adobe Acrobat Reader

Symantec AntiVirus 10.0 with 60 day Live

Update Subscription

PDF Complete

Value-added Services

and Features

HP Stable Platform Program

Factory Express Deployment and Lifecycle

Services

Business-to-Business Portals

TPM 1.2 Security

HP Global Series Services

Tool-less Serviceability

Service and Support

On-site Warranty and Service

Note 1

: This three-year (3-3-3), limited warranty and service offering

delivers three years of parts, labor and on-site repair. Response time is next business-day

Note 2

and includes free telephone support

Note 3

24 x 7. Global coverage

Note 2

ensures that any

product purchased in one country and transferred to another non-restricted country will remain fully

covered under the original warranty and service offering. Some countries/regions do not offer one

year onsite and labor.

NOTE 1:

Terms and conditions may vary by country. Certain restrictions and exclusions apply.

NOTE 2:

On-site service may be provided pursuant to a service contract between HP and an

authorized HP third-party provider, and is not available in certain countries. Global service

response times are based on commercially reasonable best effort and may vary by country.

NOTE 3

: Technical telephone support applies only to HP-configured, HP and HP-qualified, third-

party hardware and software. Toll-free calling and 24 x 7 support may not be available in some

countries.

Ultra-slim Desktop

Small Form Factor

Convertible Minitower

QuickSpecs

HP Compaq dc7700 Business PC

Configurable Components

DA - 12543 Worldwide QuickSpecs — Version 3 — 9.28.2006

Page 6

Dimensions

Chassis Dimensions

(H x W x D)

2.95 x 12.4 x 13.18 in

(7.49 x 31.50 x 33.48 cm)

3.95 x 13.3 x 14.9 in

(10.03 x 33.78 x 37.85 cm)

17.65 x 6.6 x 17.8 in

(44.83 x 16.76 x 45.21 cm)

System weight

13.2 lb (5.99 kg) 19.5 lb (8.85 kg)

32.5 lb (14.74 kg)

System volume

7.9 liters

12.8 liters 33.8 liters

Shipping weight

19 lb (8.62 kg)

30 lb (13.61 kg) 43 lb (19.50 kg)

Maximum supported

weight (desktop

orientation)

77.1 lb (35 kg) 77.1 lb (35 kg) 77.1 lb (35 kg)

Shipping box dimensions

(H x W x D)

12.63 x 18.75 x 20 in

(32.08 x 47.63 x 50.8 cm)

12.63 x 18.75 x 20 in

(32.08 x 47.63 x 50.8 cm)

23.38 x 13.06 x 22.88 in

(59.39 x 33.17 x 58.12 cm)

Power Supply

200W power supply – Active

PFC

240W power supply – Active

PFC

365W power supply – Active

PFC

Ports

USB 2.0

8 (2 front, 6 rear) 8 (2 front, 6 rear) 8 (2 front, 6 rear)

Serial

1 optional via Serial & parallel

I/O adapter

1 standard with 2nd optional 1 standard with 2nd optional

Parallel

1 optional via Serial & parallel

I/O adapter

1 1

PS/2

1 keyboard, 1 mouse

Video

analog for integrated graphics

DVI output

available via ADD2 card, PCI-E x16 card, or PCI card

Support for Multi-Monitor

available via ADD2 card, PCI-E x16 card, or PCI card

Audio

Front – mic and headphone

Rear – line in, line out

Front – mic and headphone

Rear – line in, line out, mic in

NIC (RJ-45)

Integrated Intel 82566DM Gigabit Network Connection Ethernet

USDT

SFF

CMT

Chipset

Intel Q965 Express chipset

XXX

USDT

SFF

CMT

Processor and Speed*

One of the following

Intel Celeron D Processors:

Intel Celeron D 352 Processor (3.20-GHz, 512K L2 cache, 533-MHz FSB)

XXX

Intel Celeron D 360 Processor (3.46-GHz, 512K L2 cache, 533-MHz FSB)

XXX

Intel Pentium 4 Processors with Hyper Threading Technology:

Intel Pentium 4 524 Processor (3.06-GHz, 1-MB L2 cache, 533 -MHz FSB)

XXX

Intel Pentium 4 531 Processor (3.0-GHz, 1-MB L2 cache, 800-MHz FSB)

XXX

Intel Pentium 4 541 Processor (3.2-GHz, 1 -MB L2 cache, 800-MHz FSB)

XXX

Intel Pentium D Processors:

Intel Pentium D 915 Processor (2.8-GHz, 2x1MB L2 cache, 800-Mhz FSB

XXX

Intel Pentium D 925 Processor (3.0-GHz, 2x2MB L2 cache, 800-MHz FSB)

XXX

Intel Pentium D 945 Processor (3.4-GHz, 2x2MB L2 cache, 800-MHz FSB)

XXX

Intel Core 2 Duo Processors:

Intel Core 2 Duo E6300 Processor (1.86-GHz, 2 MB L2 cache, 1066-MHz

FSB)

XXX

Intel Core 2 Duo E6400 Processor (2.13-GHz, 2 MB L2 cache, 1066-MHz

FSB)

XXX

Intel Core 2 Duo E6600 Processor (2.40-GHz, 4 MB L2 cache, 1066-MHz

FSB)

XXX

QuickSpecs

HP Compaq dc7700 Business PC

Configurable Components

DA - 12543 Worldwide QuickSpecs — Version 3 — 9.28.2006

Page 7

Intel Core 2 Duo E6700 Processor (2.66-GHz, 4 MB L2 cache, 1066-MHz

FSB)

XXX

NOTE:

Intel processor numbers are not a measure of performance. Processor numbers differentiate features within

each processor family, not across different processor families.

USDT

SFF

CMT

Intel vPro Technology*

Uses AMT 2.0 (Active Management Technology) for network alerting and

management of systems regardless of power state, as well as operating

system-absent environments

XXX

NOTE:

Units configured with this feature are referred to as HP Compaq dc7700p Business PCs.

Memory

DDR2 SYNCH DRAM NON-ECC MEMORY

Memory upgrades are accomplished by adding single or multiple DIMMs of the same or varied

sizes. This chart does not represent all possible memory configurations. The Intel Q965 Express

chipsets support non-ECC DDR2 PC2-5300 (667-MHz) and PC2-6400 (800-MHz) memory.

CAUTION:

You must shut down the computer

and disconnect the power cord

before adding or

removing memory modules. Regardless of the power-on state, voltage is always supplied to the

memory modules as long as the computer is plugged in to an active AC outlet. Adding or removing

memory modules while voltage is present may cause irreparable damage to the memory modules

or system board.

HP recommends dual-channel symmetric configurations for maximum performance.

For best performance, add the same amount of total memory to each channel and do not mix

speeds. For dual-channel symmetric performance, the total amount of memory in each channel

must be equal. If speeds are mixed, speed will default to the slowest DIMM.

Ultra-slim Desktop

Maximum Memory

Supports up to 3-GB of DDR2 SYNCH DRAM.

Slot 1 is black and must always be populated. Not

all memory configurations possible are represented below.

DIMM Size

Slot

Channel A Channel B

(black)

(white)

512-MB

(dual-channel

symmetric)

256-MB

1-GB

(dual channel symmetric)

512-MB

3-GB maximum

1-GB 1-GB 1-GB

*NOTE

: The Intel Q965 Express chipset includes a built-in Management Engine (ME), which allocates memory for

manageability functions. Management Engine memory is shared with system memory. If the PC contains a single DIMM, 8

MB of memory is pre-allocated for it at system startup. If the PC contains two DIMMs, 16 MB of memory is pre-allocated.

This memory is not made available to the operating system, just as pre-allocated video memory is not available.

QuickSpecs

HP Compaq dc7700 Business PC

Configurable Components

DA - 12543 Worldwide QuickSpecs — Version 3 — 9.28.2006

Page 8

Small Form Factor and Convertible Minitower

Maximum Memory*

Supports up to 4-GB of DDR2 SYNCH DRAM.

Slot 1 is black and must always be populated.

Not all memory configurations possible are represented below.

NOTE:

Above 3-GB, all memory may not be available due to system resource requirements.

DIMM Size

Slot

Channel A Channel B

(black)

(white)

512-MB

(dual-channel

symmetric)

256-MB 256-MB

1-GB

(dual-channel

symmetric)

512-MB 512-MB

1-GB

(dual-channel

symmetric)

256-MB 256-MB 512-MB

2-GB

(dual-channel

symmetric)

1-GB 512-MB 512-MB

2-GB

(dual-channel

symmetric)

512-MB 512-MB 512-MB 512-MB

4-GB maximum

(dual-channel

symmetric)

1-GB 1-GB 1-GB 1-GB

NOTE:

The Intel Q965 Express chipset includes a built-in Management Engine (ME), which allocates memory for

manageability functions. Management Engine memory is shared with system memory. If the PC contains a single DIMM, 8

MB of memory is pre-allocated for it at system startup. If the PC contains two DIMMs, 16 MB of memory is pre-allocated. This

memory is not made available to the operating system, just as pre-allocated video memory is not available.

Memory Configurations

– One of the following

USDT

SFF

CMT

512-MB DDR2 Synch Dram PC2-6400 (800-MHz) Non ECC (1 x 512)

XXX

512-MB DDR2 Synch Dram PC2-6400 (800-MHz) Non ECC (2 x 256)

XXX

1-GB DDR2 Synch Dram PC2-6400 (800-MHz) Non ECC (1 x 1GB)

XXX

1-GB DDR2 Synch Dram PC2-6400 (800-MHz) Non ECC (2 x 512)

XXX

2-GB DDR2 Synch Dram PC2-6400 (800-MHz) Non ECC (2 x 1GB)

XXX

2-GB DDR2 Synch Dram PC2-6400 (800-MHz) Non ECC (4 x 512)

X X

3-GB DDR2 Synch Dram PC2-6400 (800-MHz) Non ECC (3 x 1GB)

XXX

4-GB DDR2 Synch Dram PC2-6400 (800-MHz) Non ECC (4 x 1GB)

X X

512-MB DDR2 Synch Dram PC2-5300 (667-MHz) Non ECC (1 x 512)

XXX

512-MB DDR2 Synch Dram PC2-5300 (667-MHz) Non ECC (2 x 256)

XXX

1-GB DDR2 Synch Dram PC2-5300 (667-MHz) Non ECC (1 x 1GB)

XXX

1-GB DDR2 Synch Dram PC2-5300 (667-MHz) Non ECC (2 x 512)

XXX

2-GB DDR2 Synch Dram PC2-5300 (667-MHz) Non ECC (2 x 1GB)

XXX

2-GB DDR2 Synch Dram PC2-5300 (667-MHz) Non ECC (4 x 512)

X X

3-GB DDR2 Synch Dram PC2-5300 (667-MHz) Non ECC (3 x 1GB)

XXX

4-GB DDR2 Synch Dram PC2-5300 (667-MHz) Non ECC (4 x 1GB)

X X

Expandability

USDT

SFF

CMT

QuickSpecs

HP Compaq dc7700 Business PC

Configurable Components

DA - 12543 Worldwide QuickSpecs — Version 3 — 9.28.2006

Page 9

PCI slots

Optional with riser card:

1 full-height (4.2"), length (6.6")

2 low-profile (2.5"), length (6.6")

standard;

2 full-height (4.2"), length

(6.875") via optional riser card.

NOTE:

With riser card option,

express x1 and x16 slots are

not accessible.

2 full-height (4.2"), length (13.4")

standard;

(2 additional full-height slots

available via optional extender

card)

Max power per slot

25W 25W 25W

PCI Express x16 slot

Optional with riser card:

1 low-profile (3.987"), length

(6.60")

1 low-profile (2.5"), length (6.6")

1 full-height (4.2"), length (10.5")

Max power per slot

25W 25W 75W

PCI Express x1 slot

1 low profile (2.5"), length (6.6")

1 full-height (4.2"), length (13.4")

Max power per slot

N/A

10W 10W

External Bays

1 Slimline (WxDxH):

128 x 127 x 12.7 mm

2 4

3.5"

N/A

1 1

5.25"

N/A

1 (length 8.189")

3 (2 – length 8.189", 1 – length

5.71")

Internal 3.5" HDD Bays

112

Hard Drive Controller

(PCI) Supported

Serial ATA (support for SATA 1.5-Gb/s and 3.0-Gb/s hard drives)

Hard Drive Interfaces

Supported

1 Serial ATA interface

3 Serial ATA interfaces 4 Serial ATA interfaces

Storage Diagrams

Ultra-slim Desktop

Small Form Factor

Convertible Minitower

QuickSpecs

HP Compaq dc7700 Business PC

Configurable Components

DA - 12543 Worldwide QuickSpecs — Version 3 — 9.28.2006

Page 10

Otros manuales para dc7700 - Convertible Minitower PC

Tabla de contenidos

Otros manuales de De oficina de Compaq

Compaq

Compaq Evo Workstation w6000 Instrucciones de uso

Compaq

Compaq Evo W6000 Hoja de especificaciones

Compaq

Compaq Deskpro EN Series Manual

Compaq

Compaq EN Series Manual de uso y cuidado

Compaq

Compaq BL10e - HP ProLiant - 512 MB RAM Guía rápida

Compaq

Compaq 8000 - Elite Convertible Minitower PC Manual de operación y mantenimiento

Compaq

Compaq Presario SR1100 - Desktop PC Instrucciones de instalación

Compaq

Compaq 117755-003 - ProSignia - 740 Guía de referencia rápida

Compaq

Compaq dc7700 - Convertible Minitower PC Manual de usuario

Compaq

Compaq Presario 6500 - Desktop PC Manual de usuario

Compaq

Compaq 7470 - Presario - 64 MB RAM Manual

Compaq

Compaq Presario SR1400 - Desktop PC Instrucciones de instalación

Compaq

Compaq 500B MT Guía de configuración

Compaq

Compaq Compaq Presario Hoja de especificaciones

Compaq

Compaq Presario Presario PC Manual de usuario

Compaq

Compaq CQ5110F - Presario - 3 GB RAM Manual de uso y mantenimiento

Compaq

Compaq Presario SR1100 - Desktop PC Instrucciones de instalación

Compaq

Compaq Presario SR2100 - Desktop PC Cómo utilizar

Compaq

Compaq GX5000T Instrucciones de instalación

Compaq

Compaq Presario SR1800 - Desktop PC Instrucciones de instalación

Compaq

Compaq BL10e - HP ProLiant - 512 MB RAM Manual de referencia

Compaq

Compaq Deskpro 4000 Manual de uso y cuidado

Compaq

Compaq Presario SR5000 - Desktop PC Cómo utilizar

Compaq

Compaq iPAQ IA-1 Hoja de especificaciones

Manuales populares de De oficina de otras marcas

HP m9060n - Pavilion - Elite Hoja de especificaciones

Asus

Asus E210 Series Manual de usuario

Dell

Dell Inspiron 600m Manual de usuario

Dell

Dell Inspiron 3662 Manual de usuario

TotalFlow

TotalFlow uFLO Manual de usuario

HP Presario SV7000 - Desktop PC Manual de usuario

HP ProDesk 400 G5 Manual

Logitech

Logitech MK320 Manual de usuario

Dell

Dell XPS 730 H2C Manual de usuario

Sony

Sony Vaio Series Manual de usuario

Sony

Sony VGC-LT32E - Vaio All-in-one Desktop Computer Manual de usuario

Alto

Alto MD 250 Manual de usuario

Lenovo

Lenovo ThinkCentre Edge 72 Manual

Lenovo

Lenovo ThinkStation D20 Manual

Arbor Technology

Arbor Technology FPC-7800 Series Manual de usuario

Sony

Sony VAIO VGX-TP1 Series Manual de usuario

Asus

Asus Eee Box B204 Manual de usuario

Dell

Dell Optiplex 9010 All In One Manual de usuario

Compaq dc7700 - Convertible Minitower PC Instrucciones de uso

Manuales populares de De oficina de otras marcas
