End-User Replaceable Parts Program

Replacing the 1394 Card

5 and 7 Series

Notice

COMPAQ and the Compaq logo registered in U.S. Patent and Trademark

Office.

Microsoft and Windows are trademarks of Microsoft Corporation.

All other product names mentioned herein may be trademarks or registered

trademarks of their respective companies.

Compaq shall not be liable for technical or editorial errors or omissions

contained herein. The information in this document is subject to change

without notice.

The information in this publication is subject to change without notice and

is provided "AS IS" WITHOUT WARRANTY OF ANY KIND. THE

ENTIRE RISK ARISING OUT OF THE USE OF THIS INFORMATION

REMAINS WITH RECIPIENT. IN NO EVENT SHALL COMPAQ BE

LIABLE FOR ANY DIRECT, CONSEQUENTIAL, INCIDENTAL,

SPECIAL, PUNITIVE, OR OTHER DAMAGES WHATSOEVER

(INCLUDING WITHOUT LIMITATION DAMAGES FOR LOSS OF

BUSINESS PROFITS, BUSINESS INTERRUPTION, OR LOSS OF

BUSINESS INFORMATION), EVEN IF COMPAQ HAS BEEN

ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. THE

FOREGOING SHALL APPLY REGARDLESS OF THE NEGLIGENCE

OR OTHER FAULT OF EITHER PARTY AND REGARDLESS OF

WHETHER SUCH LIABILITY SOUNDS IN CONTRACT,

NEGLIGENCE, TORT, OR ANY OTHER THEORY OF LEGAL

LIABILITY, AND NOTWITHSTANDING ANY FAILURE OF

ESSENTIAL PURPOSE OF ANY LIMITED REMEDY.

The limited warranties for Compaq products are exclusively set forth in the

documentation accompanying such products. Nothing herein should be

construed as constituting a further or additional warranty.

Compaq Presario

First Edition (September 2000)

Part Number 216695-001

REPLACING THE 1394 CARD 3

Replacing the

1394 Card

The 1394 card (also known

as IEEE 1394) has a high-

speed serial bus that allows

for simultaneously

connecting up to 63

devices. The 1394 card fits

into a Peripheral

Component Interconnect

(PCI) slot on the system

board.

It is widely used for

attaching video devices to

the computer.

Introduction

Your Compaq Internet PC has an Easy Access panel that

makes accessing the internal parts easy. This document

contains instructions for removing and replacing the 1394

card (see Figure 1-1).

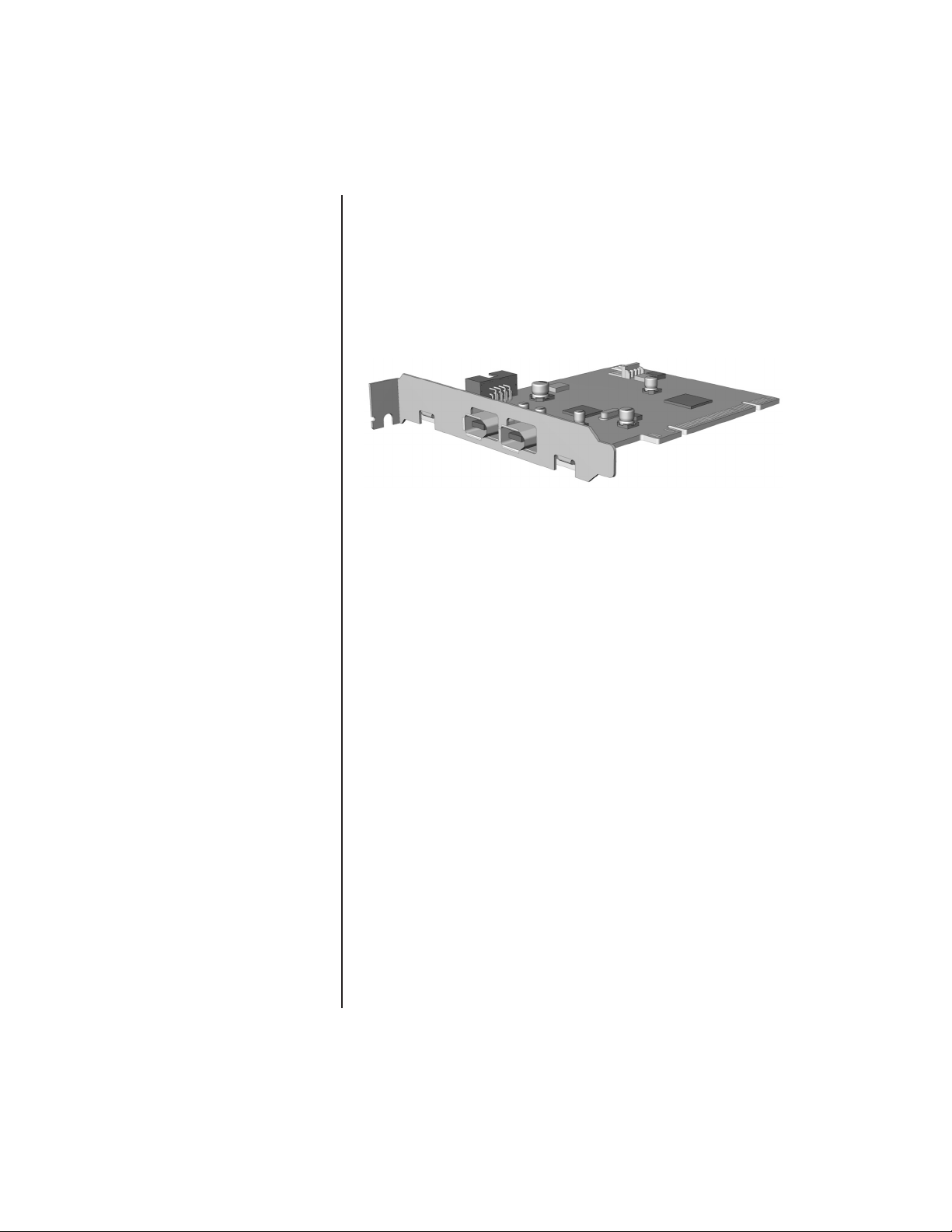

Figure 1-1

Note: The view shown may vary slightly by model.

4REPLACING THE 1394 CARD

Tools Needed

A Phillips screwdriver is needed to remove and replace the

1394 card.

Warranty Statement

Compaq provides these detailed instructions to ensure your

safety and to keep your PC from being damaged. Following

these instructions also ensures that your PC remains

warranted by Compaq.

Your replacement part is warranted for the longer of 90 days

from the date the part was delivered to you, or the original

One Year Limited Warranty that came with your Compaq

Presario.

Preparing Your Computer for Disassembly

Before beginning the removal and replacement procedure,

complete the following procedure:

1. Remove any diskette or compact discs (CDs) from the

computer.

2. Turn off the computer and any peripheral devices

connected to your computer.

3. Disconnect the power cord from the electrical outlet, and

then from the computer (see Figure 1-2).

4. Disconnect all peripheral device cables from the computer.

Failure to disconnect the power from the computer may

result in personal injury.

REPLACING THE 1394 CARD 5

I. Disconnecting the Power

1. To shut down your computer, click the Start button, and

then click Shut Down. The Shut Down Windows dialog

box is displayed. Click OK to turn the computer off.

2. Disconnect the power cord from the electrical outlet 1

and 2computer (see Figure 1-2).

Failure to disconnect the power from the computer may

result in personal injury.

Figure 1-2

6REPLACING THE 1394 CARD

You do not have to replace the

screw securing the side access

panel. The screw securing the

side panel is used for shipping

purposes only.

Did you know ...

II. Opening the Side Access Panel

1. Remove the screw 1securing the side access panel.

Locate the latch 2directly below the screw, press the latch

down, and hold it in the down position (Figure 2-1).

Figure 2-1

Important: Some models may not have a screw 1. This screw is used

for shipping purposes only.

2. Grab the handle and slide the side panel from the chassis

(see Figure 2-2).

▲Caution: Before doing any work inside your computer, ground

yourself by touching a metal part of the chassis.

Figure 2-2

REPLACING THE 1394 CARD 7

Look at the replacement part

carefully to help you identify

and locate the component to

be replaced.

Tip

III. Identifying and Locating the 1394 Card

Use the illustration to identify and locate the following items:

the 1394 card 1, the PCI system board slot 2, and the rear

connector slot 3(see Figure 3-1).

Figure 3-1

Important: The number of PCI slots may vary by model. The replacement

1394 card may differ slightly from the original card.

8REPLACING THE 1394 CARD

IV. Removing the 1394 Card

1. Turn the computer on its side (open side facing up), and

locate the 1394 card.

2. Disconnect the Front I/O and the power cable (4 pin

connector) from the 1394 card (see Figure 4-1).

Figure 4-1

REPLACING THE 1394 CARD 9

3. Remove the screw 1securing the 1394 card, and save it

for your replacement card (see Figure 4-2).

Important: Keep the screw that secured the defective card to the

chassis. You will need it for your replacement card.

4. Pull the 1394 card using a gentle rocking (side-to-side)

motion from the PCI slot 2on the system board

(see Figure 4-2).

Figure 4-2

10 REPLACING THE 1394 CARD

V. Replacing the 1394 Card

Note: Save all the packing materials received with your replacement card.

You will need them to return the defective part.

1. Align the 1394 card with the PCI slot 1on the system

board and with the expansion card rear connector slot on

the chassis (see Figure 5-1).

Figure 5-1
