Commell HS-B70 Manual de usuario

HS-B70

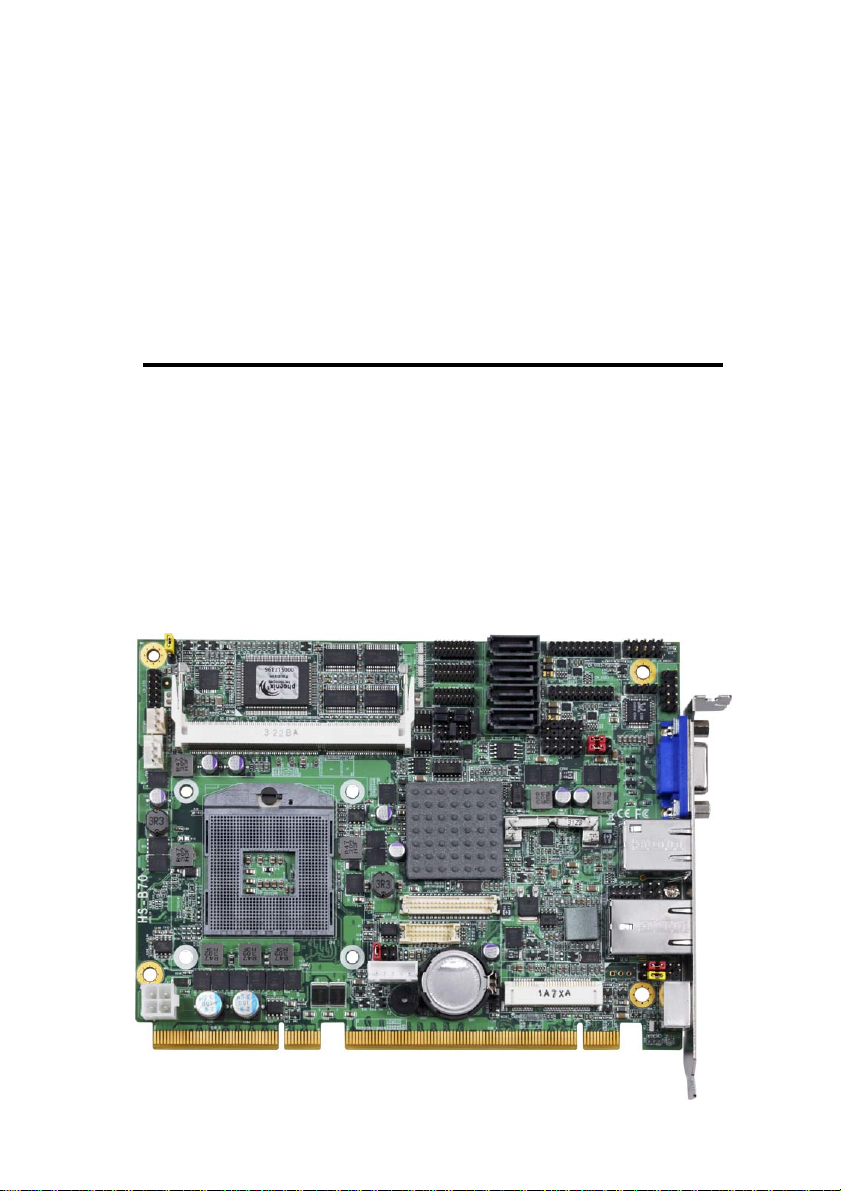

PICMG 1.3 Half-size CPU Card

User’s Manual

Edition 1.2

2014/3/13

HS-B70 User’s Manual

-1-

reserved. The information in this document is subject to change without prior notice to

make improvements to the products.

This document contains proprietary information and protected by copyright. No part of

this document may be reproduced, copied, or translated in any form or any means

without prior written permission of the manufacturer.

All trademarks and/or registered trademarks contains in this document are property of

their respective owners. Disclaimer

The company shall not be liable for any incidental or consequential damages resulting

from the performance or use of this product.

The company does not issue a warranty of any kind, express or implied, including

without limitation implied warranties of merchantability or fitness for a particular purpose.

The company has the right to revise the manual or include changes in the specifications

of the product described within it at any time without notice and without obligation to

notify any person of such revision or changes.

Trademark

All trademarks are the property of their respective holders.

Any questions please visit our website at TUhttp://www.commell.com.twUT

HS-B70 User’s Manual

-2-

Dual COM PORT cable x 1

(OALES-BKU2)/ (1040087)

Packing List:

Please check the package content before you starting using the board.

Hardware:

HS-B70 PICMG 1.3 Half-size CPU Card x 1

Cable Kit:

Printed Matters:

Driver CD (Including User’s Manual) x 1

SATA Cable x 2

(OALSATA3-L)/ (1040529)

Audio Cable x 1

(OALPJ-HD)/ (1040120)

PS/2 Keyboard & Mouse Cable x 1

(OALPS2/MKN)/ (1040551)

CPU Cooler x 1

(OHS-P-M-H)/ (1190058)

USB2.0 Cable x 1

(OALUSBA-1)/ (1040172)

USB3.0 Cable x1

(OALUSB3)/ (1040531)

DVI module with bracket x 1

(BADPDVIP_A&OALDVI-DF13)

(

4120008021& 1040483

)

HS-B70 User’s Manual

-3-

Index

Chapter 1 <Introduction>.............................................................6

1.1 <Product Overview>.....................................................................................6

1.2 <Product Specification>................................................................................7

1.3 <Mechanical Drawing>.................................................................................9

1.4 <Block Diagram>........................................................................................10

Chapter 2 <Hardware Setup>..................................................11

2.1 <Connector Location>................................................................................ 11

2.2 <Jumper Location & Reference>................................................................12

2.3 <Connector Reference>.............................................................................13

2.3.1 <Internal Connectors>..............................................................13

2.3.2 <External Connectors>.............................................................13

2.4 <CPU and Memory Setup> ........................................................................14

2.4.1 <CPU Setup>.............................................................................14

2.4.2 <Memory Setup>.......................................................................15

2.5 <CMOS & ATX Setup>...............................................................................16

2.6 <Serial ATA Interface>................................................................................17

2.7 <Ethernet Interface>...................................................................................18

2.8 <Onboard Display Interface> .....................................................................19

2.8.1 <Analog Display>.......................................................................19

2.8.2 <Digital Display>........................................................................20

2.8.3 <DVI Interface>..........................................................................24

2.9 <Integrated Audio Interface>......................................................................25

2.10 <USB Interface>.......................................................................................27

2.11 <Serial Port>.............................................................................................29

2.12 <PCIE Mini Card > ...................................................................................31

2.13 <GPIO and SMBUS Interface>.................................................................32

2.14 <Power Supply and Fan Interface >.........................................................33

2.14.1 <Power Input>(need Backplane)...........................................33

2.14.2 <Fan connector> .....................................................................34

HS-B70 User’s Manual

-4-

2.15 <Switch and Indicator> .............................................................................35

Chapter 3 <System Setup>.......................................................36

3.1 <Audio Configuration>................................................................................36

3.2 <Display Properties Setting> ......................................................................37

3.3 <SATA configuration> .................................................................................39

3.4 <SATA RAID Configuration>.......................................................................40

Chapter 4 <BIOS Setup>.............................................................42

Appendix A <I/O Port Pin Assignment>..........................44

A.1 <Serial ATA Port> .......................................................................................44

A.2 <IrDA Port>.................................................................................................44

A.3 <VGA Port>................................................................................................44

A.4 <LAN Port>.................................................................................................44

A.5 <LAN LED Port>.........................................................................................45

Appendix B <Flash BIOS>.........................................................46

B.1 <Flash Tool>...............................................................................................46

B.2 <Flash BIOS Procedure> ...........................................................................46

Appendix C <Programming GPIO’s >...............................47

Appendix D <Programming Watchdog Timer >.........48

Contact Information.......................................................................49

HS-B70 User’s Manual

-5-

(This page is left for blank)

HS-B70 User’s Manual

-6-

Chapter 1 <Introduction>

1.1 <Product Overview>

HS-B70 the 3rd Generation Intel of the PICMG 1.3 Half-size CPU Card, supports 3rd

Generation Intel® Core™ i7, Core™ i5, Core™ i3 Mobile Processor and features Intel

QM77 chipset, integrated HD Graphics, DDR3 memory, REALTEK High Definition Audio,

Serial ATA with RAID function for a system and Intel Gigabit LAN.

Intel Ivy Bridge Processor

The 3rd Generation Intel® Core™ processor family mobile is the next generation of

64-bit, multi-core mobile processor built on 22- nanometer process technology. Based

on a new micro-architecture.

New features for Intel QM77 chipset

The board integrates Intel QM77 chipset, supports integrated HD Graphics, built-in high

speed mass storage interface of Serial ATA interface with RAID function, High Definition

Audio with 2 channels surrounding sound.

All in One multimedia solution

Based on Intel QM77 chipset, the board provides high performance onboard graphics,

24-bit dual channel LVDS interface, DVI and 2 channels High Definition Audio, to meet

the very requirement of the multimedia application.

HS-B70 User’s Manual

-7-

1.2 <Product Specification>

General Specification

Form Factor PICMG 1.3 Half-size CPU Card

CPU 3rd Generation Intel® Core™ i7, Core™ i5, Core™ i3 Mobile Processor

Package type: rPGA988B

Memory 2 x DDRIII SO-DIMM 1066/1333/1600 MHz up to 16GB

Support Non-ECC, unbuffered memory only

Chipset Intel QM77

Real Time Clock Chipset integrated RTC with onboard lithium battery

Watchdog Timer Generates a system reset with internal timer for 1min/s ~255min/s

Power Management Supports ACPI 3.0 compliant,

DVI Interface Onboard DVI connector interface

LVDS Interface Onboard 24-bit dual channel LVDS connector with +3.3V/+5V/+12V

supply

Serial ATA Interface 2 x serial ATAII interface with 300MB/s transfer rate

2 x serial ATAIII interface with 600MB/s transfer rate

Support RAID 0, 1, 5, 10 and Intel Rapid Storage Technology

Audio Interface Realtek ALC888 HD Audio

LAN Interface 1 x Intel 82579LM Gigabit LAN (Support iAMT8.0)

1 x Intel 82574L Gigabit LAN

GPIO interface Onboard programmable 8-bit Digital I/O interface

Extended Interface PICMG 1.3 Half-size Interface Support 1 PCI-Express x16

、1 PCI-Express x4 or 4 PCI-Express x1 and 1 x PCIE mini card socket

(Optional support mSATA(SATAII) for Mini_Card)

Internal I/O Port 5 x RS232, 1 x RS232/422/485, 1 x SMBUS, 1 x GPIO, 4 x USB3.0 ports,

2 x USB2.0 ports, 1 x IrDA, 1 x DVI, 1 x LVDS, 2 x Serial ATAII,

2 x Serial ATAIII, 1 x Front panel Audio and 1 x CDIN

External I/O Port 1 x VGA Port, 2 x RJ45 and 1 x PS/2 Keyboard/Mouse Port

Power Requirement +12V , 5VSB & 3VSB from Backplane

Dimension 168mm x 126mm

Temperature Operating within 0~60 centigrade

Storage within –20~85 centigrade

Ordering Code

HS-B701 Intel PGA988B + QM77 Onboard VGA, LVDS, DVI, LAN, USB2.0,

USB3.0, HD Audio, SATAII ,SATAIII, SMBUS, LPC, IrDA, GPIO,

PCI Express mini card and mSATA

Support Four X1 & One X16 PCI Express interface

HS-B704 Intel PGA988B + QM77 Onboard VGA, LVDS, DVI, LAN, USB2.0,

USB3.0, HD Audio, SATAII ,SATAIII, SMBUS, LPC, IrDA, GPIO,

PCI Express mini card and mSATA

Support One X4 & One X16 PCI Express interface

HS-B70 User’s Manual

-8-

The specifications may be different as the actual production.

For further product information please visit the website at TUhttp://www.commell.com.twUT

HS-B70 User’s Manual

-9-

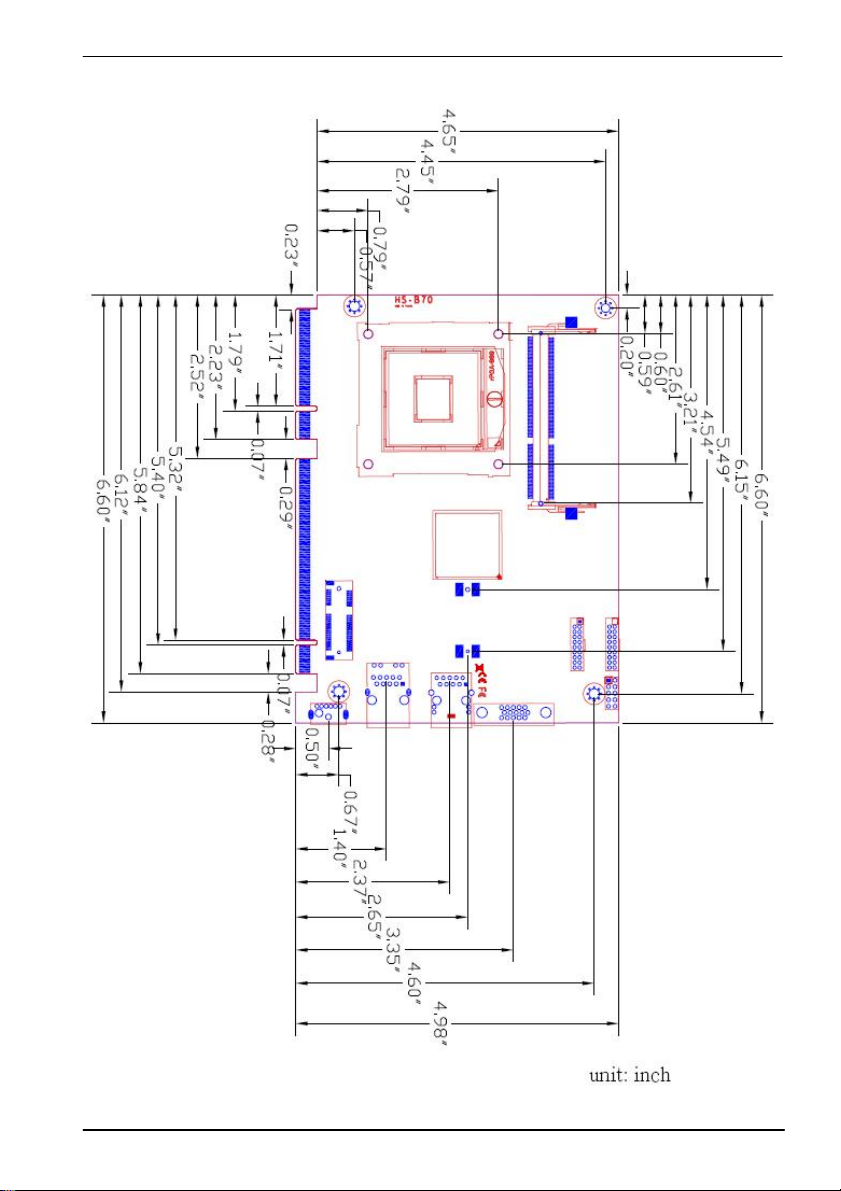

1.3 <Mechanical Drawing>
