HE-B73

PICMG 1.3 Half-size CPU Card

User’s Manual

Edition 1.2

2021/11/18

HE-B73 User’s Manual

-1-

The information in this document is subject to change without prior notice to make

improvements to the products.

This document contains proprietary information and protected by copyright. No part of this

document may be reproduced, copied, or translated in any form or any means without prior

written permission of the manufacturer.

All trademarks and/or registered trademarks contains in this document are property of their

respective owners. Disclaimer

The company shall not be liable for any incidental or consequential damages resulting from

the performance or use of this product.

The company does not issue a warranty of any kind, express or implied, including without

limitation implied warranties of merchantability or fitness for a particular purpose.

The company has the right to revise the manual or include changes in the specifications of

the product described within it at any time without notice and without obligation to notify any

person of such revision or changes.

Trademark

All trademarks are the property of their respective holders.

Any questions please visit our website at TU http://www.commell.com.twUT

HE-B73 User’s Manual

-2-

Packing List:

Please check the package content before you starting using the board.

Appendix G

1 x Driver CD

(Including User’s Manual)

1 x HE-B73 PICMG 1.3 Half-size CPU Card

(include Cooler Fan)

2 x SATA Cable

(OALSATA3-L) / (1040529)

1 x VGA Cable

(OALVGA-S-7) / (1040556)

1 x Dual COM PORT Cable

(OALES-BKU2) / (1040087)

1 x Audio Cable

(OALPJ-HD)/ (1040120)

1 x PS/2 Keyboard & Mouse Cable

(OALPS2/MKN)/ (1040551)

1 x USB2.0 Cable

(OALUSBA-1 )/ (1040172)

1 x USB3.2 Gen2 Cable (Optional)

(OALUSBE-USBC-L30 / 1040681)

1 x DVI Cable (Optional)

(BADPDVIP_A & OALDVI-MX15-L15)

(4120008021 & 1040683 )

HE-B73 User’s Manual
-3-
Index
Chapter 1 <Introduction>..................................................................4
1.1 <Product Overview>............................................................4
1.2 <Product Specification> ......................................................5
1.3 <Block Diagram>.................................................................6
Chapter 2 <Hardware setup>...........................................................7
2.1 <Connector Location and Reference> ................................7
2.1.1 <Internal connectors list>..........................................8
2.1.2 <External connectors list>.........................................8
2.2 <Memory Setup>.................................................................9
2.3 <Jumper Location and Reference>...................................10
2.3.1 <Jumper list> ..........................................................10
2.3.2 <Clear CMOS and Power on type selection>..........11
2.4 <I/O interface> ..................................................................11
2.4.1 <Serial ATA interface>.............................................11
2.4.2 <Ethernet interface>................................................12
2.4.3 <Display interface> .................................................12
2.4.4 <Serial Port interface> ............................................16
2.4.5 <USB interface>......................................................18
2.4.6 <Audio interface>....................................................19
2.4.7 <Expansion slot>.....................................................20
2.4.8 <Front panel switch and indicator> .........................21
2.4.9 <GPIO and Other interface>...................................22
2.5 <Power supply> ................................................................24
2.5.1 <Power input>.........................................................24
Appendix A <Flash BIOS>..............................................................25
Appendix B <LCD Panel Type select> ...........................................26
Appendix C <Programmable Watch Dog Timer>............................27
Appendix D <Hardware Monitor>...................................................29
Appendix E <Programmable GPIO> ..............................................30
Appendix F <RAID Setting>...........................................................31
Appendix G <Cooler fan>...............................................................32
Contact information........................................................................33

HE-B73 User’s Manual

-4-

Chapter 1 <Introduction>

1.1 <Product Overview>

HE-B73 is a PICMG 1.3 Half-size CPU Card which supports Tiger Lake/11th Gen H

Processors, integrated UHD Graphics, DDR4 memory, Realtek High Definition Audio, Intel

Gigabit LAN, USB3.2 Gen2, SATA3 with AHCI function for a system.

New feature for Tiger Lake H

Tiger Lake/11th Gen H Processors are based on the 10nm SuperFin process, and offer

long-life availability. They have Intel UHD Graphics up to 32 EUs.

All in One multimedia solution

The board provides one MiniPCIe slot ( support mSATA), one M.2 2230 slot, one M.2 2280

slot (PCIe Gen4).

Tiger Lake support Windows10 version 20H2 64bit and Linux kernel 5.8

Intel recommends using Windows 10 version 20H2 64bit. It may lose some drivers if you

use other Windows version.

HE-B73 User’s Manual

-5-

1.2 <Product Specification>

System

Processor

Tiger Lake/11th Gen H Processor FCBGA1787 package

Chipset

Intel® QM580E / RM590E (TGL-H Xeon CPUs have to use RM590E)

Memory

2 x DDR4 SO-DIMM 3200 MHz up to 64GB,

Support Non-ECC, unbuffered memory

(TGL-H Xeon CPUs can support ECC memory)

Watchdog Timer

Generates a system reset with internal timer for 1min/s ~ 255min/s

Real Time Clock

Chipset integrated RTC with onboard lithium battery

Expansion

1 x MiniPCIe with SIM slot (support mSATA)

1 x M.2 2280 Key M support PCIe Gen4 and SATA

1 x M.2 2230 Key E for Wi-Fi and Bluetooth

1 x PCIe X16 slot (Backplane)

4 x PCIe X1 slot or 1 x PCIe X4 slot (Backplane) (Optional)

Graphics

Chipset

Intel® 11th Gen integrated UHD Graphics

Display Interface

1 x LVDS (Note1),1 x DVI(Note5), 1 x DisplayPort(Note2), 1 x VGA

LAN

Chip

1 x Intel® I219-LM Gigabit PHY LAN (Support iAMT 15.0)

1 x Intel® I225-LM Gigabit LAN (up to 2.5GbE)

I/O

Serial ATA

2 x SATA3

Audio

RealtekALC888S HD Audio

Internal I/O

1 x VGA, 1 x DVI(Note5), 1 xAudio, 1 x GPIO, 2 x SATA3,

4 x RS232, 2 x RS232/RS422/RS485, 1 x SMBus,

2 x USB3.2 Gen2 (Type E), 4 x USB2.0,

1 x LVDS, 1 x LCD inverter connector

Rear I/O

1 x DisplayPort, 2 x LAN, 1 x PS/2

Mechanical & Environmental

Power Requirement

Standard 24-pinATX power from Backplane

Size

168mm x 126mm (L x W)

Temperature

Operating within 0°C~60°C (32°F~140°F) (Note3)

Storage within -20°C~80°C (-4°F~176°F)

Relative Humidity

10%~90%, non-condensing

Note1: Onboard 18/24-bit single/dual channel +3.3V/ +5V/ +12V LVDS

Note2: AddADP-3355 supports 2nd VGAorAddADP-3460 supports 2nd LVDS.

Note3: W-11865MRE, W-11555MRE, W-11155MRE can operate within -40°C~85°C

Note4: Please don’t remove cooler fan, it’s will destroy thermal paste on CPU.

Note5: DVI cable is optional.

HE-B73 User’s Manual

-6-

1.3 <Block Diagram>

PTN3460

LVDS

I219-LM

I225-LM

2 x USB3.2 Gen2 (TypeE)

2 x USB2.0

DDR4 SODIMM 3200

2 x SATA

1 x PCIe / mSATA

1 x M.2 2230

1 x M.2 KEY M 2280

1 xALC888S

1 x SYSFAN

1 x CPUFAN

1 x GPIO

2 x RS232/422/485

4 x RS232

ESPI

Tiger Lake H

Processor

Super I/O

NCT6126D

DVI

1 x PCIe X16 Slot

(Backplane)

DMI x8

QM580E

RM590E

4 x USB2.0

1 x PS/2

4 x PCIe 1X or 1 x PCIe 4X

(Backplane)

DDR4 SODIMM 3200

PTN3355

VGA

HE-B73 User’s Manual

-7-

Chapter 2 <Hardware setup>

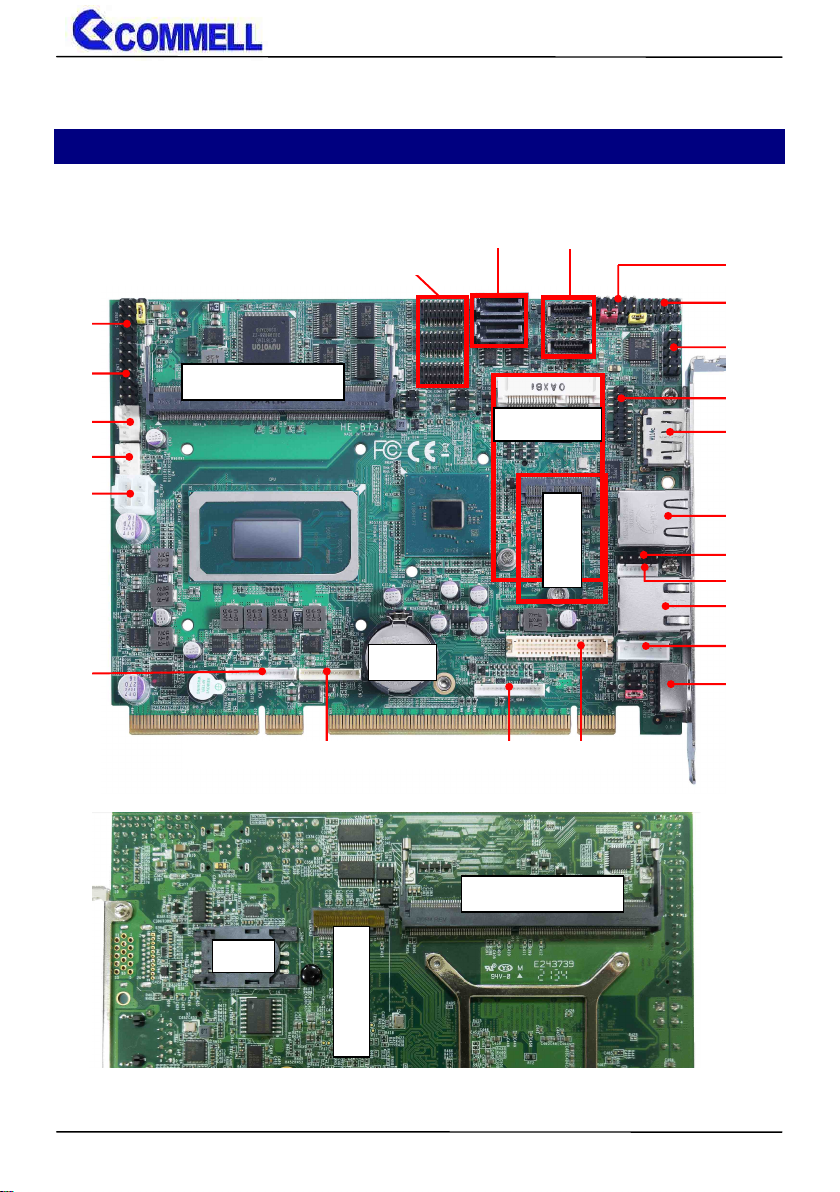

2.1 <Connector Location and Reference>

M.2 KEY E

MINI_CARD

M.2_NVME

CN_COM5/6

CN_COM3/4

CN_COM1/2

BAT

DDR4_A

SATA3-1

SATA3-2

TYPE_E-1

TYPE_E-2

DDR4_B

SIMM

CN_USB1

CN_DIO

CN_AUDIO

CN_CRT

Display Port

RJ45-1

CN_SMBUS

JLANLED

RJ45-2

CN_INV

PS/2

CN_EDP1 CN_HDMI CN_LVDS

CN_USB2

JFRNT

SYSFAN

CPUFAN

CN_12V

CN_EDP2

HE-B73 User’s Manual

-8-

2.1.1 <Internal connectors list>

Connector

Function

DDR4_A/B

260-pin DDR4 SO-DIMM slot

SATA3-1/ 3-2

7-pin SATA3 connector

CN_AUDIO

5 x 2-pin audio pin header

CN_LVDS

20 x 2-pin LVDS connector

CN_INV

5-pin LCD inverter connector

CN_SMBUS

5-pin SMBus connector

CN_COM1/2

20-pin RS232/RS422/RS485 connector

CN_COM3/4/5/6

20-pin RS232 connector

CN_USB1/2

5 x 2-pin USB2.0 pin header

CN_DIO

6 x 2-pin digital I/O connector

CN_EDP1

13-pin eDP connector (Optional)

CN_EDP2

15-pin eDP connector (Optional)

CN_HDMI

15-pin DVI connector

CPUFAN

4-pin CPU fan connector

SYSFAN

4-pin system fan connector

JLANLED

8-pin RJ45-1/2 LED

SIMM

6-pin socket

JFRNT

10-pin front panel switch/indicator connector

TYPE_E-1/2

20-pin Type E USB3.2 Gen2 connector

MINI_CARD

52-pin MiniPCIe card slot

75-pin M.2 Key E slot

M2_NVME

75-pin M.2 Key M slot support PCIe Gen4 and SATA

CN_12V

4-pin power input Terminal Block

2.1.2 <External connectors list>

Connector

Function

DisplayPort

DisplayPort connector

RJ45-1

RJ45 connector (I219-LM)

RJ45-2

RJ45 connector (I225-LM)

PS/2

PS/2 keyboard and mouse connector

HE-B73 User’s Manual

-9-

2.2 <Memory Setup>

HE-B73 has 260-pin DDR4 SODIMM support up to 64GB of memory capacity and 1.2

Voltage. The memory frequency supports 3200 MHz. Only Non-ECC memory is supported.

In the process, the board must be powered off.

1. Put the memory tilt into the slot. Note the Memory notch key aligned slot key.

2. Then press down till lock into the mounting notch.

3. To remove the memory, push outward on both sides of the latch.

Key

Mounting notch

Press down

Latch

Tabla de contenidos

Otros manuales de Hardware de computadora de Commell

Commell

Commell HS-874P Manual de usuario

Commell

Commell MPX-3132 Manual de usuario

Commell

Commell HS-871P Manual de usuario

Commell

Commell FS-979 Manual de usuario

Commell

Commell HE-B71 Manual de usuario

Commell

Commell CMB-67H-02 Manual de usuario

Commell

Commell MP-6010 Manual de usuario

Commell

Commell MPX-885 Manual de usuario

Commell

Commell MPX-24794G2 Manual de usuario

Commell

Commell MPX-954 Manual de usuario

Commell

Commell MPX-8188 Manual de usuario

Commell

Commell ADP-3355 Manual de usuario

Commell

Commell FS-A77 Manual de usuario

Commell

Commell HS-870P Manual de usuario

Commell

Commell MP-954GPS Manual de usuario

Commell

Commell FS-A74 Manual de usuario

Commell

Commell LE-376 Series Manual de usuario

Commell

Commell LS-574 Manual de usuario

Commell

Commell LE-565 Manual de usuario

Commell

Commell CBPE-1X2P Manual de usuario

Commell

Commell CMB-67K-02 Manual de usuario

Commell

Commell FS-97E Manual de usuario

Commell

Commell FS-A79 Manual de usuario

Commell

Commell FS-975M Manual de usuario

Manuales populares de Hardware de computadora de otras marcas

EMC2

EMC2 VNX Series Manual del propietario

Panasonic

Panasonic DV0PM20105 Manual de usuario

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Manual de usuario

Gigabyte

Gigabyte B660M DS3H AX DDR4 Manual de usuario

Raidon

Raidon iT2300 Manual de usuario

National Instruments

National Instruments PXI-8186 Manual de usuario

Hauppauge

Hauppauge WinTV-HVR-2250 Manual de usuario

Kontron

Kontron CP6002 Manual de usuario

Manhattan

Manhattan 702843 Manual de usuario

Aphex

Aphex 230 Manual de usuario

AMD

AMD Phenom II Manual operacional

Intel

Intel NUC 12 Pro Manual de usuario

dbx

dbx Zone Pro 1260 Manual de usuario

Galaxy

Galaxy GHDX2-2430S-24F4D Manual de usuario

Intel

Intel AXXRMFBU4 Manual de usuario

Kontron

Kontron DIMM-PC/MD Manual de usuario

ST X-NUCLEO-SAFEA1B Instrucciones de funcionamiento

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Manual de usuario
