Commax DRC-4FC Manual de usuario

•Thank you for purchasing COMMAX products.

•Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow

instructions to use a product exactly.

•The company is not responsible for any safety accidents caused by abnormal operation of the product.

Door Camera DRC-4FC/4FB

User Manual

1. Introduction .....................................................2

2. Important Safeguard .......................................3

3. Features..........................................................5

4. Wiring & Installation .......................................7

5. PARTS............................................................9

6. Specifications................................................10

Contents

Your unit is designed so it can be flush mounted on the or used. When flush mounted on the wall, the stand permils you to the

unit for an gular of unit view. The model number is located on the bottom and record the serial number in the space provided

below(available). Refer to these numbers whenever you call upon your COMMAX dealer regarding this product.

Model No. Serial No.

To prevent fire or shock hazard, do not expose the unit to rain or moisture.

This symbol is intended to alert the use to the presence of uninsulated

“

“dangerous Voltage”

”

within the product’s enclose that

may be of sufficient magnitude to constitute a risk of electric shock to persons.

This symbol is intended to alert the use to the presence of important operating and maintemance(servicing) instructions in the

literature accompanying the appliance

CAUTION: To reduce the risk of electrix shick, do not remove cover(or back) no user-serviceable

part sinside refer servicing to quaured service personnel

caution

Rosk of electric shock

do not open

1. Introdution

▲

Damage Requiring Service: This equipment from the power source and source and refer servicing to qualified service personnel under the following

conditions:

ⓐwhen the power is damaged.

ⓑif liquid has been spiled or objects have hallen into the unit

ⓒif the equipment has been exposed to rain or water.

ⓓif the equipment has beem dropped or otherwise damaged.

ⓔwhen the equipment exhibits a distinct change in performance- this indicates a need for service.

▲

Water and Moisture: Do not use this product near water, for example, near a bath tub, wash bowl, kitchen sink, or laundru tub, in a wet basement, or near

a swimming pool, and the like.

▲

Accessories: The product may fall, causing serious injury to a child or adult, and serious damage to the appliance. Any mounting of the manufacture’s

insturctions, and should use a mounting accessory recommended by the manufacturer.

▲

Object and Liquid Entry: Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts

that could result in a fire or electric shock. Never spill liquid of any kind on the product.

▲

Lightning: For added protection for this product before a lihgtning storm, or when it is left un attached and un used for long periods of time, unplug it from

the wall outlt and disconnect the other system. This will prevent damage to the product due to lightming and power-line surges. If you live in an

ared heavily prone to lightning stoms, it is recommended that you invest in power-line, telephone-line, RFcable and actuator/ polarization surge

protectors to protect your appliance system from possiple damage

2. Important Safeguard

▲

Servicing - Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous volt-

age or other hazards. Refer all servicing to qualified service personnel.

▲

Replacement Parts - When replacement parts are require, be sure the service technician has used replacement parts speci-

fied by the manufacturer or having the same characteristics as the original part. Unauthorized substitutions may result in fire, elec-

tric shock or other hazards.

▲

Safety Check - Upon completion of service or repairs to this product, ask the service technician to perform safety checks to

determine that the product is in proper operating condition.

▲

Power Line -The commax door aamera system should not be located near overhead power lines or other electric light or

power circuits, or where it can fall into power lines or circuits. When installing a door camera system, avoid dangerous contact with

power lines or circuits.

▲

Attachment - Do not use attachments not recommended by the product manufacturer as they may cause hazards.

▲

Safety Check - Upon completion of service or repairs to this product, ask the service technician to perform safety checks to

determine that the product is in proper operating condition.

▲

Power Sources - This equipment should be operated only from the type of power source indicated on the marking label.

▲

Grounding - This product is equipped with a polarized alternating - current line plug. This plug will fit into the power outlet only

oneway. This is a safety feature. If the plug should fail to fit, contact your electrician to replace your obsolete outlet.

▲

Power Cord Protection - Power- supply cords should be routed so that they are not likely to be walked on or pinched by

items placed upon or against them; pay particular attention to cords at plugs, convenience receptacles and the point where cords

exit from the equipment.

▲

Overloading - Do not overload power outlets and extension cords as this can result in a risk of fire or electric shock.

2. Important Safeguard

3. FEATURES

No. FEATURES No FEATURES

1 FRONT PANEL 8 LEVER FOR ANGLE ADJUSTMENT

2 MICRO PHONE 9 TERMINAL

3 LED 10 DOOR RELEASE CABLE

4 LENSE WINDOW 11 VOLUME ADJUSTMENT

5 SPEAKER 12

6 CALL BUTTON 13

7 SCREW HOLE 14

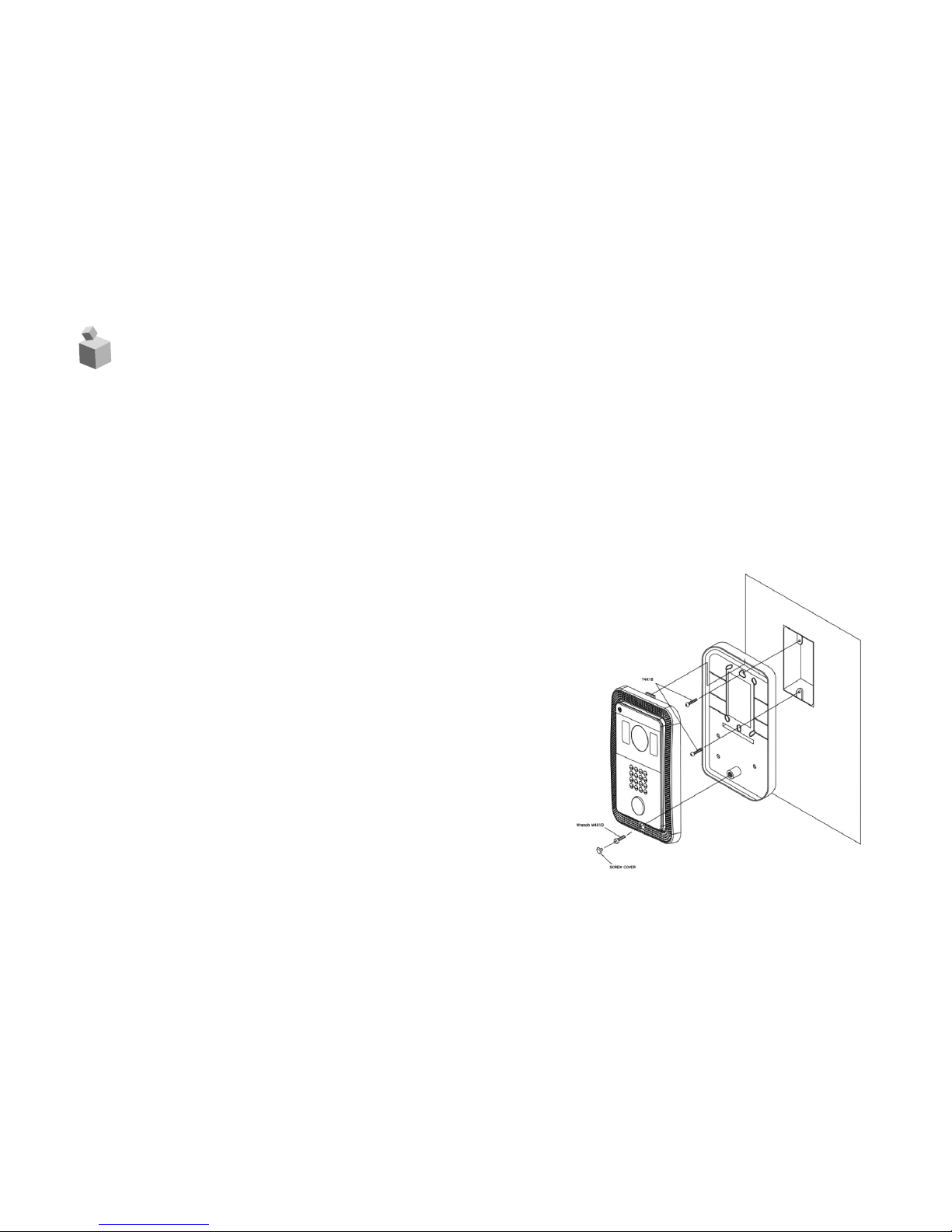

4. Wiring & Installation

❶Secure it to the wall hole and wall mounted hole to install. [FIG-1]

❷Wire the household monitor cables with matched polarity as shown below.

[FIG-2] (#1:Voice, #2:GND, #3:DC12V, #4:Video)

❸In the wall-hanging, check the screen of monitor inserted from the groove

and check if the screen is working well as you want.

❹Wire the switch cables as shown below. [FIG-2]

❺Fix it at the bottom of the product with screw.[FIG-1]

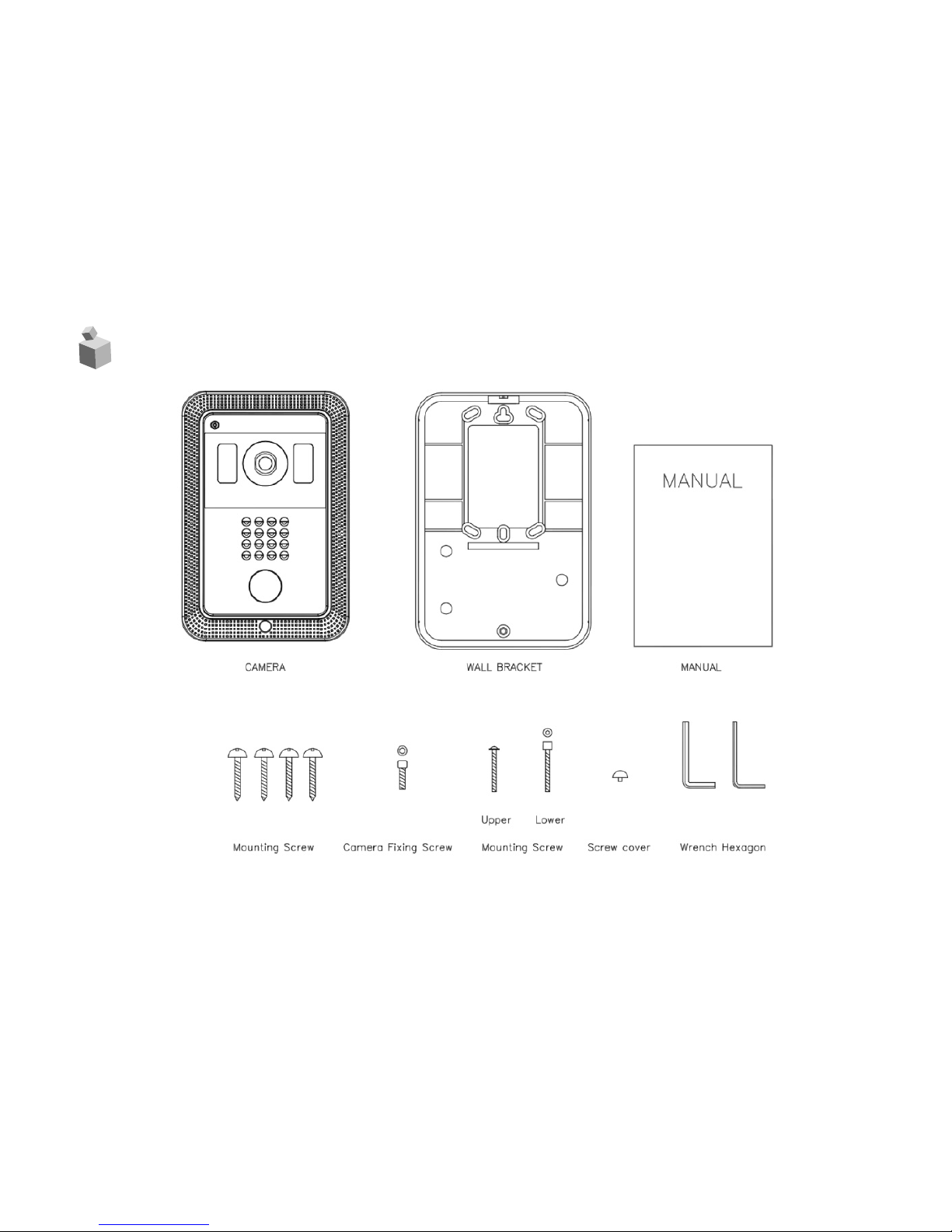

5. PARTS
