1.1.Packing Contents
1*Colorful C.H110M-K PRO V20A/C.B150M-K PRO V20A
2*SATA cables�
1*Driver/Utility CD
1*User's Guide
1xI/O shield
Thanks for purchasing our based on Intel H110/B150 Express Chipset motherboard.C.H110M-K PRO
V20A/C.B150M-K PRO V20A motherboard based on H110/B150 Express Chipset, support Intel LGA1151 processors,
support dual channel DDR4 2133MHZ memory, support PCI-E 3.0 standard。
The motherboard provides 1*DVI port、1*VGA port,2*DDR4 memory slots、4*SATA3.0 ports、onboard 6-CH audio
chipset、onboard 1000M LAN chipset, it’s a Cost-effective motherboard ！
The motherboard provides 1*PCI Express x16 slot、1*PCI Express x1 slot。
Colorful Technology Website:
http://www.colorful.cn
1.2.MOTHERBOARD SPEC
CPU ·support Intel LGA1151 processors
Chipset ·Intel H110/B150
Main
Memory
Slots
·Dual-Channel DDR4 2133MHZ support
·Offer 2 DIMM slots
·1x 9-pin Front panel audio connector（F_AUDIO）
·1 x System Panel (HD LED, Power LED, Power switch,
Reset button)（F_PANEL）
·2*USB2.0 headers（FUSB20_1,FUSB20_2）
·1*USB3.0 header（FUSB30_1）
·1*CPU FAN（CPU_FAN）
·1*system FAN（SYS_FAN）
·1 PC speaker connector（BZ）
·1*Debug card connector（CASE）
·1*COM header（COM_A）
·1*CMOS jumper（CLR_CMOS）
·1*PCI-Express 3.0 x16 slot
·1* PCI-Express 3.0 x1 slot
Storage ·4*SATA3.0 ports
USB ·6*USB2.0+4*USB3.0(C.H110M-K PRO V20A)
·4*USB2.0+6*USB3.0(C.B150M-K PRO V20A)
Rear IO
Connector
Other
Connectors
·6-channel High Definition Audio Codec integrated
·HD audio
High
Definition
Audio
·Onboard 1000M LAN
·Provides 10/100/1000Mb Ethernet
Onboard
LAN
·1*PS/2 Mouse/ Keyboard port
·1*LAN(RJ45) port
·2*USB 3.0 ports+2*USB 2.0
(C.H110M-K PRO V20A)
·4*USB 3.0 ports(C.B150M-K PRO V20A)
·6-Channel Audio I/O
·1*VGA+DVI Port
2.Hardware Installation
This section will guide you through the installation of the motherboard. The topics covered in this section are:
Preparing the motherboard
. Installing the CPU
. Installing the CPU fan
. Installing the memory
Installing the motherboard
Connecting cables and setting switches
1.PS/2 Mouse/ Keyboard port and USB ports
2.Connect to DVI monitor
3.Connect to VGA monitor
4.Connect to USB3.0 devices
5.Connect to USB3.0/USB2.0 devices and LAN
6.Audio devices
7.4-pin ATX 12V Power connector
8.CPU Fan connector
9.Intel LGA1151 socket
10.Clear CMOS jumper
11.Battery
12.System FAN connector
13.PCI-Express 3.0 X16 slot,for VGA Card
14.PCI-Express 3.0 X1 slot
15.Speaker connector
16.Debug connector
17.Front panel audio connector
18.COM header
19.USB 1.1/2.0 header
20.USB 3.0 header
21. Front panel connector
22.4*SATA3.0 port
23.Intel H110/B150 chipset
24.24-pin ATX Power connector
25.DIMM slots
1.3.Motherboard Layout
Make sure the CPU is fully seated and level in the socket.
2.1.Safety Instructions
To reduce the risk of fire, electric shock, and injury, always follow basic safety precautions.
Remember to remove power from your computer by disconnecting the AC main source before removing or installing any
equipment from/to the computer chassis.
2.2.Preparing the Motherboard
The motherboard shipped in the box does not contain a CPU or memory. You need to purchase a CPU, a CPU fan
assembly, and memory to complete this installation.
2.2.1.Installing the CPU
Be very careful when handling the CPU. Make sure not to bend or break any pins on the back. Hold the processor only by
the edges and do not touch the bottom of the processor.
Use the following procedure to install the CPU onto the motherboard.
1.Unhook the socket lever by pushing down and away from the socket.
2.Lift the load plate. There is a protective socket cover on the load plate to protect the socket when there is no CPU installed.
3.Remove the protective socket cover from the load plate.
4.Remove the processor from its protective cover, making sure you hold it only by the edges.
It is a good idea to save the cover so that whenever you remove the CPU, you have a safe place to store it.
5.Align the notches in the processor with the notches on the socket.
6.Lower the processor straight down into the socket with out tilting or sliding it into the socket.
7.Close the load plate over the CPU and press down while you close and engage the socket lever.
8.There are many different fan types that can be used with this motherboard. Follow the instruction that came with you fan
assembly. Be sure that the fan orientation is correct for your chassis type and your fan assembly.
2.4.Inslling the Motherboard
The sequence of installing the motherboard�into the chassis depends on the chassis you are using and if you are replacing
an existing motherboard or working with an empty chassis. Determine if it would be easier to make all the connections prior
to this step or to secure the motherboard and then make all the connections. Use the following procedure to install the I/O
shield and secure the motherboard into the chassis.
Be sure that the CPU fan assembly has enough clearance for the chassis covers to lock into place and for the
expansion cards. Also make sure the CPU Fan assembly is aligned with the vents on the covers.
The CPU fits in only one correct orientation. DO NOT force the CPU into the socket to prevent bending the connectors
on the socket and damaging the CPU!
2.3.Installing Memory DIMMs
Your new motherboard has 2�slots for DDR4�memory. They support dual channel DDR4�memory technology. There must
be at least one memory bank populated to ensure normal operation. Use the following the recommendations for installing
memory.
1 DIMM: Install into DIMM 1. You can install the DIMM into any slot, however, slot 1 is preferred.
2 DIMMs:Install into DIMM1&DIMM2 , to build dual channel。

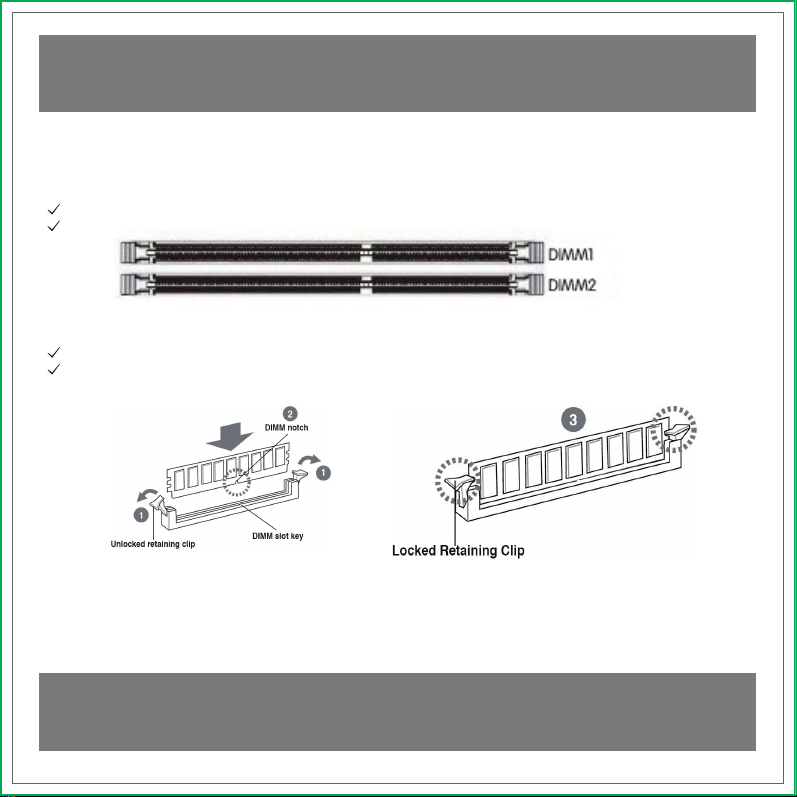

Use the following procedure to install memory DIMMs into the slots on the motherboard. Note that there is only one gap near
the center of the DIMM slot. This slot matches the slot on the memory DIMM to ensure the component is installed properly.
Unlock a DIMM slot by pressing the module clips outward.
Align the memory module to the DIMM slot, and insert the module vertically into the DIMM slot. The plastic clips at both
sides of the DIMM slot automatically lock the DIMM into the connector.
2.5.Installing the I/O Shield
The motherboard kit comes with an I/O shield�that is used to block radio frequency transmissions, protects internal
components from dust and foreign objects, and promotes correct airflow within the chassis.
Before installing the motherboard, install the I/O shield from the inside of the chassis. Press the I/O shield into place and
make sure it fits securely. �If the I/O shield does not fit into the chassis, you would need to obtain the proper size from the
chassis supplier.
2.6.Securing the Motherboard into the Chassis
Most computer chassis have a base with mounting studs or spacers to allow the mother board to be secured to the chassis
and help to prevent short circuits. If there are studs that do not align with a mounting hole on the motherboard, it is
recommended that you remove that stud to prevent the possibility of a short circuit.
1.Carefully place the motherboard onto the studs/spacers located inside the chassis.
2.Align the mounting holes with the studs/spacers.
3.Align the connectors to the I/O shield.
4.Ensure that the fan assembly is aligned with the chassis vents according to the fan assembly instruction.
5.Secure the motherboard with a minimum of eight-to-ten screws.
2.7.Connecting Cables and Setting Switches
This section takes you through all the connections and switch settings necessary on the motherboard. This will include:
Power Connections
24-pin ATX power
4-pin ATX 12V power
Internal Headers
Front panel
USB Headers
Audio
Serial ATA III
Chassis Fans
Rear panel USB 2.0 Adapter
Expansion slots
2.7.1.ATX power connectors (24-pin ATXPWR, 4-pin ATX12V)

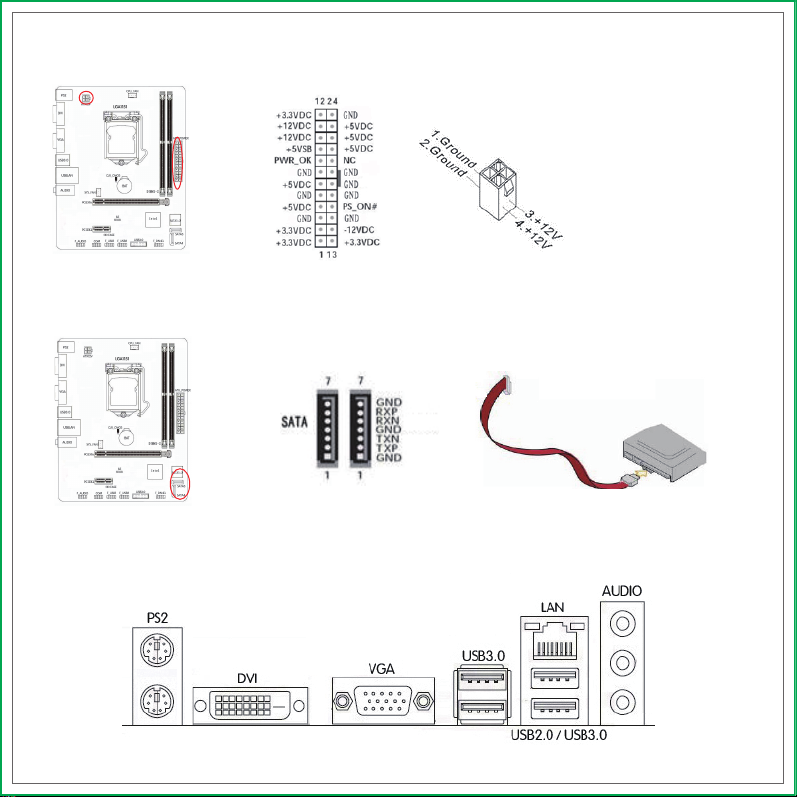

These connectors are for an ATX power supply. The plugs from the power supply are designed to fit these connectors in
only one orientation. Find the proper orientation and push down firmly until the connectors completely fit.
2.7.2.Serial ATA 3.0/6.0 Gb/s connectors (7-pin)
These connectors connect to Serial ATA 3.0/6.0 Gb/s hard disk drives and optical drives via Serial ATA 3.0/6.0 Gb/s signal
cables.
2.7.3.Back Panel IO Connector
This connector is for USB 3.0 devices.
Use
This connector is for a PS/2 mouse.
This connector is for a PS/2 keyboard.
Used for external CD player, tape player or other audio devices.
This connector for speakers or headphones.
Parts
PS/2 Mouse Connector
PS/2 Keyboard Connector
The standard RJ-45 jack is for connection to single Local Area Network (LAN).
You can connect a network cable to it.
LAN Jack
Lie-In(Blue)
Line Out(Green)
Side surround speakers connector.Side R/L(Gray)
Onboard VGA, connect to MonitorVGA
Onboard DVI port, connect to DVI MonitorDVI
These connectors are for attaching USB devices such as keyboard, mouse, or
other USB-compatible devices.
USB Ports
2.7.4.USB 3.0 connectors

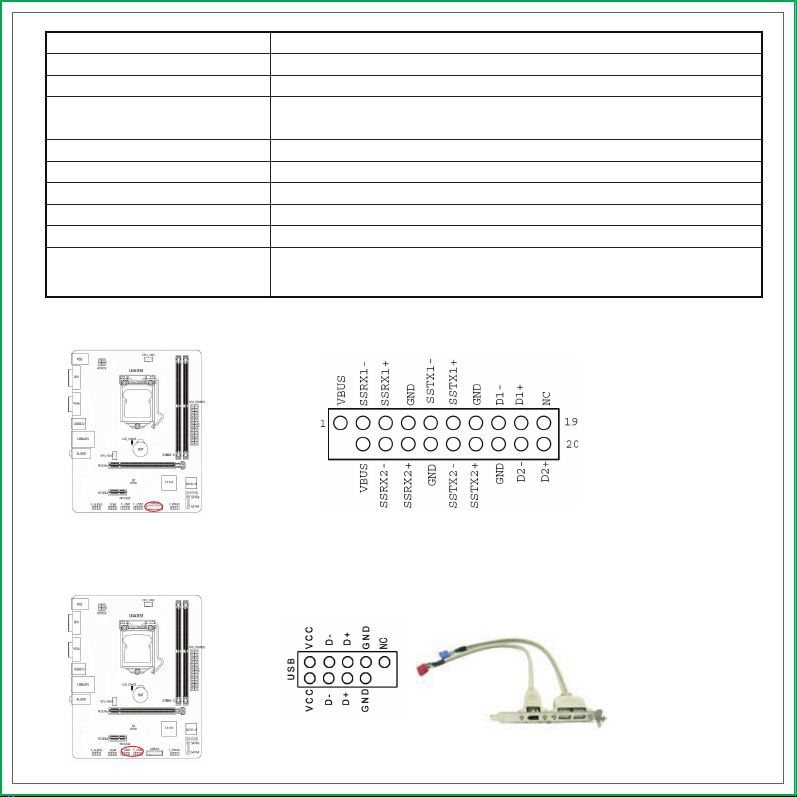

These connectors are for USB 2.0 ports. Connect the USB module cable to any of these connectors, then install the module
to a slot opening at the back of the system chassis. These USB connectors comply with the USB 2.0 specification that
supports up to 480Mbps connection speed.
2.7.5.USB2.0 connectors
System power LED (2-pin PLED)
This 2-pin connector is for the system power LED. Connect the chassis power LED cable to this connector. The system
power LED lights up when you turn on the system power, and blinks when the system is in sleep mode.
Hard disk drive activity LED (2-pin IDE_LED)
This 2-pin connector is for the HDD Activity LED. Connect the HDD Activity LED cable to this connector. The IDE LED lights
up or flashes when data is read from or written to the HDD.
System warning speaker (4-pin SPEAKER)
This 4-pin connector is for the chassis-mounted system warning speaker. The speaker allows you to hear system beeps
and warnings.
ATX power button/soft-off button (2-pin PWRSW)
This 2-pin connector is for the system power button.
Reset button (2-pin RESET)
This 2-pin connector is for the chassis-mounted reset button for system reboot without turning off the system power.
This connector supports several chassis-mounted functions.
2.7.7.System panel connector

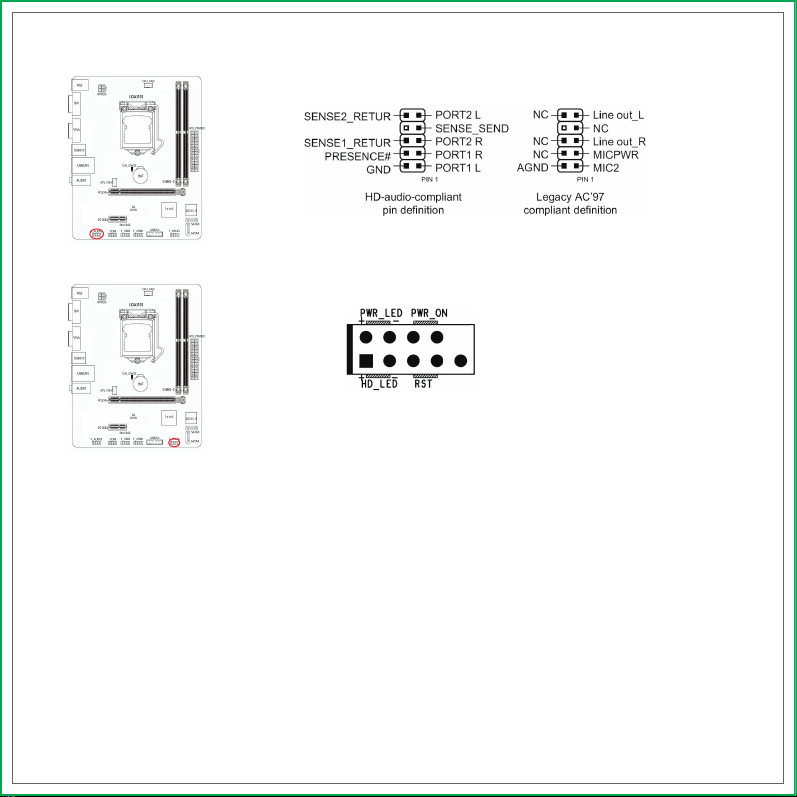

This connector is for a chassis-mounted front panel audio I/O module that supports either High Definition Audio or AC`97
audio standard. Connect one end of the front panel audio I/O module cable to this connector.
2.7.6.F_AUDIO(Front panel audio connector)

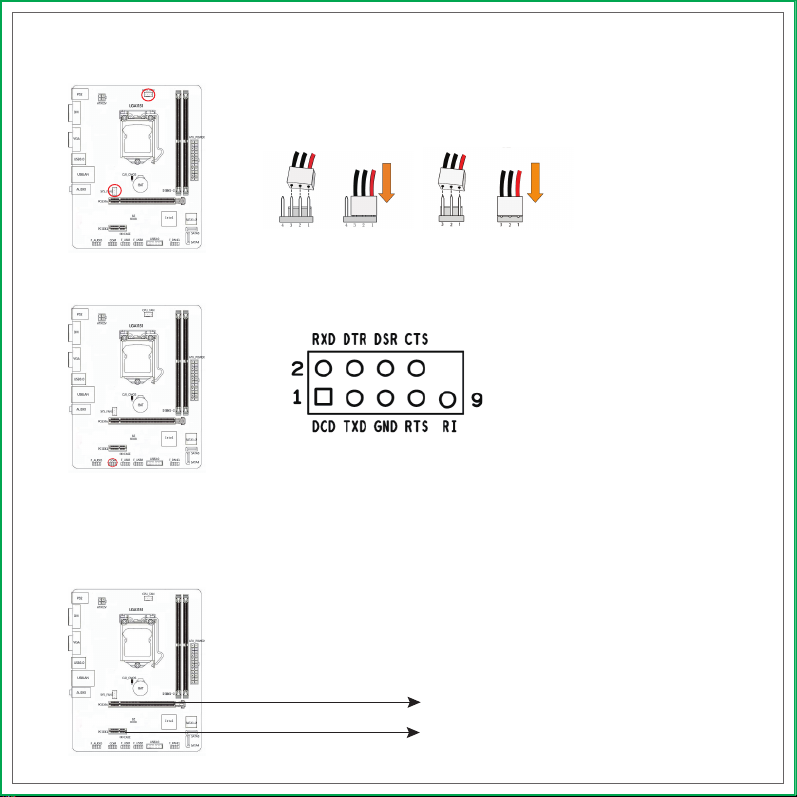

Connect the fan cables to the fan connectors on the motherboard, making sure that the black wire of each cable matches
the ground pin of the connector.
2.7.8.CPU, Chassis, and Power fan connectors (4-pin CPU_FAN, 3-pin PWR_FAN)
PCI Express3.0 x1 Slot
PCI Express3.0 x16 Slot
The PCI Express x16 slot is reserved for a graphics or video card. The bandwidth of the x16 slot is up to 8GB/sec.
When installing a PCI Express x16 card, be sure the retention clip snaps and locks the card into place. If the card is not
seated properly, it could cause a short across the pins. Secure the card’s metal bracket to the chassis back panel with the
screw used to hold the blank cover.
2.7.10.PCI Express x16 Slots
This COM header is for COM serial devices.
2.7.9.COM header：COM_A
There is a CMOS RAM on board that has a power supply from external battery to keep the system configuration data. With
the CMOS RAM, the system can automatically boot OS every time it is turned on. If you want to clear the system
configuration, use the CLR_CMOS Jumper to clear data.
2.7.11.Clear CMOS Jumper: CLR_CMOS
You can clear CMOS by shorting 1-2 pin. Before you clearing the CMOS, following next procedure:
1.Turn off the AC power supply and connect pins 1 and 2 together using the jumper cap.
2.Return the jumper setting to normal (pin 2 and 3) or Remove the jumper cap
3.Turn the AC power supply back on.
Clear CMOS PROCEDURE
Clear CMOS settings
2-3 clear CMOS
CLR_CMOS
CLR_CMOS
1-2 normal
Este manual sirve para los siguientes modelos
1
Tabla de contenidos
Otros manuales de Placa madre de Colorful
Colorful
Colorful CVN Z790 GAMING FROZEN V20 Manual de usuario
Colorful
Colorful B450M-G DELUXE V14 Manual de usuario
Colorful
Colorful iGame Z390 Vulcan X Manual de usuario
Colorful
Colorful H310M-M.2 PLUS V20 Manual de usuario
Colorful
Colorful H310M-D PRO V20 Manual de usuario
Colorful
Colorful A520M-K PRO V14 Manual de usuario
Colorful
Colorful C.945PL Manual de usuario
Colorful
Colorful C.B250A-BTC DELUXE YV20 Manual de usuario
Colorful
Colorful BATTLE-AX H410M-PT PRO V20 Manual de usuario
Colorful
Colorful CVN Z690D5 GAMING PRO V20 Manual de usuario
Colorful
Colorful C.H81A-BTC V20 Manual de usuario
Colorful
Colorful CVN B760I GAMING PRO V20 Manual de usuario
Colorful
Colorful CVN Z490 GAMING PRO V20 Manual de usuario
Colorful
Colorful B450M-HD V14 Manual de usuario
Colorful
Colorful BATTLE-AX H410M-M.2 PRO V20 Manual de usuario
Colorful
Colorful BATTLE-AX Z490M-PLUS V20 Manual de usuario
Colorful
Colorful BATTLE-AX Z490AK GAMING V20 Manual de usuario
Colorful
Colorful BATTLE-AX Z790M-PLUS D5 V20 Manual de usuario
Colorful
Colorful iGame Z370 Vulcan X Manual de usuario
Colorful
Colorful H61U PLUS V27 Manual de usuario
Manuales populares de Placa madre de otras marcas
Telit Wireless Solutions
Telit Wireless Solutions SL869-3DR Manual de usuario
Gigabyte
Gigabyte GA-9IVDT Manual de usuario
Texas Instruments
Texas Instruments ADS8372EVM Manual de usuario
Commell
Commell MS-C73 Manual de usuario
IBT Technologies
IBT Technologies MB860 Manual de usuario
Nvidia
Nvidia TEGRA DG-04927-001_V01 Manual de usuario
