Colorful C.945PL Manual de usuario
C.945PL VER2.1
Chapter 1 Introduction
Thanks for purchasing Colorful 945 series motherboard:
The C.945PL is based on the latest Intel 945PL and ICH7. Support
dual-channel DDR2 400/533/667MHz memory, Other configurations-such as
hardware functions, interface, BIOS etc, are the same as C.945PL Ver2.1,so we
take C.945PLVer2.1 as an example.
The C.945PL Ver2.1 motherboard supports the Intel® Pentium D/Core TM 2
Duo/ Pentium 4 / Celeron D CPU processors in the LGA775 socket with the
scalability for future processor innovations. Embedded AC’97 8-channel Audio
CODEC. It Provides RTL81100S Gigabit LAN /RTL8100C Megabit LAN
(optional) .
C.945PLVer2.1 provides 3 PCI slots, 2 PCIE x16 slots, 1 PCIE x 1 slot
Packing Contents
1 Colorful C.NF5-DH Ver1.4 motherboard
1 SATA cable and 1 power cable
1 Standard Cable for IDE Devices
1 Driver/Utility CD
1 Warranty Card
1 User's Guide
ATI CrossFire Technology Introduction
ATI released today its new technology that allows two video cards to be
connected together in parallel in order to increase the system gaming performance –
theoretically this technology can double it, called Crossfire. When two ATI cards are
linked up, they are capable of using three different methods to split the rendering load
between them—super tiling, scissor, and alternate frame rendering. Super tiling is
supported only in Direct3D applications; it divides up the display into 32x32 pixel
squares, like a chess board, where each card renders alternate tiles. Both Direct3D and
OpenGL applications can benefit from scissor mode, where the screen is split in half
horizontally, with one card rendering the top half while the other does the bottom half.
Finally, Alternate frame rendering mode does just what it sounds like: The two cards
take turns rendering frames.
Crossfire allows you to use different video cards which stay on the same family
together. The only requirement is that one of the cards must be “Crossfire Edition”,
the other card can be an early model, but if their memory is not the same, system will
recognize GDDR of the small one as default.ATI suggest users use the same model.
NOTE: When you make a Crossfire system, we suggest you using a driver newer than
Catalyst® driver 5.12.
MOTHERBOARD SPEC
CPU - Supports Intel ® Pentium® D/ Core™2 Duo / Pentium® 4 /
Celeron® D CPU in the LG5 A77socket
- Supports FSB Frequency 533/800MHz(Intel® 945PL)
- Supports FSB Frequency 533/800/1066MHz(Intel® 945P)
- Supports Hyper-Threading
Chipset - North Bridge: Intel ® 965PL/ Intel® 945P
- South Bridge: ICH7
Main Memory - Supports 2 DIMM of 240-pin 1.8 Volt DDR2 SDRAM
- Supports Dual channel DDR memory architecture.
- Supports DDR2 400/533/667 memory interface. (Intel®
945PL)
- Supports DDR2 400/533/667 /800 memory interface. (Intel®
945P)
Integrate Ports
-1x IDE connector, can connect 2IDE devices, support
ATA33/66/100
-1x FDD connector ,support 360K/720K/1.2M/1.44M/2.88M
floppy disk
- 4x SATA2 SATA Connector ,transfer rate is up to 3Gb/s
- 8x USB2.0 ports
- 1x COM Connector
- 2x PS/2 ports (1 for mouse, the other for the keyboard)
- 1x IrDA Connector
- 1x RJ-45 LAN Connector
High Definition
Audio -RealTek RLC850 support 8-channel High Definition Audio
Codec and SPDIF
Onboard LAN - RTL81100S Gigabit LAN /RTL8100C Megabit LAN
(optional)
- Provides 10/100/1000 Ethernet
BIOS - Support Plug&play
- Support ACPI advanced power management
- Hardware detect ,control CPU temperature ,fan speed ,system
voltage
Expansion Slots - 2x PCI Express x16 Graphics slots
- 1x PCI Express x1 slot
- 3x PCI slots，support PCI Bus interface v2.2 compliant
Form Factor -ATX
C.945PL/945P VER2.1 Motherboard Layout
Motherboard Parts schedule
Part Use Description
PCIE_16X&PCIE1 Graphics Cards Slot PCI Express x16
PCIE1 PCI Express x1 Slot PCI Express x1
PCI1-PCI3 3 x 32bit PCI Slots PCI Slots
CPU_FAN CPU Fan Connector 4 PIN
Power ATX ATX Power Connector 24PIN
ATX_12V P4 ATX Power Connector 4PIN
DIMM1-DIMM4 2 x 240-pin 1.8V DDR2 Socket 240PIN DIMM
JKB Keyboard/Mouse wake up 3PIN
JP1 PCI Express x1/x4 control Slot 8PIN
IR IrDA Connector 4PIN
IDE1 IDE Connector 40PIN
AUXF AN1&SYS
FAN2 System Fan Connector, like case fan 3PIN
CLR_CMOS Clear CMOS jumper 3PIN jumper
CN_IN1 CD-in Audio Connector 4PIN
F_AUDIO Front Panel Audio 9PIN
SATA1-SATA4 4 x Serial ATA Connector 7PIN
FDD1 Floppy Disk Connector 34PIN FDD
USB1/USB2 Extend USB Port 9PIN
J1 Front Panel Switch, LEDs and Speaker Connector 13PIN
BAT1 Battery Container Battery Container
SP1 Integrate Speaker Speaker
Chapter 2 Hardware Installation
Hardware Installation Steps
Before using your computer, you had better complete the following steps:
1. Install CPU and Fan
2. Install System Memory (DIMM)
3. Fix into the case
4. Install all of the Expansion cards
5. Connect IDE and Floppy cables, ATX Power cable, Front Panel /Back Panel cable
Step 1: Install CPU
The C.945PL Ver2.1 motherboard supports the Intel® Pentium D/Core TM 2 Duo/
Pentium 4 / Celeron D CPU processors in the LGA775 socket .
When you are installing the CPU, make sure to install the cooler to prevent
overheating.
NOTE: DO NOT TRY TO INSTALL Socket-478/Socket-A processor (like PPGA
Celeron, FCPGA Pentium-III, Pentium-MMX or AMD CPU etc.) on LGA775.

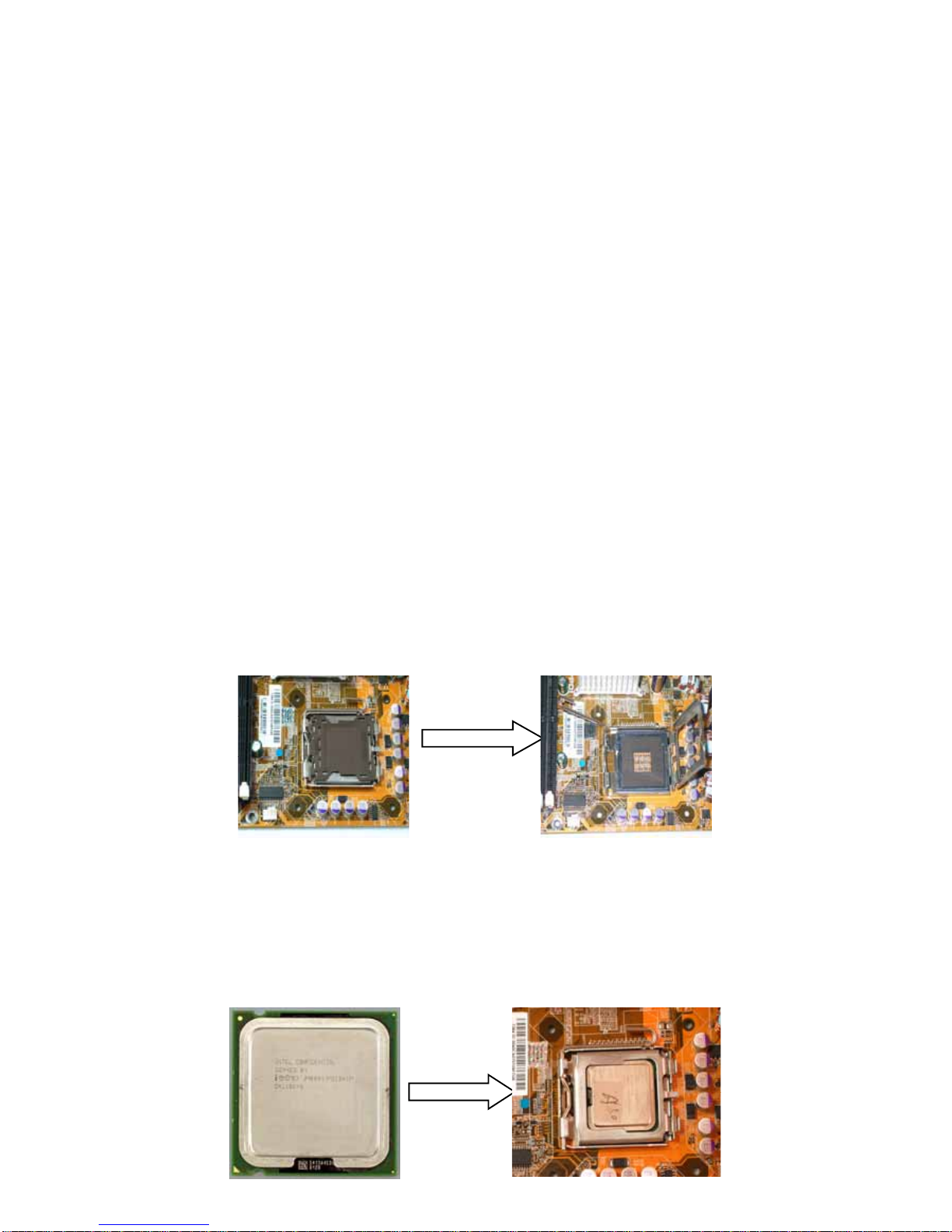

Install Procedures:
a. Remove the plastic cap from lever hinge side and lift the load lever up and open the
load plate.
b. Correctly align the triangle of CPU Clip with the CPU chamfer, and the square on
the CPU Clip to the hook of the socket. Use your thumb and the middle fingers to
push the clips to release the CPU, and then press down the CPU with your index
finger to allow the whole module to be installed onto the CPU socket. Then cover the
load plate onto the package.
c. Install the cooler. Connect the power cable to the CPU_FAN connector.
NOTE: After installing the system, please check and set the CPU frequency.
Step 2: Install Memory
The motherboard provides 4 slots for 240-pin DDR2 DIMM, which supports
dual-channel DDR2 533/667/800MHz.
The clock can be set in BIOS. Please refer to “Advanced Chipset Features Setup”
section for more detail information.
Install Steps:
a. Open the white plastic clip at each side of the DIMM.
b. Insert the DIMM memory module vertically into the DIMM slot. Then push it in
until the golden finger on the memory module is deeply inserted in the socket.
c. The plastic clip at each side of the DIMM slot will automatically close.
Install Dual-channel
C.945PL Ver2.1 motherboard supports dual-channel DDR2 533/667/800MHz
memory interface, while both channels (in different color) populated with same
amount of memory size will work as dual-channel DDR.
NOTE: The memories must be the same type, same size, and same frequency for dual
channel function.
Step3 Install the Motherboard into the Case
You can easily install the motherboard into the case .Please screw the
motherboard firmly to prevent of short circuit.
Step4 Install Expansion Card
You can easily install the AGP or PCI expansion cards on the motherboard .Please
align the card's connectors and press firmly.
Step5 Connect all the signal cables, IDE cables, power cables and panel cables to the
connectors
Please refer to the connector’s instruction for more detail information
Jumper set
There is a CMOS RAM on board that has a power supply from external battery to
keep the system configuration data. With the CMOS RAM, the system can
automatically boot OS every time it is turned on. If you want to clear the system
configuration, use the CLR_ CMOS Jumper to clear data.
Clear CMOS PROCEDURE
You can clear CMOS by shorting 2-3 pin. Before you clearing the CMOS, following
next procedure:
1. Shut down your computer
2. Pull out the ATX power cable
3. Shorting 2-3 pin 3 seconds
4. Then shorting the 1-2 pin
5. Connect the ATX power connector again
NOTE: You need clear CMOS when
in next instance
1. When you forget your CMOS
password.
2. When over-clocking is failed.
Keep Data Clear Data
Keyboard Power on: JKB
1
3
Pin 1-2 close
1-2 Support power on by keyboard
1
3
Pin 2-3 close
2-3 Disable the power on by keyboard
LAN Control: JLAN
1
3
Pin 1-2 close
1-2 Disable LAN
1
3
Pin 2-3 close
2-3 Enable LAN
