Coleman AT200-B Manual de usuario

POWERSPORTS

THIS ATV WAS SHIPPED

WITHOUT ENGINE OIL.

ALWAYS FILL WITH THE

CORRECT AMOUNT AND

GRADE OF ENGINE OIL

AS LISTED IN THE

OWNER’S MANUAL

ASSEMBLY/PRE-RIDE

INSPECTION INSTRUCTIONS

NEVER ATTEMPT TO START THIS ATV WITHOUT READING AND

UNDERSTANDING THE OWNER’S/ OPERATOR’S MANUAL. THE

OWNER’S OPERATOR’S MANUAL PROVIDES INFORMATION ON

SAFETY, PARTS, FUNCTIONS, PRE-RIDE INSPECTION,

STARTING AND MAINTENANCE

WARNING

FOR QUESTIONS ABOUT THESE ASSEMBLY INSTRUCTIONS,

CALL COLEMAN POWERSPORTS 888-405-8725

CAUTION

WARNING

AT200-B

01J05R21

M8 Lock Nuts

Lor

AT200

PARTS

POWERSPORTS

THISATV WAS SHIPPED

WITHOUT ENGINE OIL.

ALWAYSFILL WITH THE

CORRECTAMOUNT AND

GRADE OF ENGINE OIL

AS LISTED IN THE

OWNER’S MANUAL

ASSEMBLY/PRE-RIDE

INSPECTION INSTRUCTIONS

NEVER ATTEMPTTO START THIS ATV WITHOUT READINGAND

UNDERSTANDINGTHE OWNER’S/ OPERATOR’S MANUAL. THE

OWNER’S OPERATOR’SMANUAL PROVIDES INFORMATION ON

SAFETY,PARTS, FUNCTIONS, PRE-RIDE INSPECTION,

STARTINGAND MAINTENANCE

WARNING

FOR QUESTIONS ABOUT THESEASSEMBLY INSTRUCTIONS,

CALL COLEMAN POWERSPORTS 888-405-8725

CAUTION

WARNING

OWNER’S MANUAL TOOL KIT FUEL VENT TUBE

HANDLEBAR BRACKET CLAMPS

FRONT BUMPER

REAR CARRIER ASSEMBLY

M8 x 20 Bolts

M8 x 16 Bolts

M8 Lock Nuts

M20 Washers

M20 Lock Washers

Hub Caps

Rear Carrier Support

M8 x 30 Bolts

Lor

AT200

PARTS (continued)

TIRE ASSEMBLY

Front Tires Rear Tires

M20 Washers

M10 Lock Nuts

Hub Caps

M20 Lock Washers

Hub Caps

M10 Washers

Cotter Pins

M20 Castle Nuts

DISPLAY CONSOLE ASSEMBLY

M6 X 16 Bolts

BATTERY

HANDLEBAR INSTALLATION

HANDLEBAR PARTS

Handlebar Clamp

Bracket

Steering Assembly

Bracket

Display Console

Bracket

Handlebar

M10 x 30

Bolts

Display Console

Bracket

1. Attach bottom

clamp brackets to

steering assembly

bracket using

M10 x 30 bolts,

M10 Lock Washers

and M10 Lock Nuts

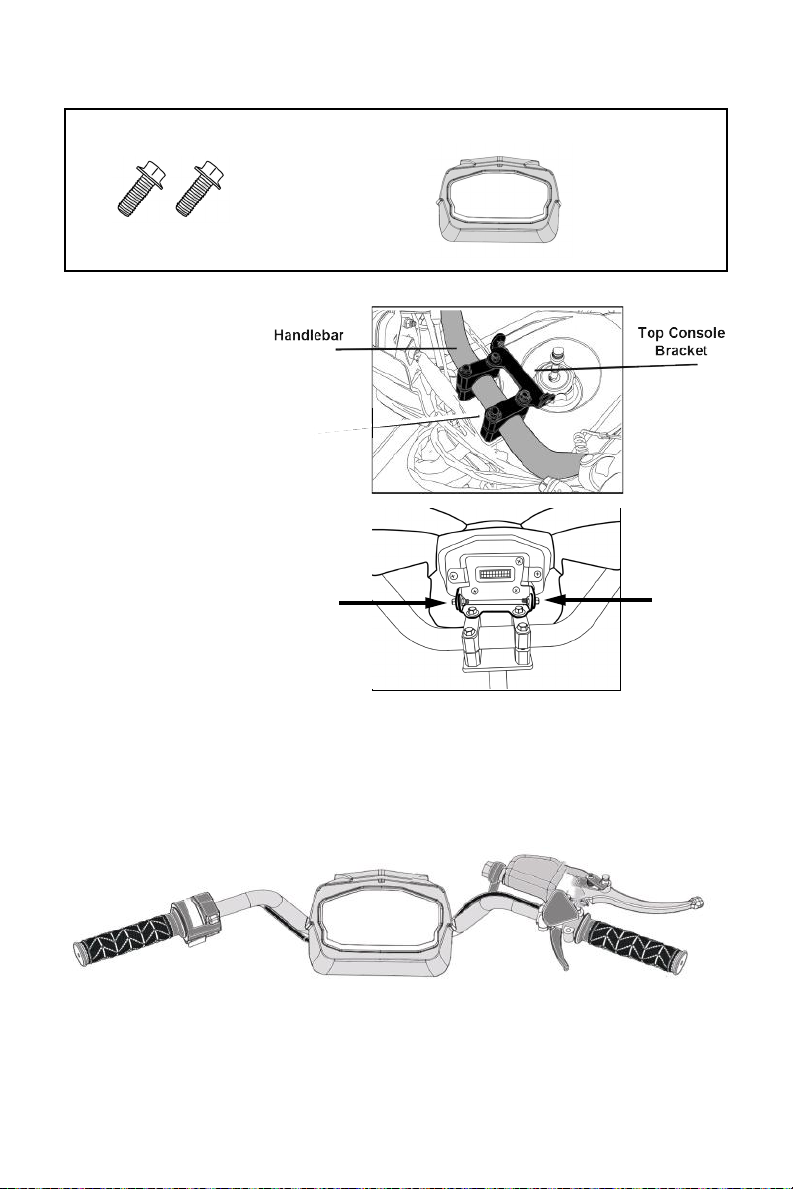

DISPLAY CONSOLE INSTALLATION

Display Console

Bracket

HANDLEBAR PARTS

1. Attach bottom

side of display

console to the

display console

bracket using

2 - M6 x 16 bolts

M6 x 16 Bolts

M6 x 16 Bolt M6 x 16 Bolt

REAR WHEEL INSTALLATION

M6 x 16 Bolt

REAR WHEEL PARTS

Tires

Hub Caps Large Washers

M20 Lock Washers M20 Castle Nuts

1. Fill tires with 10 PSI of air before assembly.

2. Install each wheel - ensure the tread faces forward and

valve stems face out.

3. Attach each wheel using large M20 Washer, M20 Lock

Washer, and M20 Castle Nut

4. Install Cotter Pin through axle end and bend over the ends.

5. Install Hub Caps

Install Hub Caps

FRONT WHEEL INSTALLATION

Tires

FRONT WHEEL PARTS

Hub Caps

M10 Washers

1. Fill tires with 10 PSI of air before assembly.

2. Install each wheel - ensure the tread faces forward and

valve stems face out.

3. Attach each wheel with M10 Washer followed by M10 Lock

Nut. Repeat for each wheel stud (Torque nuts 25ft. lbs)

4. Install Hub Caps

M10 Lock Nuts

FRONT BUMPER INSTALLATION

M10 Washers

BUMPER PARTS

M8 x 20 Bolts

1. Install front bumper to front frame with M8 x 20 Bolts

REAR CARRIER INSTALLATION

M8 x 20 Bolts

REAR CARRIER PARTS

M8 Lock Nuts

M8 x 16 Bolts

1. Install Rear Carrier Support with 4 - M8 x 16 bolts

to the rear frame.

2. Attach Rear Carrier to Rear Carrier Support with

2 - M8 x 16 bolts and 2 - M8 x 30 bolts.

M8 x 30 Bolts

M8 x 16 Bolts

Rear Carrier

Support

Rear Carrier Support

BATTERY INSTALLATION

1. Insert battery into battery tray with the battery terminal nuts and bolts

already installed on the battery.

2. Attach both battery straps

3. Remove battery terminal nuts and bolts from battery.

4. Connect positive cable to positive battery terminal and re-screw battery

terminal bolt.

5. Connect negative cable to negative battery terminal and re-screw

battery terminal bolt.

6. Reinstall seat.

NOTICE Positive (+) cable is red in color.

Negative (-) cable is black in color.

TIP This Coleman Powersports AT200 ATV has two positive (+) cables red

in color. Both attach to the positive terminal on battery.

WARNING

Battery electrolyte is poisonous and

dangerous, contains sulfuric acid,

which can cause severe burns. Avoid

contact with skin, eyes or clothing.

Always shield your eyes when

working near batteries.

KEEP OUT OF REACH OF CHILDREN.

DO NOT OPEN BATTERY.

Ventilate when charging or using in

an enclosed space.

KEEP AWAY FROM SPARKS, FLAMES,

CIGARETTES OR OTHER SOURCES OF

IGNITION.

Battery
