Coleman Revolution Manual de usuario

Manual Revision #: 11092016 AT

www.colemanbbqs.com

ASSEMBLY MANUAL

85-3139-2 (G36301) Propane

LIMITED 5-YEAR WARRANTY

Read and save manual for future reference.

Assemble your grill immediately. Missing or damaged parts

should be claimed within 30 days of purchase.

For product inquiries, parts, warranty and troubleshooting support,

please call 1-800-275-4617.

REVOLUTIONTM

2BURNER

BLACK STEEL EDITION

WARNING

Failure to follow all of the Manufacturer’s

instructions could result in hazardous

ﬁres, explosions, property damage, or

serious personal injury or even death.

Follow all leak check procedures

carefully prior to operation of barbecue,

even if grill was dealer assembled. Do

not try to light this barbecue without

reading the Lighting Instructions section

of this manual.

THIS MANUAL MUST REMAIN WITH THE PRODUCT AT ALL TIMES

CAUTION

Read and follow all safety statements,

assembly instructions, use and care

directions before attempting to

assemble and cook.

CAUTION

Sharp edges. Wear gloves when

assembling your grill.

INSTALLER OR ASSEMBLER/

CONSUMER

This manual should be kept with the

BBQ at all times.

HEAVY ARTICLE NEEDS 2 TO LIFT

To ORDER non-warranty replacement parts or accessories,

or to register your warranty, please visit us on the web at

www.colemanbbqs.com

DANGER

1. If you smell Gas:

a. Shut o gas to the appliance

b. Extinguish any open ﬂame

c. Open lid

d. If odor continues, keep

away from the appliance and

immediately call your gas

supplier or your ﬁre department

2. Requires two people to complete

the assembly process.

3. Beware of sharp edges.

THIS BARBECUE IS FOR OUTDOOR USE ONLY

CONTACT CALL CENTRE IF ANY PARTS ARE MISSING

1-800-275-4617

WARNING

1. Do not store or use gasoline

or other ﬂammable liquids or

vapours in the vicinity of this or

any other appliance.

2. An LP cylinder not connected for

use shall not be stored in the vicinity

of this or any other appliance.

WARNING

IN DIRECT SUN, AND IN OPERATION,

YOUR BBQ’S STAINLESS STEEL

AND PAINTED STEEL PARTS CAN

BECOME VERY HOT.

HARDWARE PACK

1/4”-20UNCx38 Screw

X 6

NO.10-24UNCx13 Screw

X 14

1/4”-20UNC Nut

X 2

1/4”-20UNCx16 Screw

X 30

NO.8-32UNCx18 Screw

X 2

ST4.2x10 Tapping Screw

X 6

NO.8-32UNC Nut

X 2

Spacer, Door Handle

X 2

1/4’’-20UNC Screw

X 4

NO.8-32UNCx10 Screw

X 3

Rubberized Washer

X 10

Wheel Lock Pin

X 1

123

4 5 6

78 9

10 11 12

No. Description Part Number Qty.

1 1/4"-20UNCx38 Screw 20120-13038-250 6

2 1/4"-20UNCx16 Screw 20120-13016-250 30

3 1/4''-20UNC Screw G353-0014-9000 4

4 NO.10-24UNCx13 Screw 20124-10013-250 14

5 NO.8-32UNCx18 Screw 20132-08018-250 2

6 NO.8-32UNCx10 Screw 20332-08010-250 3

7ST4.2x10 Tapping Screw 22500-42010-137B 6

8Rubberized Washer G501-0054-9100 10

9 1/4"-20UNC Nut 30220-13000-250 2

10 NO.8-32UNC Nut 30232-08000-250 2

11 Spacer, Door Handle G466-0035-9000 2

12 Wheel Lock Pin G350-0026-9000 1

TOOLS NEEDED FOR ASSEMBLY

• #2 Phillips screwdriver (long and short)

• 1/4” Slotted screwdriver (long and short)

• Adjustable wrench

• Pliers

BEFORE ASSEMBLING THIS BARBECUE, READ THE INSTRUCTIONS CAREFULLY.

Assemble the barbecue on a ﬂat, clean surface. Grill is heavy. Two people are

recommended to assemble this barbecue.

Caution:

Sheet metal can cause injury. Wear gloves when installing the grill.

PARTS LIST (PROPANE) FOR 85-3139-2 (G36301)

Item No. Qty. Description Part No.

AA 1 Top Lid Assembly G363-2000-02

AB 1 Lid Handle G363-0005-01

AC 1 Thermometer G363-0009-01

AD 1 Thermometer Bezel G363-0006-01

AE 2 Screw, Top Lid G466-0007-01

AF 2 Lid Bumper, Front G527-0002-02

AG 2 Lid Bumper, Rear G303-0038-01

BA 1 Burner Box Assembly G363-3100-01

BB 2 Main Burner G532-3500-01

BC 1 Carryover Assembly G532-0014-01

BD 2 Heat Distribution Plate G532-0016-01

BE 1 Grease Channel G363-0012-01

BF 4 Cooking Grate G532-0017-01

BG 1 Cleaning Tool G532-0049-01

BH 1 Warming Rack G363-0013-01

BI 1 Match Holder G501-0068-01

CA 1 Manifold Assembly G363-3300-01

CB 1 Regulator G409-0069-01

CC 1 Electrode Set, Main Burner G515-0067-01

CD 2 Control Knob G363-3400-01

CE1 1 Electronic Ignition Assembly G532-0019-01

CE2 1 Ignition Battery Cover G532-0019-02

CE3 1 Instastart™ Ignition Button G363-0022-01

CF 2 Knob Bezel G363-0011-01

CG 1 Control Panel G363-0010-01

CH 1 Door Support Rail G363-5000-01

CI 1 Grease Cup, Burner Box G416-0015-01

CJ 2 Grease Cup Rails G466-0034-01

CK 1 Upper Back Panel G363-0015-01

CM 1 Heat Shield G363-0016-01

Item No. Qty. Description Part No.

DA 2Side Shelf Table G363-0800-01

DB 1 Side Shelf Fascia, Left G363-0900-01

DC 1 Side Shelf Table Rear Brace,

Left

G363-1000-01

DD 1 Side Shelf Fascia, Right G363-1100-01

DE 1 Side Shelf Table Rear Brace,

Right

G363-1200-01

DF 2 Support bracket A, side shelf G363-1300-01

DG 2 Support bracket B, side shelf G363-1400-01

DH 2 Side Shelf Extension Table G363-1500-01

DI 1 Grease Cup Holder, Flare-Free G363-0023-02

DJ 1 Grease Cup, Flare-Free G363-0023-02

EA 1 Cart Side Panel, Left G363-4100-01

EB 1 Cart Side Panel, Right G363-4200-01

EC 1 Door Assembly G363-6000-01

ED 1 Door Handle G363-0019-01

EE 1 Bottom Shelf G363-0500-01

EF 2 Locking Castor G350-0023-01

EG 2 Castor G350-0024-01

EH 1 Door Magnet Assembly G527-0037-01

F1 1 Hardware Pack G363-B001-01

F2 1 Assembly Manual G363-M001-01

F3 1 Safe Use and Care Manual G532-M001-02

F4 1 Tank Screw G505-0047-01

EXPLODED DIAGRAM (PROPANE) FOR 85-3139-2 (G36301)

EA EB EC

CE3

CE2

CE1

BH BG

DH DA

DA DG

Extras

Hardware

Pack

Assembly

Manual

Safe Use

& Care

Manual

F1 F2 F3

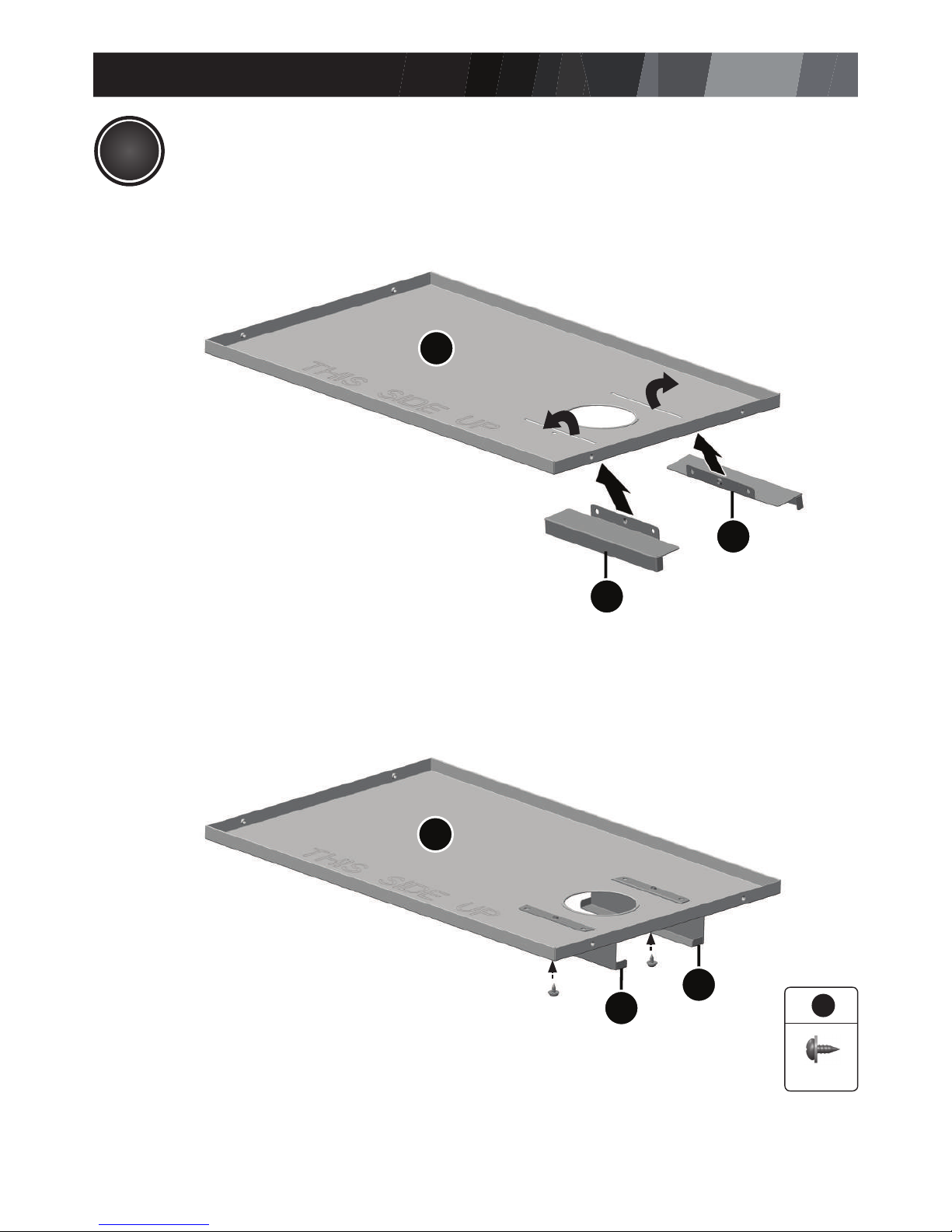

ASSEMBLY INSTRUCTIONS

X 1

CE1

ASSEMBLY INSTRUCTIONS

66 105

X 2X 2

X 8

Ground Wire

CE1

ASSEMBLY INSTRUCTIONS

X 4

ASSEMBLY INSTRUCTIONS

X 2

ASSEMBLY INSTRUCTIONS

X 4
