Coleman 5065-705 Guía del usuario

Assembly

and

Instruction Manual

Fireplace/Charcoal Grill

Model 5065-705

U. S. & foreign patents pending

Your Coleman RoadTripTM Fireplace/Grill is a versatile unit that

functions as either a fireplace or a charcoal grill. Follow these

instructions for assembly and read carefully, particularly the safety

statements. The safety alert symbol, is a universally recognized

symbol used to identify safety information about hazards that can

result in personal injury. When this symbol is used you should pay

very close attention to what is written. Review these instructions

before beginning assembly or using your fireplace.

Introduction

FOLLOW INSTRUCTIONS AND WARNINGS TO AVOID FIRE, SERIOUS

INJURY OR DEATH.

•

Outdoor use only. Never use in enclosed area. Use in unventilated

areas will endanger your life.

• Keep away from all combustible materials including gasoline and other

flammable liquids and vapors.

• Use on a level, noncombustible surface only. Keep away from house,

garage, balconies, or eave overhangs.

• Keep out of the reach of children.

• Be sure screen is in place while in use and do not use in windy conditions.

• Do not overfill firebox or use to burn leaves and trash.

• Exercise the same care you would with an open fire.

• Never leave unit unattended when hot or in use.

• Completely extinguish fire before leaving.

• Use gloves when handling or moving. Ashes can remain warm for a

long time after extinguishing.

• Dispose of cold ashes properly.

• Do not modify in any way nor use with parts not expressly approved by

Coleman.

• Combustion by-products produced when using this product contain

chemicals known to the State of California to cause cancer, birth defects,

or other reproductive harm.

Contact local authorities regarding possible burn restrictions before using

product.

WARNING

• Check package for all parts needed for assembly.

Fireplace/Grill Parts Check List

• Check all items for shipping damage. Call Coleman at 1-800-835-3278

or TDD: 316-832-8707 if you have any problems.

■■1. Lid

■■2.

Firebox

■■

3. Screen Assembly

■■

4. Hinge Pin

■■

5. Cooking Grate

■■

6. Charcoal Grate

■■7.

Handle (3)

■■8. Leg Receptors (3)

■■9. Telescoping Legs (3)

■■10. Wire Brace

■■11. Damper

■■12. Fastener Hardware

■■

13. Carrycase

Assembly

1. Carefully unpack all parts from shipping box.

2. Insert Telescoping Legs into Receptors with spring clips inside legs.

Important: Orient legs so small tube welded to leg faces inward. This

will ensure proper fit of the Wire Brace. Legs extend by pushing in on

both spring clips protruding from the legs and pulling the legs outward.

Then lock leg in place by aligning spring clips with holes in legs. Always be

sure spring clip is protruding through holes in legs to ensure stability.

Small tubes

must face inward

Spring Clip

Telescoping

Leg

Receptor

3. Assemble Wire Brace to all 3 legs by inserting ends into the small tube

welded to each leg. If wire brace does not fit, check Step 2 above to be

sure small tube is facing inward.

Wire

Brace

Small

Tube

4. Attach Handles to Firebox

with 2 bolts, washers & nuts.

Place washer between nut

and firebox. Be careful not to

overtighten bolts as this

could crack the porcelain

finish on the Firebox.

5. Attach Handle to Lid with 2 bolts, washers & nuts.

Again, be careful not to overtighten bolts as this could crack the

porcelain finish on the Lid.

6. Assemble Damper to Lid with 1 bolt & nut.

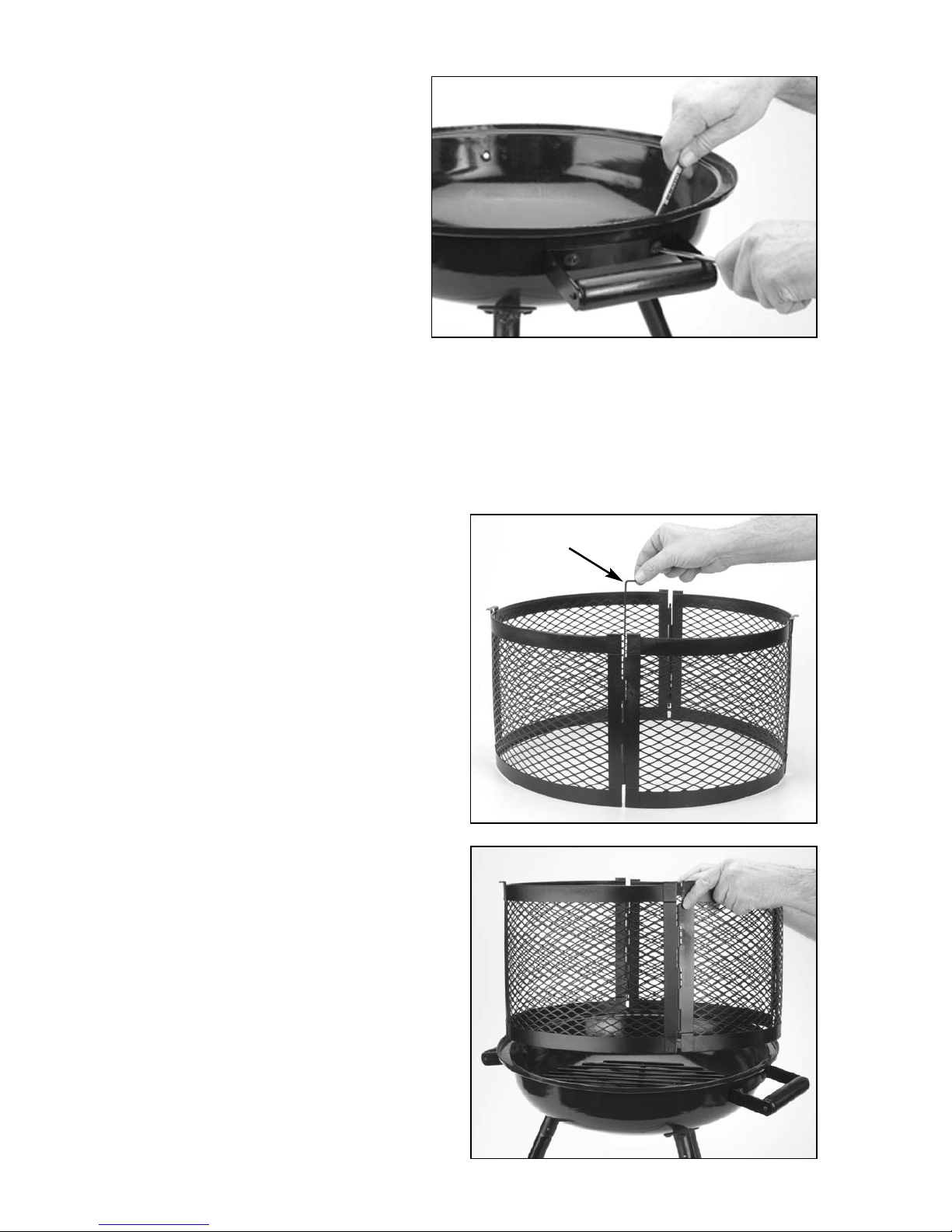

7. Assemble Screen Assembly by

inserting Hinge Pin into hinges of

mating sections.

Hinge Pin

8. Place Charcoal Grate into

Firebox; place Screen Assembly

along top edge of Firebox & place

Lid on top of Screen Assembly.

You are now ready for use as

either a Fireplace or Charcoal Grill.

Set Up and Use

WARNING

Never leave unit unattended when hot or in use. Keep out of reach of

children. For outdoor use only. Never use in enclosed area. Use in unven-

tilated areas will endanger your life.

1. Place unit on a level, noncombustible surface with legs in lowered

position. Keep well away from house, garage, balconies or eave overhangs.

2. Be sure charcoal grate is placed in firebox. Add newspaper, kindling &

wood on top of charcoal grate.

3. Place screen assembly along top edge of firebox.

4. Ignite newspaper & kindling with match or butane lighter. Use charcoal

lighter fluid if necessary.

5. Once fire is well lit, place lid

on top of screen assembly.

AS A FIREPLACE

Set Up and Use

WARNING

Never leave unit unattended when hot or in use. Keep out of reach of

children. For outdoor use only. Never use in enclosed area. Use in unven-

tilated areas will endanger your life.

1. Place unit on a level, noncombustible surface with legs in raised

position. Keep well away from house, garage, balconies or eave overhangs.

2. Be sure charcoal grate is in place in firebox. Place charcoal over

charcoal grate and ignite charcoal as instructed on charcoal packaging.

Use charcoal lighter fluid as needed.

3. Once charcoal is well lit,

place cooking grate on top of

firebox and begin cooking!

AS A CHARCOAL GRILL

After Use

Storage in Carrycase

WARNING

To avoid burns – use heavy gloves to remove screen assembly and grates.

1. Completely extinguish fire before leaving.

Extinguish fire by removing screen assembly

and placing lid over firebox with damper closed.

2. Do not use water to douse the fire as this may

crack the porcelain finish of the firebox.

3. Dispose of cold ashes properly.

4. Be careful – fire may be out but firebox can still

be hot. Handle carefully.

5. Store in covered enclosure or disassemble and

place in carrycase. See Storage section below.

1. Clean all components prior to storing in carrycase. This will prevent unwanted

odors and extend the life of your fireplace/grill.

2. To disassemble, remove lid, screen assembly and cooking grate.

3. Disassemble the wire brace and telescoping legs from the firebox.

4. Insert cleaned cooking grate into bottom pocket of carrycase and close straps.

5. With legs in short position, insert them through the elastic straps inside the

carrycase. Each leg should be held down by two straps.

6. Next place wire brace on top of legs.

7. Fold screen assembly by removing hinge pin and folding the screen sections

over on each other. Then place folded screen assembly in firebox on top of

charcoal grate.

8. Place firebox into carrycase. For best fit, orient firebox so handles extend out

to match oblong shape of carrycase.

9. Place lid on top of firebox and zip carrycase shut.

Maintenance & Care of Fireplace

• Extreme heat from fire may cause paint to burn off from Screen

Assembly. To help restore look & protect steel, use a wire brush to clean,

then repaint with high temperature black paint.

• Always store unit in covered enclosure, preferably in carrycase.

• Check that bolts on handles, leg receptors & damper are tight with no

loose fitting pieces.

Parts List
