Cognex In-Sight 7000 Series Guía rápida

In-Sight®7000 Series

Vision System

Optional Configurations

Legal Notices

The software described in this document is furnished under license, and may be used or copied only in accordance with

the terms of such license and with the inclusion of the copyright notice shown on this page. Neither the software, this

document, nor any copies thereof may be provided to, or otherwise made available to, anyone other than the licensee.

Title to, and ownership of, this software remains with Cognex Corporation or its licensor. Cognex Corporation assumes

no responsibility for the use or reliability of its software on equipment that is not supplied by Cognex Corporation.

Cognex Corporation makes no warranties, either express or implied, regarding the described software, its

merchantability, non-infringement or its fitness for any particular purpose.

The information in this document is subject to change without notice and should not be construed as a commitment by

Cognex Corporation. Cognex Corporation is not responsible for any errors that may be present in either this document or

the associated software.

Companies, names, and data used in examples herein are fictitious unless otherwise noted. No part of this document

may be reproduced or transmitted in any form or by any means, electronic or mechanical, for any purpose, nor

transferred to any other media or language without the written permission of Cognex Corporation.

Cognex P/N 597-0060-01 Rev. B

Portions of the hardware and software provided by Cognex may be covered by one or more of the U.S. and foreign

patents listed below as well as pending U.S. and foreign patents. Such pending U.S. and foreign patents issued after the

date of this document are listed on the Cognex web site at: http://www.cognex.com/patents.

5481712, 5742037, 5751853, 5845007, 5909504, 5943441, 5949905, 5960125, 5978080, 5978081, 6005978,

6137893, 6141033, 6154567, 6215915, 6301396, 6327393, 6381375, 6408109, 6457032, 6490600, 6563324,

6658145, 6690842, 6771808, 6804416, 6836567, 6850646, 6856698, 6859907, 6920241, 6941026, 6959112,

6963338, 6975764, 6985625, 6993192, 7006712, 7016539, 7043081, 7058225, 7065262, 7069499, 7088862,

7107519, 7164796, 7175090, 7181066, 7251366, 7720315, JP 3927239

Cognex, In-Sight, EasyBuilder, VisionView, DataMan and DVT are registered trademarks of Cognex Corporation.

The Cognex logo, SmartLink, EdgeCount, FeatureCount, and ObjectLocate are trademarks of Cognex Corporation.

Windows is a registered trademark or trademark of Microsoft Corporation in the United States and other countries. Other

product and company trademarks identified herein are the trademarks of their respective owners.

Table of Contents
Legal Notices i
Uninstall and Install the M12 Lens 1
Uninstall the M12 Lens 1
Install the M12 Lens 3
Replace the Cognex Lens Tool Pad 4
Install the Lens Filter 5
Install a Lens Filter with a Shroud 6
Install a Lens Filter without a Shroud 8
Replace the Ring Light 9
Install a Ring Light with a Shroud 10
Convert to a Ring Light with a Shroud 13
Install a Ring Light without a Shroud 17
iii

Uninstall and Install the M12 Lens

If you purchased a vision system with the pre-installed M12 lens, the lens can be replaced with other M12 lenses. The

Cognex Lens Tool accessory (LNS-M12-TOOLKIT) must be used to replace the M12 lens. Please contact your Cognex

sales representative for more information.

CAUTION:Using a non-Cognex lens or replacing the M12 lens without the Cognex Lens Tool accessory (LNS-M12-

TOOLKIT) may cause damage to the vision system.

Uninstall the M12 Lens

1. Verify that the 24VDC power supply being used is unplugged and not receiving power.

2. Remove the lens cover, if present.

3. Determine the correct lens tool to use, based on the focal length of the lens.

Table 1-1: Cognex Lens Tool

Lens Focal Length Cognex Lens Tool

6MM (P/N 114-1346R)

8MM (P/N 114-1347R)

12MM (P/N 114-1348R)

Clear Anodized (P/N 820-0233-xR)

16MM (P/N 114-1309R)

25MM (P/N 114-1112R)

Black Anodized (P/N 820-0234-xR)

4. Place the lens tool directly on the lens, with the padded end of the tool pressed against the lens. The pad will

“grab” onto the lens.

Figure 1-1: Place Lens Tool on Lens

5. To loosen the lens, turn the lens tool counter-clockwise.

Figure 1-2: Turn Counter-Clockwise

6. Remove the lens.

Figure 1-3: Remove the Lens

Install the M12 Lens

1. Verify that the 24VDC power supply being used is unplugged and not receiving power.

2. Determine the correct lens tool to use, based on the focal length of the lens.

Table 1-2: Cognex Lens Tool

Lens Focal Length Cognex Lens Tool

6MM (P/N 114-1346R)

8MM (P/N 114-1347R)

12MM (P/N 114-1348R)

Clear Anodized (P/N 820-0233-xR)

16MM (P/N 114-1309R)

25MM (P/N 114-1112R)

Black Anodized (P/N 820-0234-xR)

3. To install the lens, insert the lens and using your fingers, turn it clockwise. If needed, attach the lens tool and

finish tightening the lens; the maximum torque is 0.34 Nm (3 in-lb).

Figure 1-4: Turn Clockwise

4. Reattach the lens cover.

5. Restore power to the 24VDC power supply and turn it on if necessary.

Uninstall and Install the M12 Lens

Replace the Cognex Lens Tool Pad

If the Cognex Lens Tool's Pad tears, it can be replaced using one of the pads included with the lens tool.

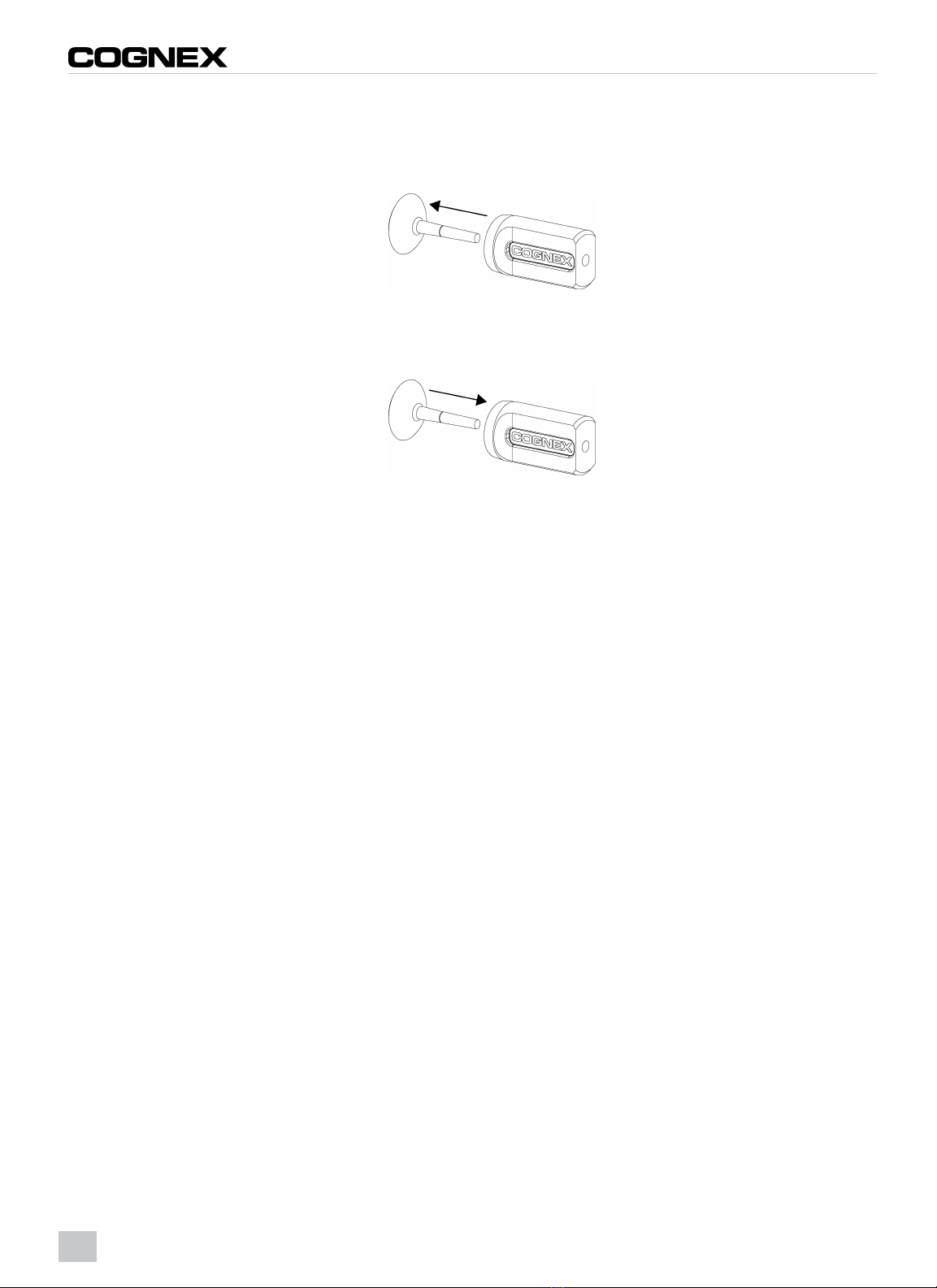

1. Grab the edge of the existing pad and pull it out of the lens tool.

Figure 1-5: Remove Pad

2. Using one of the replacement pads included with the lens tool, feed the stem through the lens tool until the pad is

resting firmly on the end of the lens tool.

Figure 1-6: Replace Pad
