Coemar ProWash 575 LX Manual de usuario

1st edition

ril 2002

instruction

manual

ProWash 575

Index

1. Packaging Page. 3

2. Transportation ,, 3

3. Important safety informations ,, 4

4. Lamp: installation and replacement ,, 5

5. Operating voltage and frequency ,, 7

6. Installing the unit ,, 8

7. Mains connection ,, 9

8. Signal connection ,, 10

9. Powering up ,, 11

10. DMX addressing ,, 12

11. Display panel functions ,, 13

11.1 Powering up ProWash 575 LX without movement ,, 14

11.2. Resetting the counter ,, 15

11.3. test ,, 15

12. DMX 512 signal functions ,, 16

13. Aligning the lamp in the optical path ,, 18

14. Automatic repositioning function ,, 19

15. Opening up the projector housing ,, 20

16. Altering the operating voltage and frequency ,, 21

(reserved to technical staff only)

16.1 Selecting the voltage on the autotransformer ,, 21

16.2. Selecting the frequency on the power supply ,, 22

17. Automatic internal functions ,, 23

18. Maintenance ,, 23

19. Electronic motor alignment ,, 24

20. Error messages ,, 25

21. Spare parts ,, 25

English

Congratulations on havin purchased a coemar, product .You have assured yourself of a fixture of the highest quality, both in

the componentry and the technology used. We renew our invitation to fill out the form on the previous page, to expedit any

request of informations or spares (in case you encountered complications either during or subsequent to installation), This will

allow your coemar service center to provide the needed help with the utmost speed and efficiency.

Following the operating procedures and instructions outlined in this manual, you will ensure your fixture to work at its best

for years to come.

Open up the packaging and make sure that no part of the fixture has substained any kind of damage during transportation.

In case of damage, immediately contact your carrier by phone or fax, announcing the shipment of a formal written com-

plaint..

packing list

Make sure the pakage contains:

1 ProWash 575 LX

1 this instruction manual

ProWash 575 LX must be transported exclusively using the original package or a custom made flight case.

To obtain a suitable case, you need to follow a few indications on how to lock the articulated movements of the ProWash

575 LX. while being transported

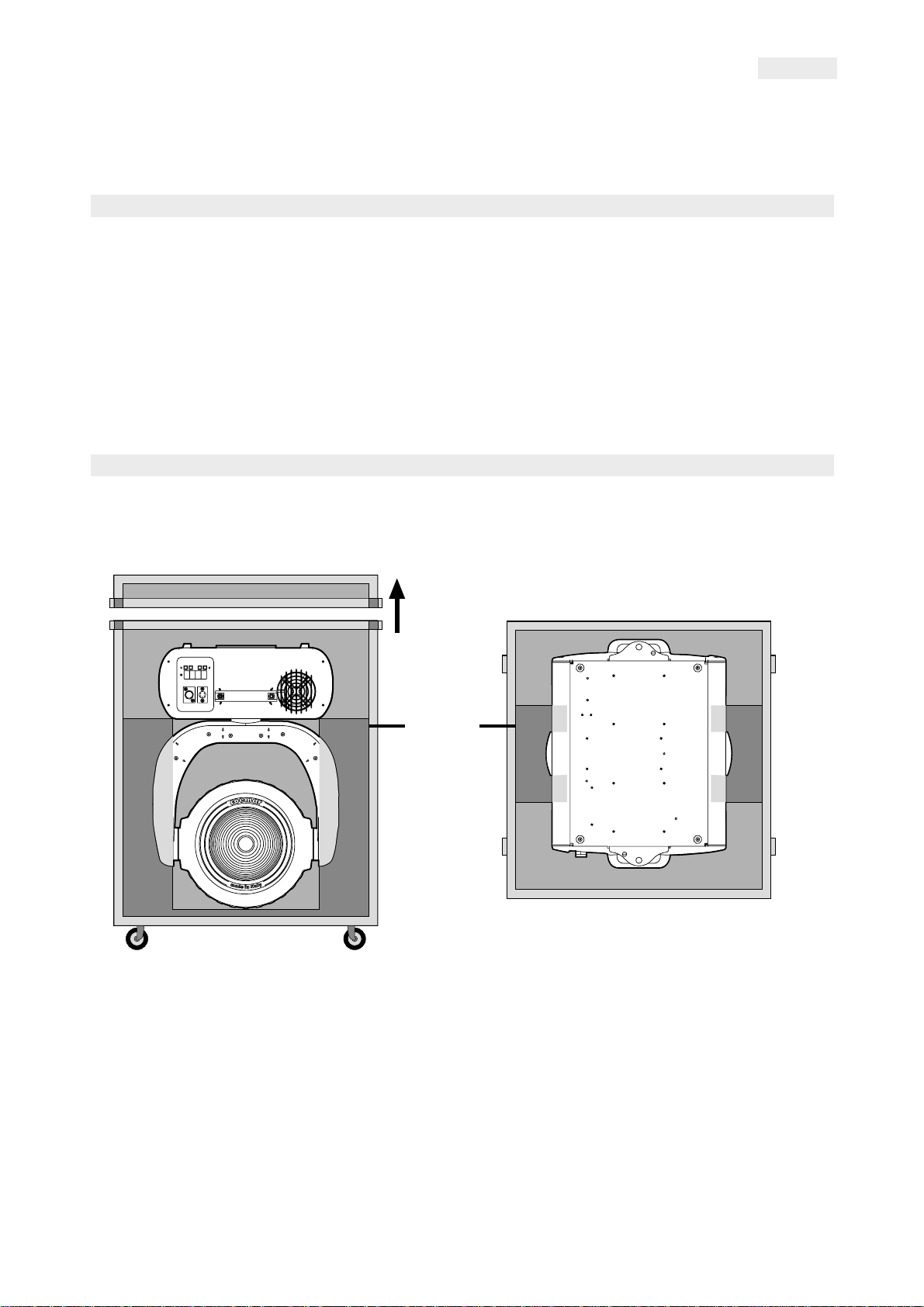

To this purpose, the illustration below shows a section of the case coemar suggests for the ensuring of the fixture and its

moving parts by means of a polyethylene mold.

Polietilene

espanso/

Foam

2. Transportation

1. Packaging

English

Fire prevention

1. ProWash 575 LX uses a Philips 575 MSD or 575 MSR/2 lamp; the use of a different lamp may result in the damaging

of the fixture and cause the voiding of the guarantee.

2. Never install the fixture on flammable surfaces.

3. Minimum distance from any flammable material: 0,5 m.

4. Minimum distance from the closest illuminable surface 2 m.

5. Replace dmaged or blown fuses only with others of identical size and value, referring if necessary to the schematic diagram.

6. Connect the projector to main power via a thermal magnetic circuit breaker..

Prevention of electric shock:

1. High voltage is present in the internals of the unit; disconnect from mains supply prior to perform any operation involving

contact with the internal components of the projector,.including lamp replacement

2. For mains connection, strictly adhere to the instructions outlined in section 7 of this manual.

3. Given its high level of technology, ProWash 575 LX, needs the intervention of specialized personnel for all service appli-

cations. Always refer to you coemar center.

4. A good ground connection is essential to the proper functioning of the fixture.

Never operate the unit without a proper ground connection.

5. Never install teh fixture where it may be exposed to rain, or in extremely humid ambients. A constant supply of circulating

air is essential

Protection against ultraviolet radiations:

1. Never turn on the lamp if any of the lenses, filters or plastic housings is damaged; their shielding action is effective only if

they are in perfect conditions.

Never look directly into the lamp when it is operating.

Safety:

1. The projector should always be installed with bolts, clamps, and other fixings which are suitably rated to support the wei-

ght of the unit.

2. Always use a secondary safety chain of a suitable rating to sustain the weight of the unit in case of the failure of the pri-

mary fixing point.

3. The external surfaces of the unit at various points may exceed 80°C. Never handle the unit until at least 10 minutes have

elapsed since the lamp was turned off.

4. Always replace the lamp if any physical damage is evident.

5. Never install the fixture in an enclosed area lacking sufficient air flow; the ambient temperature should not exceed 45°C.

6. A hot lamp may explode. Always wait for at least 10 minutes to elapse after the unit has been turned off prior to attemp-

ting to replace the lamp.

Always wear suitable hand protection when handling lamps.

Protection rate against penetration by solids and liquids:

1. The projector is classified as ordinary appareil. Its protection rate against penetration by solid and liquid bodies is IP 20

3. Important safety informations

English

ProWash 575 LX utilizes a Philips 575 MSD or Philips 575 MSR/2 575W lamp with base GX 9,5.

The lamp is available for purchase through coemar:’s sale network

The fixture’s internal temperature can reach 250° C after 5 minutes with a maximum peak of 350° C; ensure that the lamp is

cold prior to attempting removal. The fixture should be allowed to stand and cool for 10 minutes prior to its removal.

The lamps are part of the mercury vapour family of discharge lamps and must be handled with great care. The lamps opera-

te at high pressure, and the slight risk of explosion exists if operated over their recommended lamp life.

We recommend, therefore, that the lamp be replaced within the manufacturer’s specified lamp life..

Installing the lamp

1) By means of a screwdriver, remove the 2 screws (A) affixing the lamp assembly, placed on the back of the fixture.

.2) Extract the lamp assembly (B)

3) Locate the lampholder (C)

Attention

Disconnect mains prior to opening up the unit.

Philips 575 MSD

coemar cod. 105215

power 575 w

luminous flux 43.000 lm

colour temperature 6000° K

base GX 9,5

approximate life 3000 ore

Philips 575 MSR/2

coemar cod. 105245/2

power 575 w

luminous flux 49.000 lm

colour temperature 7.200° K

base GX 9,5

approximate life 1000 ore

4. Lamp: Installation and replacement

English

4) Insert the new lamp.

The lamp is manufactured from quartz glass and should be handled with care; always adhere to the instructions supplied in

the lamp’s packaging. Never touch the glass directly, use the tissue provided in the lamp’s packaging. The GY 9,5 lampholder

is asymmetrical in construction, with one lamp pin larger than the other. DO NOT USE UNDUE FORCE. In case of difficulty,

inspect for physical damage and then repeat the installation procedure.

5) Slip the lamp assembly back into its slot and replace the 2 screws (A) previously removed.

Attention: we recommend to run a lamp alignment routine after every lamp replacement, to keep the dichroic filters inside

the fixture from overheating; Refer to chapter 13 of this manual for more detailed instructions.

English

The fixture can operate at 115-208, 230 or 240V .at 50 or 60 Hz; coemar usually selects (unless specific request is made),

tension at 230 V and frequency at 50 Hz. The selected voltage and frequency are barred on the print on the base of the fix-

ture, as shown in the picture below.

If this preset does not correspond with the conditions in your particular country of operation, follow the instructions in the

appropriate section of this manual: 16. Altering the operating voltage and frequency.

Incorrect frequency and voltage selection will detrimentally affect the operation of the projector.

100V 115V

208V 230V

240V

50Hz 60Hz

factory set

main at:

5. Operating voltage and frequency

English

mounting

ProWash 575 LX comes with four rubber feet mounted on the base, allowing it to stand on any kind of surface. It can be

installed both on the ground and upside down, hanging from the ceiling.

In case of suspended installation, we recommend the use of a proper structure, able to stand the weight of the unit.

Said structure, besides being sufficiently robust, must also not be affected by the slight oscillating movement provoked by

ProWash 575 LX while operating; provide therefore to make your trussing rigid enough.

The 2 mounting holes Ø13 mm (A) on the base of thei ProWash 575 LX allow the projector to be mounted by means of

c-shaped clamps.

safety chains

The use of a safety chain fixed to the ProWash 575 LX and to the primary suspension structure is highly recommended to

protect against the accidental failure, however unlikely, of the primary suspension point.

If using an aftermarket safety chain not manufactured by coemar, ensure that it is of a sufficient rating to hold the weight of

the unit.

The safety chain is attached by means of the two holes Blocated in the base of the unit as shown in the diagram.

movement

The projector has an articulated movement of 530° in the base and 284° through its yoke; DO NOT obstruct the articula-

ted movement in any way.

protection against liquids

The projector contains electric and electronic components that must not come into contact with water, oil, or any liquid.

risk of fire

Each fixture produces heat and must be installed in a well-ventilated position. The minimum recommended distance from

flammable material is: 0.5m. Minimum distance from the object being illuminated is: 2m.

forced ventilation

You will note that the projector’s housing contains several air entry points and fan outlets, positioned both on the head and

the base of the unit; under no circumstances should any of these points be obstructed!

Questo comporterebbe il surriscaldamento dell’apparecchio, con il rischio di comprometterne seriamente il funzionamento

Obstruction of any of these points will result in the over-heating of the unit, detrimentally and seriously affecting the proper

operation of the ProWash 575 LX.

ambient temperature

Do not install the fixture where there’s lack of a constant air flow; ambient temperature should never exceed 35°C.

485mm

19,10”

6. Installing the unit

English

cable preparation

The mains cable provided is thermally resistant, complying to the most recent international standards, approved by VDE and confor-

med to these following legislations: IEC 331, IEC 332 3C,CEI 20 35.

NOTA: In case of cable replacement, similar cable with comparable thermal resistant qualities must be used exclusively

(cable3x1,5, external ø 10 mm, rated 300/500V, tested to 2KV, operating temperature -40° +180°, coemar cod. CV5309).

mains connection

ProWash 575 LX can opearte at 115V-208V-230V-240V at 50 or 60Hz (the desired tension and frequency must be selec-

ted as described in paragraph 5 of this manual).

Prior to powering up the fixture, make sure the model you own matches the requirements of your mains supply

For connection purposes, ensure your plug is of a suitable rating:

at 230V, 8 amps

at 115 V.11Amps

Locate the mains cable which exits the base of the unit and connect as shown below:

protection

The use of a thermal magnetic circuit breaker is recommended for each ProWash 575 LX.

A good earth connection is essential for the correct operation of the fixture. Strict adherence to regulatory norms is strongly

recommended.

massa/ground

neutro/neutral

fase/live

marrone - brown

blu - blue

giallo/verde - yellow/green

alimentazione

main

7. Mains connection

English

Control signal is digital and is transmitted via two pair screened ø 0,5cable.

Signal type is DMX 512, conforming to international standard; in order to reduce production costs and to allow easy

worldwide availability of parts; coemar utilises XLR 3 plugs and sockets for signal connection. Pin connection conforms to

international standards:

pin 1= screening 0 V

pin 2= data -

pin 3= data +

In case your mixer uses XLR-5 plugs and sockets, pins number 4 and 5 must be left disconnected.

The conductors must not have any contact between them or the connectors’ metallic case.

NOTE: The XLR 3/5 cannon’s case must absolutely not be connected.

Controller

Standard

DMX 512

OUT

out

Ad altri ProWash 575 LX

Connect to other ProWash 575 LX

8. Connessione di segnale

English
