Coda LINUS System Manual de usuario

LINUS Live v.1.2.0 Beta

2017_01_20

LINUS System

Quickstart

Hadware Setup

PAN 8

INPUT A LINK A INPUT B LINK B ±1 AMP 1-A

±2 AMP 1-B

SENSOR 1+2 SENSOR 3+4

±1 AMP 2-A

±2 AMP 2-B

OUT 1 OUT 1+2 OUT 2

OUT 3 OUT 4

SENSOR 5+6 SENSOR 7+8

OUT 3+4

L I N E T

AES3 OVER ETHERNET

PRIM SEC IN OUT

DAN

ETHERNET L I N E T

POWER

ON OFF

ONOFF

PUSH

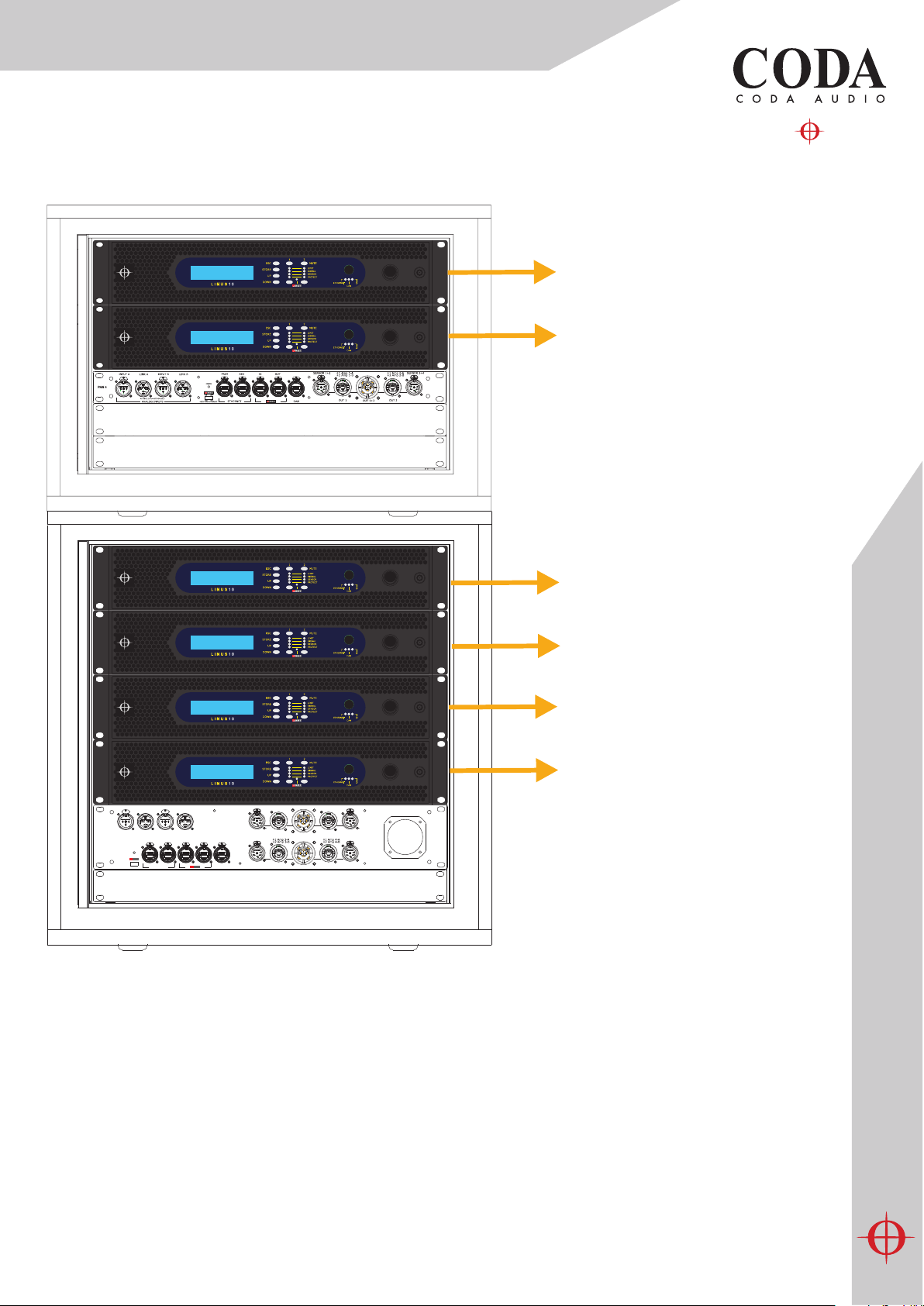

1. Verify Master - Slave configuration in LINUS Rack 20/40

Start the Rack configuration before any frontpanel connected cables!

Master

Slave

Master

Slave

Master

Slave

Linus10 Master #03

P 14:ViRAY-A

I 1_LF 1_HF

G 0.0 0.0

Linus10 Slave #03

P 14:ViRAY-A

I 1_LF 1_HF

G 0.0 0.0

Hadware Setup

PAN 8

INPUT A LINK A INPUT B LINK B ±1 AMP 1-A

±2 AMP 1-B

SENSOR 1+2 SENSOR 3+4

±1 AMP 2-A

±2 AMP 2-B

OUT 1 OUT 1+2 OUT 2

OUT 3 OUT 4

SENSOR 5+6 SENSOR 7+8

OUT 3+4

L I N E T

AES3 OVER ETHERNET

PRIM SEC IN OUT

DAN

ETHERNET L I N E T

POWER

ON OFF

ONOFF

PUSH

2. Module Number assignment

1# Master

1# Slave (follows)

2# Master

2# Slave

3# Master

3# Slave (follows)

(follows)

After selecting the Module Number on the Master unit and entered the command,

the Master Unit starts a device scan...and ends with a message „Device Found 1“

(this is the Slave unit). The Slave unit will automatically follow the Master unit.

Doublecheck the IP adress on the last page on the units displays.

Module No. 1 example- Master: xxx.xxx.xx.01/ Slave: xxx.xxx.xx.02

Module No. 2 example. Master: xxx.xxx.xx.11/ Slave: xxx.xxx.xx.12

Shutdown the complete rack and wait for 5min if the Master/ Slave IP-Address

structure is not in the right order and repeat the module number assignment

Network Setup

1. Configure Network Structure

Wire your racks with ethernet cables (PRIM/ SEC)

Example shows Daisy Chain Topology (other Network topologies possible)

PAN 8

INPUT A LINK A INPUT B LINK B

PRIM SEC IN OUT

DAN

ETHERNET L I N E T

PUSH

LINUS Rack 20

LINUS Rack 40

Set Static IP:

IP:192.168.1.20

SN: 255.255.0.0

Network Setup

2. Scan Network

Start LINUS Live and Press

Device Scan process will start:

You will find a clear indication of available units in the network.

If the Scan result do not match with your hardware, check

the setup of devices and network mentioned previously.

Master Module Number (#1)

IP:xxx.xx.xx.01

Slave

IP:xxx.xx.xx.02

Example shows the initial connection of devices.

LINUS Live includes a new FirmWare Version

Software Setup

1. Scan Network/ Update

Start LINUS Live and Press

The Device Scan process window informs you about a new

(in Linus Live implemented) FirmWare for the scanned devices

You now need to upload the FirmWare of the connected devices!

Press „Add“ to include all modules into the setup space

(Step 2. on next page)

Software Setup

2. Firmware Update

-Select all modules (from the same type)

-Press „Firmware“ and „Upload Firmware“

Wait until the Firmware Upload is completed!

LINUS Live will close and LINUS 10 will reboot automatically after

the Firmware update has been completed.

Note!

Do not update more than 8x LINUS10 Units at any one time!

1. 2.

Software Setup

3. Scan Network/ Update

Start LINUS Live and Press

The Device Scan process window informs you about a new

(in Linus Live implemented) Preset Library for the scanned devices

You now need to upload the Preset Library of the connected Devices!

Press „Add“ to include all modules into the setup space

(Step 4. on next page)

Software Setup

4. Library Update

-Select all modules (from the same type)

-Press „Library“ and „Upload Library“

Wait until the Library Upload is completed!

LINUS Live will close automatically after the Library Update

has been completed.

1. 2.

Software Setup

5. Updated Environment

Start LINUS Live and Press

The Device Scan process window informs you about an updated

Device environment

You can start now with LINUS Live operation.

Please refer to the „LINUS Startup“ manual for further information
