COBHAM Sailor 500 FleetBroadband Manual de usuario
SAILOR 500 FleetBroadband
Installation and user manual
Dual Antenna Solution
98-138669 SAILOR 500 FleetBroadband Dual Antenna Solution_Cover.indd 1 09-04-2013 10:33:41
98-138669 SAILOR 500 FleetBroadband Dual Antenna Solution_Cover.indd 2 09-04-2013 10:33:41
i
SAILOR 500 FleetBroadband
Dual Antenna Solution
Installation and user manual
Document number: 98-138669-B
Release date: March 20, 2015
ii
Disclaimer
Any responsibility or liability for loss or damage in connection with the use of this
product and the accompanying documentation is disclaimed by Thrane & Thrane
A/S. The information in this manual is provided for information purposes only, is
subject to change without notice and may contain errors or inaccuracies. Manuals
issued by Thrane & Thrane A/S are periodically revised and updated. Anyone relying
on this information should acquire the most current version e.g. from
www.cobham.com/communications-and-connectivity/satcom, Service and
support, or from the distributor.Thrane & Thrane A/S is not responsible for the
content or accuracy of any translations or reproductions, in whole or in part, of this
manual from any other source. In the event of any discrepancies, the English version
shall be the governing text.
Thrane & Thrane A/S is trading as Cobham SATCOM.
Copyright
© 2015 Thrane & Thrane A/S. All rights reserved.
Trademark acknowledgements
•Inmarsat is a registered trademark of the International Maritime Satellite
Organisation (IMSO) and is licensed by IMSO to Inmarsat Limited and Inmarsat
Ventures plc.
•SAILOR is a registered trademark of Thrane & Thrane A/S in the European Union,
the United States and other countries.
• Other product and company names mentioned in this manual may be trademarks
or trade names of their respective owners.
iii
Safety summary 1
The following general safety precautions must be observed during all
phases of operation, service and repair of this equipment. Failure to
comply with these precautions or with specific warnings elsewhere in this
manual violates safety standards of design, manufacture and intended
use of the equipment. Thrane & Thrane A/S assumes no liability for the
customer's failure to comply with these requirements.
GROUND THE EQUIPMENT
To minimise shock hazard, the equipment chassis and cabinet must be
connected to an electrical ground and the cable instructions must be
followed.
DO NOT OPERATE IN AN EXPLOSIVE ATMOSPHERE
Do not operate the equipment in the presence of flammable gases or
fumes. Operation of any electrical equipment in such an environment
constitutes a definite safety hazard.
KEEP AWAY FROM LIVE CIRCUITS
Operating personnel must not remove equipment covers. Component
replacement and internal adjustment must be made by qualified
maintenance personnel. Do not service the unit with the power cable
connected. Always disconnect and discharge circuits before touching
them.
DO NOT SUBSTITUTE PARTS OR MODIFY EQUIPMENT
Because of the danger of introducing additional hazards, do not
substitute parts or perform any unauthorised modification to the
equipment.
COMPASS SAFE DISTANCE
For Dual Antenna Control Unit: 20 cm
iv
About the manual 2
Intended readers
This manual is primarily an installation manual for the
SAILOR 500 FleetBroadband Dual Antenna Solution. The
manual is intended for installers of the system and service
personnel. Personnel installing or servicing the system must be
properly trained and authorised by Cobham SATCOM. It is
important that you observe all safety requirements listed in the
beginning of this manual, and install the system according to the
guidelines in this manual.
See also the user manual and installation manual for the
SAILOR 500 FleetBroadband system. Related manuals are listed
below.
Related documents
The below list shows the documents related to this manual and
to this product.
The manuals can be found in the Self Service Center at
www.cobham.com/communications-and-connectivity/satcom
under Service and Support.
Ref. Title and description Document
number
[1] SAILOR 500/250 FleetBroadband,
User manual
98-125645
[2] SAILOR 500/250 FleetBroadband,
Installation manual
98-125646
[3] IP Handset, User manual 98-126059
v
Table of contents
Chapter 1 Introduction
Purpose of the SAILOR 500 FleetBroadband
Dual Antenna Solution ....................................................................... 1
Units in the dual antenna solution ............................................... 2
Chapter 2 Installation
To unpack the Dual Antenna Control Unit ...............................7
To install the Dual Antenna Control Unit ..................................8
Outline drawing, DACU ................................................................... 12
Outline drawing, cabinet for rack mount ............................... 13
To install the SAILOR 500 FleetBroadband systems ........ 15
Chapter 3 Configuration
To configure the dual antenna solution ................................. 17
To configure the slave terminal .................................................. 17
To configure the master terminal .............................................. 19
To check the dual antenna function ........................................ 20
To select antenna switchover ..................................................... 23
To configure blocking zones ........................................................ 25
Chapter 4 Connecting cables
To connect the SAILOR 500 FleetBroadband
Dual Antenna Solution .................................................................... 32
DACU Connector overview .......................................................... 34
Power (X2) ............................................................................................. 35
Table of contents
vi
NMEA0183 input (X3) ..................................................................... 36
LAN interface (X6) ............................................................................. 39
To ground the Dual Antenna Control Unit ............................ 40
Cable requirements ........................................................................... 40
Chapter 5 Service
To update software .......................................................................... 41
Status signalling .................................................................................. 44
To return units for repair ................................................................ 46
To repack for shipment .................................................................. 46
Part numbers ........................................................................................ 47
App. A Specifications
General specifications for the DACU ....................................... 49
Glossary ..................................................................................................................... 51
Index ..................................................................................................................... 53
1
Chapter 1
1111
Introduction
Introduction 1
Purpose of the SAILOR 500 FleetBroadband
Dual Antenna Solution
When your SAILOR 500 FleetBroadband antenna cannot obtain full line of
sight to the satellite, e.g. because of blocking objects on board the ship, you
can use a dual antenna solution. The purpose of the dual antenna solution is
to obtain full line of sight with a combination of two SAILOR 500
FleetBroadband systems.
The system works as one system, where the master terminal is the main
unit containing the SIM card, controlling the system and connecting to user
equipment.

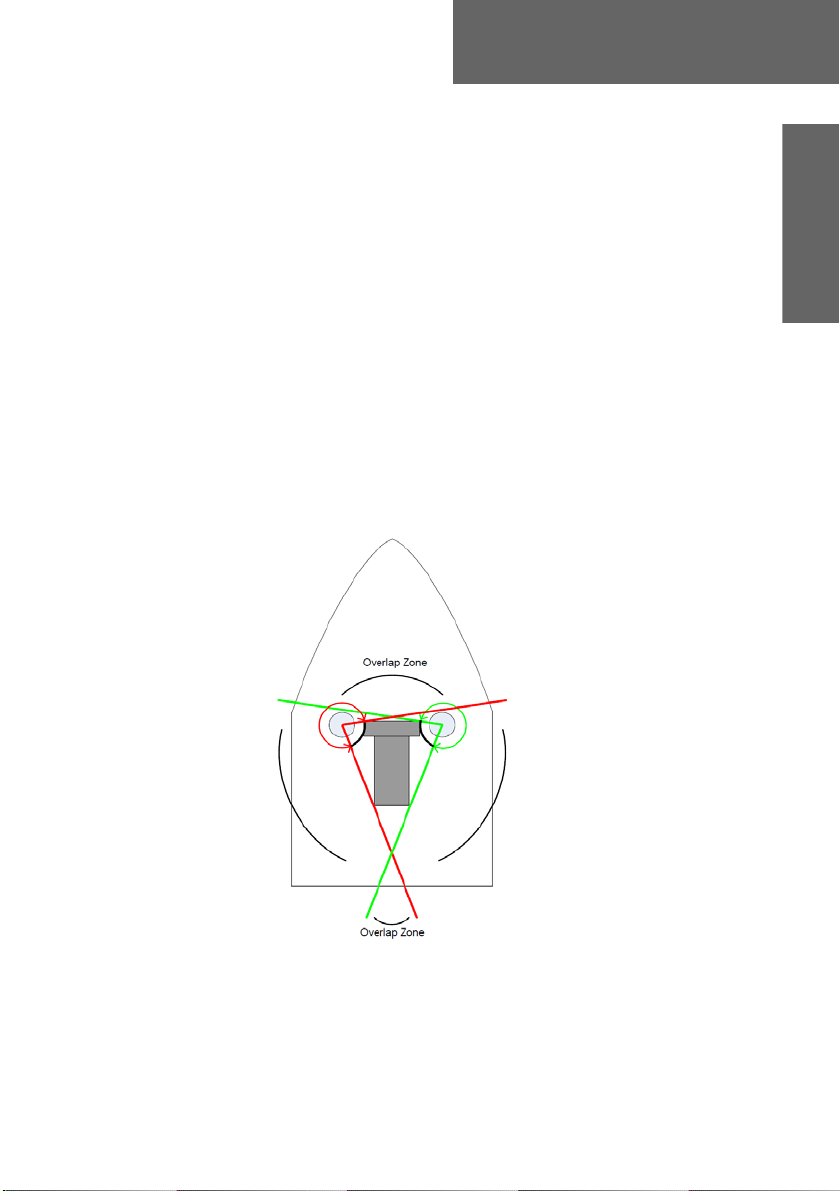

The two antennas in the system must be placed so that they cover as much
as possible of each other’s blocking zones. The SAILOR 500 FleetBroadband
Dual Antenna Solution offers automatic switch-over between the two
antennas in order to obtain the best possible coverage.
AB
Blocking zone
for antenna B
Blocking zone
for antenna A
Chapter 1: Introduction
2 Units in the dual antenna solution
Units in the dual antenna solution
A dual antenna solution consists of the following units:
• Two SAILOR 500 FleetBroadband terminals (master and slave)
• Two SAILOR 500 FleetBroadband antennas (A and B)
• An IP Handset (optional - included with the SAILOR 500
FleetBroadband terminals)
• One SAILOR FleetBroadband Dual Antenna Control Unit (DACU)
Master terminal
SAILOR FleetBroadband
SAILOR 500 SAILOR 500
IP Handset
FleetBroadband
antenna A
FleetBroadband
antenna B
SAILOR 500
FleetBroadband
Slave terminal
SAILOR 500
FleetBroadband
Dual Antenna Control Unit
(Cabinet for rack mount is optional)
