Co2meter IAQ MAX Manual de usuario

Table of Contents

Product Overview..........................................................3

Device Features.............................................................3

Considerations...............................................................3

Product Specifications/Content...................................4

Start Up Instructions.......................................................5

+RPH6FUHHQ'LVSOD\...................................................6

CO2 Table Display........................................................7

Settings Display............................................................8

Charging.......................................................................9

Calibration....................................................................9

Data Log Download Procedure...........................10-12

Maintenance/Support...............................................13

Data Logging Setup....................................................10

1. Product Overview

The IAQ MAX CO2 Monitor and Data Logger is designed to

detect ambient Carbon Dioxide (CO2),Temperature

(TEMP), Humidity (HUM) and Barometric Pressure

(BARO) by enhanced sensing technologies and precise

monitoring; all from a sleek, modern, digital LCD display.

2. Device Features

-Large, easy to read LCD display with CO2 3-color code

indicator for GOOD, OK, or POOR air quality levels in real

time

-NDIR CO2 sensor for fast, accurate measurements

-Visual alarm indication

-Built-in data log display table and

downloadable software

-Fresh air calibration

-Powered by USB or Rechargeable Lithium-Ion batteries

-Clean, Modern Desktop Design

3. Considerations

Please read the instructions carefully before using this

device.

Avoid covering the air intake areas located on the back of

the device during use, to avoid inaccurate measurements.

(See page 5 - #4)

Please keep the manual handy for quick reference and

troubleshooting, or visit www.co2meter.com for easy

manual and documentation download. 3

4.3” LCD screen display

CO2 Method : Infrared (NDIR)

CO2 Range: 0 - 5000 ppm

CO2 Resolution: 1 ppm

CO2 Accuracy: ± (50ppm + 5% reading value)

Sampling Time: 1.5 seconds

Temperature (TEMP): -50°F to 122°F

Humidity (HUM)

20% - 85%

Barometric Pressure (BARO): 860hpa - 1060hpa

Storage Temperature: 14°F to 140°F

Data Logging Record: 10 min. intervals (default)

Power source: Lithium battery with 3000 mAh capacity

Battery Life: 5 hours

5V DC power charging via micro USB port

Product Size: 5.7 x 3 x 3.8 in

Product Weight: 0.46 lbs.

Product Specifications

5. Product Content

-IAQ MAX CO2 Monitor and Data Logger

-USB Cable

-Instruction Manual

- Arrows are used to scroll between display modes

Instructions

Power / OK / Menu Button: se to

confirm highlighted

options

When you hold down the center power button the air

quality monitor will boot up. The IAQ MAX detector will

proceed through its warm-up sequence for about 3

minutes to allow sensors to settle in fresh ambient air.

This is necessary for accurate and precise results.

1) Carbon Dioxide ( CO2)

display area, and 3-color code

indication showing the current

CO2 level.

2) Temperature (TEMP) display

area, showing the current

temperature level.

3) Humidity (HUM) display area,

showing the current humidity

level.

4) Barometric Pressure (BARO)

display area, showing the

current air pressure level.

CO2 Indoor Air Quality Grade Range

Air Quality

Level CO2 Value (PPM) Color Code

Green

Yellow

Red

Good

Poor

0-799

800-1499

≥1500

Home Screen Display

GOOD OK POOR

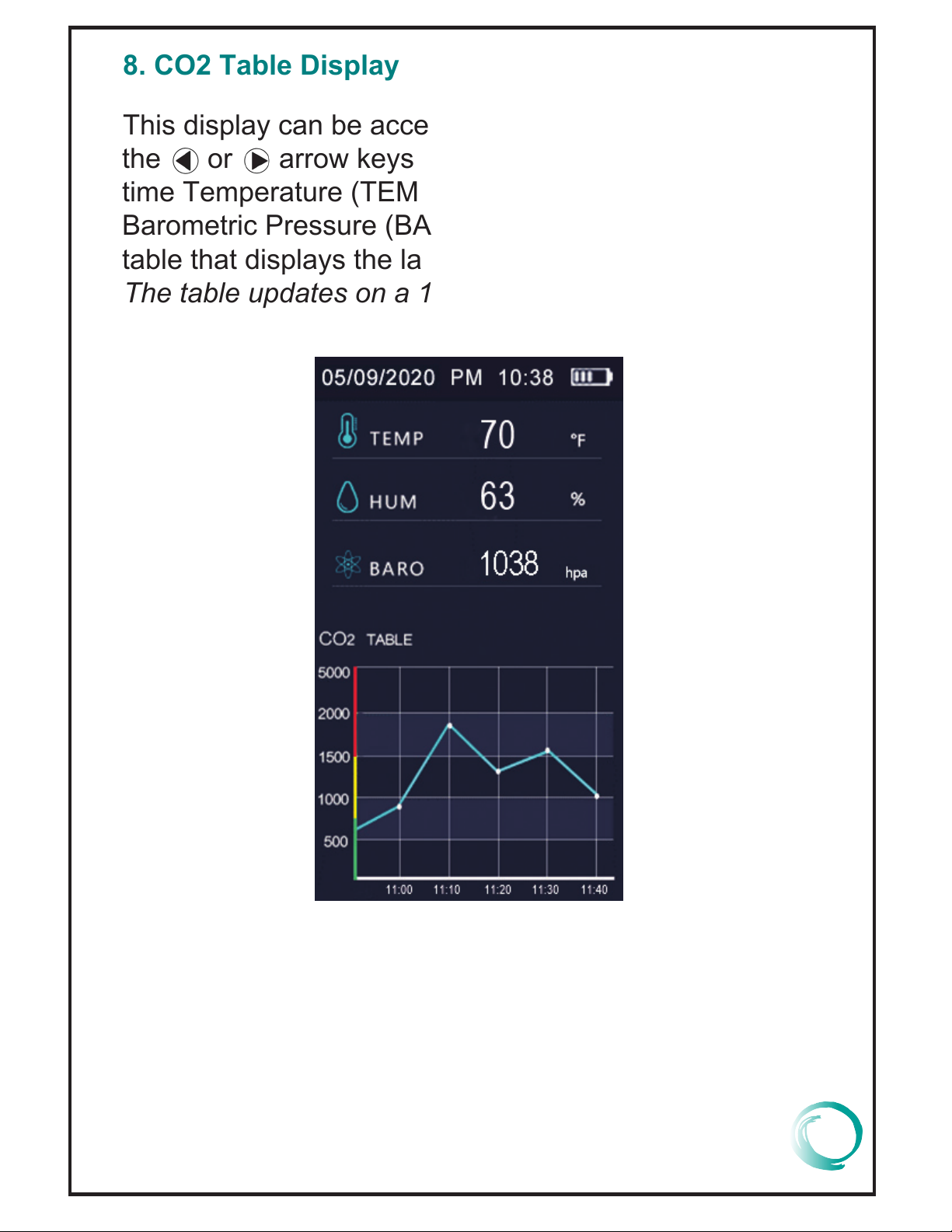

8.CO2 Table Display

This display can be accessed by simply clicking either

the or arrow keys on the back of the device. Real

time Temperature (TEMP), Humidity (HUM), and

Barometric Pressure (BARO) are shown in addition to a

table that displays the last hour of CO2 readings.

The table updates on a 10 minute interval.

In order to download a comprehensive data set for

further analysis, see section 13 - Data Log Download

Procedure. Visit us at, CO2Meter.com/pages/

downloads to download the free Gaslab Data

Logging Software Setup file to your Windows PC. 7

9. Settings Display

To view the settings display screen and alter date, time,

temperature, interval or calibration simply double click on

the center button. The button can then be used to

scroll through each setting. Use the and arrow

buttons to adjust the highlighted setting. It will save each

setting automatically.

SET UP MENU

DATE- User set date

TIME- User set time

UNIT- Choose °F or °C for

Temperature

INVL- Data logging interval

selection. 1 min, 5 min, 10

min, 30 min, 60 min

CAL- (on/off) User has the

ability to turn the auto

calibration on/off

TEMP – Temperature

adjustment allows user to

adjust for temperature drift

VER – Version number

10. Charging

When the battery icon is displayed with one bar, the device needs

to be charged.

Insert the included or another compatible micro USB charging

cable into the device.

Attach the other end to a USB DC charger (such as a smart phone

charging port) that outputs DC 5V at >=1000mA. Fully charge for

at least 2-3 hours before use. Avoid charging with a USB

computer port which only outputs 500mA, as this will provide a

much slower charge.

11.Calibration

The IAQ MAX has two different CO2 calibration methods.

1) Auto Calibration - calibrated using ambient air.

Ensure the CAL is "on" in the setup menu.

2) Ambient Air Calibration - to calibrate, place the device

outside for 3-5 minutes and allow the CO2 reading to

level out before calibration.

*Press and hold the and you will slowly see the CO2 level

adjust to 400ppm. (Please note, you can also adjust

Temperature (TEMP) from the Set Up Screen.)

1. Download the GasLab Software, at

https://www.co2meter.com/pages/downloads

2. Plug in the IAQ-MAX to the PC with provided USB

cable and ensure connection

3. Open the GasLab Data Logging Software and select

the IAQ Max Product, or IAQ Series and MAX Model

from the GasLab Software drop downs, under

"Sensor Select" and Click CONNECT

12.Data Logging Setup

The device will begin to data log upon power up. The

data logging interval can be set to 1 min, 5 min, 10 min,

30 min, or 60 min. Please note: The data log file will

only hold one month of data. After 30 days, the oldest

data will then begin to be overwritten with new data

points.

13.Data Log Download Procedure
